Reinforcement 4mm Ms Box And Pan Cnc Sheet Metal Bending Machines For Steel Plate Sale
- Category: >>>
- Supplier: Maanshan Haas International Trading Co. Ltd.
Share on (1600306354598):
Product Overview
Description

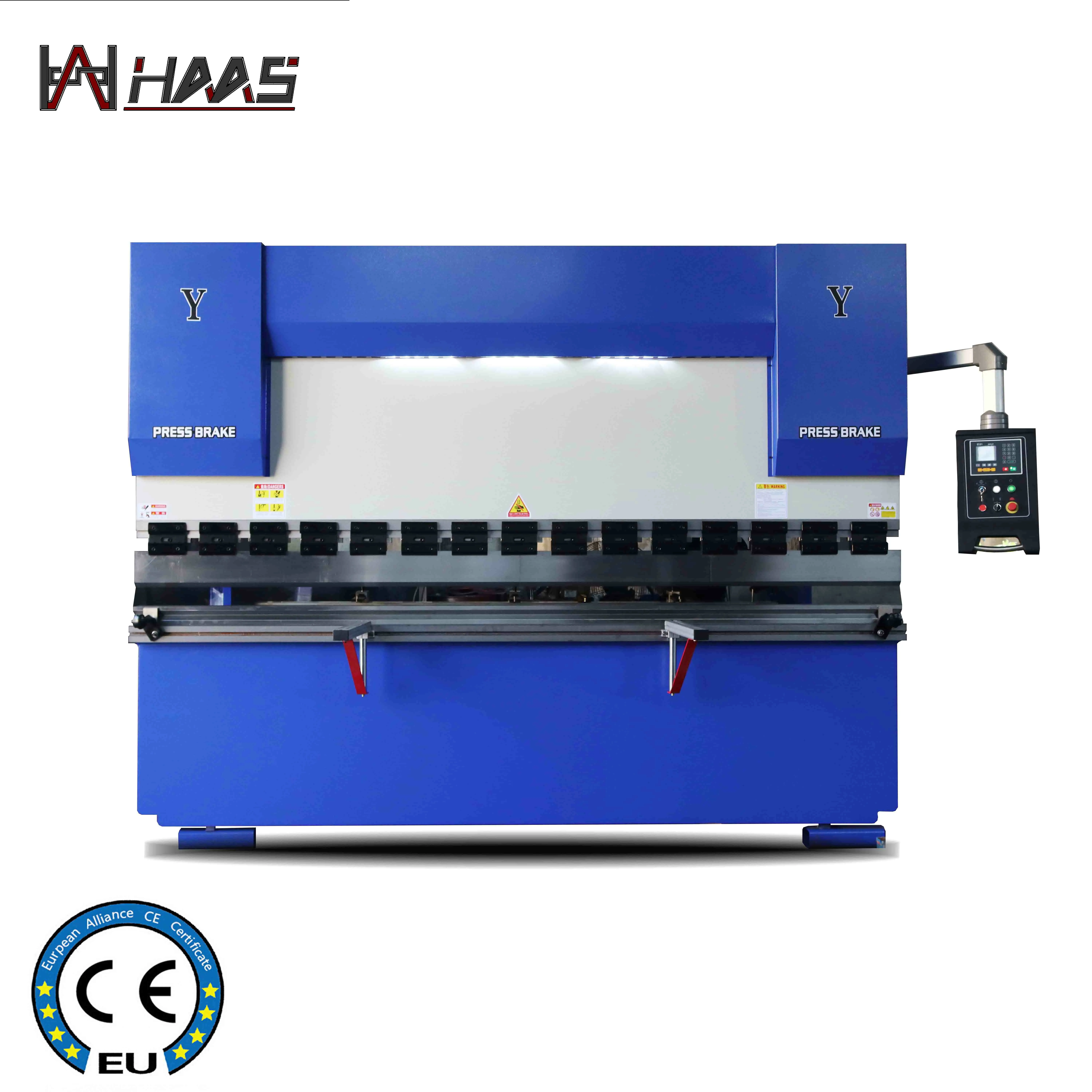

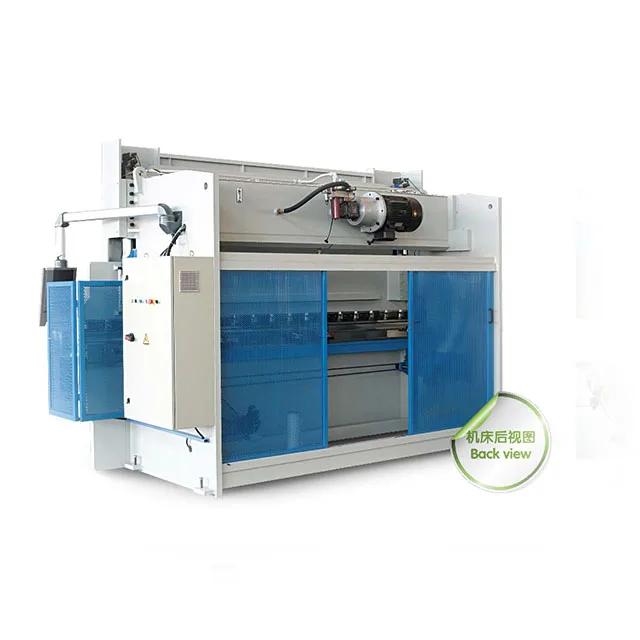

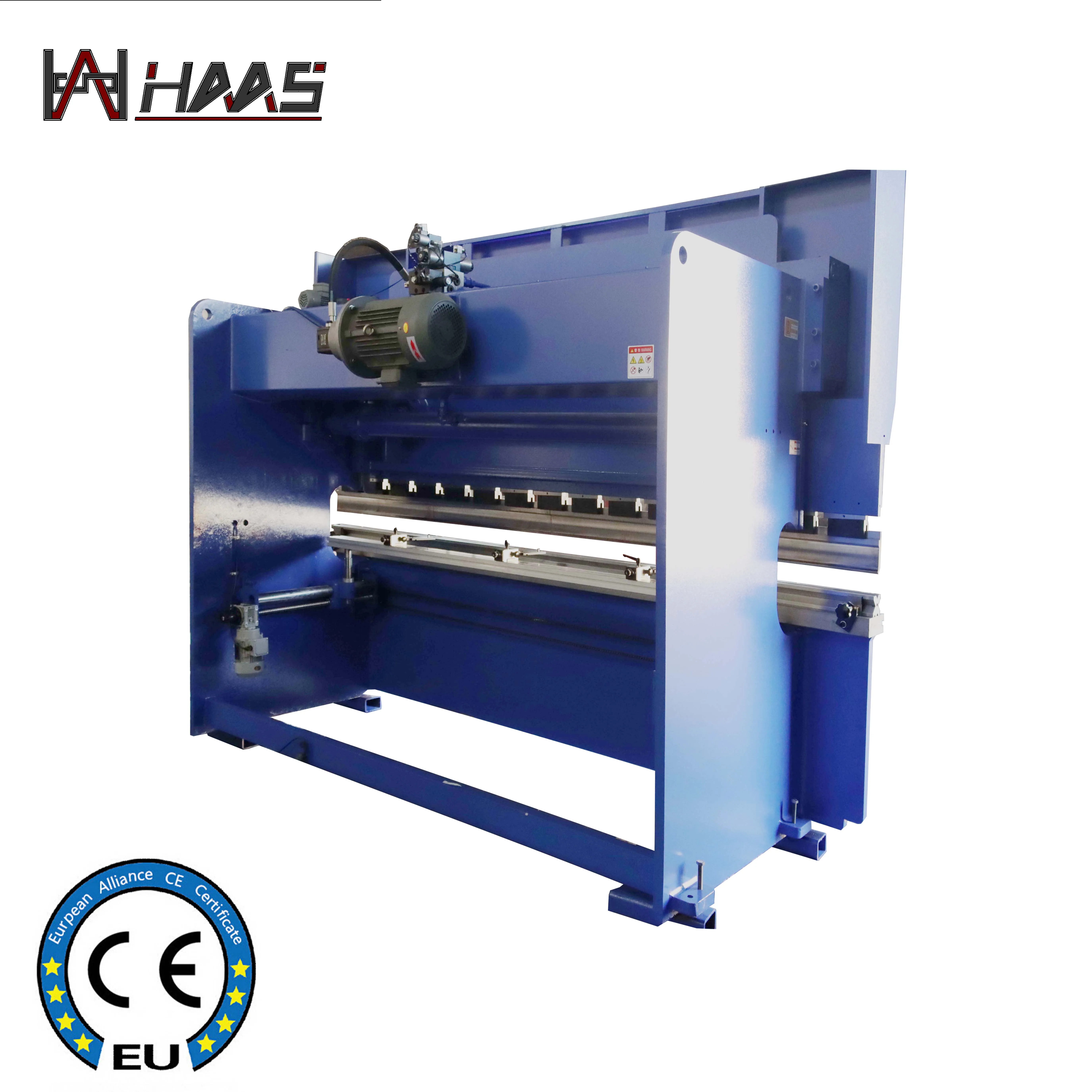

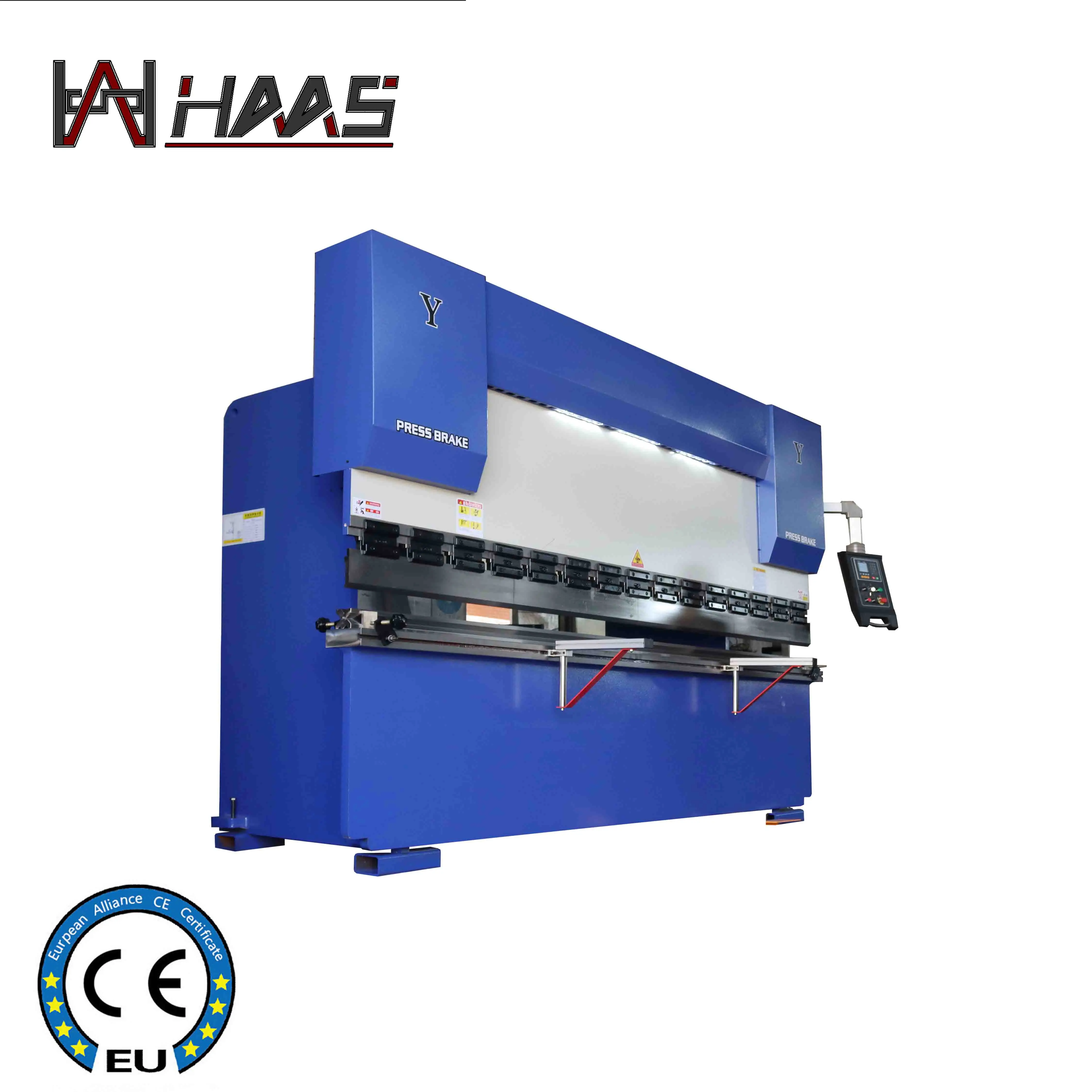

HAAS 80T/3200 NC Press Brake
This machine is an economical CNC bending machine. Equipped with TP10S numerical control system, it can realize the automatic operation of multi-step programs, continuous positioning, and automatic and precise adjustment of the position of the back gauge and slider. Bending counting function, real-time display of the processing volume, memory of the position of the back gauge slider, programs and parameters after power off, the back gauge adopts imported ball screws to ensure the position accuracy of the back gauge and higher processing accuracy.
Technical Parameters
Model | 80T/3200 | |||||
Nominal pressure | KN | 800 | ||||
Working table length | mm | 3200 | ||||
Throat depth | mm | 320 | ||||
Slide stroke | mm | 100 | ||||
Maximum opening height | mm | 350 | ||||
Main Motor Power | KW | 7.5 | ||||
Machine weight | T | 4.7 | ||||
Dimensions | mm | 3200*1500*2300 | ||||
CNC system | E21 | |||||

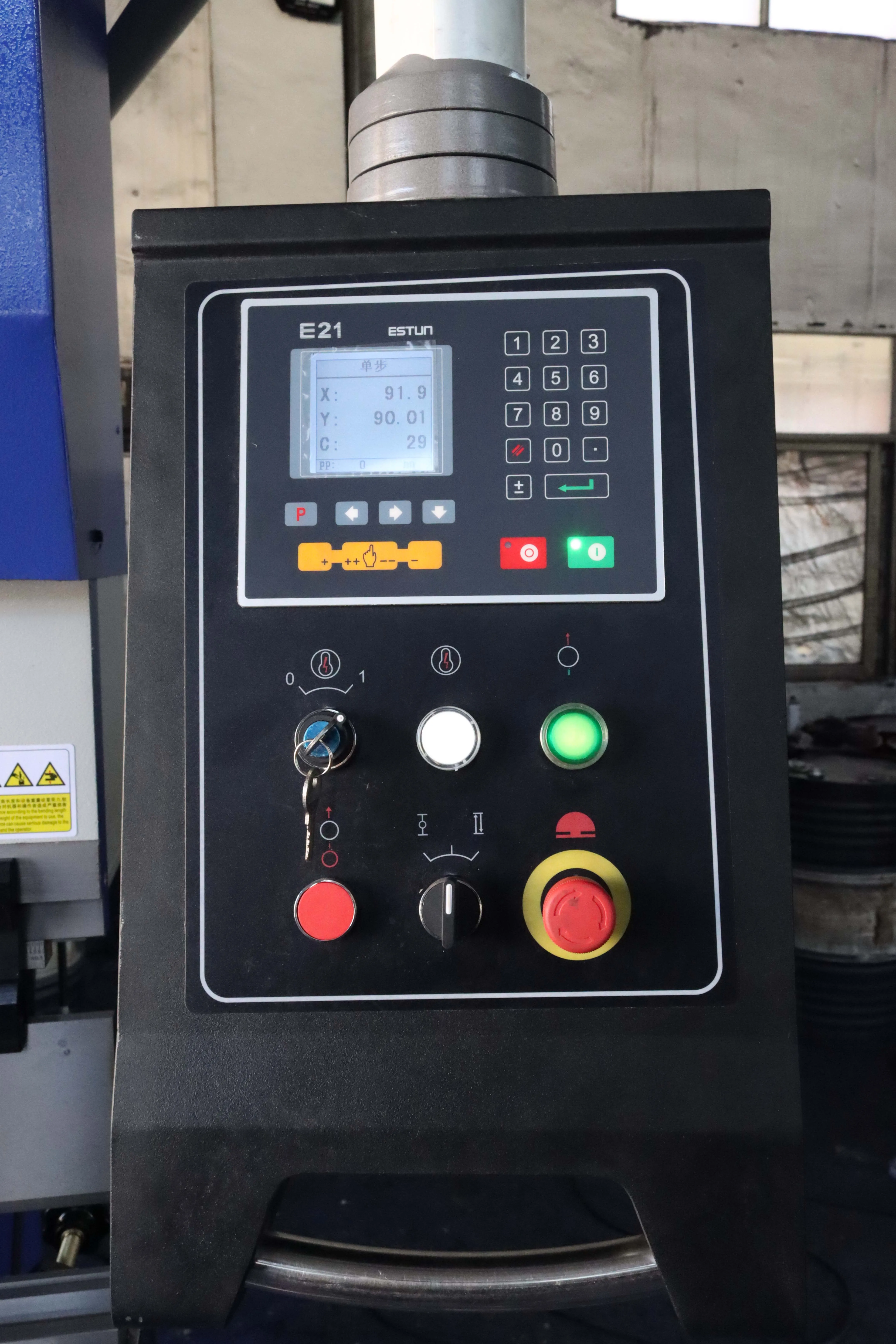

CNC system
E21 NC System
1. Intelligent positioning function.
2.40 multi-step program storage space, each program has 25 steps.
3. Automatic search reference point function.
4. One-key parameter backup and restore function.
Detailed description

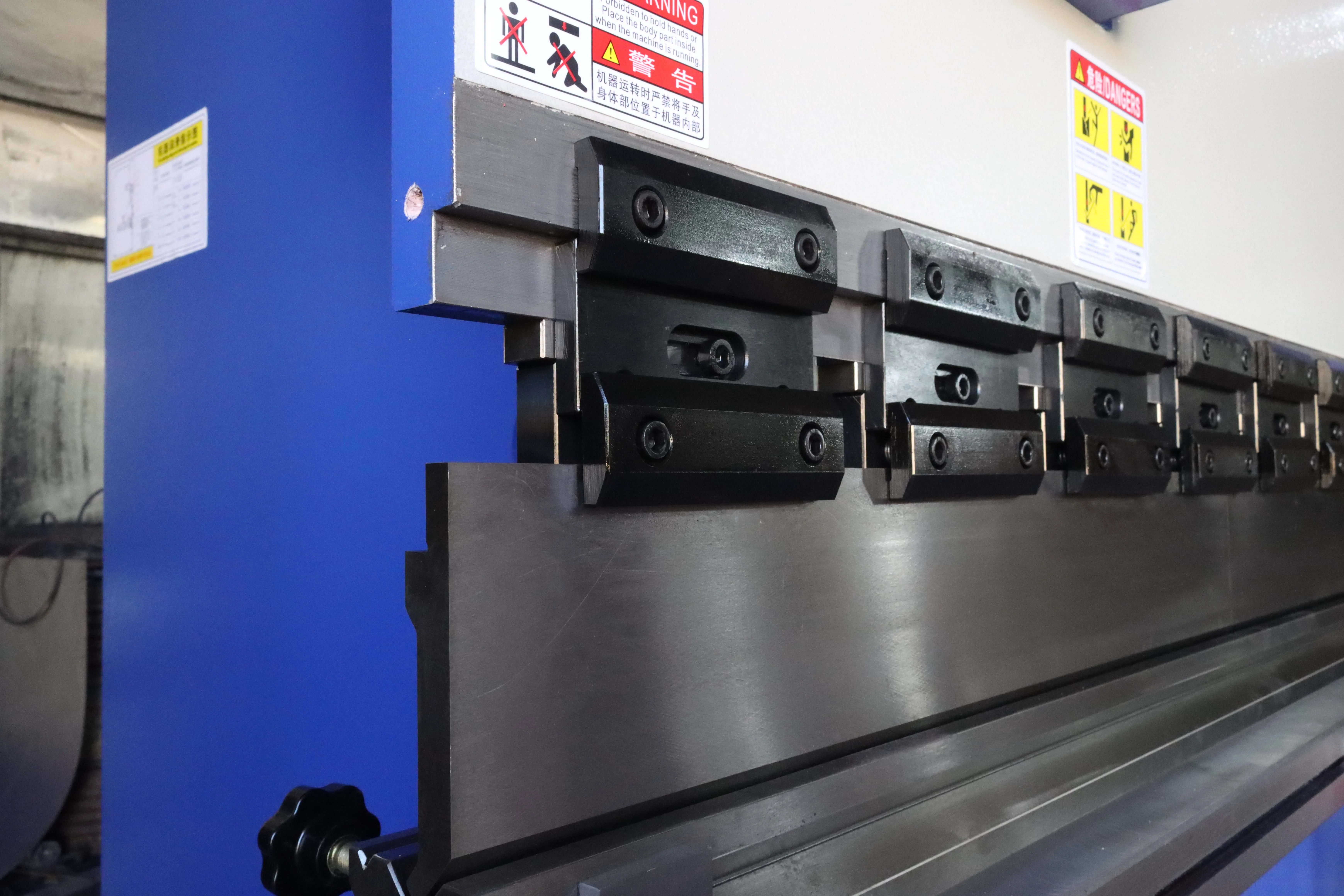

ordinary clip
This machine uses ordinary clamps and uses hexagonal bolts to fix the mold to avoid subtle deviations in the mold during processing and affect the accuracy of the processing.

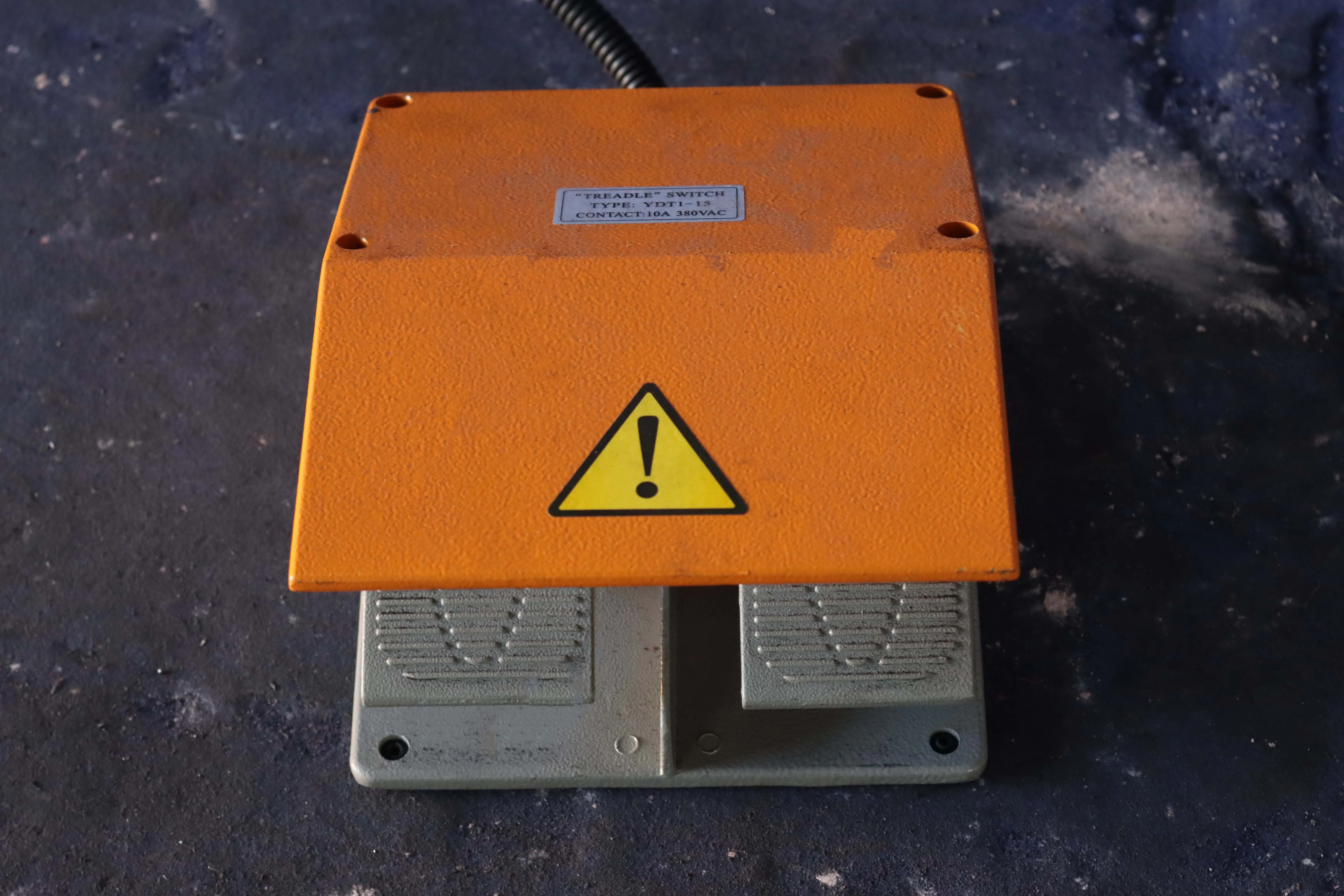

Ground pedal
This machine uses a movable floor pedal, which has the advantage of processing larger length workpieces. The ground pedal can be moved at any time to adjust a more comfortable processing posture.

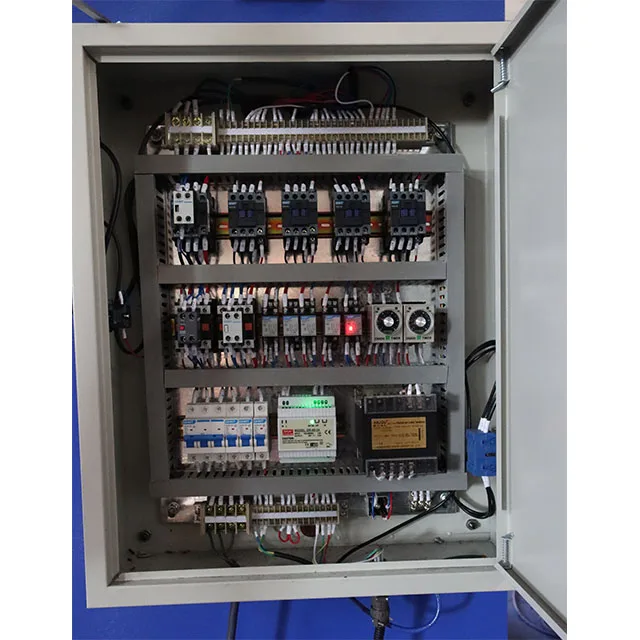

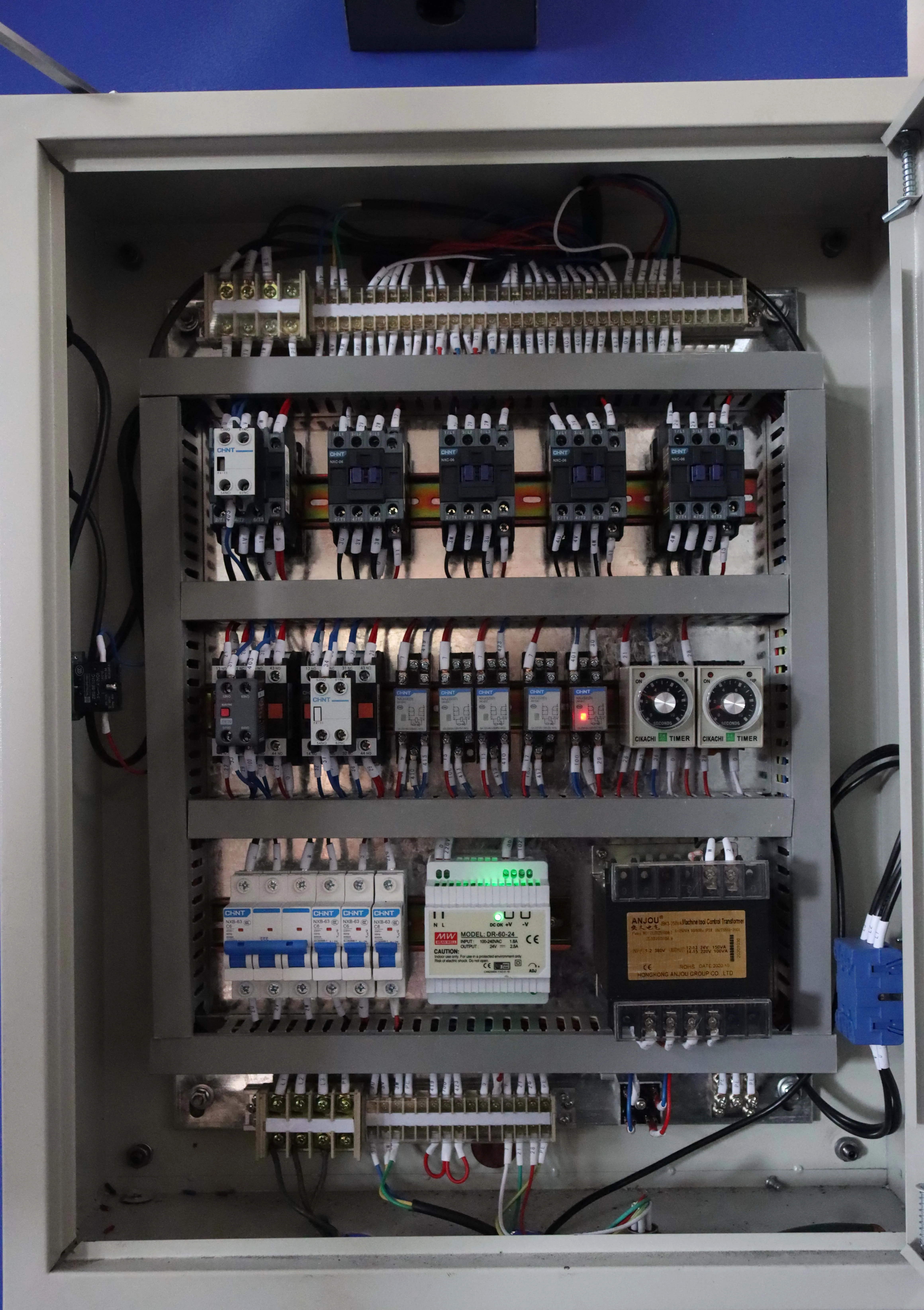

Electrical components
Using electrical components produced by the famous French company Schneider, it is stable, safe and of good quality.

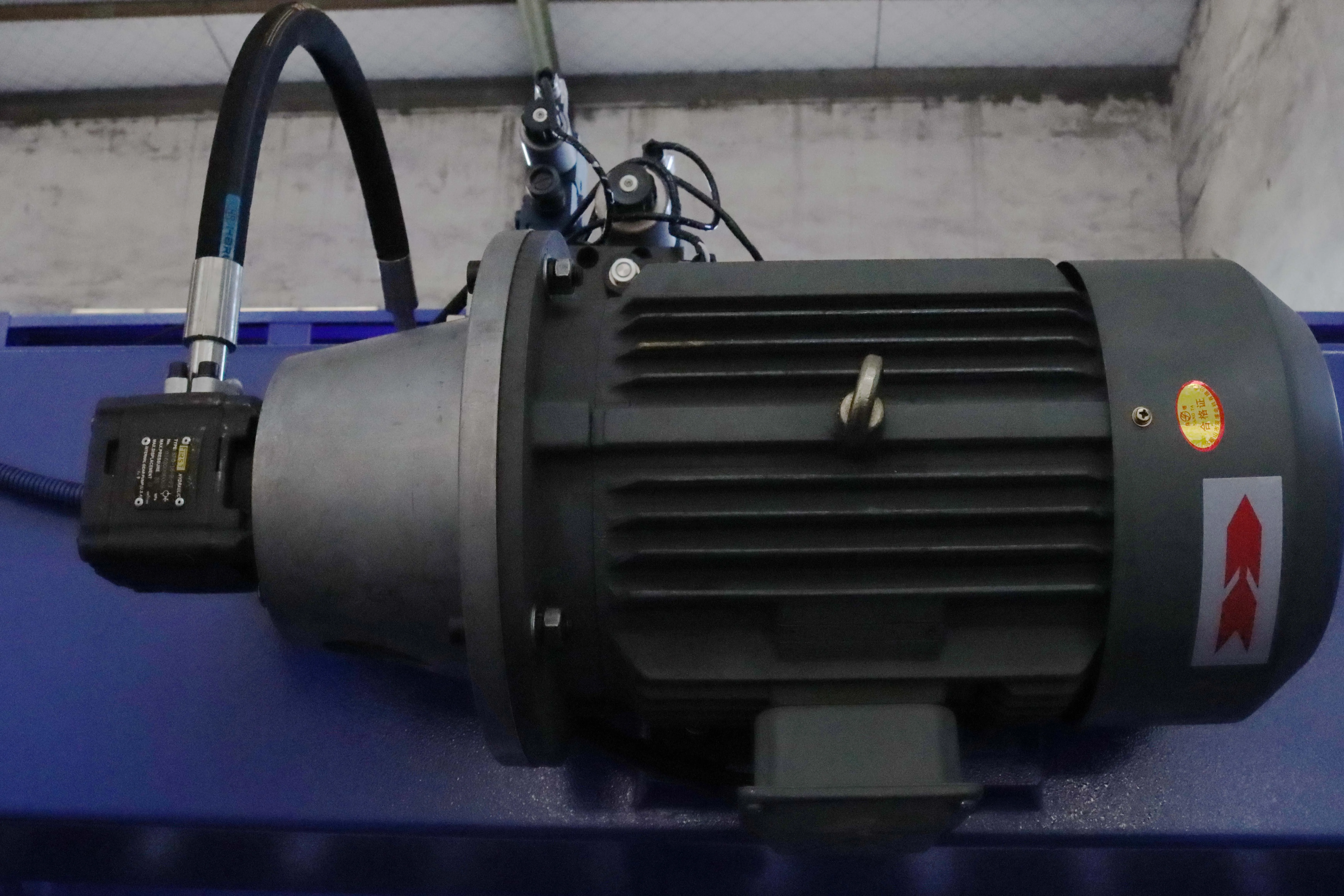

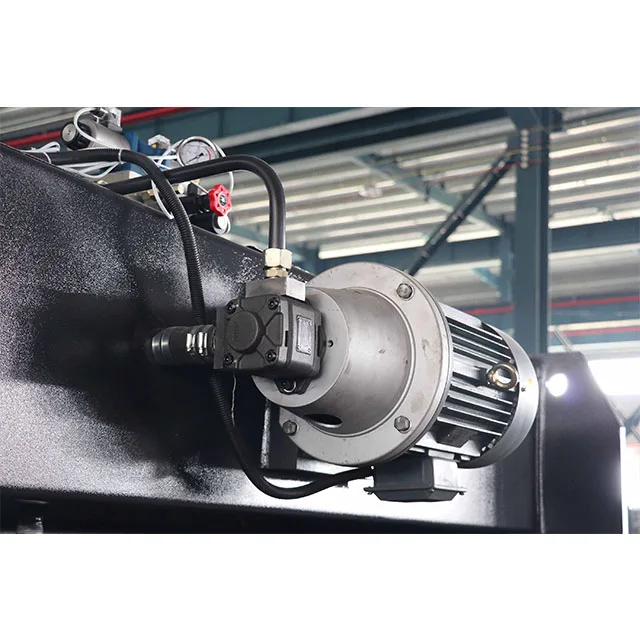

Oil pump motor
Using the three-phase asynchronous motor of China SANGTA Company, it has simple structure, reliable operation, light weight and good quality.

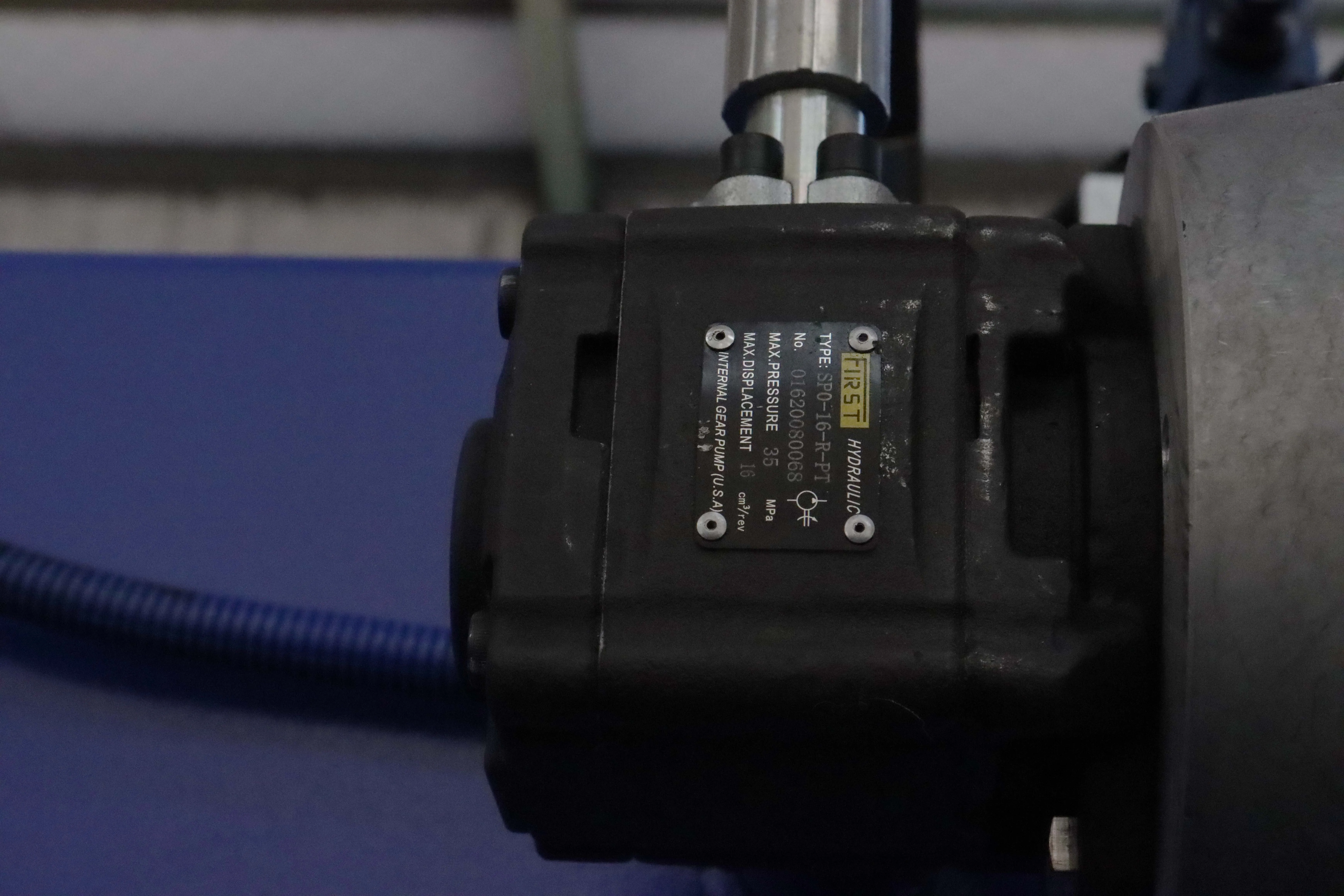

Oil pump
Adopt the oil pump made by the US SUNNY company.
Adopt the oil pump made by the US SUNNY company.
The advantages of SUNNY oil pump are low noise, small flow and pressure fluctuation, stable flow and pressure output at low
speed, insensitive to oil pollution, long service life .
speed, insensitive to oil pollution, long service life .

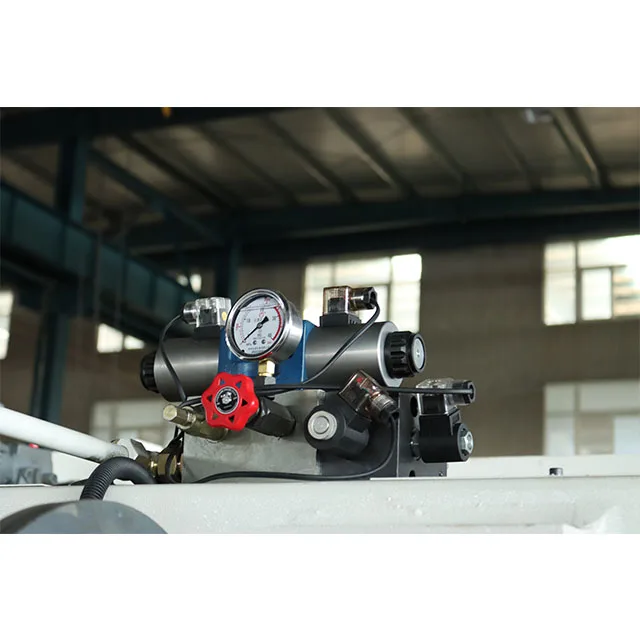

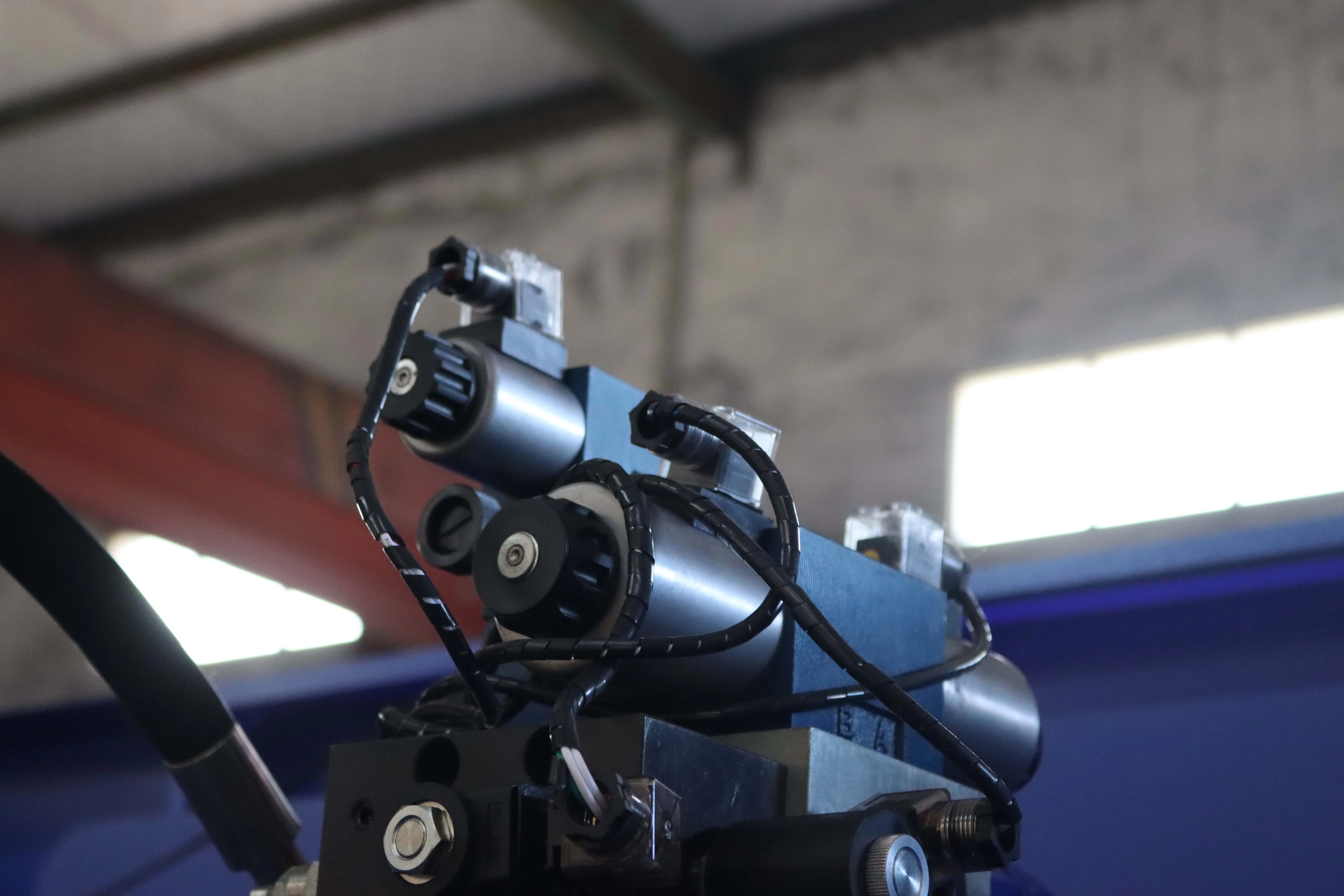

Solenoid Valve Group
This Machine adopts the German Rexroth solenoid valve group. The advantage of the solenoid valve group is that the external
leakage is blocked, the internal leakage is easy to control, the use is safe, the system is simple, the power is small, and it can
be connected to the computer.
This Machine adopts the German Rexroth solenoid valve group. The advantage of the solenoid valve group is that the external
leakage is blocked, the internal leakage is easy to control, the use is safe, the system is simple, the power is small, and it can
be connected to the computer.

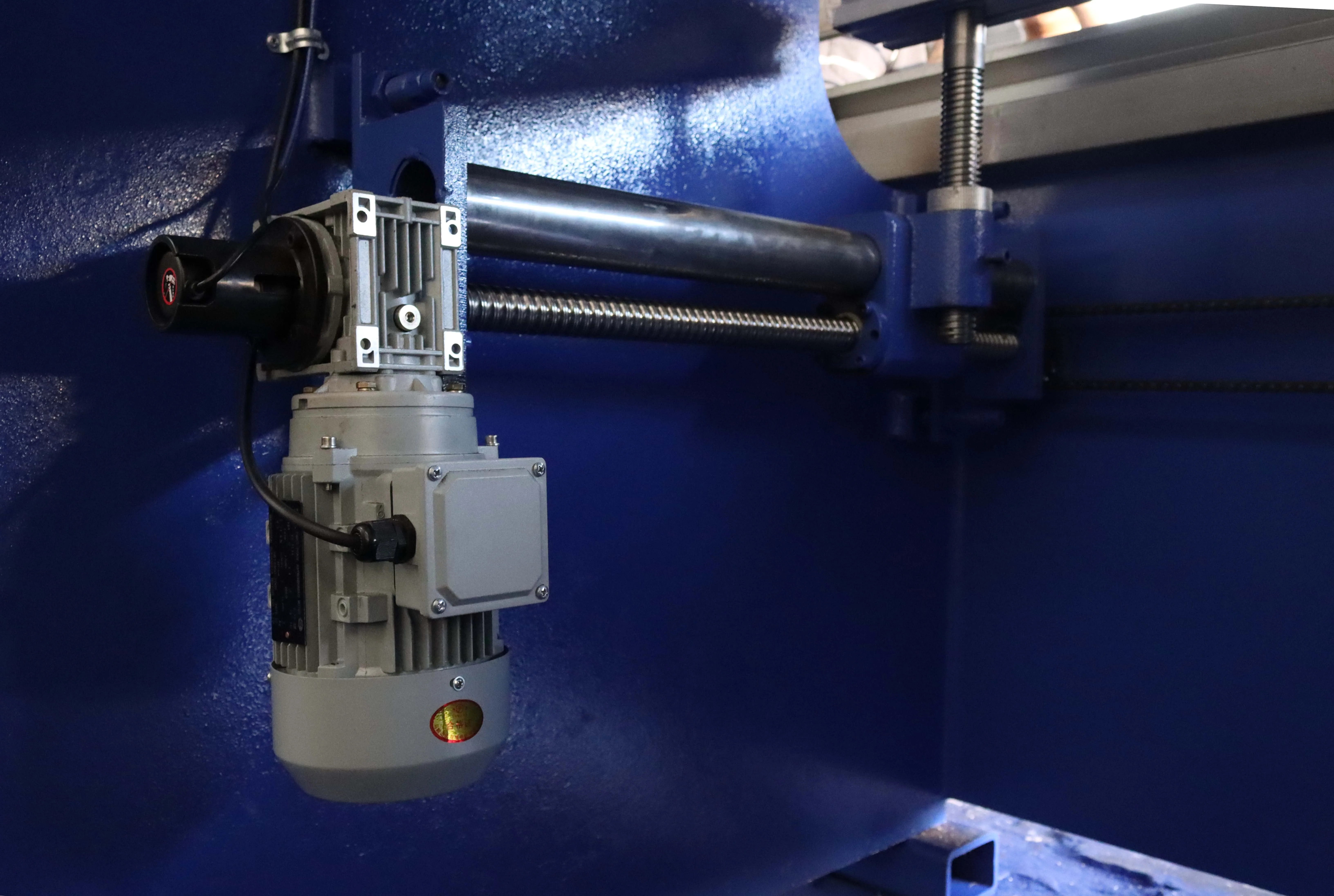

Ball screw and optical axis guide
This machine is equipped with ball screws and optical axis guides. Advantages of using ball screws and optical axis guides It can reduce the driving torque, improve the transmission efficiency and ensure the positioning accuracy.
This machine is equipped with ball screws and optical axis guides. Advantages of using ball screws and optical axis guides It can reduce the driving torque, improve the transmission efficiency and ensure the positioning accuracy.
Configuration information
Serial number | Name | Manufacturer | ||||
1 | Control System | China(E21) | ||||
2 | Internal gear pump | United States（sunny） | ||||
3 | Hydraulic system | Germany（Rexroth） | ||||
4 | Oil cylinder seal | Japan（NOK） | ||||
5 | Card sleeve pipe joint | Germany（JS） | ||||
6 | Main moto | China（SANGTA） | ||||
7 | Main electrical components | France（Schneider） | ||||
8 | Mould | China | ||||
9 | Oil cylinder | China（penta-ocean） | ||||

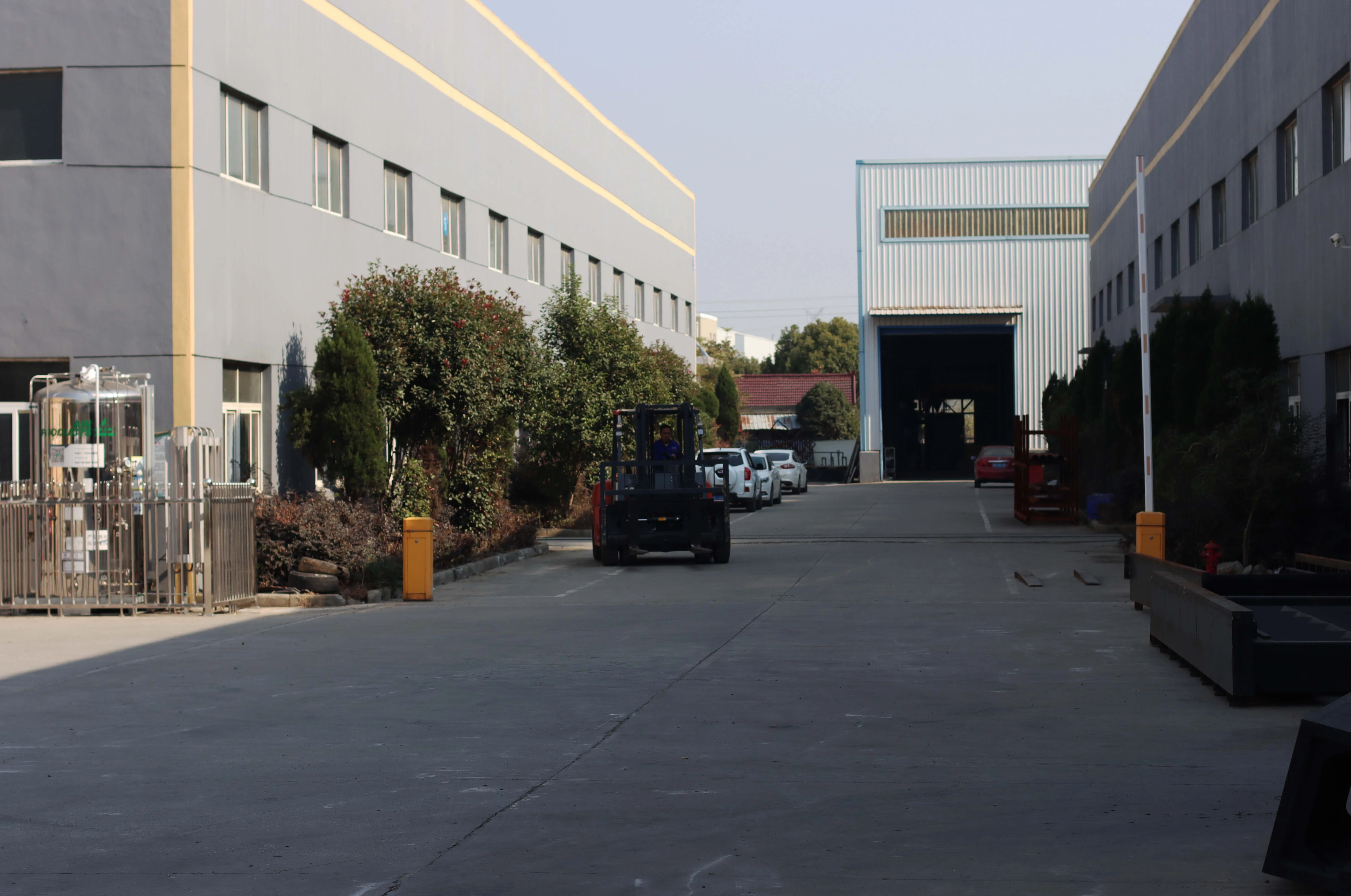

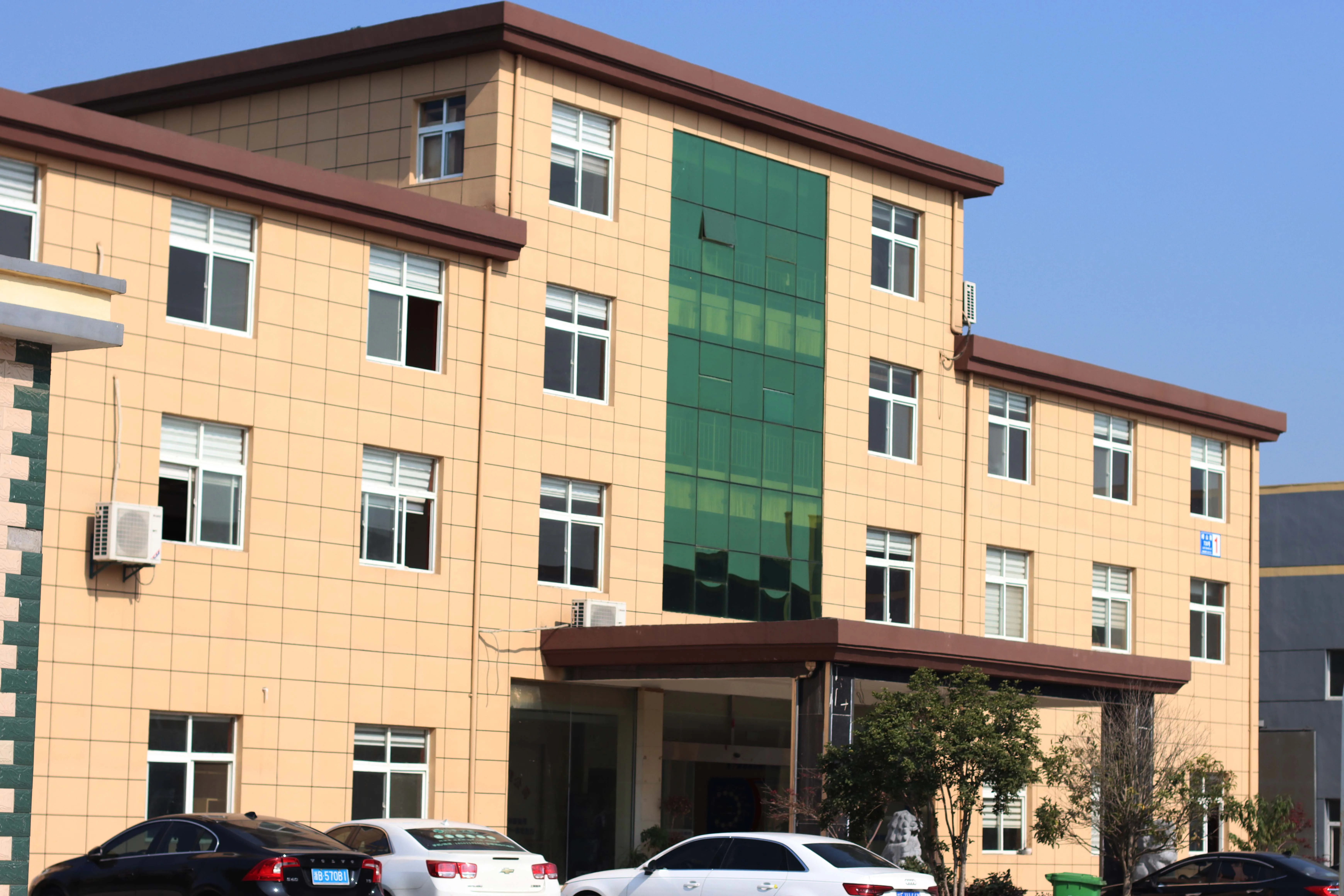

our company
Haas Machine Tool is located in Bowang District, Maanshan City, Anhui Province. It is a company specializing in manufacturing bending machines, shears, bending machines, presses, and laser cutting machines. The company has experienced 15 years of growth and has a very professional Research team, management team, sales team and after-sales team. Our products have won unanimous praise at home and abroad for their excellent quality and excellent after-sales service.

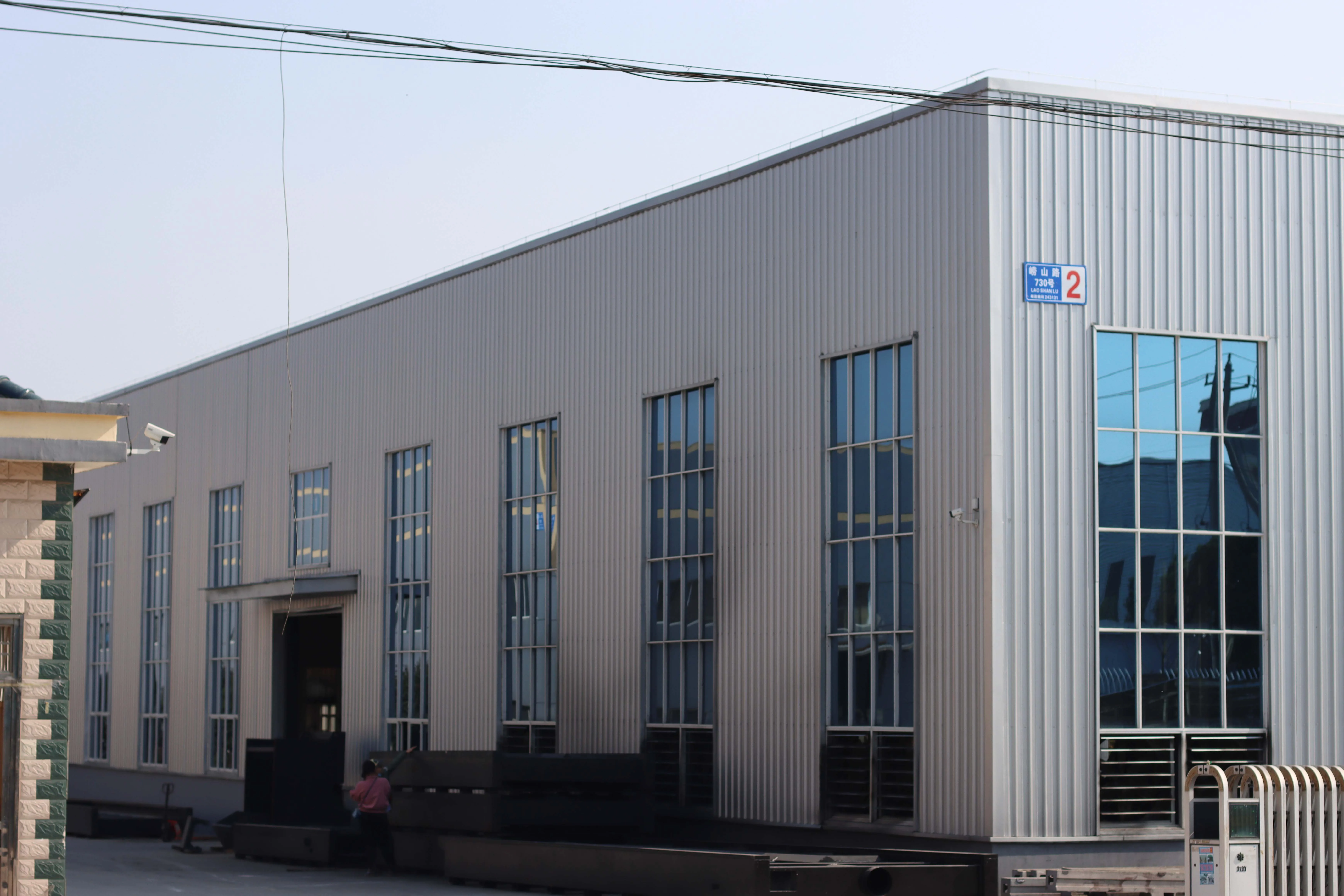

Laser cutting machine workshop
The series produced include open laser cutting machine, enclosed laser cutting machine, tube-sheet integrated machine.

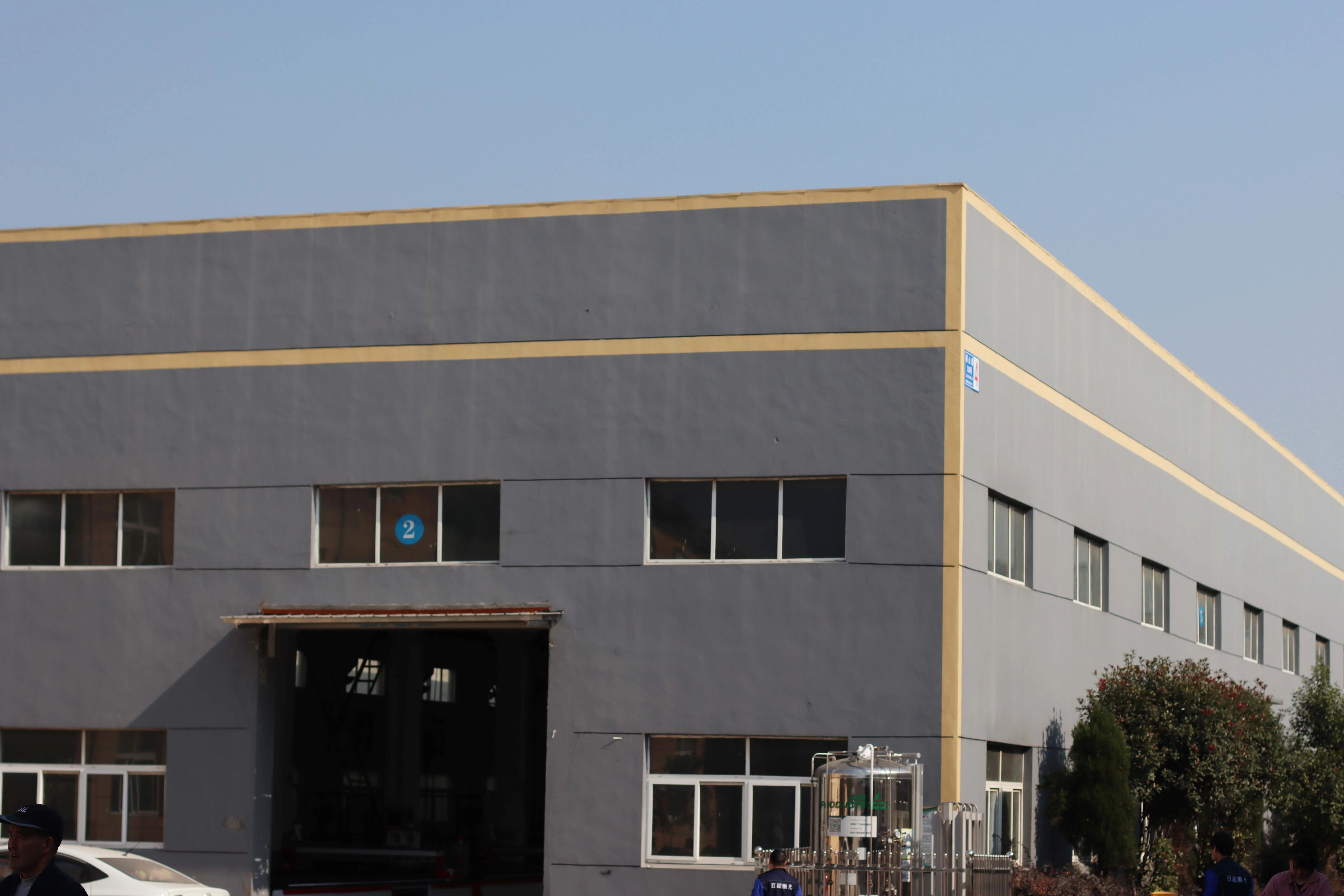

Bending machine, shearing machine workshop
The series produced include electro-hydraulic servo CNC bending machine, economical CNC bending machine, pendulum shearing machine, guillotine shearing machine..
Hydraulic press workshop
The series produced include four-column hydraulic presses, single-action sheet-lift hydraulic presses, double-action sheet-lift hydraulic presses, single-column hydraulic presses, etc..
Processing workshop
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
