TMAX Lab Desktop Automatic Heat Hot Film Applicator Battery Roller Press Machine Calender for Electrode Roll to Roll Coating
- Category: >>>
- Supplier: Xiamen Tmax Battery Equipments Limited
Share on (1600306487331):
Product Overview
Description
Product Description

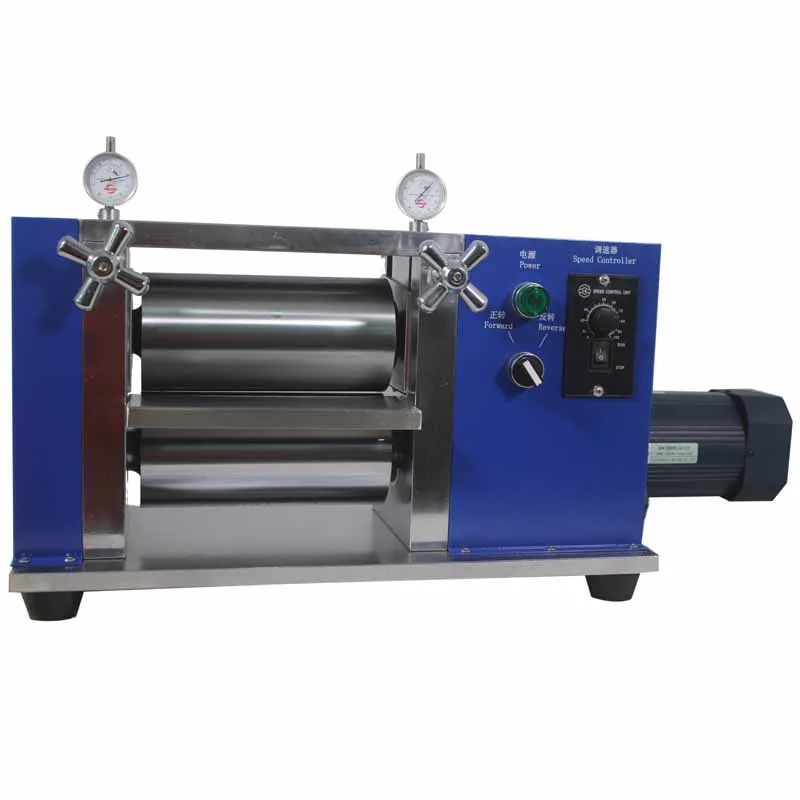

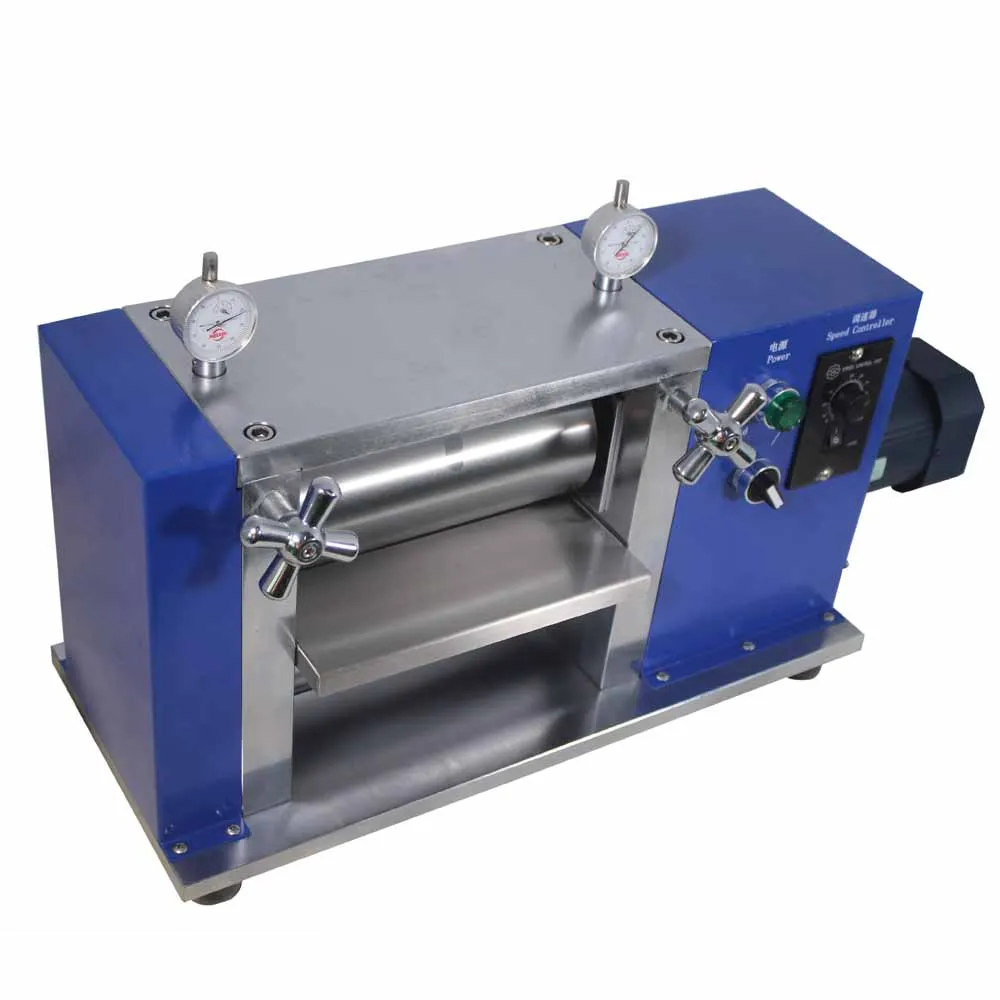

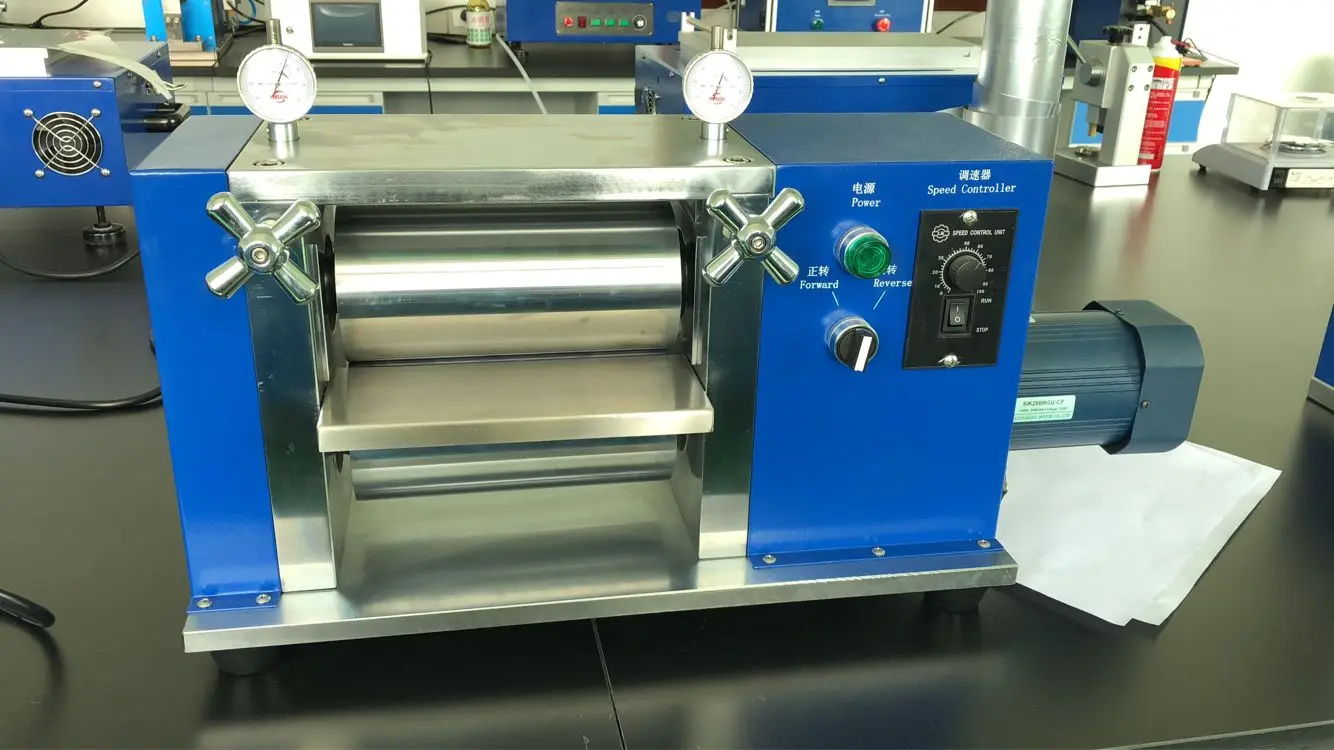

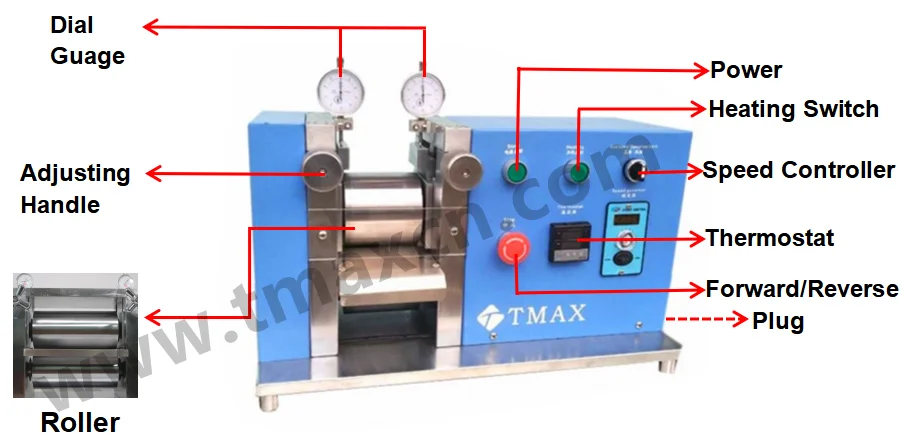

Lab Desktop Automatic Heat Hot Film Applicator Battery Roller Press Machine Calender for Electrode Roll to Roll Coating
Featers

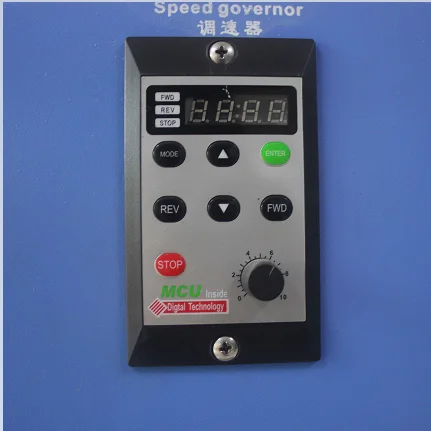

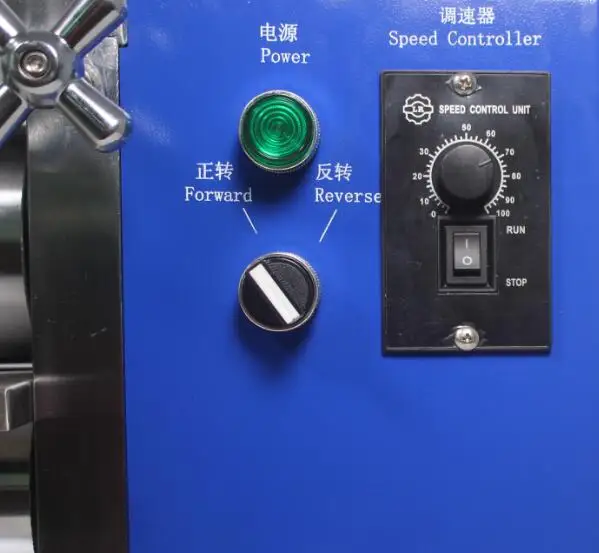

TMAX-DG is a UL/CSA ready electric rolling press with variable speed 24DC gear motor and UL certified switch power supply, which can be used from 110V- 220VAC under Argon gas glovebox. It has dual rollers and is an ideal rolling press for preparing electrode sheet for Li-Ion batteries research after coating and drying
Specifications
Model | DG100L | DG150L | DG200L | DG250L | DG300L | DG330L | GY200W |
Roller Dimensions | 96mm (Dia.) x 100mm(W) | 96mm (Dia.) x 150mm(W) | 96mm (Dia.) x 200mm(W) | 96mm (Dia.) x 250mm(W) | 96mm (Dia.) x 300mm(W) | 96mm (Dia.) x 330mm(W) | 200mm (Dia.) x 200mm(W) |
Working Voltage | 110V - 240V AC, 50/60Hz, automatic switch for worldwide use | ||||||

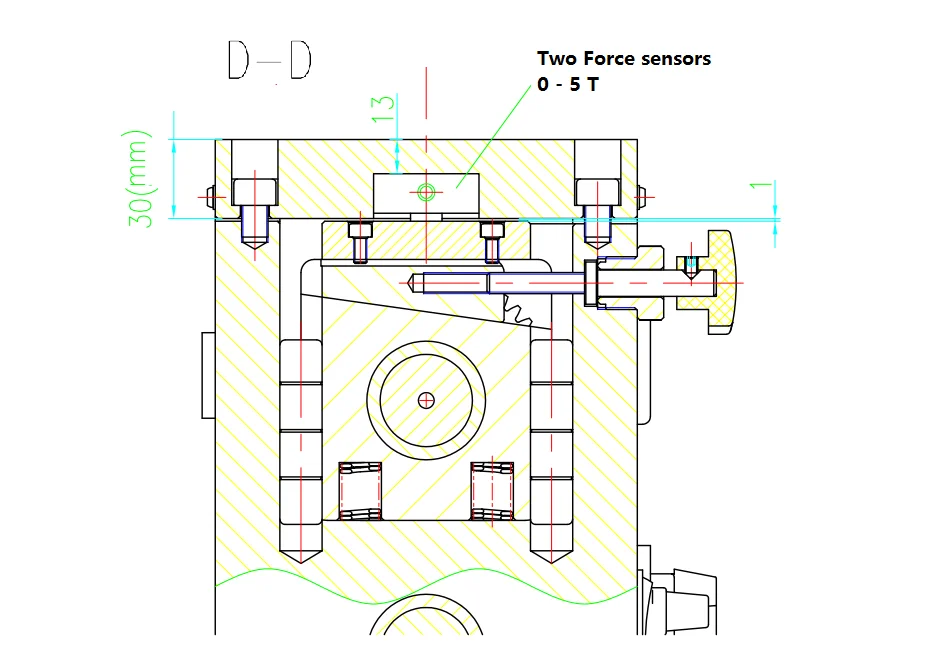

Structure | Heavy duty steel frame, gears, and handle Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum | ||||||
Roller | 1. Roller diameter tolerance: 0.004mm 2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating 3. Rolling Speed: 0-40mm/s adjustable | ||||||
Roller Surface Hardness | 62 HRC Never roll materials with hardness > 50HRC | ||||||
Compliance | CE Certificate | ||||||
Warranty | Two Years limited warranty with lifetime support | ||||||
Warnings | 1. Never roll materials with hardness > 50HRC 2. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended. 3. Multi-step thickness calibration: When calibrating the thickness, make increment/decrement of 0.1mm or 20% of sheet thickness each time. 4. Must clean roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion 5. This rolling machine can be used under Ar gas. | ||||||
Our Company & Team
Certifications
Cooperative Partner
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
