lPRODUCTS DESCRIPTION

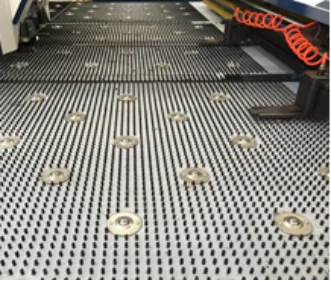

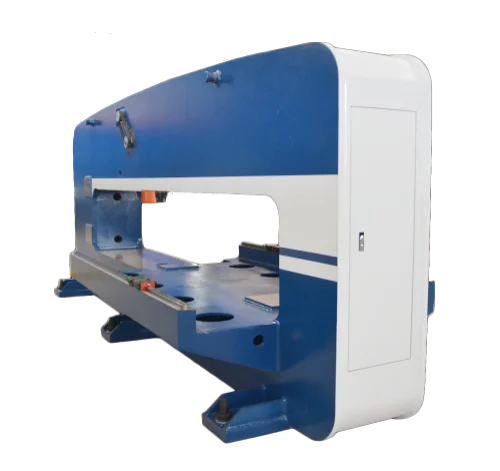

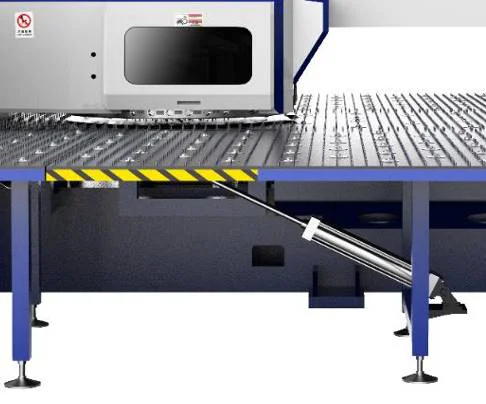

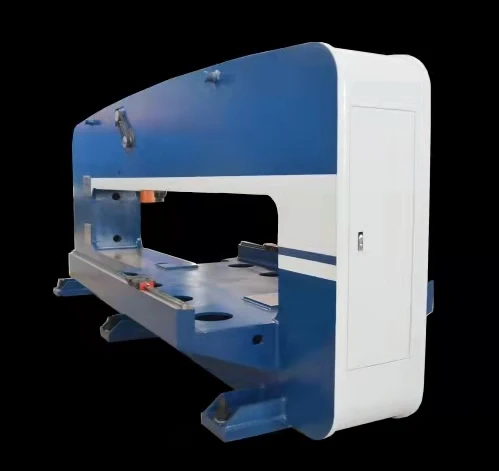

Stamping body The body adopt integrated fuselage, widened design, disposable welding, tempering, disposable forming.	Seamless Worktable Seamless worktable design, when the plate moved, it can avoid the plate and the worktable make a collision, guide rail, ball screw dust-proof protection.	Folding Worktable Side assist platform adopt cylinder control seamless design, convenient for change the tooling.

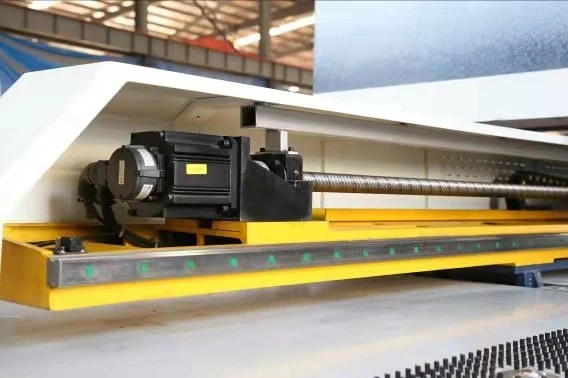

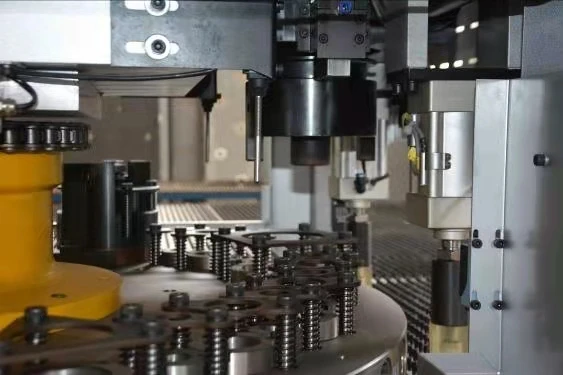

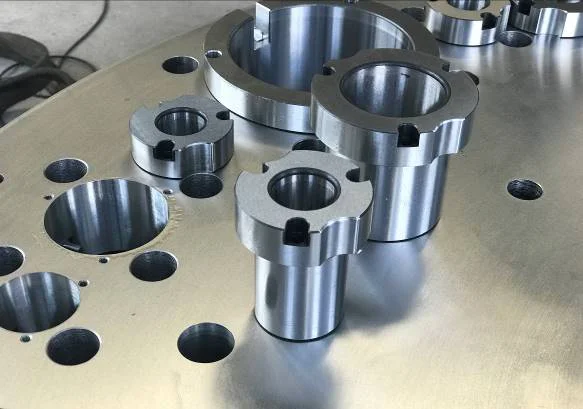

Turret Structure: The turret is made of 40Cr, completed in large processing center.	Beam Carriage and beam integrated design, accurate positioning, moving more smoothly, to eliminate the X, Y-axis dynamic offset case.	System The system can automatically search, to select the most suitable tool to processing, and display stamping time, processing capacity, die life (punches), etc.
Auto-index(option) The rotating station is a unique worm gear structure.

 lEquipment Technical Indicators

Name	Specification	Unit
Press Capacity	30	T
Frame Construction	O-Frame
Max. Sheet Size (with one reposition)	1250x5000	mm
Max. Sheet Thickness	4	mm
Max. Hole Diameter	Φ88.9	mm
Stroke	40	mm
Max. Hit Rate	280 (30mm pitch)	hpm
Max. Feed Rate	80	m/min
Clamps No.	2	pcs
Re-positioning Cylinder	2	set
No. of Stations	16 24 32	pcs
Turret Rotating Speed	30	rpm
Turret Positioning	Double cylinder positioning
Air Pressure	0.6	mpa
Die Form	Mosaic turret, Long guide tool
Punching Accuracy	±0.10	mm
No. of Controlling Axis	3(X/Y/T)/4(X/Y/T/C)	pcs
Total Power	14/15	kw

 lCNC System Features and Functions

1. Processing graphics real-time display, convenient and intuitive

2. Advanced bus control, high integration, data reading, fast transmission, strong anti-jamming ability

3. CAD, DXF and other format graphic direct conversion machining program

4. Simple international generic G code programming, easy operation.

5. Internationally accepted standard RS232 interface to facilitate communication with the computer.

6. Field programming, background programming, Parameter programming function, English display.

7. Graphical simulation of stamping function.

8. Convenient for backup system parameters, ladder diagram and the processing procedure, achieve large capacity processing program of online processing.

       9.With Nano as a unit for interpolation, position detection and servo control, make high-speed precision

       processing come true.

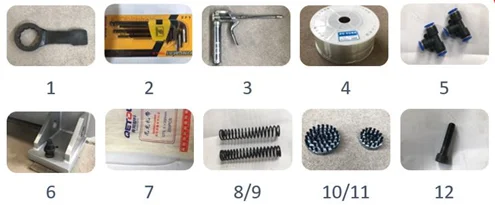

lAppendix and Tools & Spare Parts

7.1 Appendix

No.	Name	Quantity
1	Packing List	1
2	Conformity Certification	1
3	Manual	1
4	Foundation Drawing	1
5	Electrical Schematic Diagram	1
6	Auto-Programming Software	1
7	CNC System Data	1
8	Mold Drawing	1
