Industrial hammer mill gram pigeon pea chickpea flour milling machine with ce iso certification for sale
- Category: >>>
- Supplier: Jiangyin Wanling International Trading Co. Ltd.
Share on (1600306554516):
Product Overview
Description
Industrial hammer mill gram pigeon pea chickpea flour milling machine with ce iso certification for sale
Scope of application

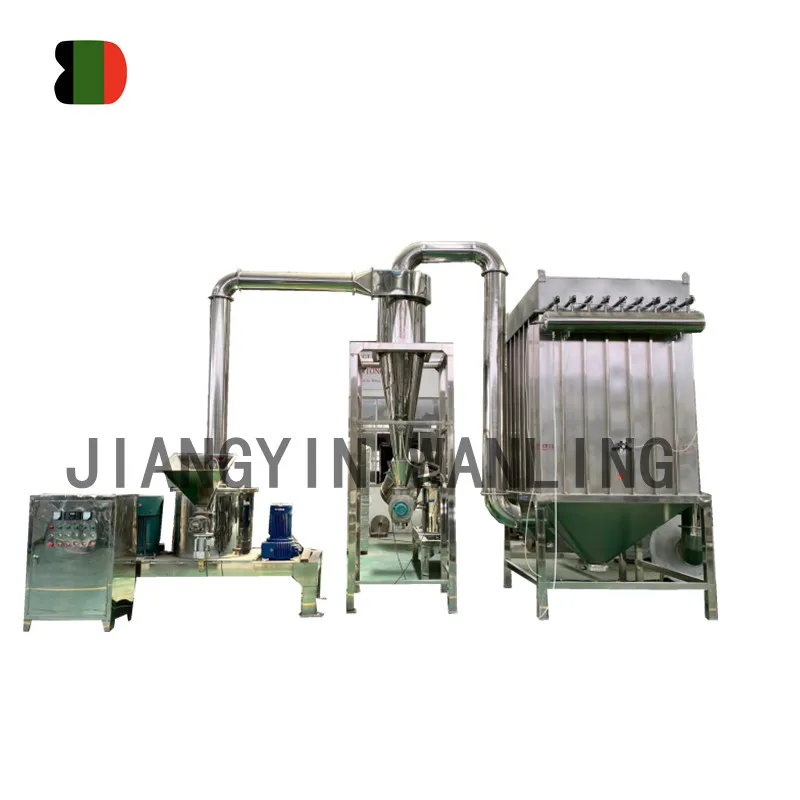

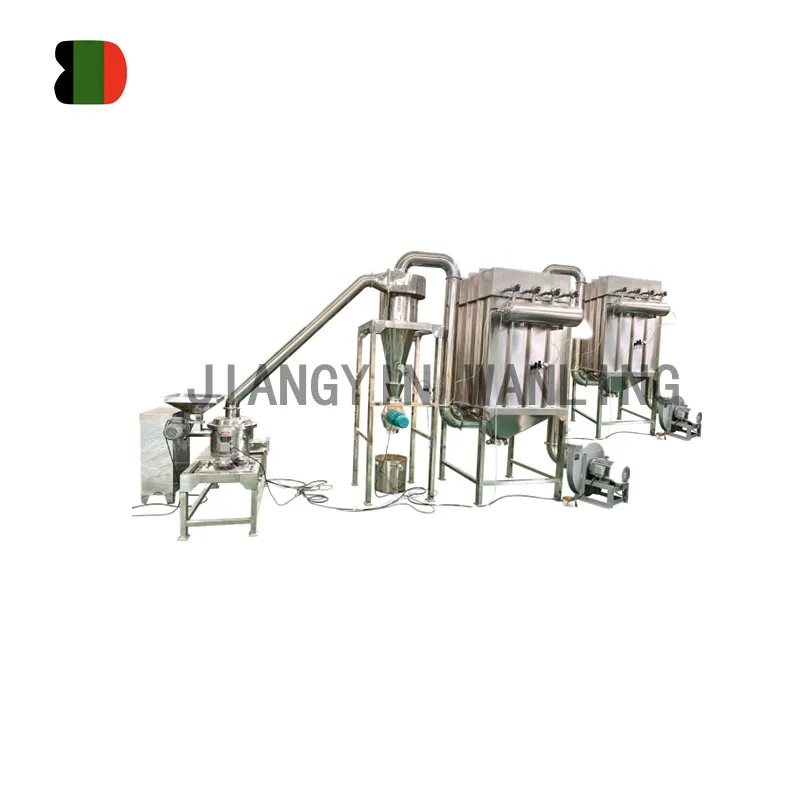

The machine is made up of three parts: main machine, discharge part and dust collecting part. The particle is filtered by wind,which ensures the fineness and uniformity of the particle.It is widely used in food, medcine, pharmaceutial, chemiacal, cosmetics, plastic, dyestuff, resin, colourant, and agricultural industry.
Working Principle
Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades. The powder passes the guide ring and enters the classifier chamber. As the classification wheel is in rotation, both air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a greater mass,they are thrown back into the mill chamber to be ground again,while the particles whose diameters are smaller than the critical diameter enter cyclone separator and dust-collecting box.
Technology data
Model | WFJ-10 | WFJ-15 | WFJ-20 | WFJ-30 | WFJ-60 | WFJ-80 | WFJ-100 | ||||||
Production Capacity (kg) | 10~50 | 50~100 | 80~200 | 200~400 | 400~800 | 500~1000 | 600~1200 | ||||||
Feeding size (mm) | <5 | <10 | <10 | <12 | <12 | <12 | <12 | ||||||
Crushing fineness (mesh) | 80-600 | ||||||||||||
Motor power (kw) | 12 | 13.37 | 18.37 | 42.5 | 77.5 | 96 | 138 | ||||||
Spindle speed (rpm) | 4000 | 5800 | 4200 | 3800 | 3200 | 2800 | 2000 | ||||||
Weight (kg) | 500 | 1000 | 1200 | 1800 | 2500 | 3000 | 4000 | ||||||
Overall dimension (L*W*H)(mm) | 1700x1800x2200 | 4500x1250x2700 | 6000x1250x2900 | 7100x1300x3650 | 8000x2300x4500 | 8500x2500x4600 | 10000x2800x5000 | ||||||
Company Profile
Company Information
PLEASE LET US BE MORE HONEST, TELL US YOUR DETAIL REQUEST !! THEN ANY QUESTION WILL BE REPLYED 100%SINCERELY AND VERY EFFCIENTLY BY CONTACTING ME.
FAQ
ARE YOU REAL FACTORY OR TRADING COMPANY?
YES ! We have self factory specialized in producing spice, pharmaceutical, chemical, food machinery. Like pre-washing, cutting, crushing, fine grinding, mixing, drying, sifting, granulating, packing, filling, conveyer etc series.
In the meaning while, for bigger our market, we opened our own trading company, especially for designing customized machine production line upon clients’ requests.
In the meaning while, for bigger our market, we opened our own trading company, especially for designing customized machine production line upon clients’ requests.
CAN YOU GIVE ME GUIDE ON OTHER MACHINE ? TO FULL MY PRODUCTION LINE
YES ! We have built more than 23years, we know and have many good partners in china. We have good and expert acknowledge in this field, We know this industry very well and know a lot of high-quality partners. Can always give you efficient answer and economical solution ,help you bigger your market and business quickly !
HOW TO VISIT YOUR COMPANY?
Our company is in WUXI city, near shanghai cisty, only 20mins away from WUXI EAST TRAIN STATION. Or you can call us anytime you arrive Wuxi, i will go to pick you.
Our company is in WUXI city, near shanghai cisty, only 20mins away from WUXI EAST TRAIN STATION. Or you can call us anytime you arrive Wuxi, i will go to pick you.
WHAT'S YOUR BEFORE & AFTER SERVICE ?
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
5)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
5)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
WHAT'S YOUR SHIPPING ITEM PROCESS?
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound .
If your need , we can help you do custom clearance .
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound .
If your need , we can help you do custom clearance .
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Delivery Details: Machine will be finished in about 25 workdays after payment.
HOW ABOUT YOUR PAYMENT TERM?
1. Normally we can work on T/T or L/C.
2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted.Please seek the advice from the individual sales manager whom you work with.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine
1. Normally we can work on T/T or L/C.
2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted.Please seek the advice from the individual sales manager whom you work with.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine
Contact way in my company website www.wanlingmachine.com contact us page.
