Product Overview
Description
Products Description
Series | SH2M 1Pin Right Angle and Straight Angle Metal Connector HVIL | ||||||
Material | Alluminum alloy nickel plated,copper alloy，tin/silver plated | ||||||
Wire gauge | 35mm² 50mm² 70mm² | ||||||
Mating cycles | 500times | ||||||
Flammability Rating | UL94 V-0 | ||||||
EV electric motor controller/PDU/battery pack/electric motor and other high voltage high current equipment
Rated voltage | 1000V AC | |||
Withstanding voltage | 3000V AC | |||
Rated current | max300A | |||
Insulation resistance | 1000MΩ | |||

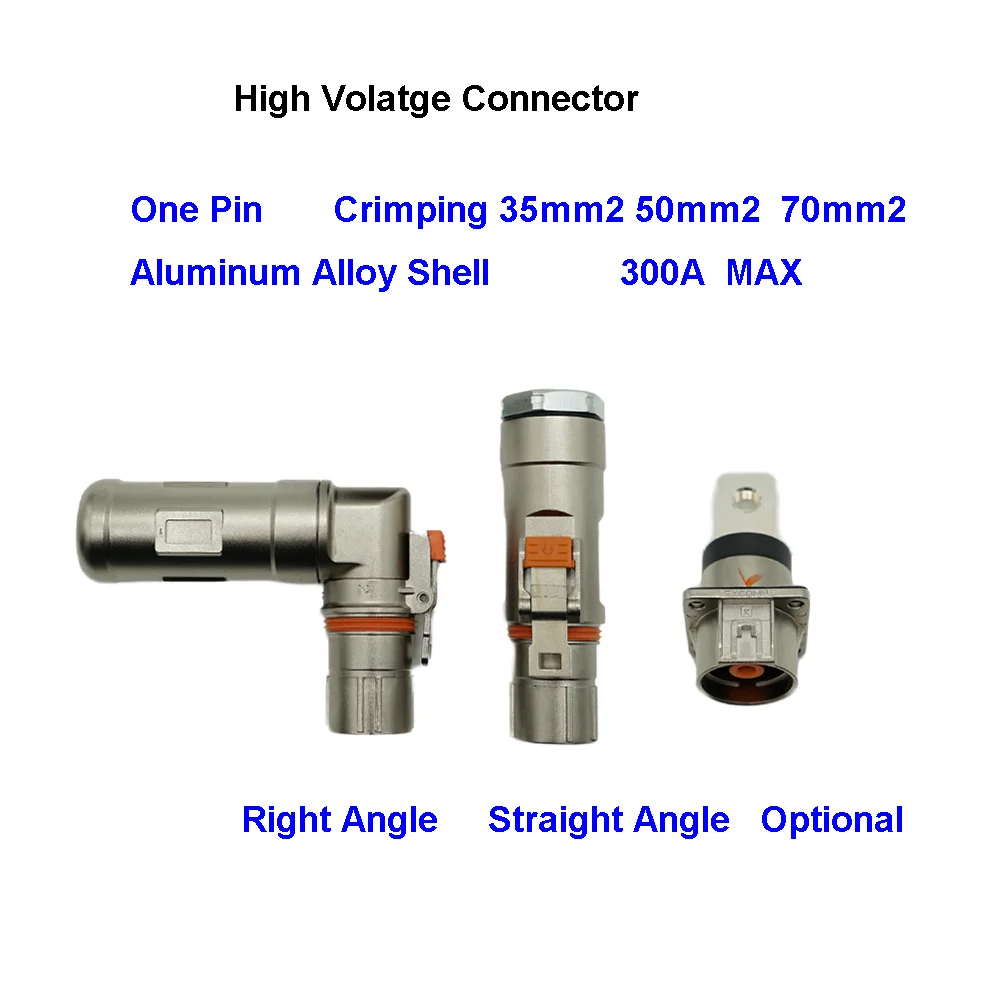

Orientation | Straight / Right Angle | |||
IP Degree | IP67 | |||
Salt Spray | 96h |

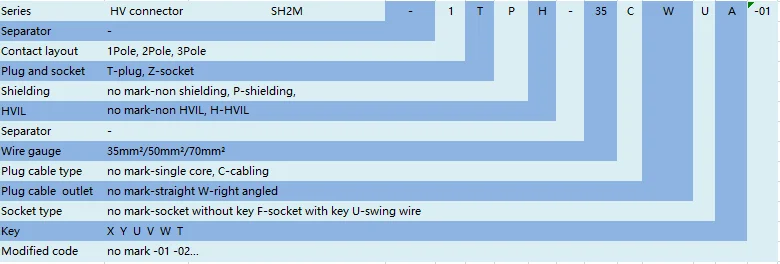

Example of Model Number
SH2M-1TPH-35X SH2M series, high volatge interlock straight plug, crimping 35m² 1pin sheilding cable, Key X
1. The rated voltage of the connector is increased to 1000V, and the withstand voltage is increased to 4000V AC;
2. On the premise of no additional parts, the secondary anti retreat function of the plug is added, which makes the connector more beautiful;
3. Chip terminal is more suitable for mass production;

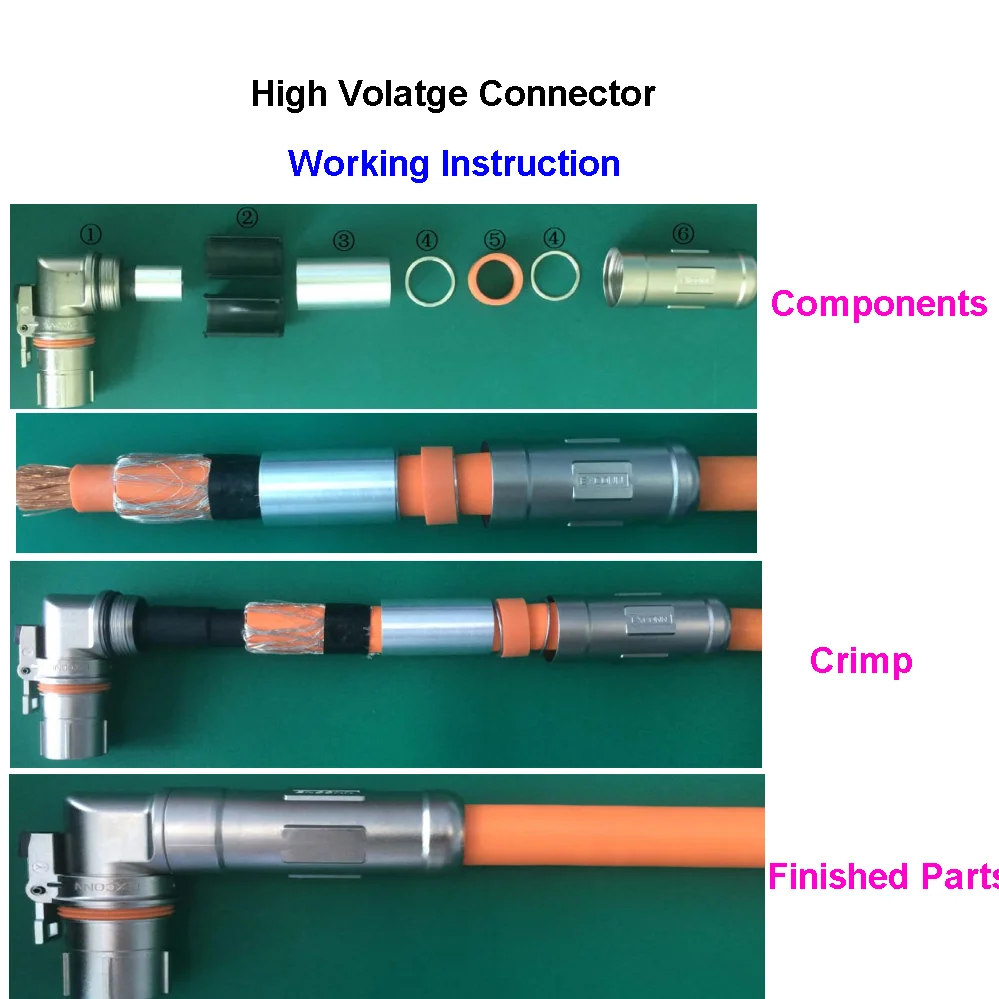

4. The shielding ring is used to fix the cable in the plug, so the cable can not move axially, which can effectively prevent the terminal from withdrawing the pin;
5. With bellows assembly function, the heat shrinkable process is omitted, the bellows retention force is increased, and the line efficiency is improved
2. On the premise of no additional parts, the secondary anti retreat function of the plug is added, which makes the connector more beautiful;
3. Chip terminal is more suitable for mass production;
4. The shielding ring is used to fix the cable in the plug, so the cable can not move axially, which can effectively prevent the terminal from withdrawing the pin;
5. With bellows assembly function, the heat shrinkable process is omitted, the bellows retention force is increased, and the line efficiency is improved
