Product Overview
Description
Product Description
Product name | semi-automatic box gluing machine |
Service | Support customization |
Usage and characteristics:

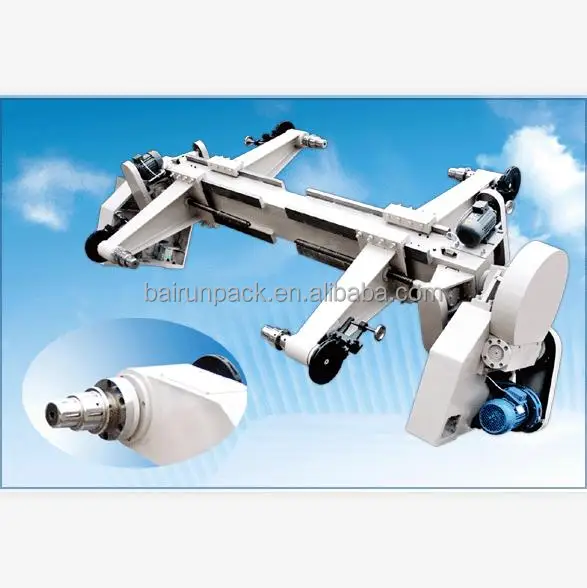

The weighing structure can be installed two bundles of paper tube at the same time, can be used for non-stop paper changing operation;Using mechanical drive to complete the base paper clamping, lifting, loosening, moving to the center, left and right translation and other actions.
◆ Manual disc brake, below the limit screw, automatic expansion type clamping head.
The whole track buried, the main frame for the 14 channel steel and ￠20mm cold-drawn round steel welding, the length of the rail 4510mm.
◆ Each paper frame with two paper trolley from both sides can be simultaneously on the paper.
Paper clip range: maximum: 1800mm minimum: 600mm
Paper clip diameter: maximum: Φ1400mm minimum: Φ400mm
◆ Single side maximum load: maximum 2000Kg
◆ Power motor parameters:
① Paper clip motor 550W×4 380V 50HZ short-time (S2) working system
② Lifting motor 1.5KW 380V 50HZ short-time (S2) working system
The weighing structure can be installed two bundles of paper tube at the same time, can be used for non-stop paper changing operation;Using mechanical drive to complete the base paper clamping, lifting, loosening, moving to the center, left and right translation and other actions.
◆ Manual disc brake, below the limit screw, automatic expansion type clamping head.
The whole track buried, the main frame for the 14 channel steel and ￠20mm cold-drawn round steel welding, the length of the rail 4510mm.
◆ Each paper frame with two paper trolley from both sides can be simultaneously on the paper.
Paper clip range: maximum: 1800mm minimum: 600mm
Paper clip diameter: maximum: Φ1400mm minimum: Φ400mm
◆ Single side maximum load: maximum 2000Kg
◆ Power motor parameters:
① Paper clip motor 550W×4 380V 50HZ short-time (S2) working system
② Lifting motor 1.5KW 380V 50HZ short-time (S2) working system
