1mm 1.5mm 2.5mm 4mm 6mm 10mm 300/500V Multi Core Copper Electric Wires Cables Electrical Cable Wire Prices (1600306637953)

Share on:


Price:RUB 22.96
Price in USD:Details

Quantity:


Product Overview

Description

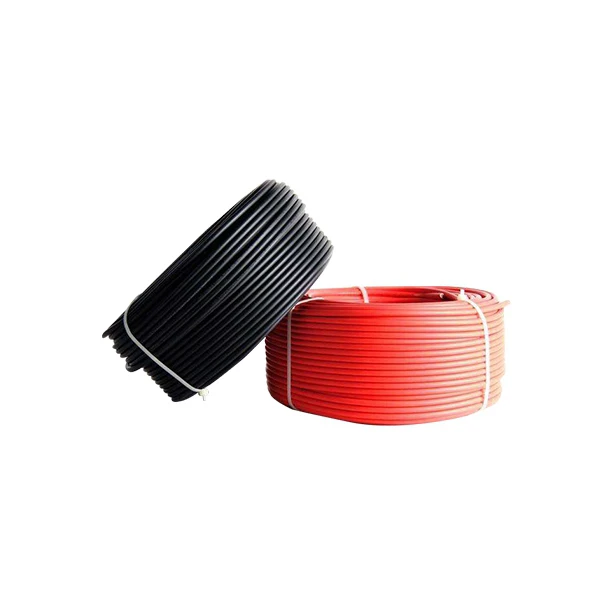

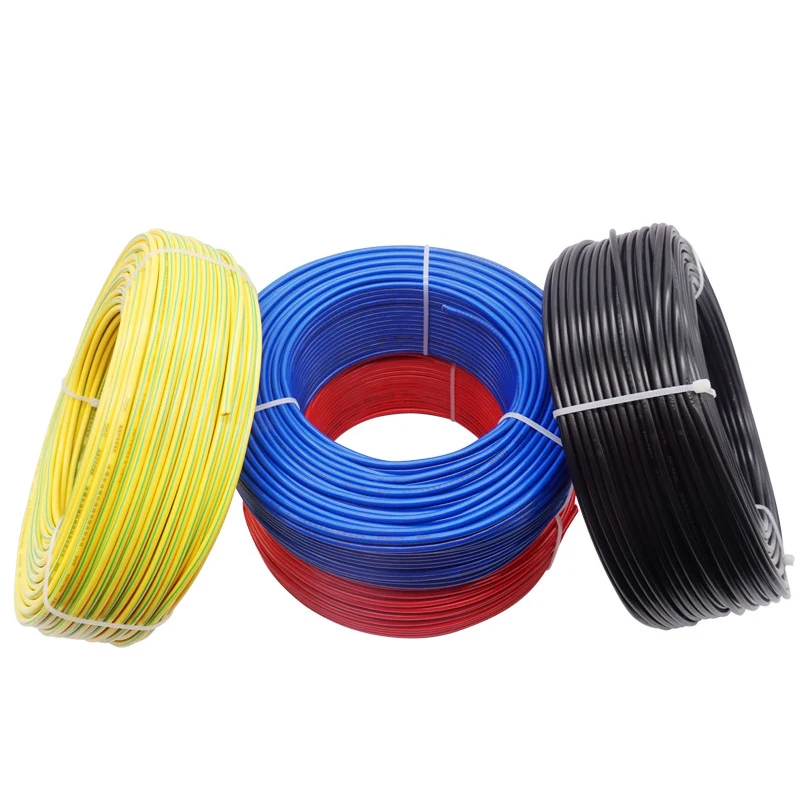

1mm 1.5mm 2.5mm 4mm 6mm 10mm 300/500V Multi Core Copper Electric Wires Cables Electrical Cable Wire Prices

Solar Panel Series

Why choose us?

Advantage



Technical parameter


Conductor  :  99.7% copper, tinned  UV resistance
 Insulation material  :  XLPE(XLPO)  High voltage and High current
 Double walls insulation  Temperature range  :  -40℃~90℃
 Halogen-free material  Color  :  Black / Red / Blue
 Flame test according to   :    Smallest permisssible bending radius  :
 DIN EN 50265-2-1 / UL1571(VW-1)  5xD



MODEL DIAMETER RATED AC VOLTAGE RATED DC VOLTAGE
PV1-F-1*4 4mm2 0.6/1kV 1.8kV
PV1-F-1*6 6mm2 0.6/1kV 1.8kV
PV1-F-1*10 10mm2 0.6/1kV 1.8kV



Voltage level  (V) Nominal section (mm²) Number of conductors Toplimit of overalldiameter(mm) Maximum DC Minium insulation Recommended Reference weight
resistance (20℃) resistance (20℃) value of carring (kg/km)
(Ω/km) (MΩ·km) capacity
    (A)
300/500 0.5 1 2.3 36 0.015 13 8.3
0.75 7 2.6 24.5 0.012 17 10.9
0.75 1 2.7 24.5 0.014 17 11.8
1 7 2.8 18.1 0.011 20 13.7
1 1 3 18.1 0.013 20 14.8
450/750 1.5 1 3.2 12.1 0.011 25 20
1.5 7 3.3 12.1 0.01 25 21.3
2.5 1 3.9 7.41 0.01 34 31.5
2.5 7 4 7.41 0.009 34 34.4
4 1 4.4 4.61 0.0085 44 46.8
4 7 4.6 4.61 0.0077 44 48.1
6 1 5 3.08 0.007 58 65.1
6 7 5.2 3.08 0.0065 58 68.8
10 7 6.7 1.83 0.0065 79 111
16 7 7.8 1.15 0.005 111 166
25 7 9.7 0.727 0.005 146 263
35 7 10.9 0.524 0.004 180 356
50 19 12.8 0.387 0.0045 228 487
70 19 14.6 0.268 0.0035 281 679
95 19 17.1 0.193 0.0035 344 932
120 37 18.8 0.153 0.0032 397 1163
150 37 20.9 0.124 0.0032 456 1424
185 37 23.3 0.0991 0.0032 519 1789
240 61 26.6 0.0754 0.0032 592 2335
300 61 29.6 0.0601 0.003 685 2924
400 61 33.2 0.047 0.0028 799 3750
