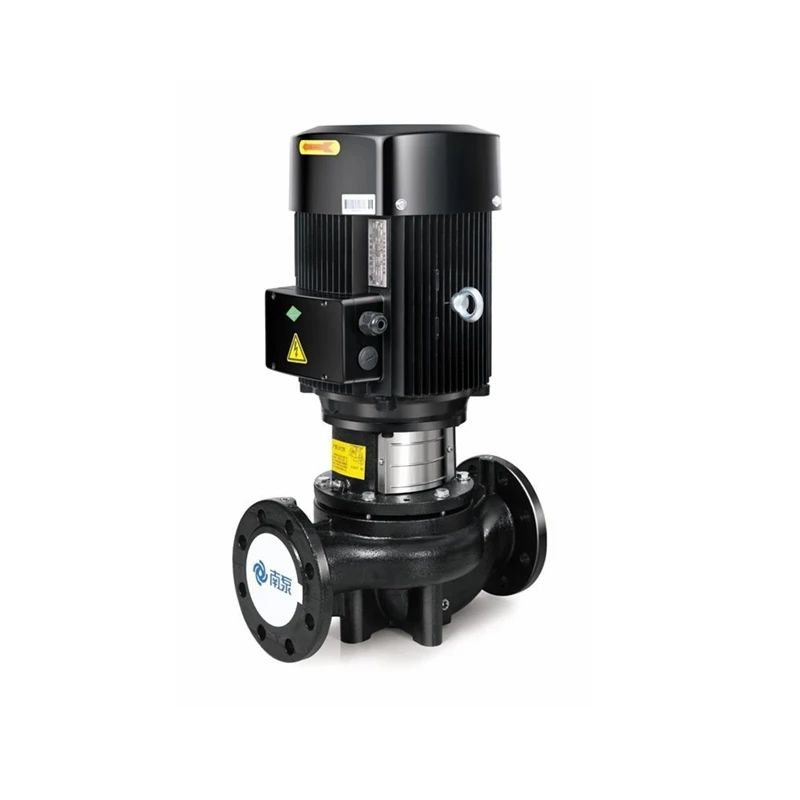

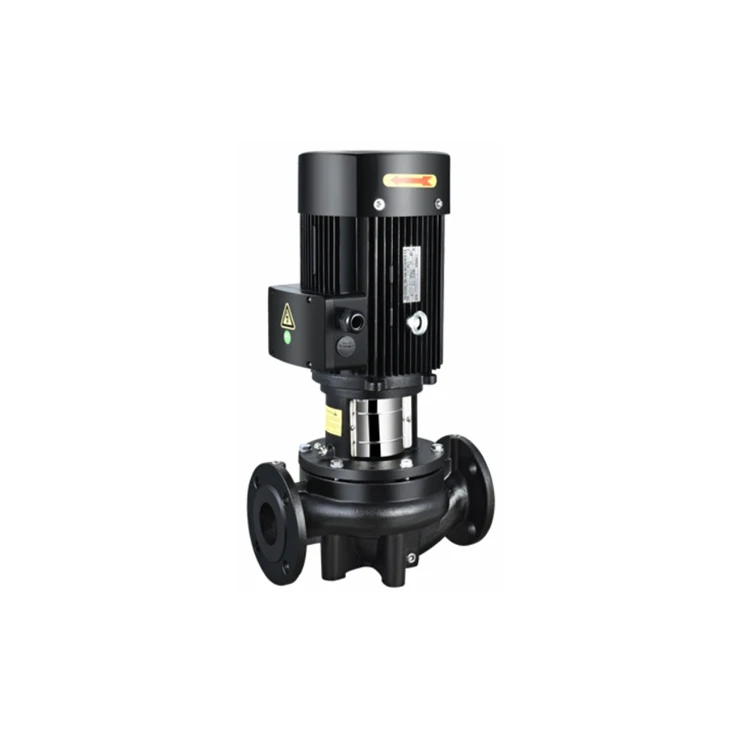

Factory direct sales high quality 3 inch cnp td water pump for circulation and booster





Application
1.Water treatment ultrafiltration system
2. RO system.
3. Boosting system.
4. High pressure washing system.
5. Water supply.


Operating conditions
1.liquid temperature: -15 ℃ to 110 ℃
2.Ambient temperature: up to 40 ℃
2.Altitude: up to 1000 m
3.Max. pressure of the system: 12 bar for normal type, 16 bar for special type
4.Rotation direction: clockwise (looking down from motor fan)


Motor
1.TEFC motor,2 pole, 4 pole
2.Protection class: IP55
3.Insulation class: F
4.Standard voltage:
50Hz: 1*220/240V, 3*200-240V/380/415/460V
60Hz: 1*220/240V, 3*200-240V/380/415/460V


Part name
Material
AISI/ASTM
Pump body
Cast iron
ASTM25B
Impeller
Cast iron/Stainless steel/Bronze
ASTM25B/AISI304
Pump head
Cast iron
ASTM25B
Mechanical seal
Carbon/Silicon carbide
Guard plate
Stainless steel
AISI304
Pump Shaft
Stainless steel
AISI304
Air release bolt
Stainless steel
AISI304
Plug
Stainless steel
AISI304
O-ring
NBR
Coupling
Cast steel

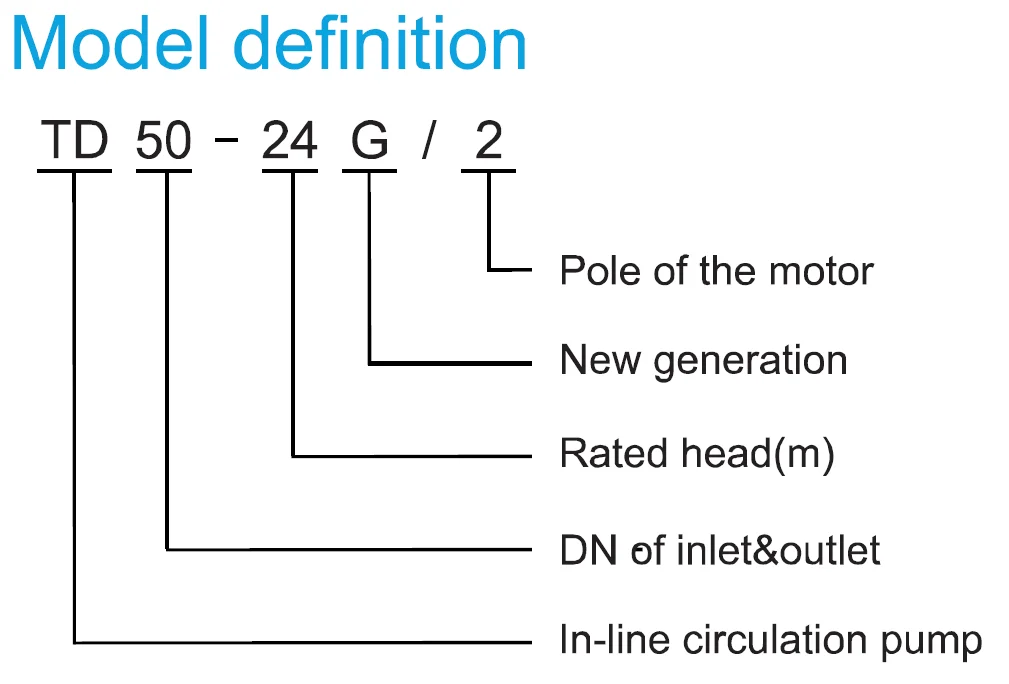

Definition of model

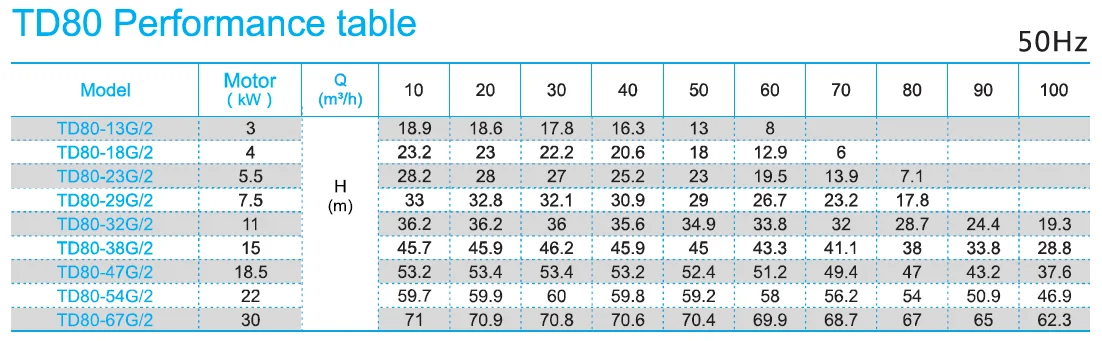

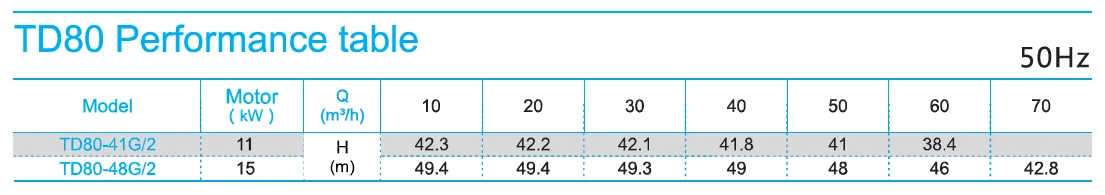

Performance table

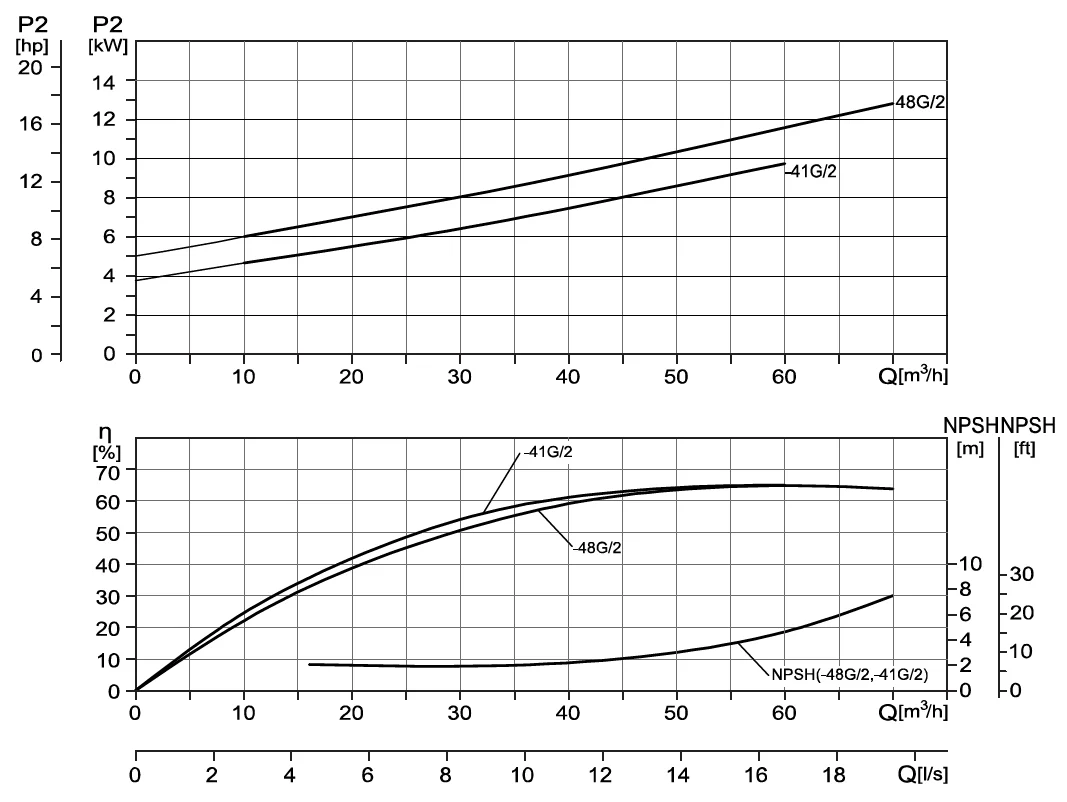

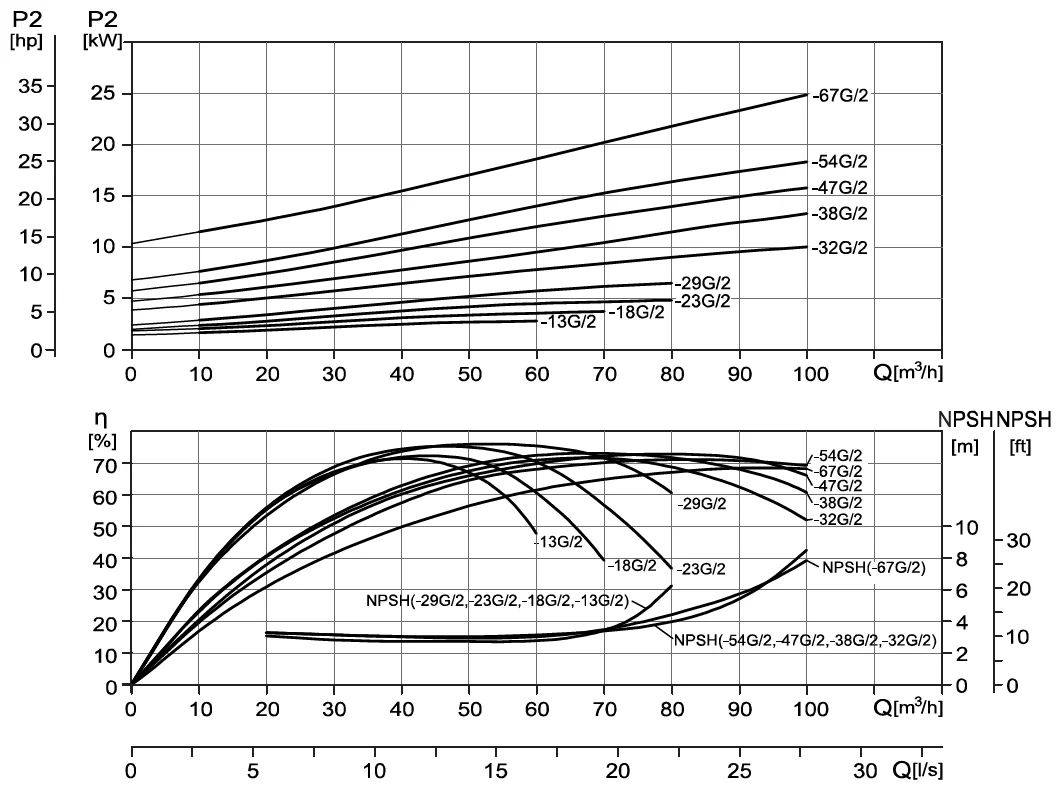

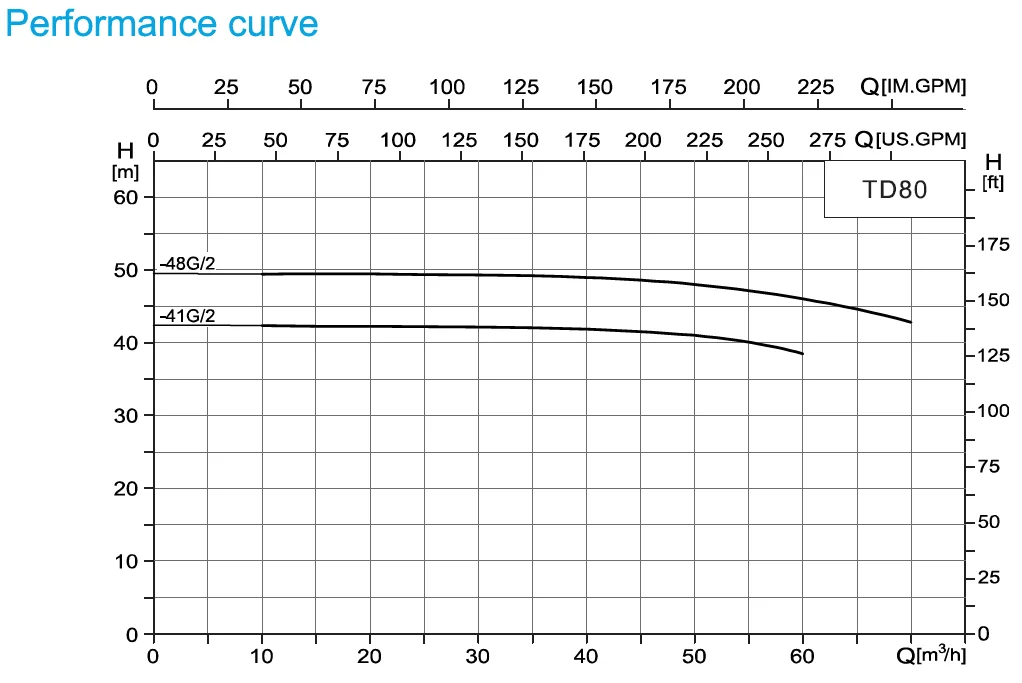

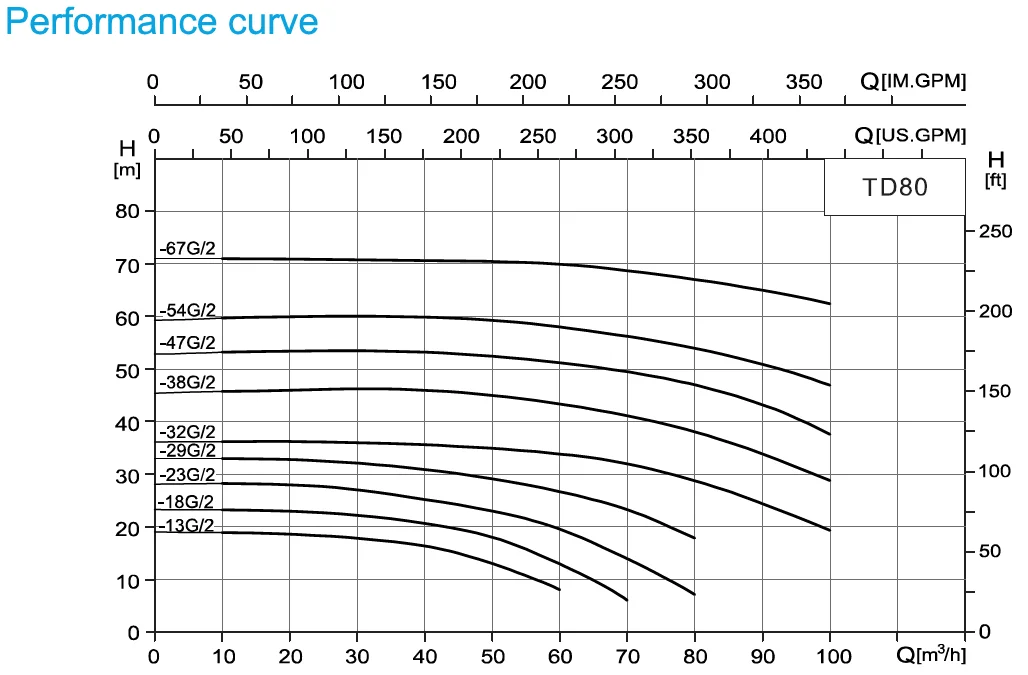

Performance curve

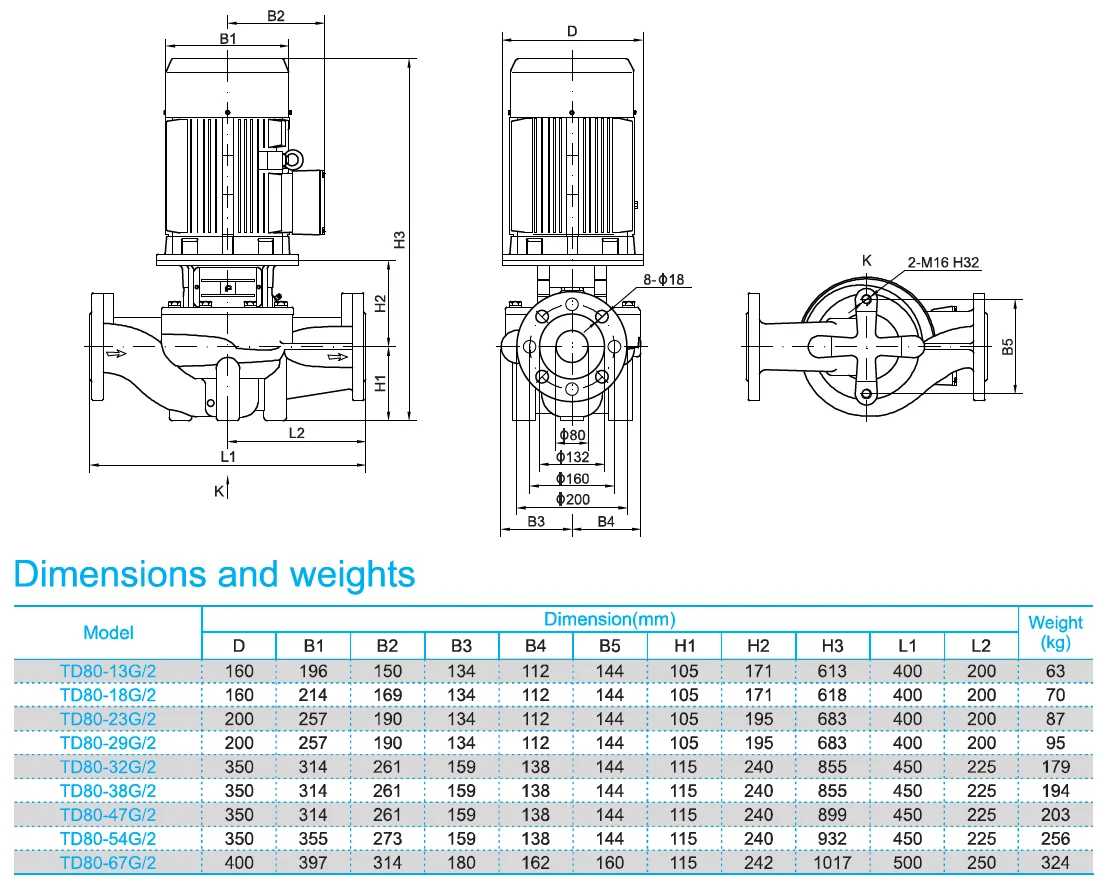

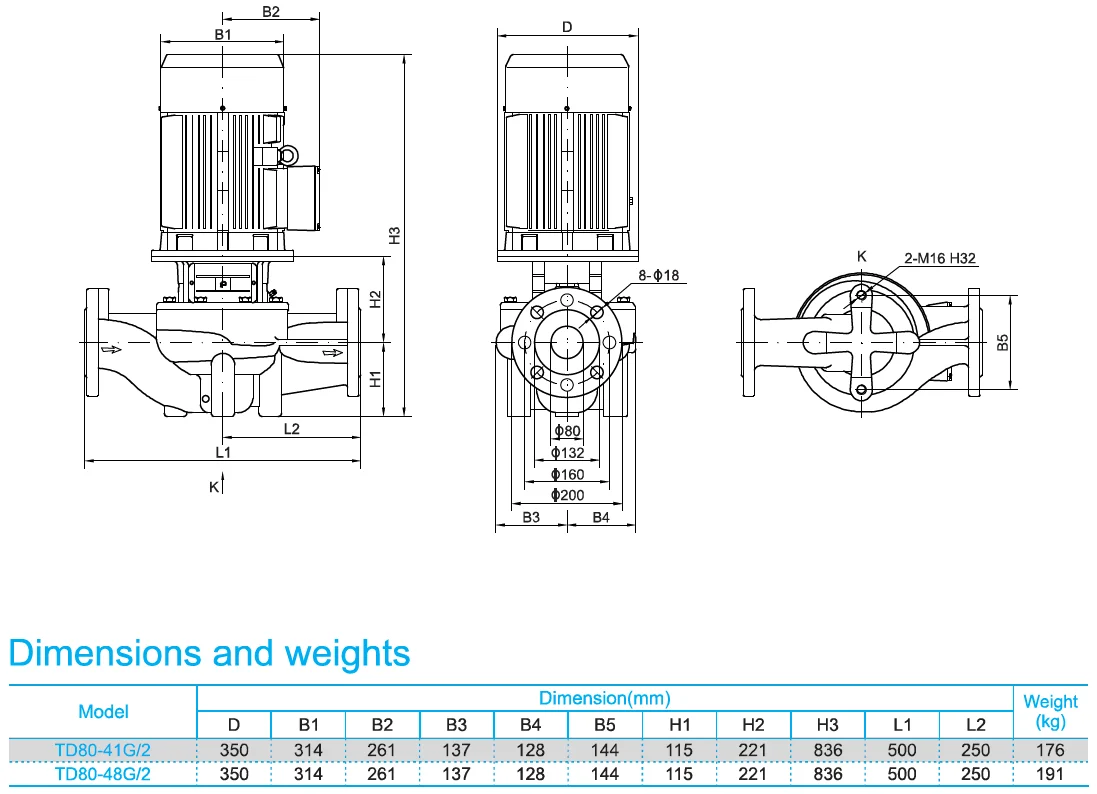

Installation sketch

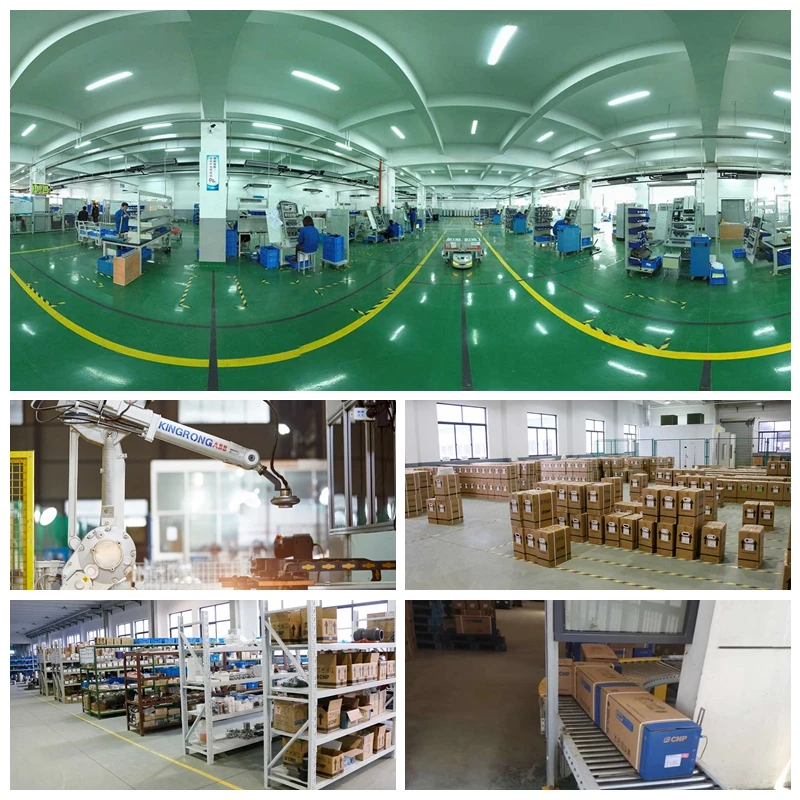

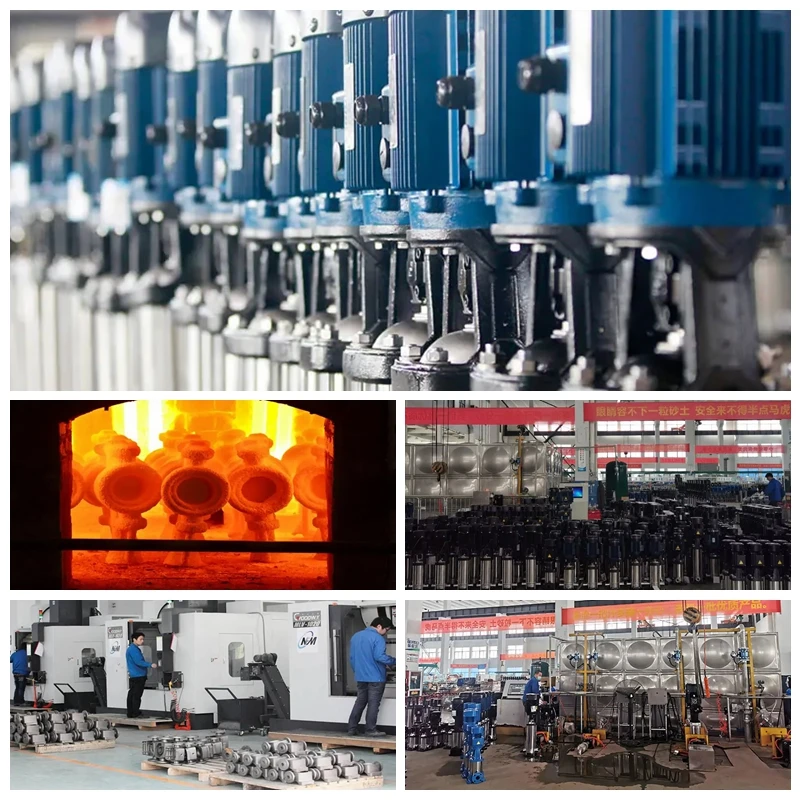

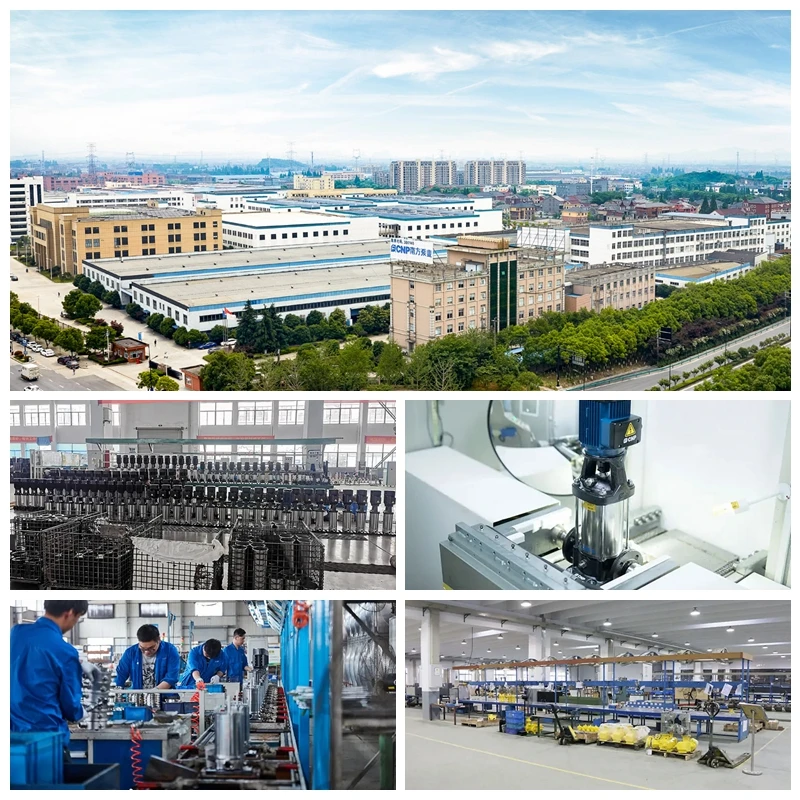

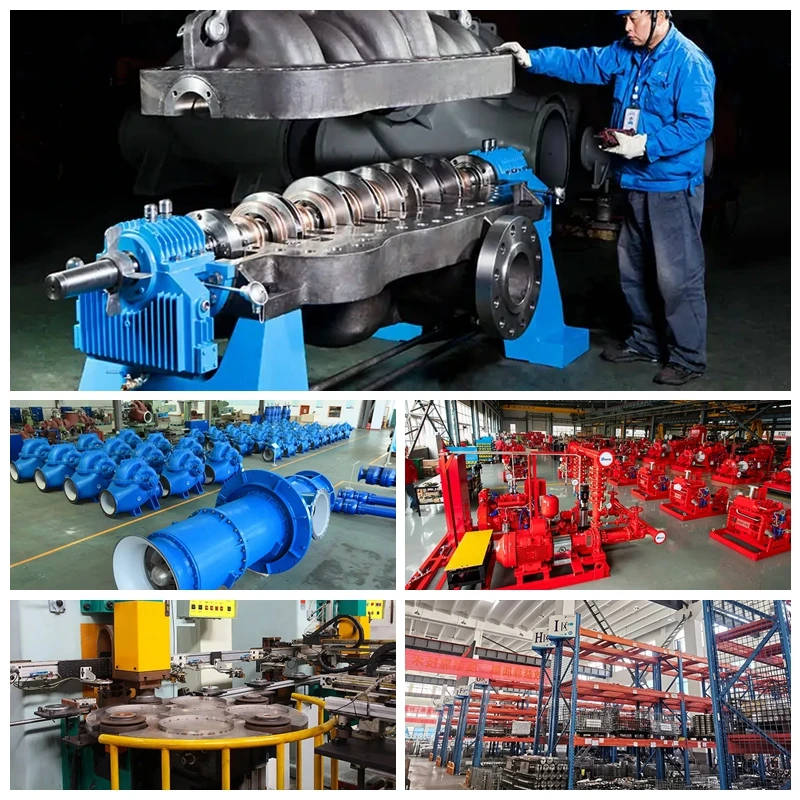

Workshop










\t\t\t\t\t\t\t\t\tCertification \t\t\t\t\t\t\t






\t\t\t\t\t\t\t\t\tCustomers \t\t\t\t\t\t\t




About us


Ms.Alice long
Hangzhou Chayo Environmental Technology Co.,Ltd
add: 62-2F Yangchen road,pinyao town,hangzhou.zhejiang.
Tel: 0086-86306016
Mob,whats app: 0086-13750800179

Email: chayopump@aliyun.com



FAQ


1.Q: How to buy our pumps ?
A: Please let us know your email and the following information:
1.1.What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry etc. ?
1.2.What is the flow and head ?
1.3.What is the voltage and frequency?
1.4.Other conditions from customer if possible : pump type , motor ?
With complete information, we will send you quotation as soon as possible.

2.Q:What’s your MOQ?
A:Trial sample order is OK.

3.What is the delivery time?
A:15-30 days after receiving your advanced deposit.

4.Q:Can you we do OEM brand?
A:Yes,welcome your OEM.

5.Q: How to solve the quality problems after sales?
A: Taking photos or videos of the problems and send to us, will make a satisfied solution for you within 48 hours after our confirmation.
