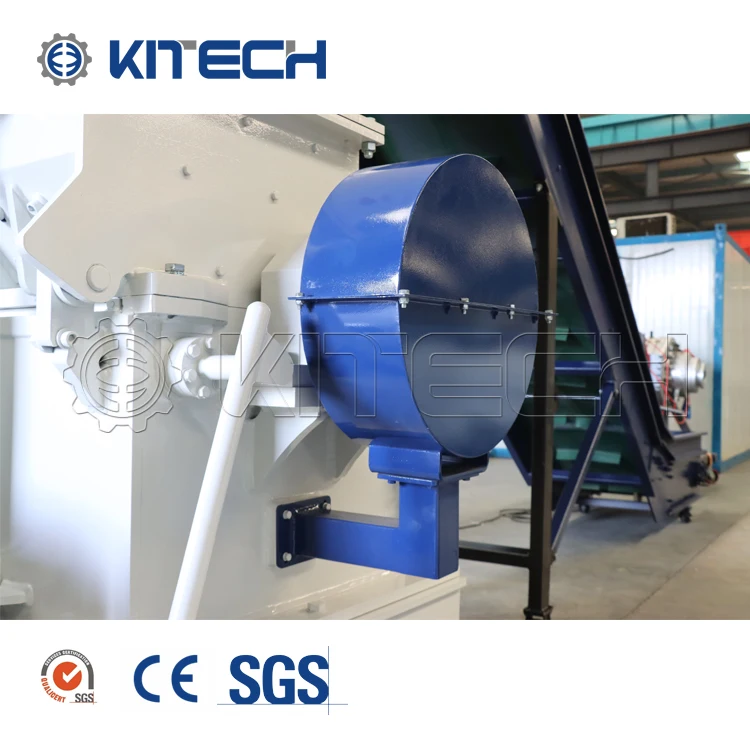

Heavy Duty LDPE PS BOPP PP PE PET Bottle Recycling Plastic Crusher Prices
- Category: >>>
- Supplier: Jiangsu Acemech Machinery Co. Ltd.
Share on (1600307162136):
Product Overview
Description
Welcome To KiTech
Products Description
GENERALDESCRIPTION >>

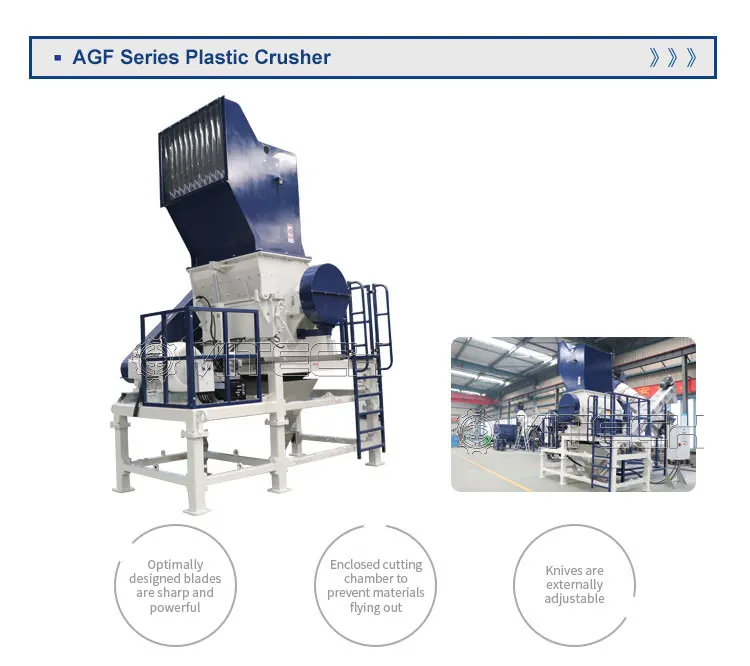

>>The AGF Film & Bottle Granulator has been specially design for the processing of flms,bottles, and other hollow thin walled plastics. It has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re- sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.
>>The rotor is a heavy duty paddle type design with knife cover plates to protect the blades when processing abrasive applications. The knife mounting bolts are screwed into the mounting plates as opposed to the rotor. All knives are manufactured from chrome nickel tool steel as standard, but when processing applications that are particularly abrasive the AGF granulators can be ftted with a specially designed wear resistant rotor utilizing wear resistant steel parts and hardox facing.
>>The v-cut cutting geometry offers distinct advantages over other rotor designs, including higher throughput with reduced power consumption, better quality cut, and lower noise levels. The AGF rotor configuration provides between 20-40% additional throughput in comparison to standard rotor configurations.
>>Specially designed knife setting jig means that the knives can be adjusted from outside the machine, significantly reducing the downtime required to change/set knives.

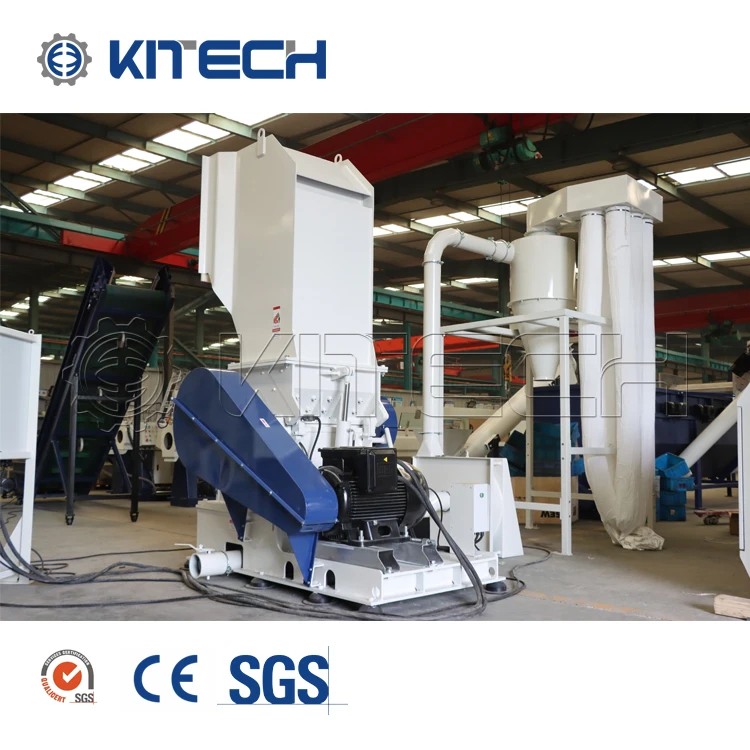

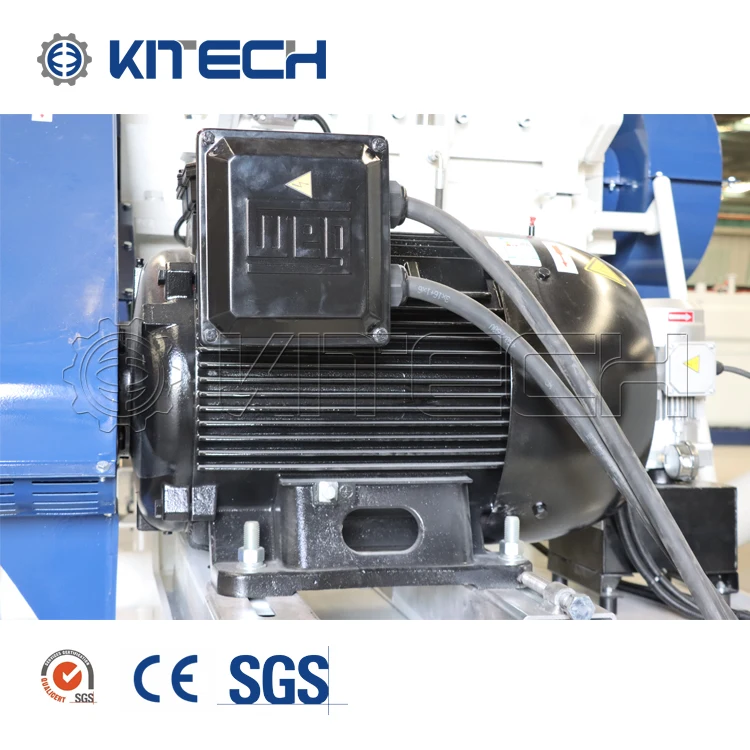

>>The base frame has a solid welded construction with anti-vibration rubber feet to reduce vibration and noise.' The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction trough for material discharge.
>>Specially designed hopper with 3 sets of curtains to prevent material flybacks.
Integrated rundown safety device prevents access to the rotor until it has come to a complete stop. A safety switch prevent machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
Integrated rundown safety device prevents access to the rotor until it has come to a complete stop. A safety switch prevent machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
KEY FEATURES >>

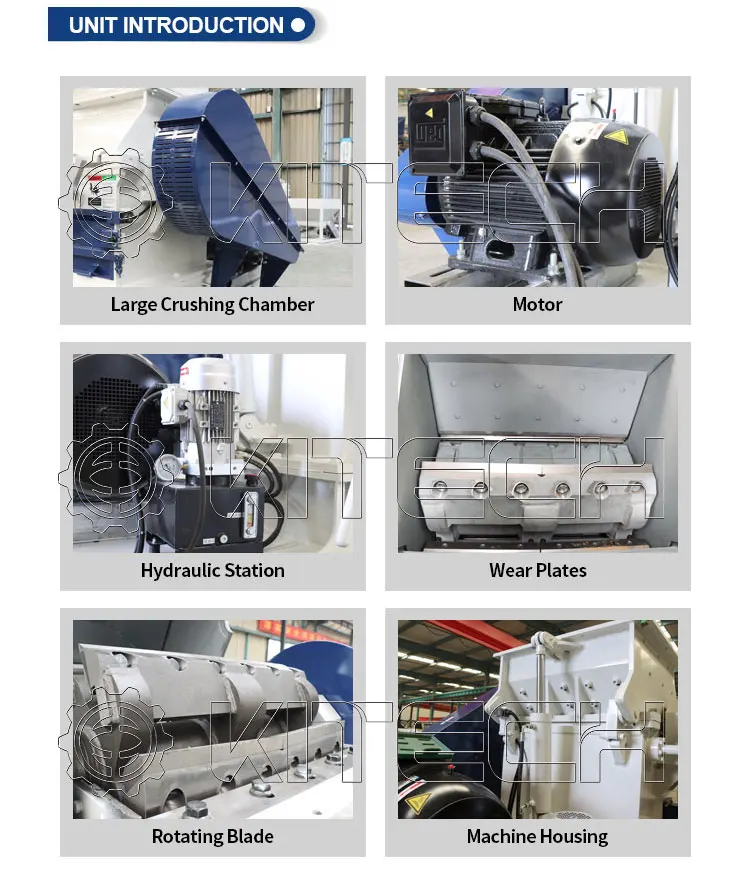

>>Anti-wear machine housing
>>Ladder blade rotor configuration for flms and hollow plastics
>>Suitable for wet and dry granulation .
>>20-40% aditional throughput
>>Heavy duty bearings
>>Oversized external bearing housings
>>Knives are externally adjustable
>>Robust welded steel construction
>>Wide choice of rotor variations

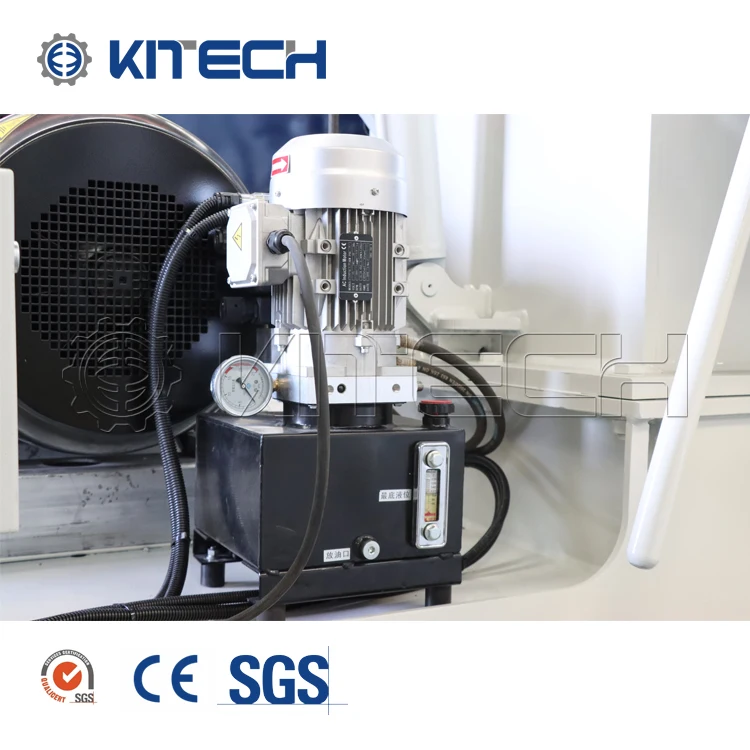

>>Electrical hydraulic control to open housing
>>Electrical hydraulic control to open screen cradle
>>Replaceable wear plates
>>Amp meter control
OPTIONS >>
>>Extra flywheel
>>Double infeed hopper Roller feeder
>>Mounted screw feeders in hopper
>>Winding protection
>>Metal detector
>>Metal separator
>>Metal separator
>>Bespoke colour scheme
>>Increased motor drive
Technology Data
ITEM | UNIT | AGF500/700 | AGF700/1000 | AGF700/1200 | AGF800/1600 |
Rotor Diameter | mm | φ500 | φ700 | φ700 | φ800 |
Rotor Width | mm | 700 | 1000 | 1160 | 1560 |
Rotor Knives | pcs | 5x2 | 5x2/7x2 | 5x2/7x2 | 5x4/7x4 |
Stator Knives | row | 2 | 2 | 2 | 2 |
Cutting Chamber Dimension | mm | 500x700 | 700x1000 | 700x1176 | 800x1600 |
Motor Power | kw | 37-55 | 75 | 90 | 160 |
Capacity | Ton/hr | 0.3-0.5 | 0.6-1 | 1.5-2 | 2.5-3 |
