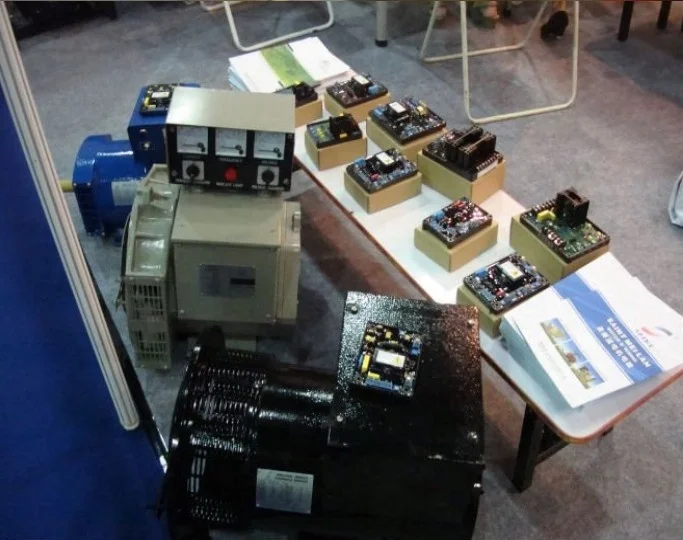

Newage GAVR15A Voltage Regulator Generator GAVR15A for Alternator

Product Overview

Description



Automatic Voltage Regulator

AVR GAVR15A





 AVR ( automatic voltage regulator ) Use For Diesel Gernerator

Generator Set ,Brushless Alternator Power Solutions!





Automatic Voltage Regulator AVR GAVR15A





AVR GAVR15A AUTOMATIC VOLTAGE REGULATOR (AVR)



AVR GAVR15A for generator

Automatic Voltage Regulator for generator



•


  Description:




  AVR  GAVR15A




   is a half-wave phase-controlled thyristor type, Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brush-less generator. In addition to regulating the generator voltage, the AVR
  circuitry includes under-speed and sensing loss protection, features. Excitation power is derived directly from the
  generator terminals. Positive voltage build up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of the AVR.






•


  The AVR is linked with the main stator windings and the exciter field windings to provide closed loop control of the
  output voltage with load regulation of +/- 1.0%.  In addition to being powered from the main stator, the AVR
  also derives a sample voltage from the output windings for voltage control purposes. In response to this sample
  voltage, the AVR controls the power fed to the exciter field, and hence the main field, to maintain the machine output
  voltage within the specified limits, compensating for load, speed, temperature and power factor of the generator.





•


  ITEM  Regulator GAVR15A for brushless alternator




   Application:  Suitable for brushless generator




   Voltage Set-up: The voltage set up when the remnant magnetism greater than 4V25Hz




   Input power Supply:  AC 160~260V 50/60Hz




   Maximum Output:  DC 15A 90V(when the voltage reaches AC 207V)




   Frequency  Compensation:  Built-in low speed protective circuit.




   Regulation factor:  Less then 1%






AVR ( automatic voltage regulator ) spare part ,use for 8kw-1500kw brushless alternator generator/ ac brushless alternator / alternators

  AVR ( automatic voltage regulator ) spare part ,use for 8kw-1500kw brushless alternator generator/ ac brushless alternator / alternators



Model	Alternator POWER				Dims
	1500rpm / 50Hz, 400V		1800rpm /60Hz, 440V
	KW	KVA	KW	KVA	cm
SML164A	6.5	8.1	8.2	10.3	58*56*62
SML164B	8.8	11	11	13.8	58*56*62
SML164C	10.8	13.5	13.5	16.9	58*56*62
SML164D	12.8	16	16	20	58*56*62
SML184E	18	22.5	23	28.8	72*56*62
SML184F	22	27.5	27.5	34.4	72*56*62
SML184G	25	31.3	30	37.5	72*56*62
SML184H	30	37.5	37.5	46.9	72*56*62
SML184J	32	40	40	50	72*56*62
SML224C	34	42.5	42	52.5	84*58*90
SML224D	40	50	50	62.5	84*58*90
SML224E	48	60	56	70	93*58*90
SML224F	58	72.5	70	87.5	93*58*90
SML224G	68	85	78	97.5	97*58*90
SML274C	80	100	94	117.5	94*69*97
SML274D	91	113.8	110	137.5	94*69*97
SML274E	112	140	134	167.5	94*69*97
SML274F	128	160	152	190	106*69*97
SML274G	144	180	174.8	218.5	111*69*97
SML274H	160	200	196	245	116*69*97
SML274J	184	230	224.8	281	116*69*97
SML274K	200	250	239.2	299	116*69*97
SML314C	200	250	235	294	133*79*106
SML314D	236	295	280	350	133*79*106
SML314E	260	325	315	394	133*79*106
SML314F	304	380	365	456.3	133*79*106
SML354C	360	450	440	550	149*87*116
SML354D	400	500	475	594	149*87*116
SML354E	480	600	570	712.5	149*87*116
SML354F	536	670	620	775	149*87*116
SML404C	600	750	640	800	169*98*135
SML404D	640	800	720	900	169*98*135
SML404E	720	900	800	1000	169*98*135
SML404F	800	1000	900	1125	169*98*135
SML404G	900	1125	1000	1250	169*98*135
SML404H	1000	1250	1100	1375	169*98*135



8kw-1500kw brushless alternator generator/ a brushless alternator / alternators
