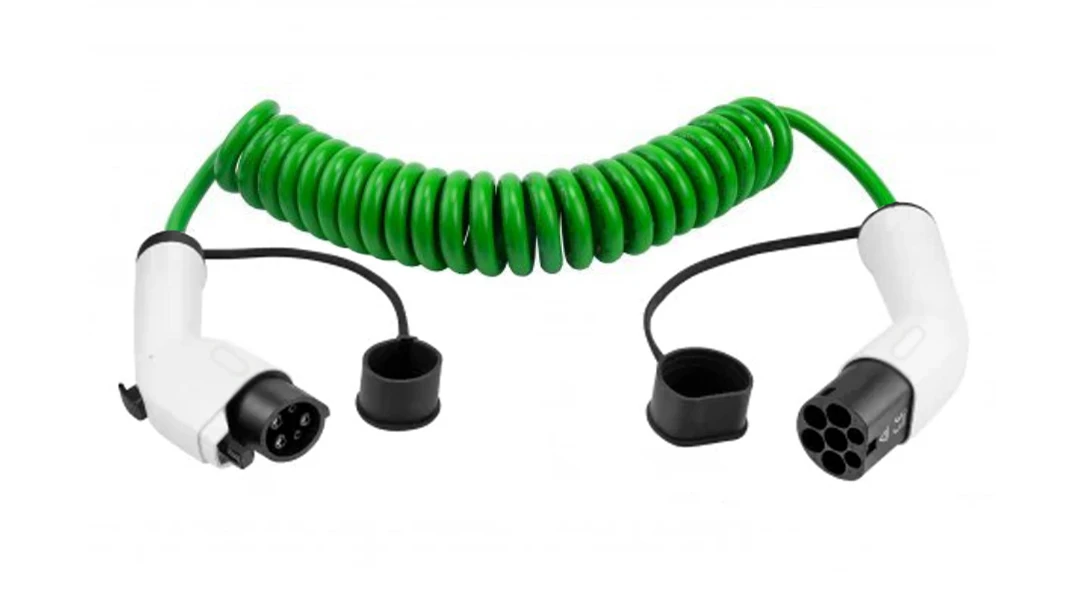

IP 54 level high electric performance spring type 5 m Type 2 to Type 2 spiral 32 A 3 Phase EV charging cable
- Category: >>>
- Supplier: HIVE WALLBOX CO. LTD.
Share on (1600307329795):
Product Overview
Description
Products Description
Cable material is TPU, the best material in the market at present, conforms to the the latest European Union standards, lighter and thinner, long time durability, low temperature resistance.

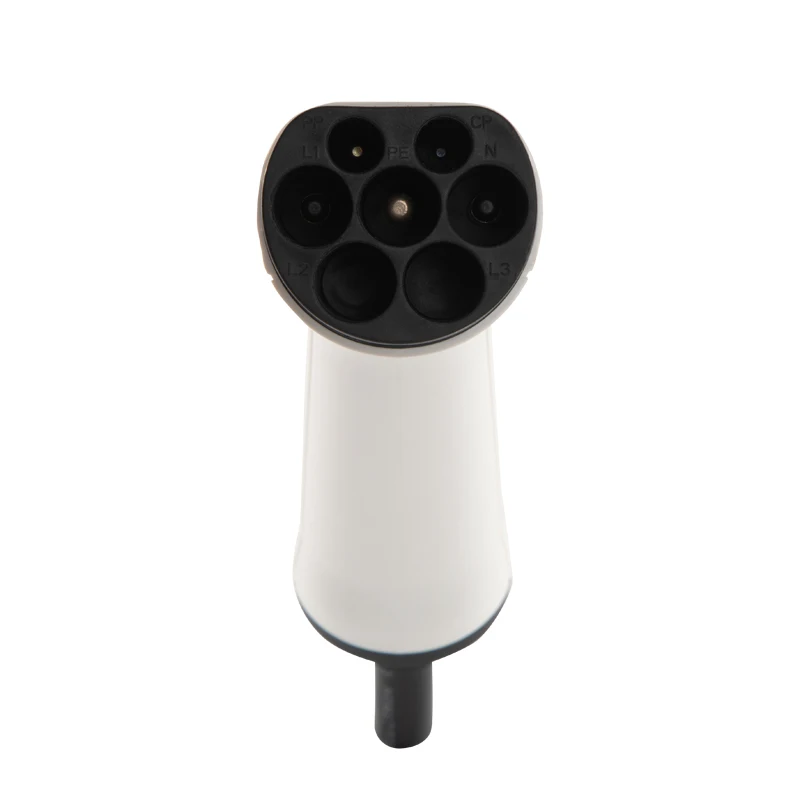

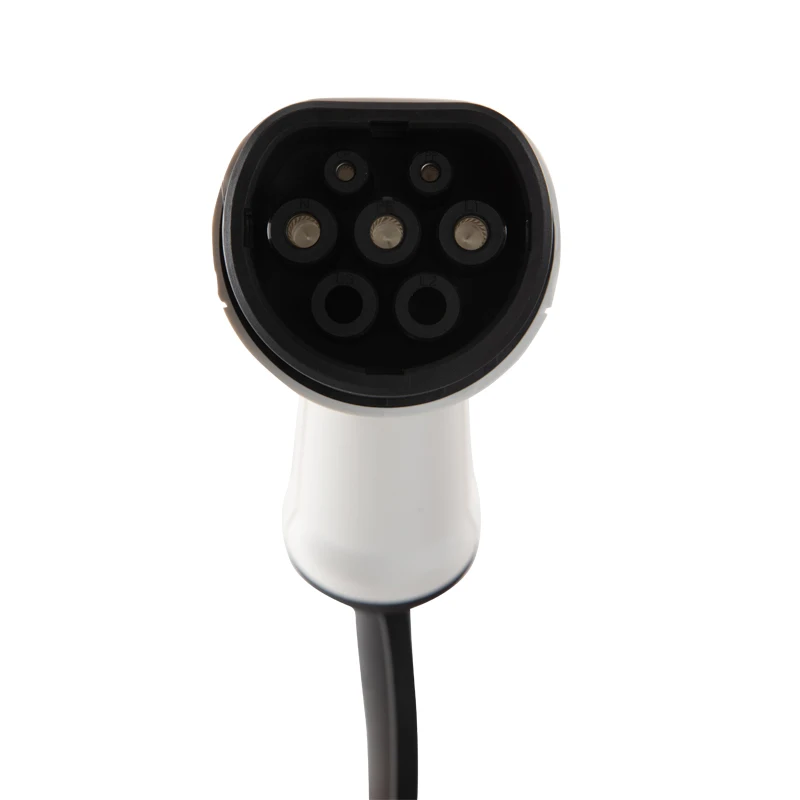

Female / car side Male / pile side
Product Paramenters
Product Definition | Electric Parameter | ||||
Stadnard | IEC 62196-2:2016 | Rated Current | 32A | ||
Charging Mode | Mode 3 | Rated Voltage | 480V | ||
Connector Manner | B | Power Pin Numbert | 3 ( L, N, PE ) | ||
Current Type | AC | Signal Pin Numbert | 2 ( PP, CP ) | ||
Housing Color | white | Signal Pin Current | 2A | ||
Cable Color | Black | Insulation Resistance | ≥5MΩ | ||
Ambient Condition | Mechanical Performance | ||||
AmbientTemperature （ working ） | -30℃--50℃ | Insertion & Pullout Times | ＞10000 times | ||
AmbientTemperature （ storage ） | -40℃--80℃ | Insertion & Pullout Force | 45N～100N | ||
Ingress Protection | IP54 | Withstanding Impact Force | Affordable 1 meter height fell or 2 ton car run over presure | ||
Major Material | ||||||
Plug Material | Reinforced Thermoplastic, UL94V-0 | |||||
Housing Material | Reinforced Thermoplastic, UL94V-0 | |||||
Cap Material | PUR | |||||
Pin Material | Copper Alloy, Silver Plated | |||||
Cable Configuration | ||||||
Single Phase 16A | 5*6mm²+1*0.5mm² | |||||
Cable Style | flat cable | |||||
Cable Material | TPU | |||||
Details Images
Why Choose Us
FAQ
1.Can we require you to do our trademark?
2.What are your terms of payment?
T/T 30%as deposit， and 70% balance before delivery.
3.What are your terms of delivery?
Trademark service is available，
and the order quantity should be more than 100pcs.
2.What are your terms of payment?
T/T 30%as deposit， and 70% balance before delivery.
For small orders,Paypal is available
3.What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU, etc.
4.Can you produce according to the samples?
Yes,we could produce based on your samples or technical drawings.
Yes,we could produce based on your samples or technical drawings.
We could build corresponding molds and fixtures.
5.What is your sample policy?
We can provide a sampleupon request.
5.What is your sample policy?
We can provide a sampleupon request.
Customers need to pay for the shipping cost.
CAUTION
1. Don't submerge the EV charging cable in water.
3. Don't drop the EV charging boxor place a heavy object on it.
5. Don't operate the EVSE in temperatures beyond its operating range of-25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5 mm recommended 3*4 mm), with a standard 16A socket. It is suggested that the power distribution is done by the professionals.
7. Don't put your fingers into the charging connector when the power plug is still connected to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging.
10. Don't use this device with another brand's extension cord or adaptor.
1. Don't submerge the EV charging cable in water.
2. Don't step on, fold, or knot the cable.
3. Don't drop the EV charging boxor place a heavy object on it.
4. Don't place the charging cable near a high-temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of-25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5 mm recommended 3*4 mm), with a standard 16A socket. It is suggested that the power distribution is done by the professionals.
7. Don't put your fingers into the charging connector when the power plug is still connected to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging.
10. Don't use this device with another brand's extension cord or adaptor.
