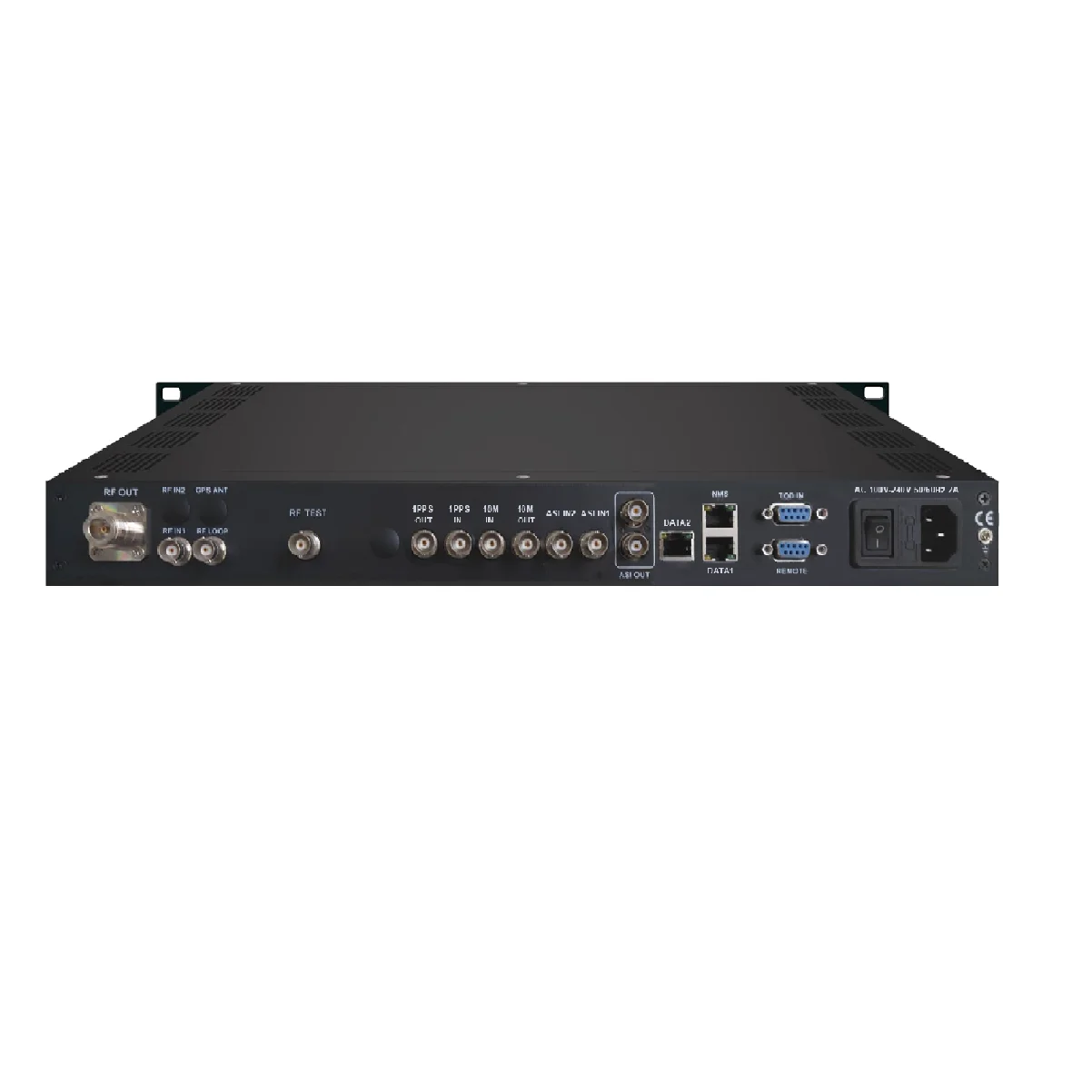

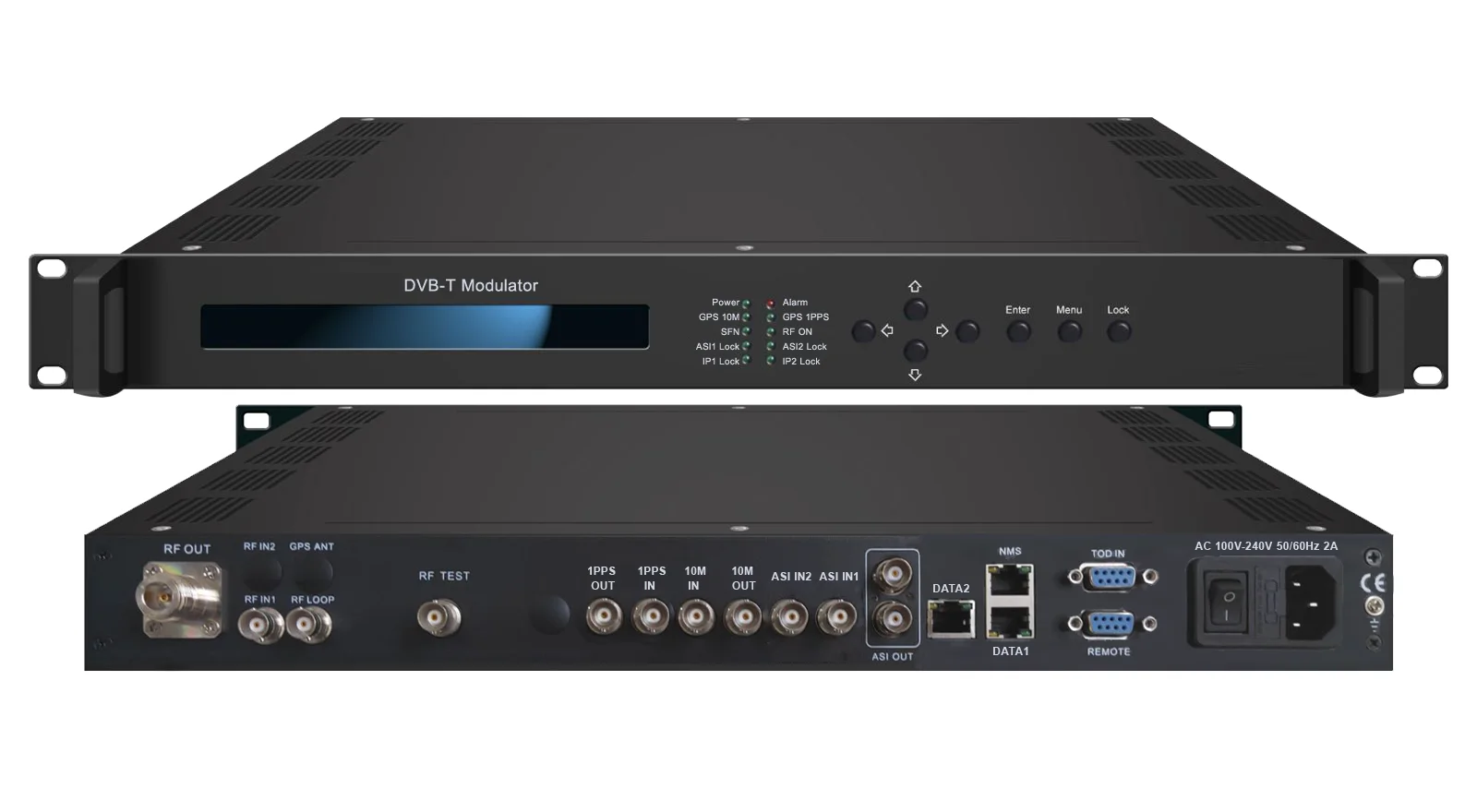

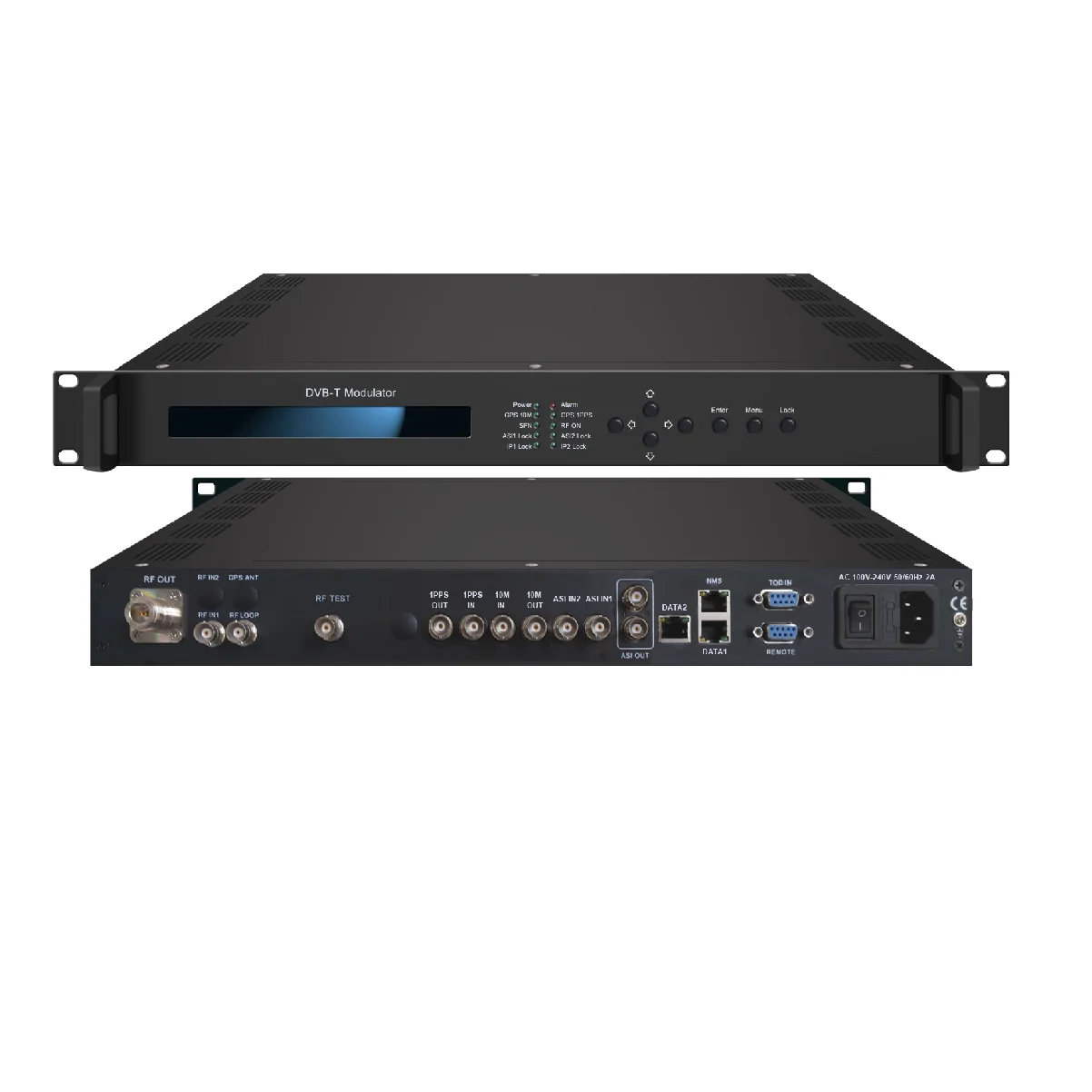

Jiexiang HD Mpeg4 1080P ASI to DVB T/C Modulator

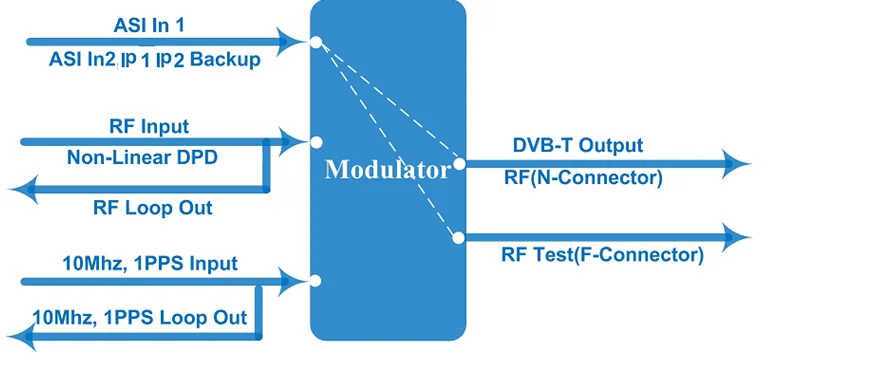

Input

2channels ASI input& 2 IP input, can only select 1 input as source, but all 4 inputs ports are hot backup

IP with UDP/RTP protocol, with Multicast/Unicast

IP with PCR adjust feature also

GPS 10Mhz reference clock input, BNC port

GPS 1PPS input, BNC port

1 RF input for DPD  -25dbm~+5dbm

Modulation

Standard

EN300 744

FFT

2K, 8K

Bandwidth

5M, 6M, 7M, 8M

Constellation

QPSK, 16QAM, 64QAM

Guard interval

1/4, 1/8, 1/16, 1/32

FEC

1/2, 2/3, 3/4, 5/6, 7/8

RF output

Interface

N type, 50Ω impedance

RF range

50~1000MHz,1hz step

RF output level

-15dbm~+5dbm, 0.1db step

RF level offset

-3dbm~+3dbm, 0.1db step

MER

≥ 42db

ASI output

2 ASI ports output for the passthrough of the input ASI Signal, both ASI out are the same

Non-linear DPD

over 10db ACPR improvement (normally)

System

LCD display & keyboard operation, web management

Software upgrading through NMS port

General

Demission (W*L*H)

440mm×414mm×44.5mm

Weight

4.9kg

Temperature

0~45℃(operation), -20~80℃(storage)

Power Supply

AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Power Consumption

To be tested
