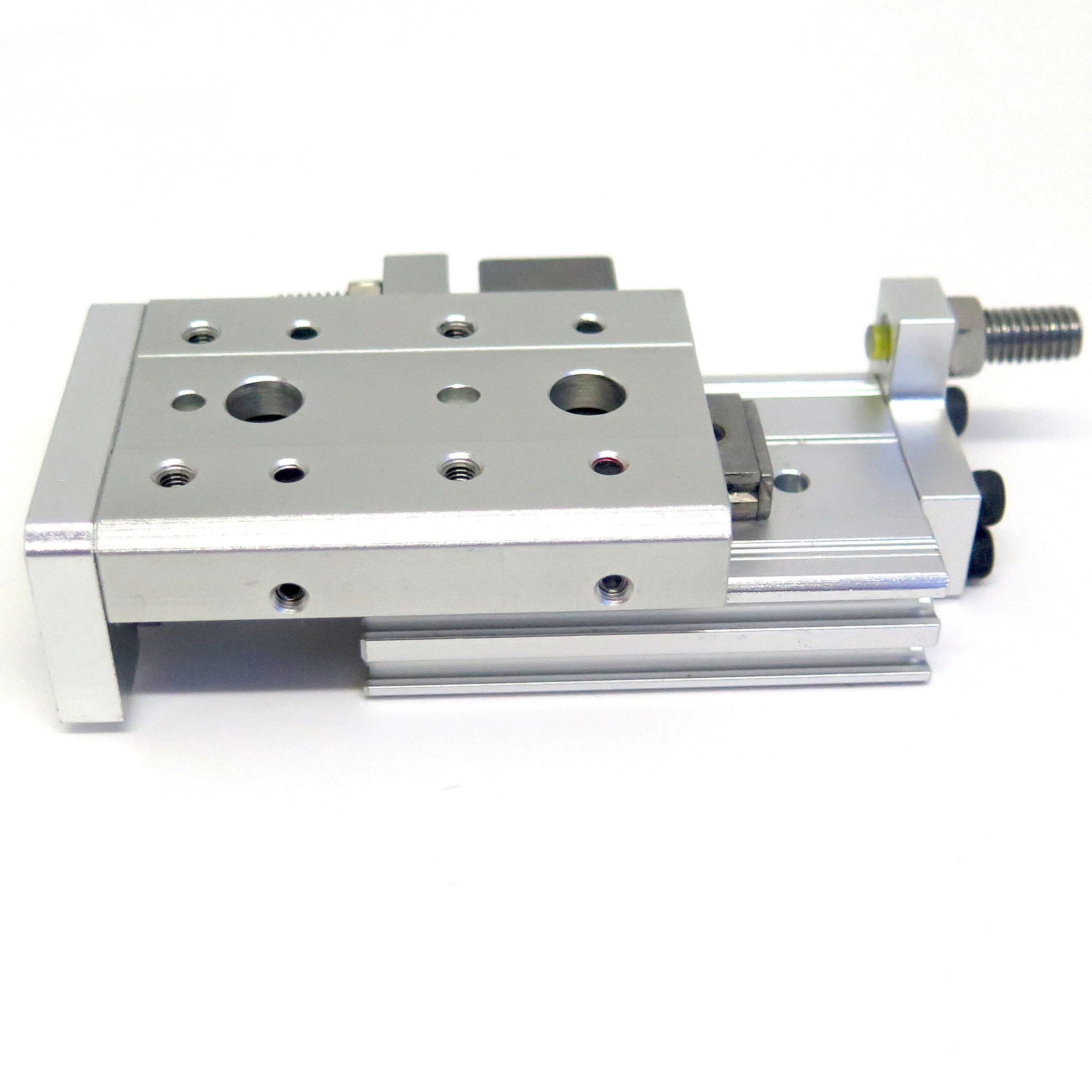

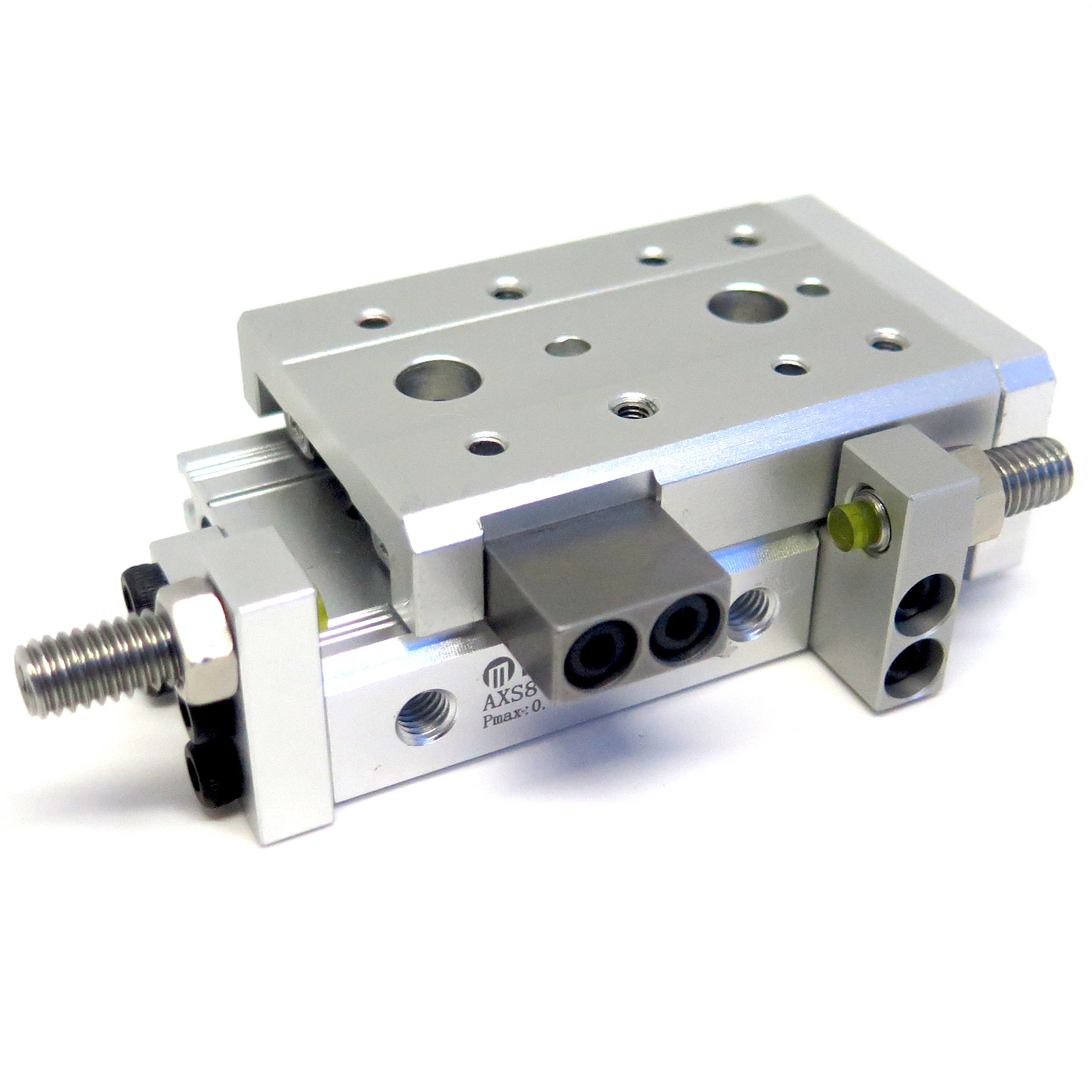

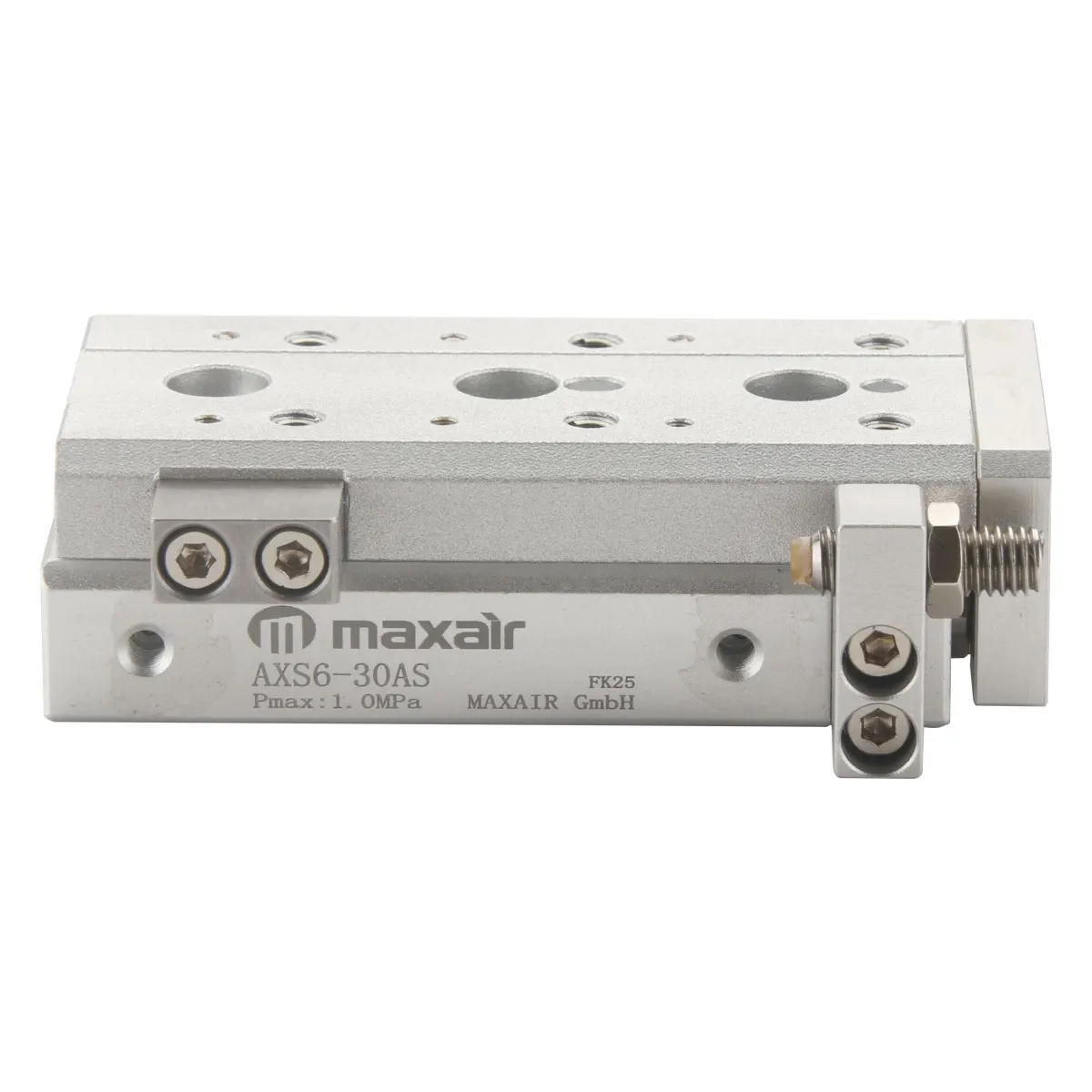

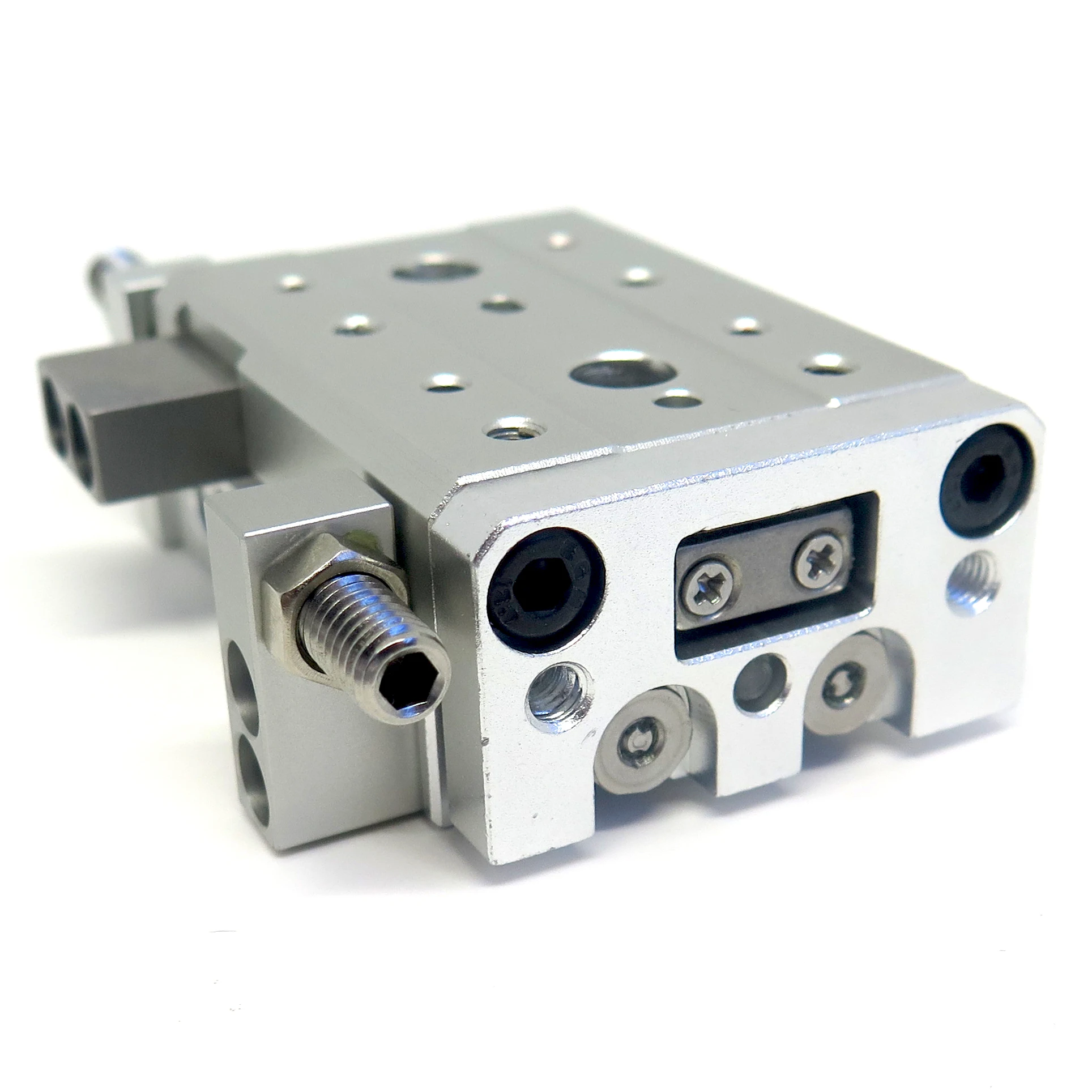

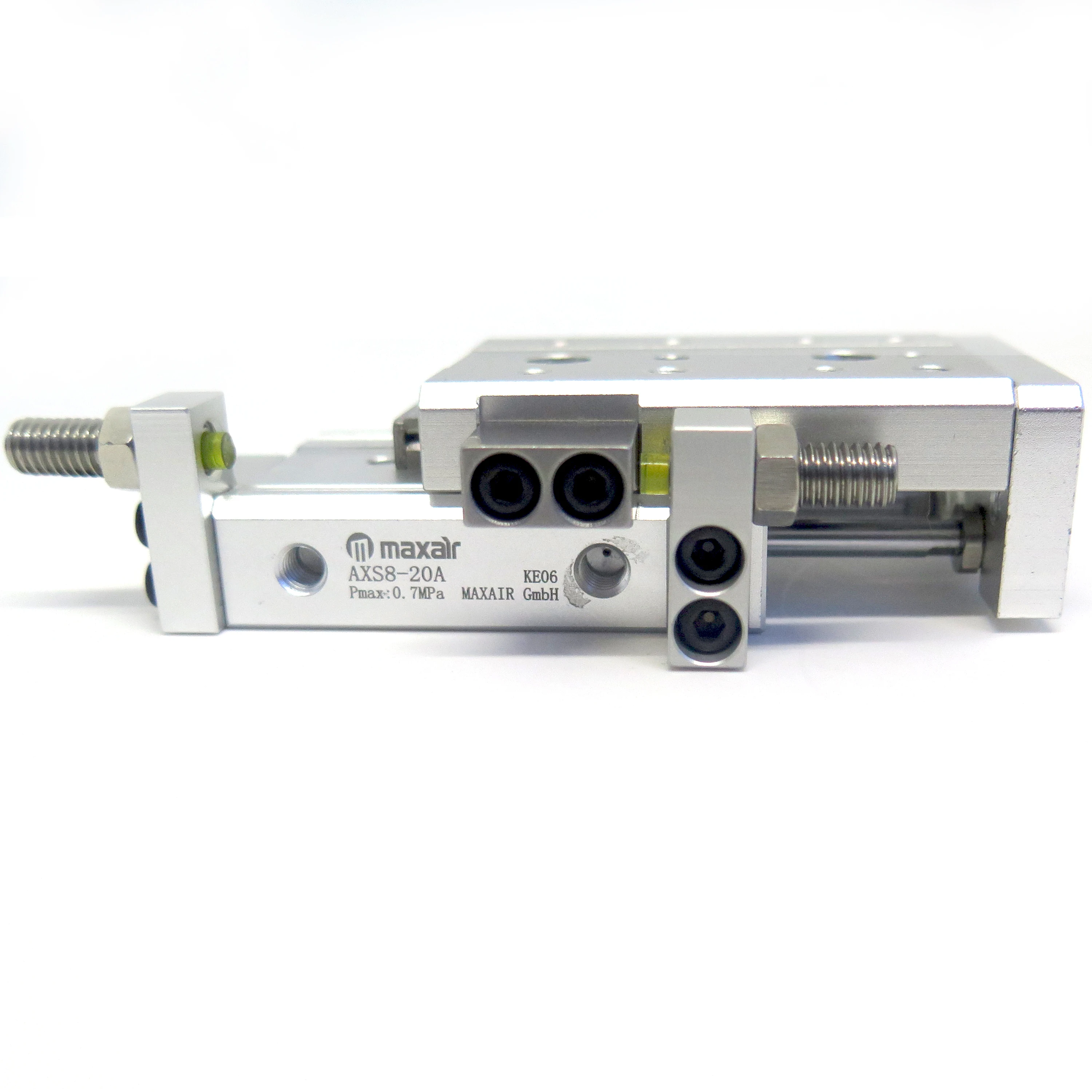

Maxair SMC Type AXS/MXS Series Cross Roller Guide Rail Air Pneumatic Sliding Table Cylinder
- Category: >>>
- Supplier: Shenzhen Maxair Science and Technology Development Co. Ltd.
Share on (1600307487553):
Product Overview
Description
Product Description

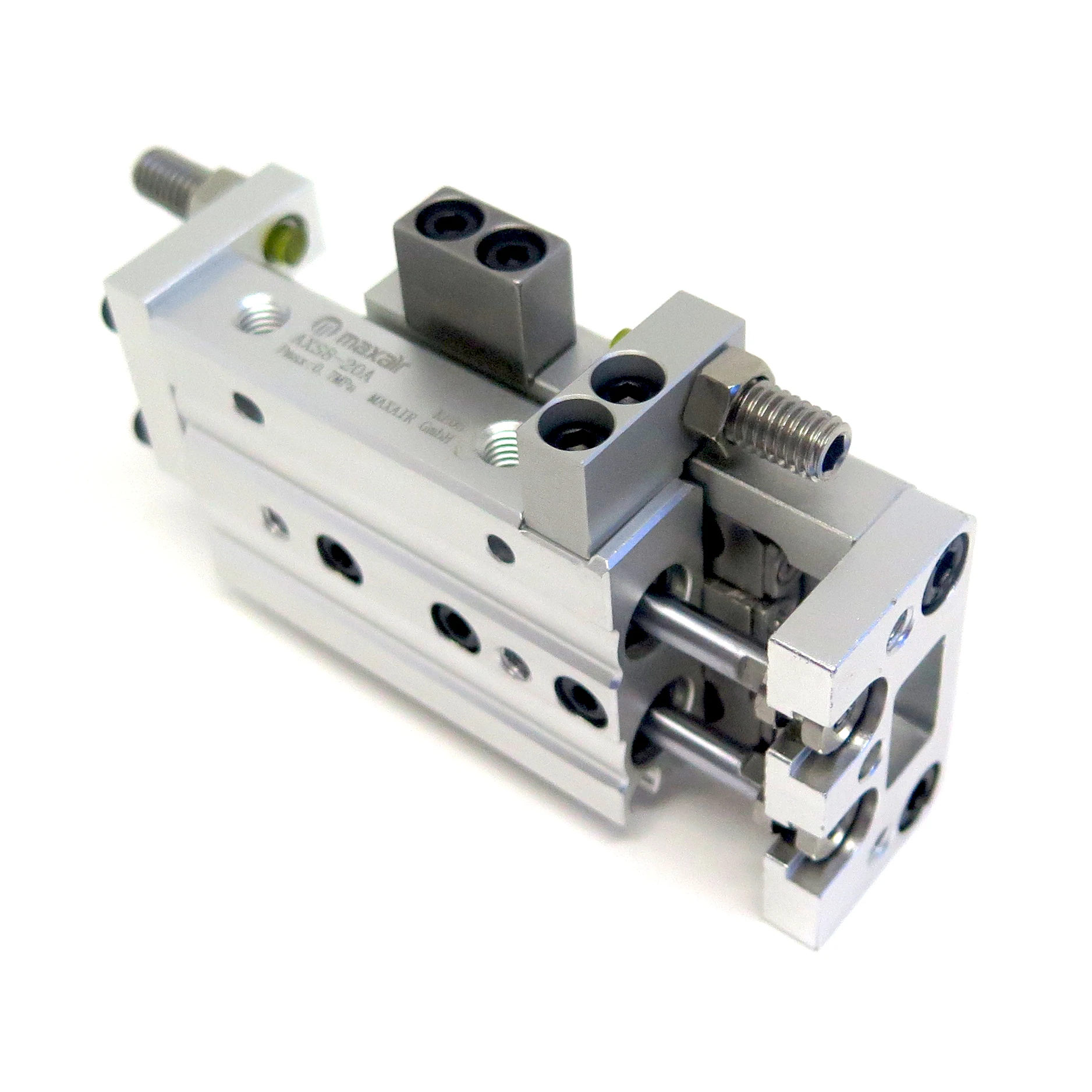

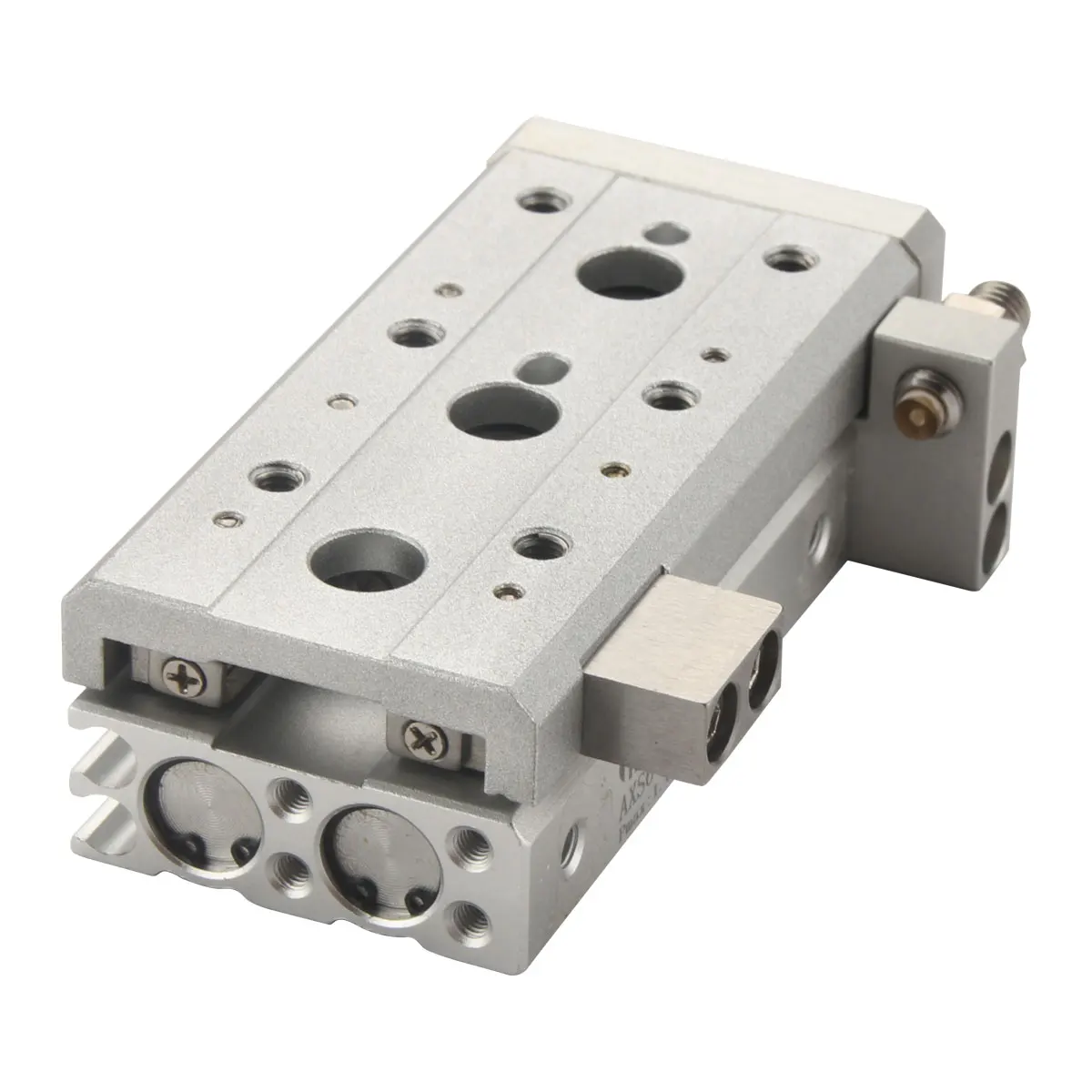

Maxair SMC Type AXS/MXS Series Cross Roller Guide Rail Air Pneumatic Sliding Table Cylinder
Our AXS can replace CKD:LCV SMC:MXS AIRTAC:HLS

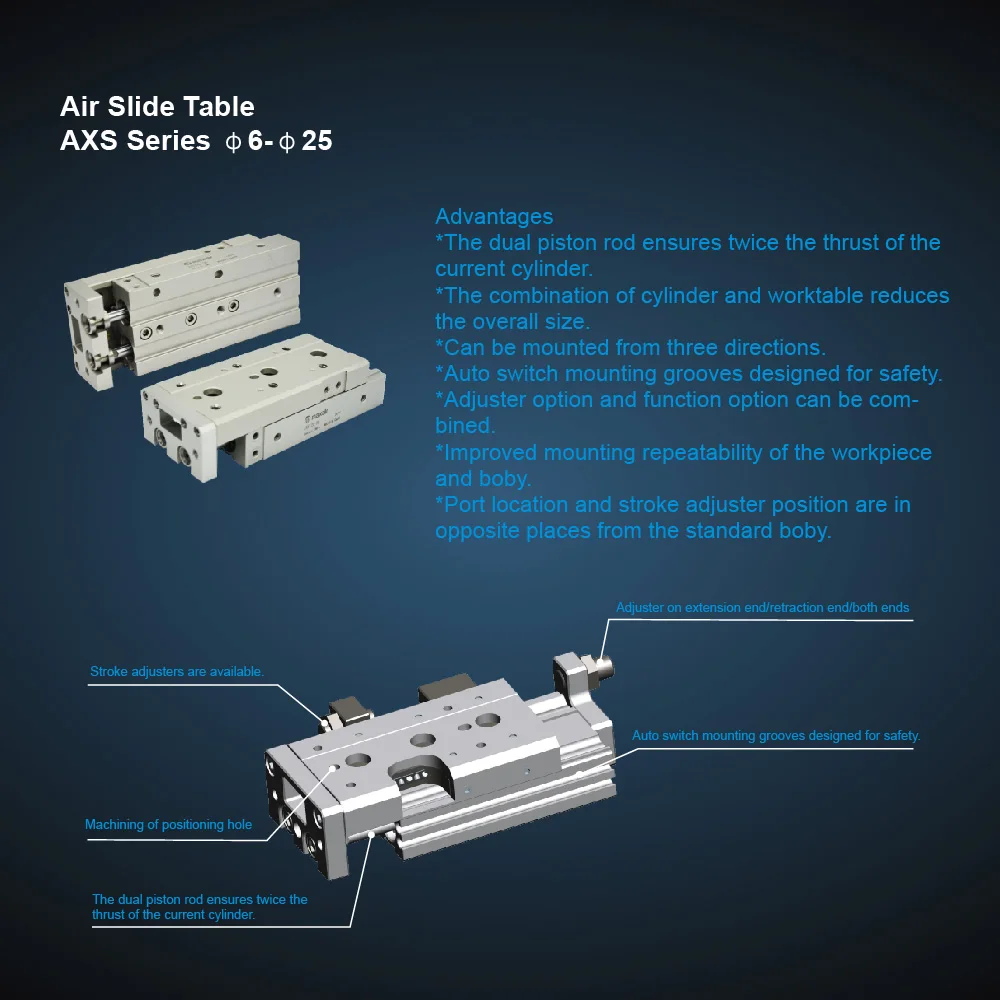

Advantages:
1.The dual piston rod ensures twice the thrust of the current cylinder.
2.The combination of cylinder and worktable reduces the overall size.
3.Can be mounted from three directions.
4.Auto switch mounting grooves designed for safety.
5.Adjuster option and function option can be com-bined.
6.Improved mounting repeatability of the work piece and boby.
7.Port location and stroke adjuster position are in opposite places from the standard boby.
8.Integrated with a worktable in a compact manner
9.An air slide table that is ideal for precision assembly work
10.High rigidity and high accuracy
11.Smooth movement without looseness has been achieved through the adoption of a cross roller guide.
12.Compact and lightweight
13.Provides twice the output of the current cylinder through the adoption of the dual rod function
Advantages:
1.The dual piston rod ensures twice the thrust of the current cylinder.
2.The combination of cylinder and worktable reduces the overall size.
3.Can be mounted from three directions.
4.Auto switch mounting grooves designed for safety.
5.Adjuster option and function option can be com-bined.
6.Improved mounting repeatability of the work piece and boby.
7.Port location and stroke adjuster position are in opposite places from the standard boby.
8.Integrated with a worktable in a compact manner
9.An air slide table that is ideal for precision assembly work
10.High rigidity and high accuracy
11.Smooth movement without looseness has been achieved through the adoption of a cross roller guide.
12.Compact and lightweight
13.Provides twice the output of the current cylinder through the adoption of the dual rod function
Specification
Model | AXS6 | AXS8 | AXS12 | AXS16 | AXS20 | AXS25 | |||||
Bore size | 6*2=8 | 8*2=11 | 12*2=17 | 16*2=22 | 20*2=28 | 25*2=35 | |||||
Fluid | AIR | ||||||||||
Action | Double acting | ||||||||||
Max. operating pressure | 0.7MPa | ||||||||||
Min. operating pressure | 0.15MPa | ||||||||||
Ambient&fluid temperature | -10 ~+60 degree(no freezing) | ||||||||||
Piston speed | 50-500mm/s | ||||||||||
Cushion | Rubber bumper (standard) | ||||||||||
Lubrication | No Lube | ||||||||||
Port size | M3*0.5 | M5*0.8 | Rc1/8 | ||||||||
Packing & Delivery
bubble bag +small box+carton ,some cylinder need wooden case
