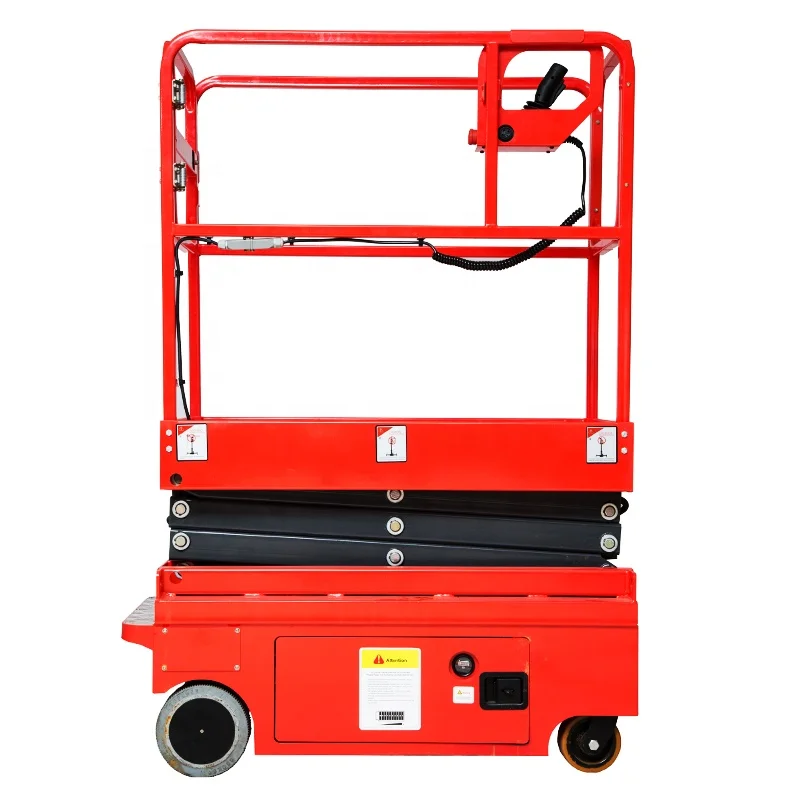

Mini Hydraulic Self Propelled Scissor Lift 3M 3.9M





Mini hydraulic Scissor Lift, as is called, it is with small size and light weight, capacity 300kg and lifting height 3m and 3.9m. It is very suitable for using indoor and outdoor on firm and level surfaces. With the compact and lightweight, it is ideally applied for tight working areas and where there is floor weight restriction where larger work platforms cannot be used, such as the supermarket, low height maintenance and decoration site etc.





As the self propelled scissor lift, it is used where there is a high frequency of use and where the lift needs to be driven to different work locations. The operator controls its moving, turning, lifting and lowering just standing on the platform. It is very convenient aerial work platform.





This indoor scissor lift is also widely used in supermarket for as one kind of order picker. Due to its small compact size, it can go through narrow places.




























































































Model Type



GTJZ3.0



GTJZ3.9



Max. Platform Height (mm)



3000



3900



Max. Working Height (mm)



5000



5900



Lift Rated Capacity (kg)



300



300



Ground Clearance (mm)



60



Platform Size (mm)



1170*600



Wheelbase (mm)



990



Min. turning radius (mm)



1200



Max. Drive peed(Platform Lifted)



4km/h



Max. Drive Speed(Platform down)



0.8km/h



Lifting/falling speed (SEC)



20/30



Max. Travel Grade (%)



10-15



Drive motors (V/KW)



2×24/0.3



Lifting motor (V/KW)



24/0.8



Battery (V/AH)



2×12/ 80



Charger (V/A)



24/15A



Max allowable working angle



2°



Overall Size



1180*760*1830



1180*760*1930



Overall Net Weight (kg)



490



600
