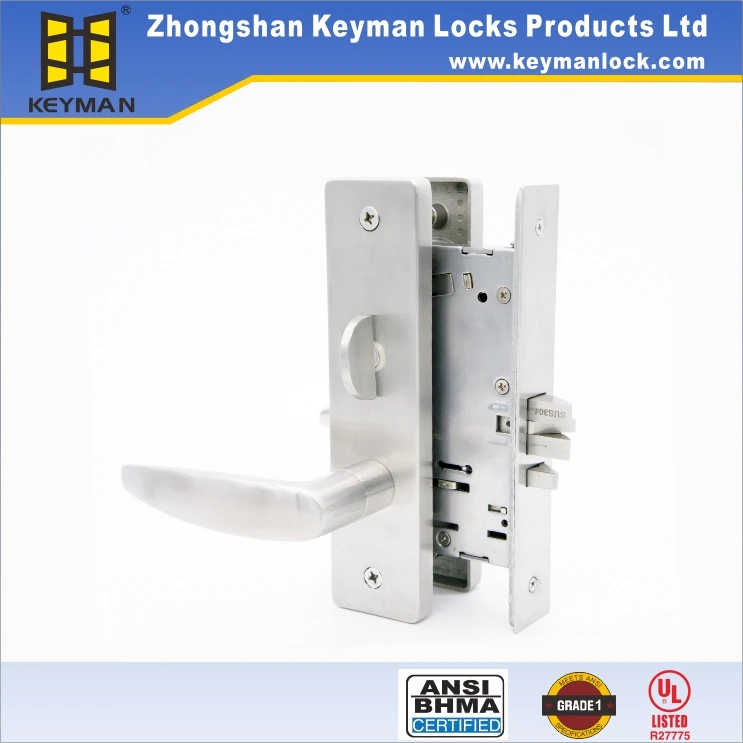

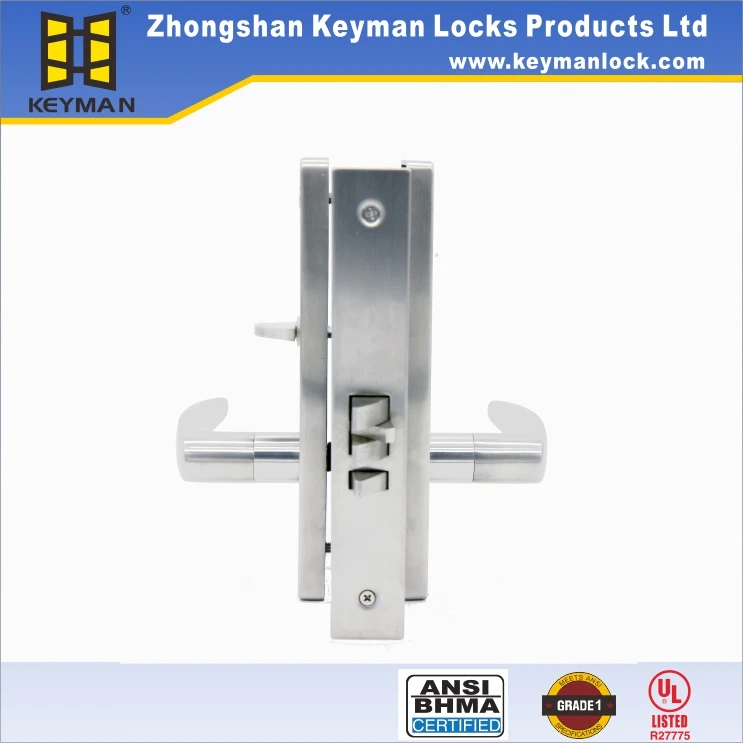

KEYMAN American Top Security Mortise Cylinder Office Entry Door Lock ANSI Grade 1

Share on (1600307558752):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


Spec.
Description
ANSI Mortise Lockset
Escutheon Type (Lever on Plate), Complete set
Mortise
Function: Keyman no.
 F40 Office (Latchbolt + Auxiliary Latch, With Thumbturn)


Cylinder
Keyman: FC735A
 - Length: 1-3/8" (35mm)
 - Solid Brass
 - Keyway: Schlage "C"
 - 6 pin, 3pcs key
Standard: Key Different
Door Thickness
1-3/4" (45mm)
Lockset Surface
SUS304
Finish (Color)
630 , 32D, Satin Stainless
Fire Rated
YES.
Panic Exit
YES. Inside Handle Always Free for Emergency.
Certificate
ANSI Grade 1, Mortise Lock   /  UL R27775
Standard
ANSI/BHMA A156.13-2017 for MORTISE LOCKS & LATCHES


Packing & Delivery


Box for Complete Lockset
Box Inside
Content Pack


Company Profile


ZHONGSHAN KEYMAN LOCKS PRODUCTS LTD.
No.6 Heping Road, Lie Xi Yi Disctrict, Xiaolan, Zhongshan, Guangdong, CHINA 528415
postmaster@keymanlock.com / sales9@keymanlock.com Tel: +86- 0760 -2213 7312
We specialized in ANSI mortise lockset & ANSI Exit Device for 20years. Has full product line of this 2 series.


FAQ


Complete Lockset.
If interested in some parts, please inquiry us.
For More information, please contact us.
