Ruiwan Mini Portable Quality Vacuum Suction Industrial Grinding Powder Collector Dust And Smoke Extractor
- Category: >>>
- Supplier: Ruiwan (Guangdong) Technology Co. Ltd.
Share on (1600307863530):
Product Overview
Description
Catalog
Product Description
Grinding & Welding dust extraction machine
RD3900

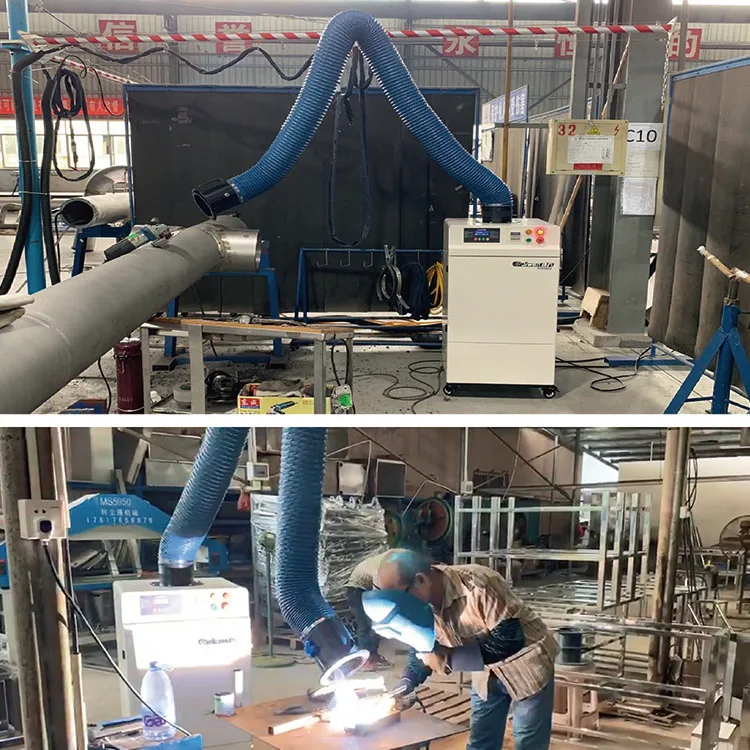

Grinding & Welding dust extraction machine is a movebale fume extraction system machine.

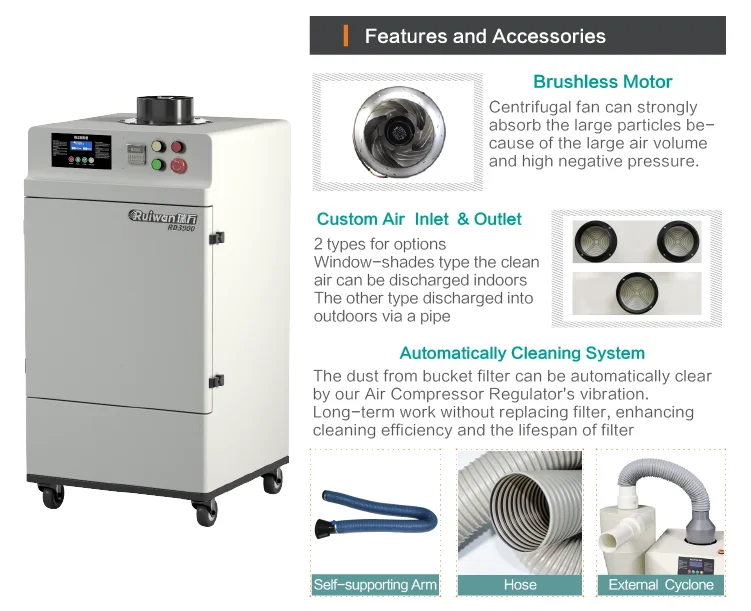

Usually, the self-supporting arm is arranged at the place where the smoke and dust is generated, and the fume and harmful smoke and dust can be effectively absorbed and purified. Through different filters,odor and harmful particles are adsorbed and blocked. So that the odor of the exhaust gas is greatly reduced or even disappeared.

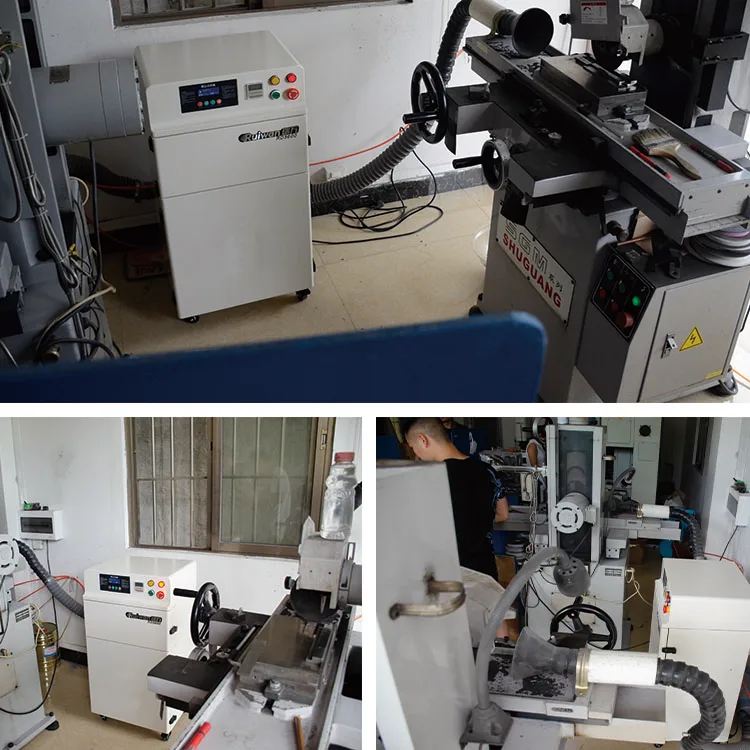

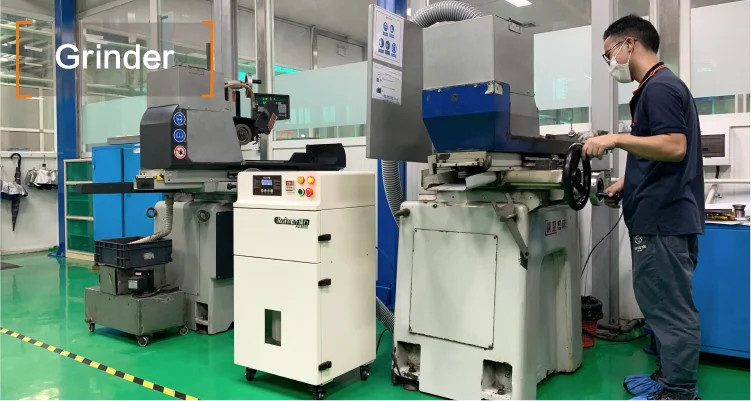

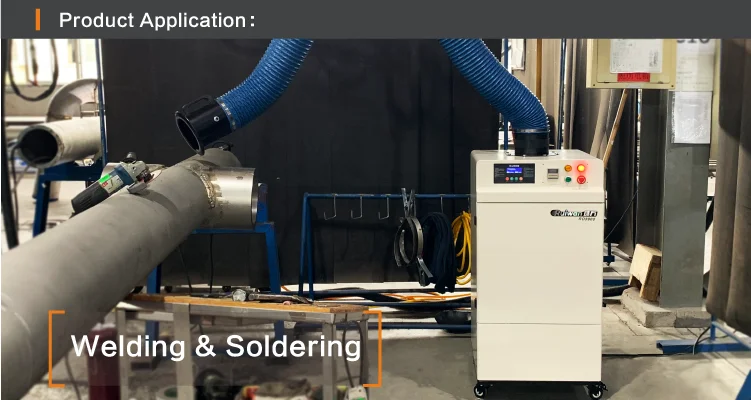

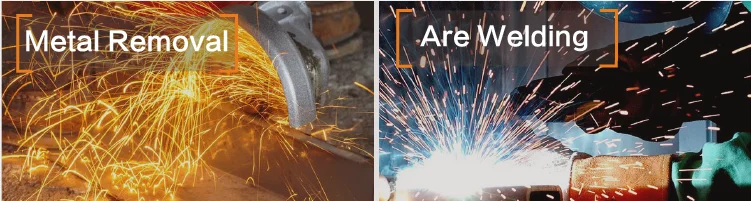

RD3900 is mainly used to handle strong smell and smoke from some strong fume work equipment such as grinding and weldingand ，re-flow soldering machine. After the external cyclone is linked, it can handle sticky dust such as rubber, acrylic, paint .Absorb dust particles of 0.5μm or more，and according to the actual working scene,the filtering effect can reach up to 99.7%
About welding fume
Welding creates specific air quality hazards which can be mitigated with the right Welding Fume Extractor and filters. Keeping welding fumes for welders below a specific limit is regulated. Some things to consider when selecting the most effective solutions for the extraction of welding fumes include:
1.At source capture of welding fumes is preferred for maximum effect and protection.
2.Portable welding fume extractors are ideal for capturing harmful fume where they are created.
2.Portable welding fume extractors are ideal for capturing harmful fume where they are created.
3.For multiple operators, consider a welding fume extractor with flexible exhaust arms.
4.Consider choosing a Self-Supporting, Rigid Flex hose for your application.
The RD3600/3900 is ideal for welding fume extraction.
The RD3600/3900 is ideal for welding fume extraction.
Details Images

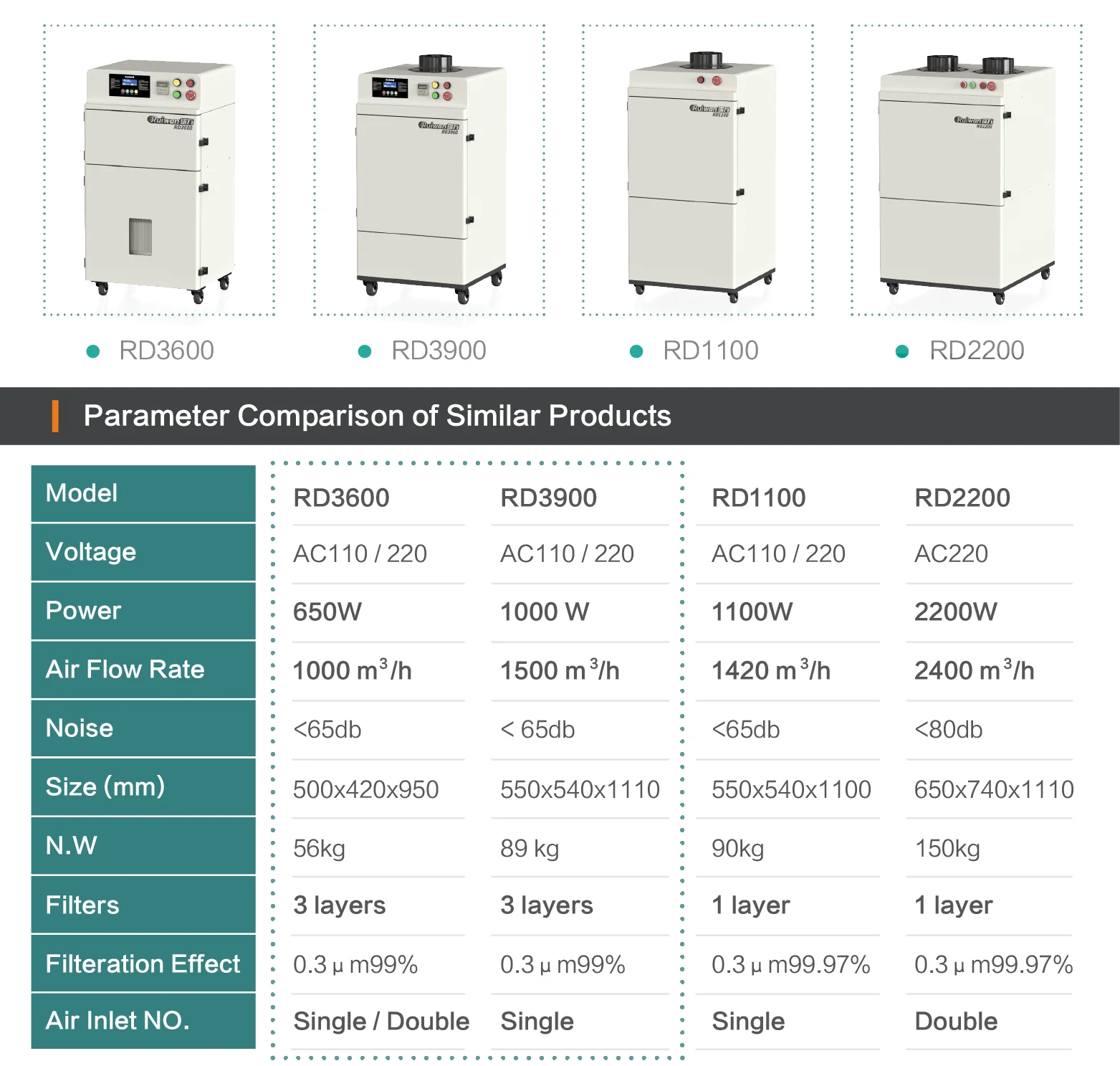

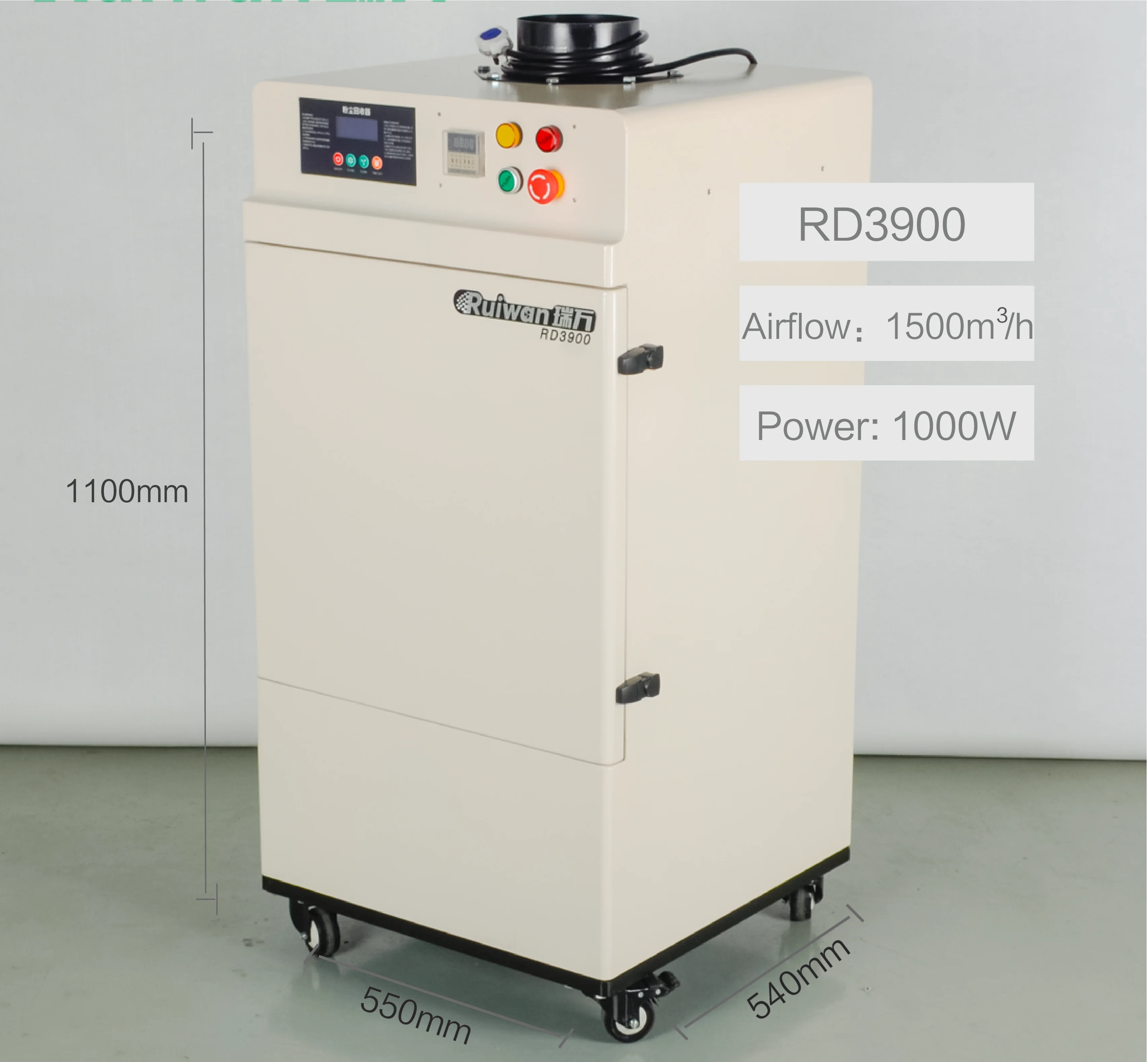

Model | RD3900 |
Voltage | 110v 60hz / 220v 60hz |
Filtration Effect | 0.3μm 99.97% |

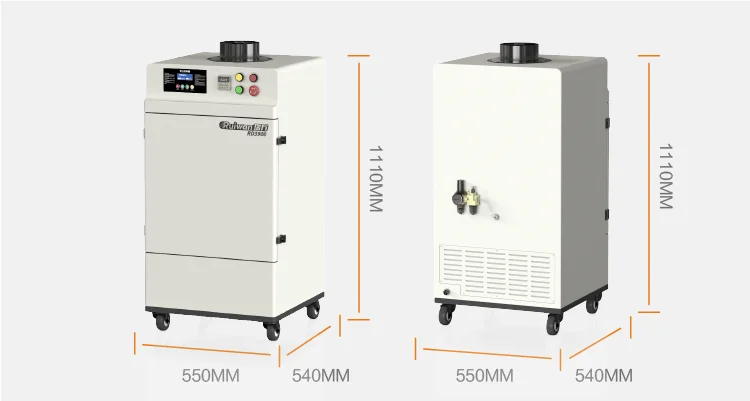

Size | 550x540x1110 mm |
Weight | 89 kg |
Diameter of Flange | 110mm |

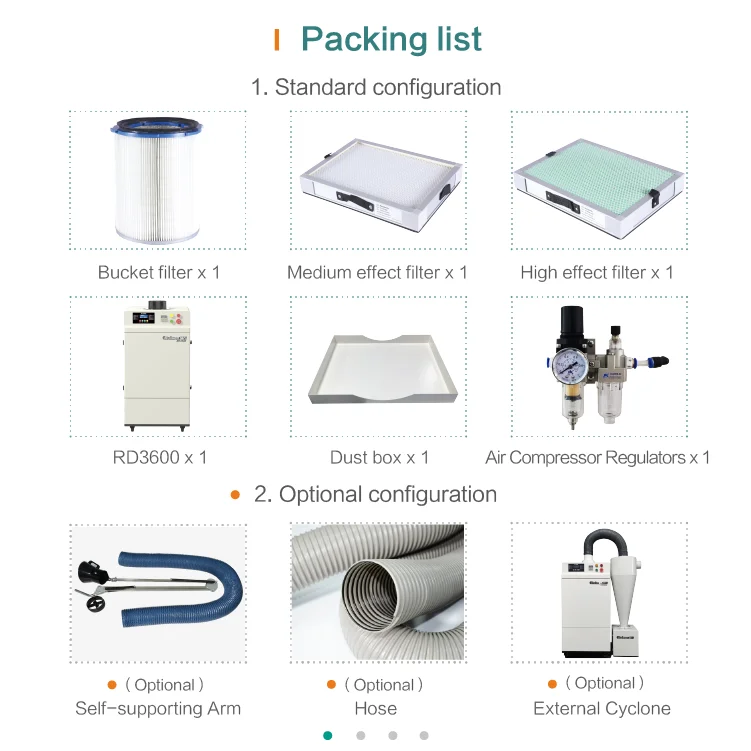

Filters | Standard 3 layers |
Air Volume | 1500 m³/h |

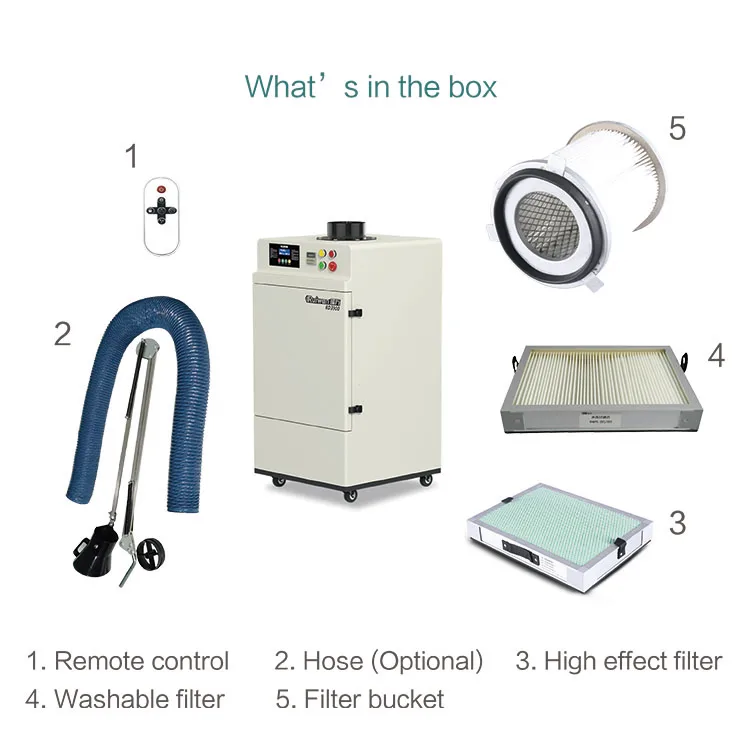

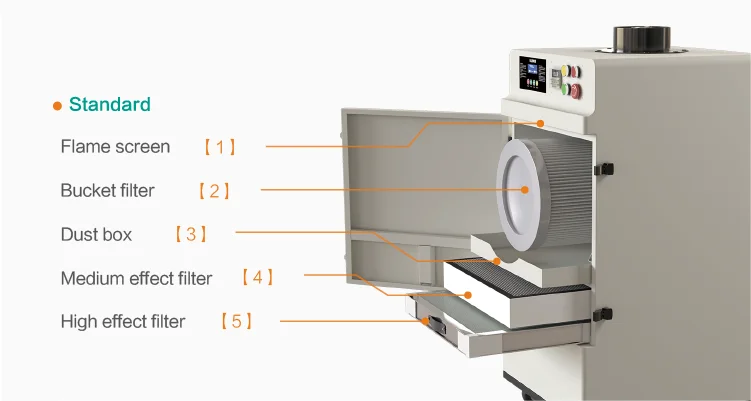

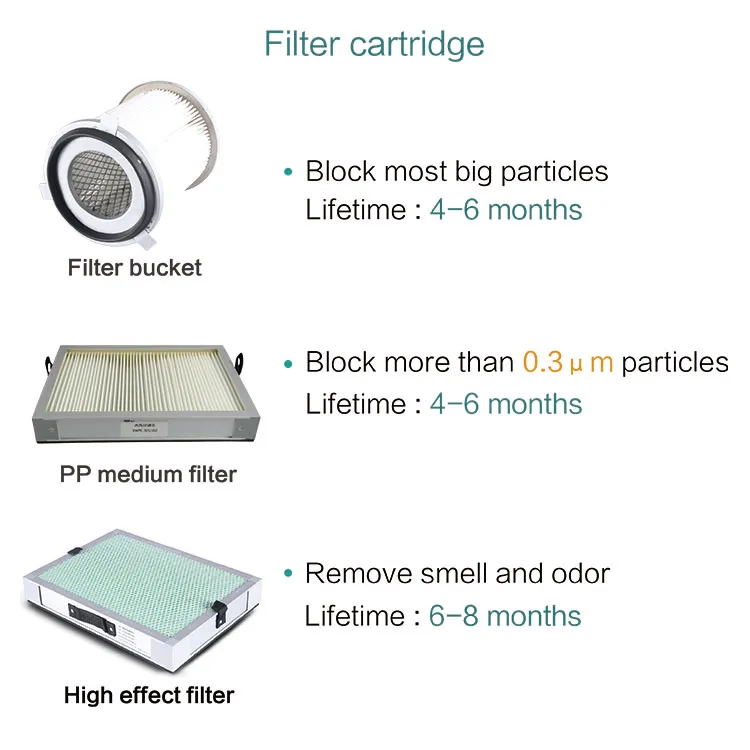

Filters | Function | Material |
Flame screen | Function：Block fire | Metal |
Primary effect filter | Block > 3 μm particulates | Synthetic fiber with gardual density |
Medium effect filter | Block > 0.3 μm particulates | PP / Glass fiber / Water wash PET |
High effective filter | Remove all smell and Odor | Custom made activated carbon |
Bucket filter | Block > 0.3 μm particulates | PP / Glass fiber |
Packing&Shipping
Express packing method :
1. Machine and accessories can be placed in the same carton.
2. Foam inside the carton, reinforced with Paper angle bead outside the carton.
3. Use a cable tie for final reinforcement.
Sea shipping packing method :
1. The machine and accessories can be placed in the same carton
(or placed separately according to the number of products) 2. Use wooden boxes or wooden racks for packaging reinforcement
1. Machine and accessories can be placed in the same carton.
2. Foam inside the carton, reinforced with Paper angle bead outside the carton.
3. Use a cable tie for final reinforcement.
Sea shipping packing method :
1. The machine and accessories can be placed in the same carton
(or placed separately according to the number of products) 2. Use wooden boxes or wooden racks for packaging reinforcement
