KEYMAN Electronic Lock American SOLENOID FUNCTION Electrified Door Lock Mortise ANSI Grade 1
- Category: >>>
- Supplier: Zhongshan Keyman Locks Products Ltd.
Share on (1600307882004):
Product Overview
Description
Product Description
Specification
Spec. | Description |

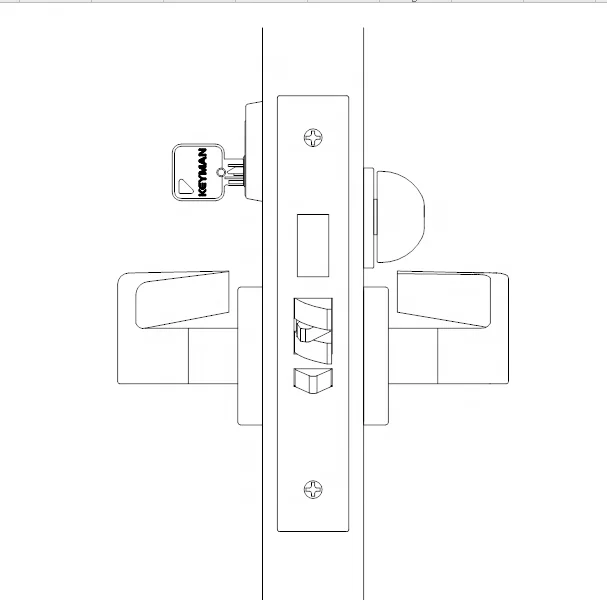

ANSI Mortise Lockset | Solenoid Electrified Mortise Lockset, Complete set, Sectional Type |
Mortise | Function: ANSI no. F15 Hotel (Deadbolt +Latchbolt + Auxiliary Latch, With Thumbturn) |
Mornitoring (Operation Signal) | - Deadbolt Throw Out - Cylinder Retract Latchbolt- Inside Lever Retract Latchbolt - Outside Lever Retract Latchbolt - Door Status (Door opened / closed) |

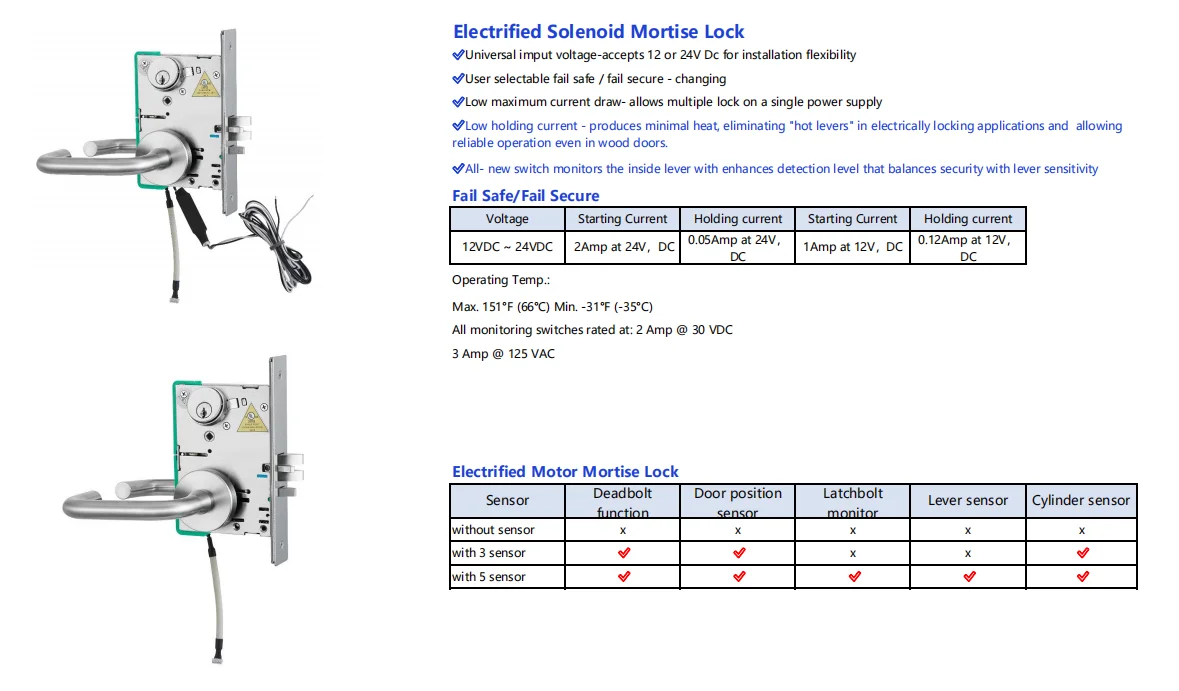

Fail Safe | Power OFF – Outside Lever FREE, locked. Power ON – Outside Lever RIGID, active. |
Fail Secure | Power OFF – Outside Lever RIGID, locked. Power ON – Outside Lever FREE, active. |
Keyman: FC729A - Length: 1-1/8" (29mm) - Solid Brass - Keyway: Schlage "C" - 6 pin, 3pcs key Standard: Key Different | |
Door Thickness | 1-3/4" (45mm) |
Lockset Surface | SUS304 |
Finish (Color) | 630 , 32D, Satin Stainless |
Fire Rated | YES. |
Panic Exit | YES. Inside Handle Always Free for Emergency. |
Certificate | ANSI Grade 1, Mortise Lock / UL R27775 |
Standard | ANSI/BHMA A156.13-2017 for MORTISE LOCKS & LATCHES |
Packing & Delivery
Box for Complete Lockset
Box Inside

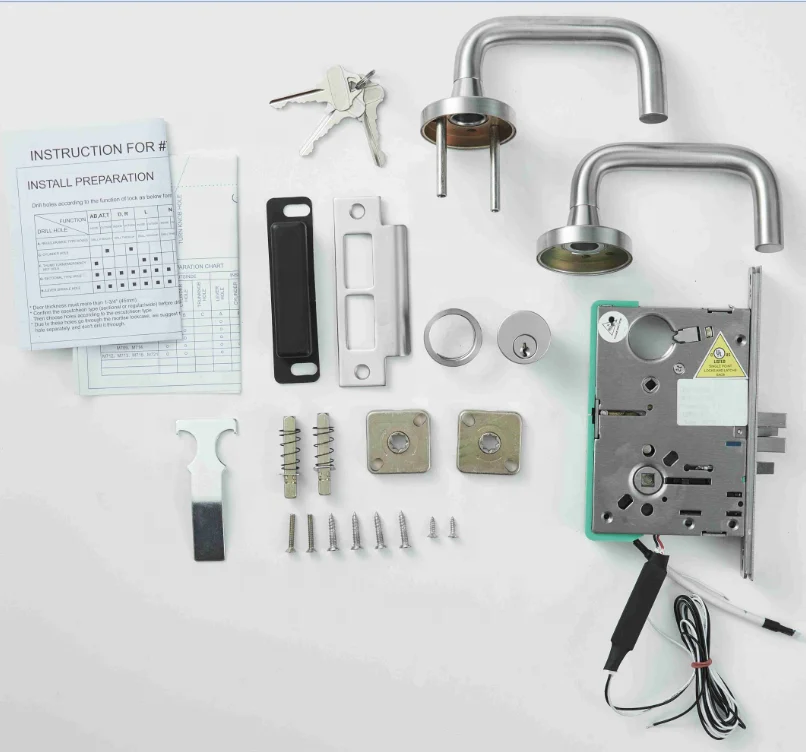

Content Pack
Company Profile
ZHONGSHAN KEYMAN LOCKS PRODUCTS LTD.
No.6 Heping Road, Lie Xi Yi Disctrict, Xiaolan, Zhongshan, Guangdong, CHINA 528415
postmaster@keymanlock.com / sales9@keymanlock.com Tel: +86- 0760 -2213 7312
We specialized in ANSI mortise lockset & ANSI Exit Device for 20years. Has full product line of this 2 series.
No.6 Heping Road, Lie Xi Yi Disctrict, Xiaolan, Zhongshan, Guangdong, CHINA 528415
postmaster@keymanlock.com / sales9@keymanlock.com Tel: +86- 0760 -2213 7312
We specialized in ANSI mortise lockset & ANSI Exit Device for 20years. Has full product line of this 2 series.
FAQ
Complete Lockset.
Specify "Fail Secure" or "Fail Safe" before placing order, Mode canNOT change
If interested in some parts, please inquiry us.
For More information, please contact us.
