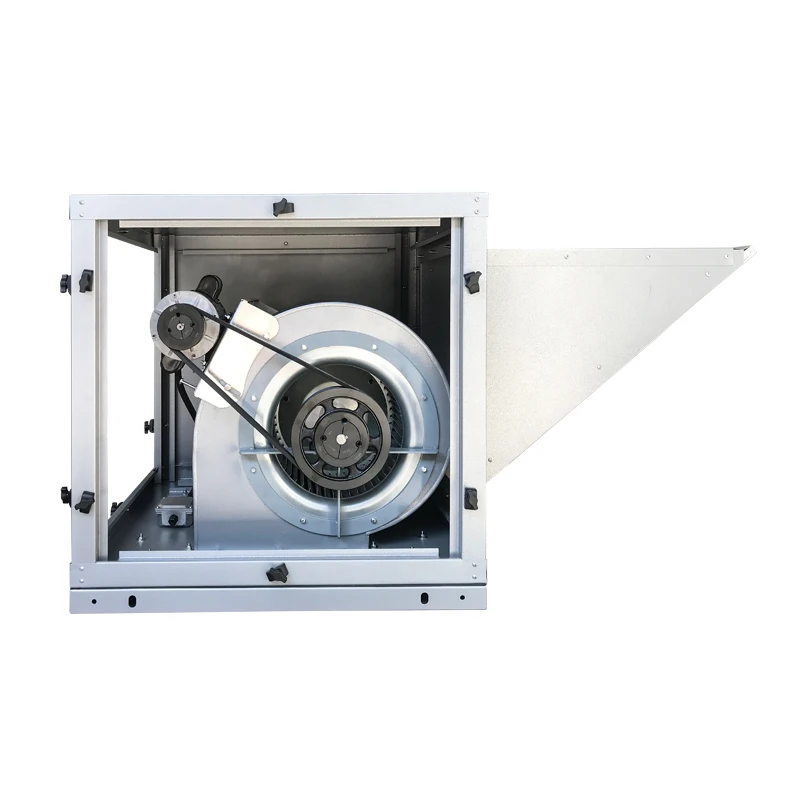

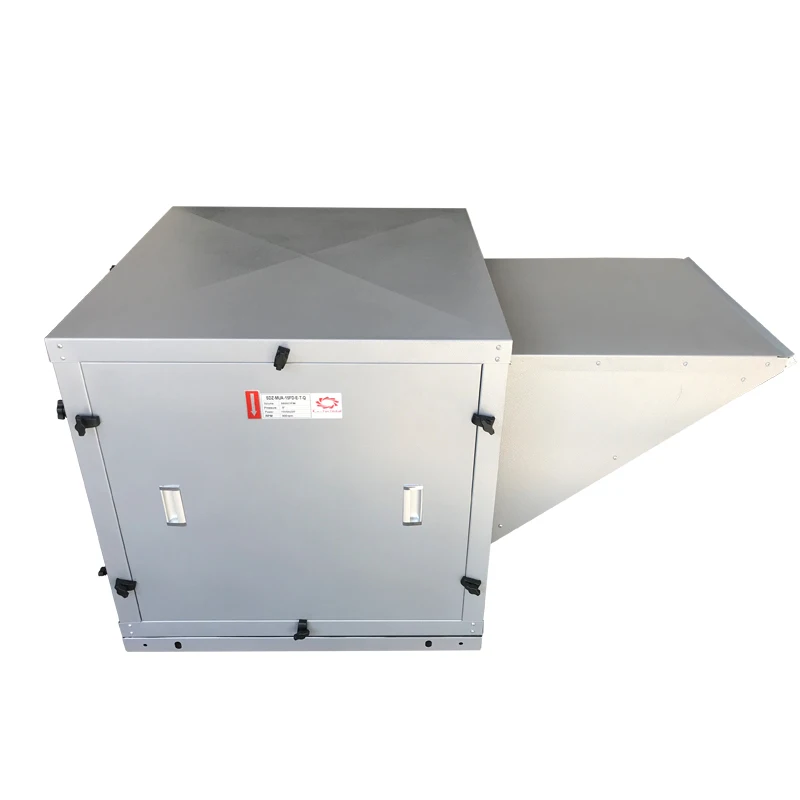

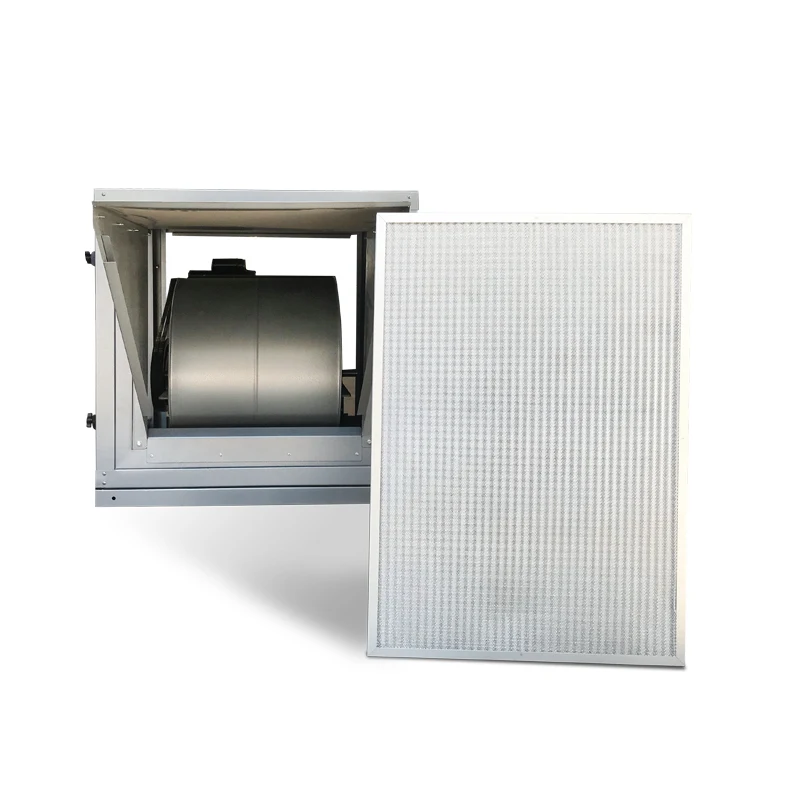

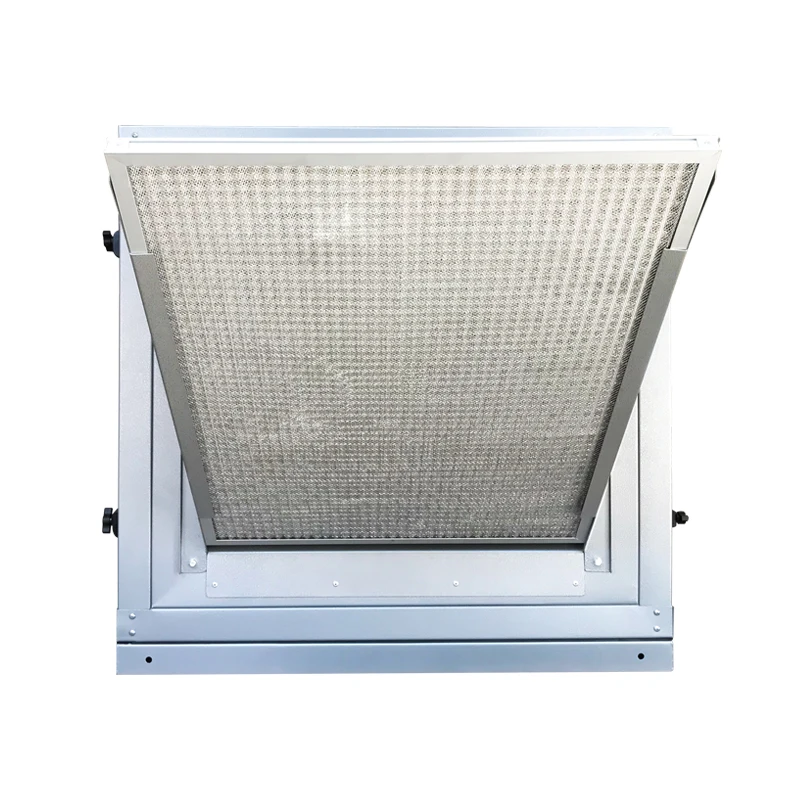

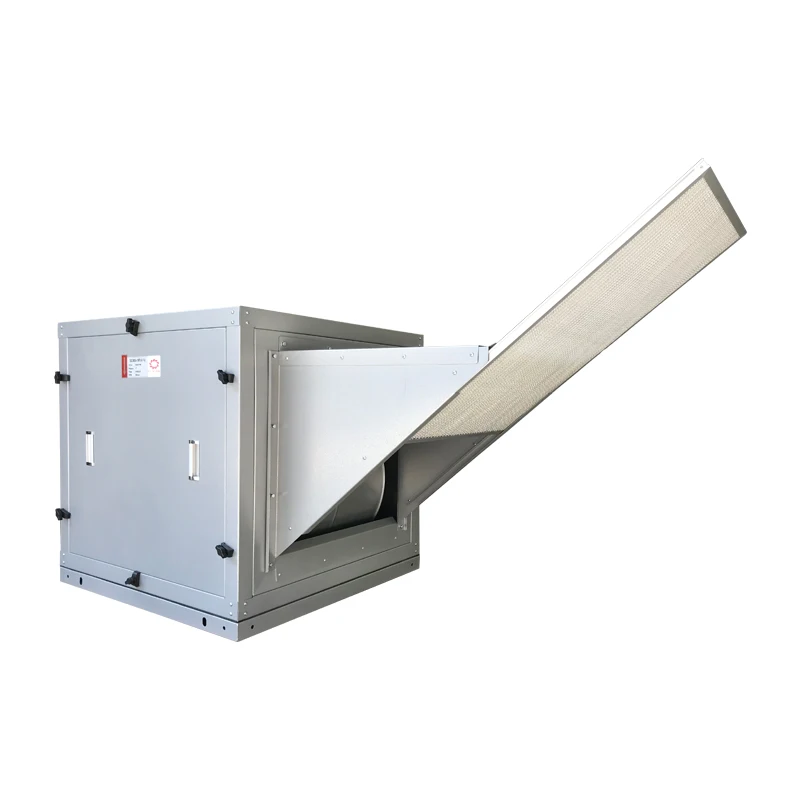

1.5hp exhaust fan blower centrifugal fan blower roof ventilating exhaust fan
- Category: >>>
- Supplier: Deqing Aozhong Fan Equipment Co. Ltd.
Share on (1600307998930):
Product Overview
Description
Product Overview

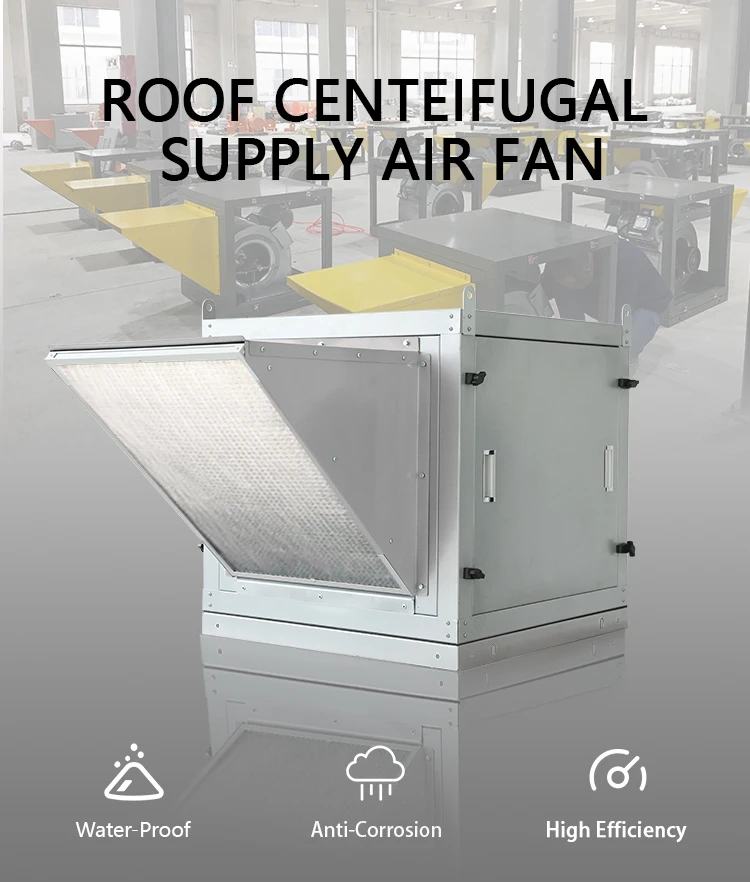

Makeup Air Unit Roof Supply Fan
CKS Fang Yuan Industry Makeup Air Blower are designed to provide efficient and reliable operation for commercal and extractive industry. Our products are manufactured with state of the art laser,forming, spinning and welding equipment and ensure our quality control testing to ensure trouble free start-up.
Our Makeup Air Blower are including industry leading design features to ensure your ventilation equipment has the latest technologies available.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Model | Power | AC motor 1Ø | AC motor 3Ø | Fan Speed | Impeller Dia |
SDZ250 | 0.75HP | 220V-240V/50Hz | 380V or 415V/50Hz | 950RPM (recommend) | 10inch |
0.75HP | |||||
1HP | 220V-240V/50Hz | 380V or 415V/50Hz | 1050RPM (optional) | ||
1HP |
Model | Power | AC motor 1Ø | AC motor 3Ø | Fan Speed | Impeller Dia |
SDZ300 | 1HP | 220V-240V/50Hz | 380V or 415V/50Hz | 820RPM (recommend) | 12inch |
1HP | |||||
1.5HP | 220V-240V/50Hz | 380V or 415V/50Hz | 950RPM (optional) | ||
1.5HP |
Model | Power | AC motor 1Ø | AC motor 3Ø | Fan Speed | Impeller Dia |
SDZ380 | 1.5HP | 220V-240V/50Hz | 380V or 415V/50Hz | 750RPM (recommend) | 15inch |
1.5HP | |||||
2HP | 220V-240V/50Hz | 380V or 415V/50Hz | 920RPM (optional) | ||
2HP |
Model | Power | AC motor 1Ø | AC motor 3Ø | Fan Speed | Impeller Dia |
SDZ450 | 1.5HP | 220V-240V/50Hz | 380V or 415V/50Hz | 610RPM (optional) | 18inch |
1.5HP | |||||
2HP | 220V-240V/50Hz | 380V or 415V/50Hz | 710RPM (recommend) | ||
2HP | |||||
3HP | None | 220V/60Hz | 800RPM (recommend) | ||
3HP | 380V/60Hz |
PRODUCT CONFIGURATION
Main feature of industrial AC centrifugal Makeup Air Blower
+Working in high temperature environment
+Full mold, Aluminum Alloy structure
+Most advanced motor cooling of blower in its class

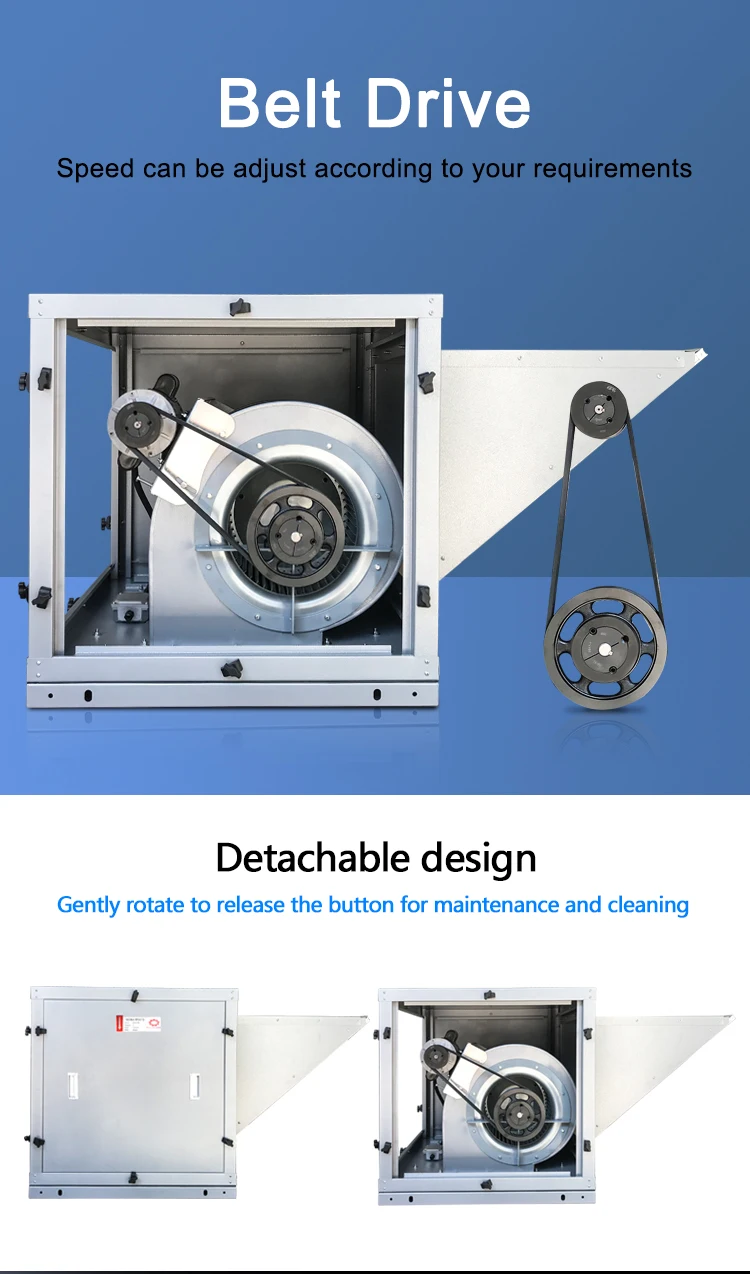

+Direct Drive and Belt Drive are available
+Anti-explored Type is available
+ISO9001:2018 controllable standard
+Full mold, Aluminum Alloy structure
+Most advanced motor cooling of blower in its class
+Direct Drive and Belt Drive are available
+Anti-explored Type is available
+ISO9001:2018 controllable standard
Every industrial Makeup Air Blower has been test for three different planes before package. Typical applications include:
+Factory Exhaust
+Low noise Industry

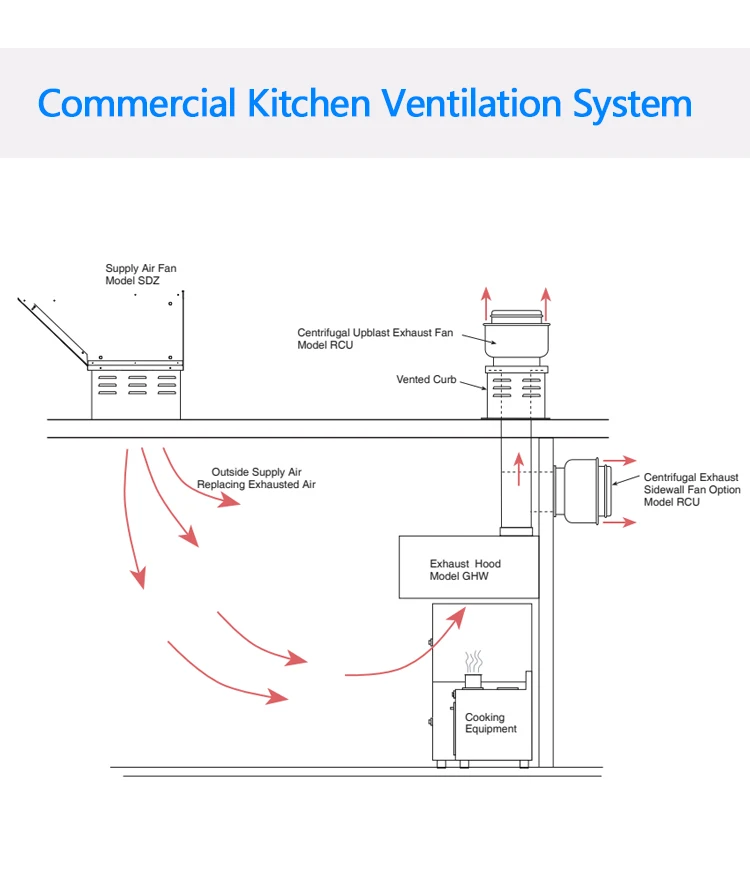

+Restaurant Grease Exhaust
+Agricultural area
+Engineers in Guangzhou AoZhong Fan Equipment Co.,LTD can assist you in improving the operational efficiency of the air movement in your system.
+Low noise Industry
+Restaurant Grease Exhaust
+Agricultural area
+Engineers in Guangzhou AoZhong Fan Equipment Co.,LTD can assist you in improving the operational efficiency of the air movement in your system.
Manufacturing Technique
Standard balance tests of centrifugal roof fan are performed on all complete exhaust fan assemblies – size permitting. This ensures that there are no noticeable mechanical defects such as rubbing, bearing noise or excessive bearing heat and the vibration levels filtered into the running speed are reported.
Reverberant sound room to its test lab for the purpose of conducting sound performance tests. This room is qualified for both broadband and pure tone sound measurement and used for developing fan sound level ratings, troubleshooting noise issues and performing contract testing.
