Small Water well drilling rig machine move by wheels drilling rig for water well
- Category: >>>
- Supplier: Henan Chongda Machinery Co. Ltd.
Share on (1600308018792):
Product Overview
Description
Technical Data
Model of drilling machine | TCD200 |
Drilling machine overall dimension(mm) | 1800*1000*2000 |
Weight of Drilling machine (kg) | 1000 |
Drill rod diameter (mm) | Ø50 |
Drill rod length(mm) | 1500 |
Rod change method | Full automatic screw thread |
Drilling depth(m) | 200 |
Diesel Motor Power (Hp/kw) | 22/16.2 |
Drilling method | Percussive and rotating type |
Drilling hole diameter(mm) | Within Ø 450mm |
Stroke distance (mm) | 2000 |
Hosting capacity (kg) | 1500KG |
Product Description
1.Product Description
This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and drilling etc,it can drill 70-450mm diameter , Max 150m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm ,it can apply to different stratum, such as sand,soil,clay,soft rock and so on.2.Product Feature
Prodcut Name：

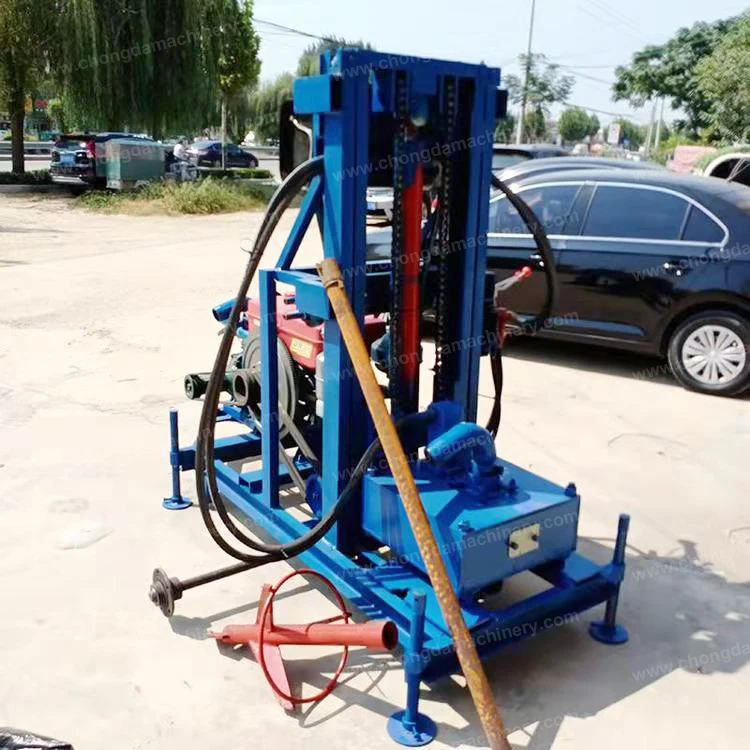

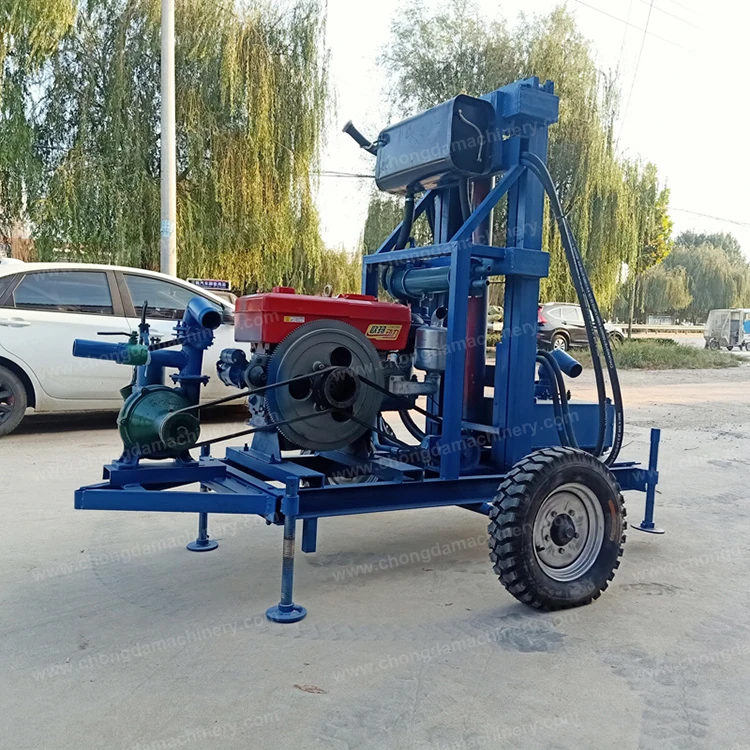

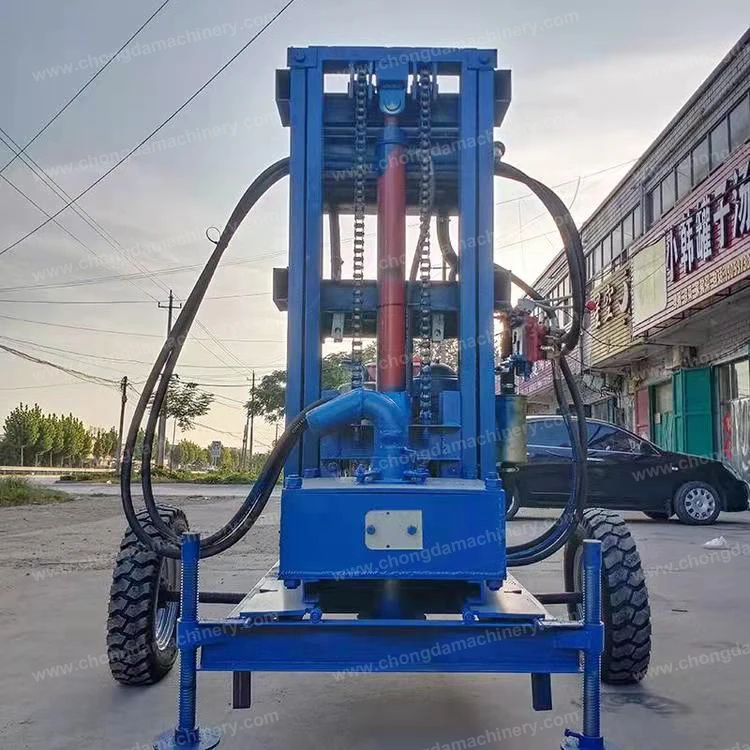

TCD200 Portable Water Well Driiling Rig
Function:
Widely used for geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and drilling etc.
Advantage
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast;
7. Assure easily operation and long life service life.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast;
7. Assure easily operation and long life service life.
Working Site

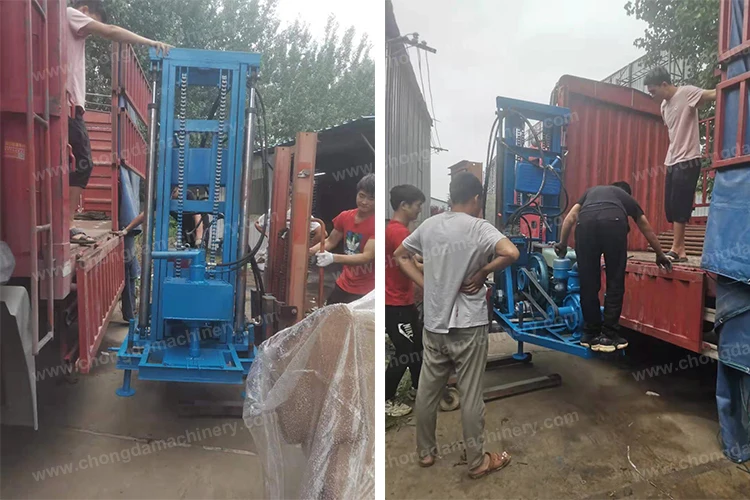

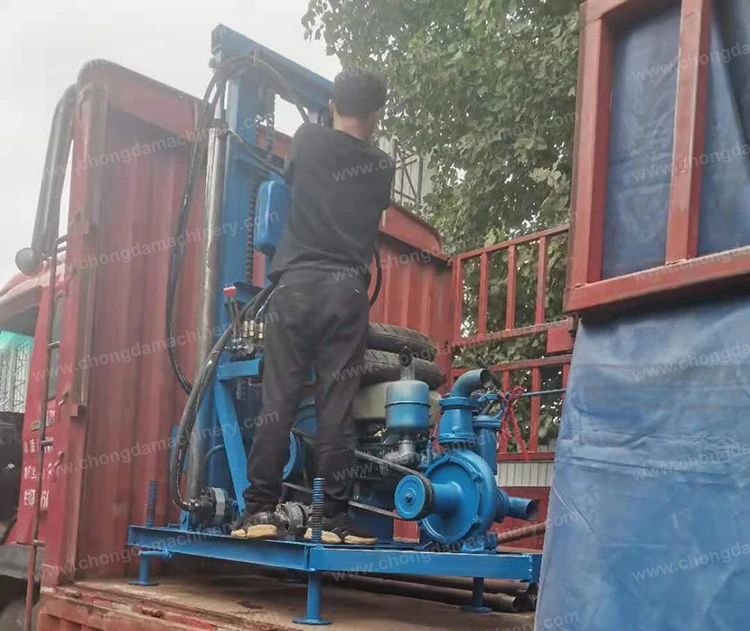

Packing & Delivery
1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.
2. There are many modes of transportation to ensure that products reach customers on time.
Delivery Way | Delivery Time |
By air | About10-20 days days after leaving the port |
By sea | About20-30 days days after leaving the port |
Why Choose US?
1.WHO IS CHONGDA?
Henan Chongda Machinery Co., Ltd., located in Zhengzhou, has kept its record in Administration Bureau for Industry and Commerce. The company is a lawful operation. Located in central China, transportation convenience, advanced technology and scientific management guarantee our steady development.Our company owns national patents and proprietary technology with independent intellectual property right. We have a full set of manufacturing techniques and complete quality control devices. chongda has a professional team of engineers with rich experience in the design, production and inspection. We believes that good quality can give us survival, thus we provides you the top products. All the products with high quality meet international standards. Our equipments are highly estimated by the clients, and are well known at home and abroad.All the staff in our company are professional trained, so we are familiar with the products and can recommend you the most appropriate equipment. We will keep to provide you professional and perfect service.2.Our products have passed Multiple international certifications.
Our Service
1.Convenient method of payment
2.Individual service
①Video that teaches customers how to operate the machines will be upload on Youtube.
②. OEM/ODM Available.
③.Any inquiries will be replied within 12 hours.
④.Fastest delivery: Sample order in stock and 3-7 days for mass production.
