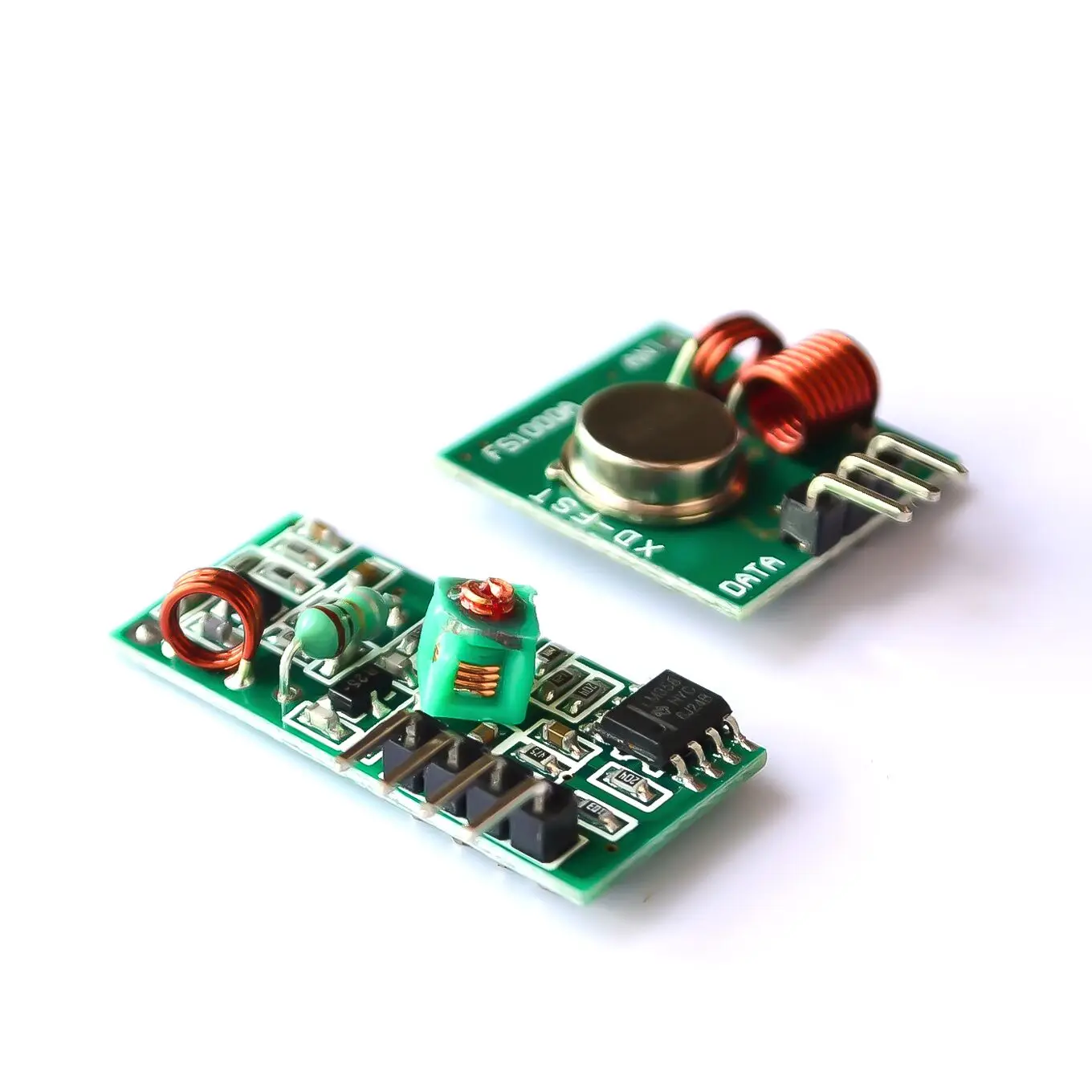

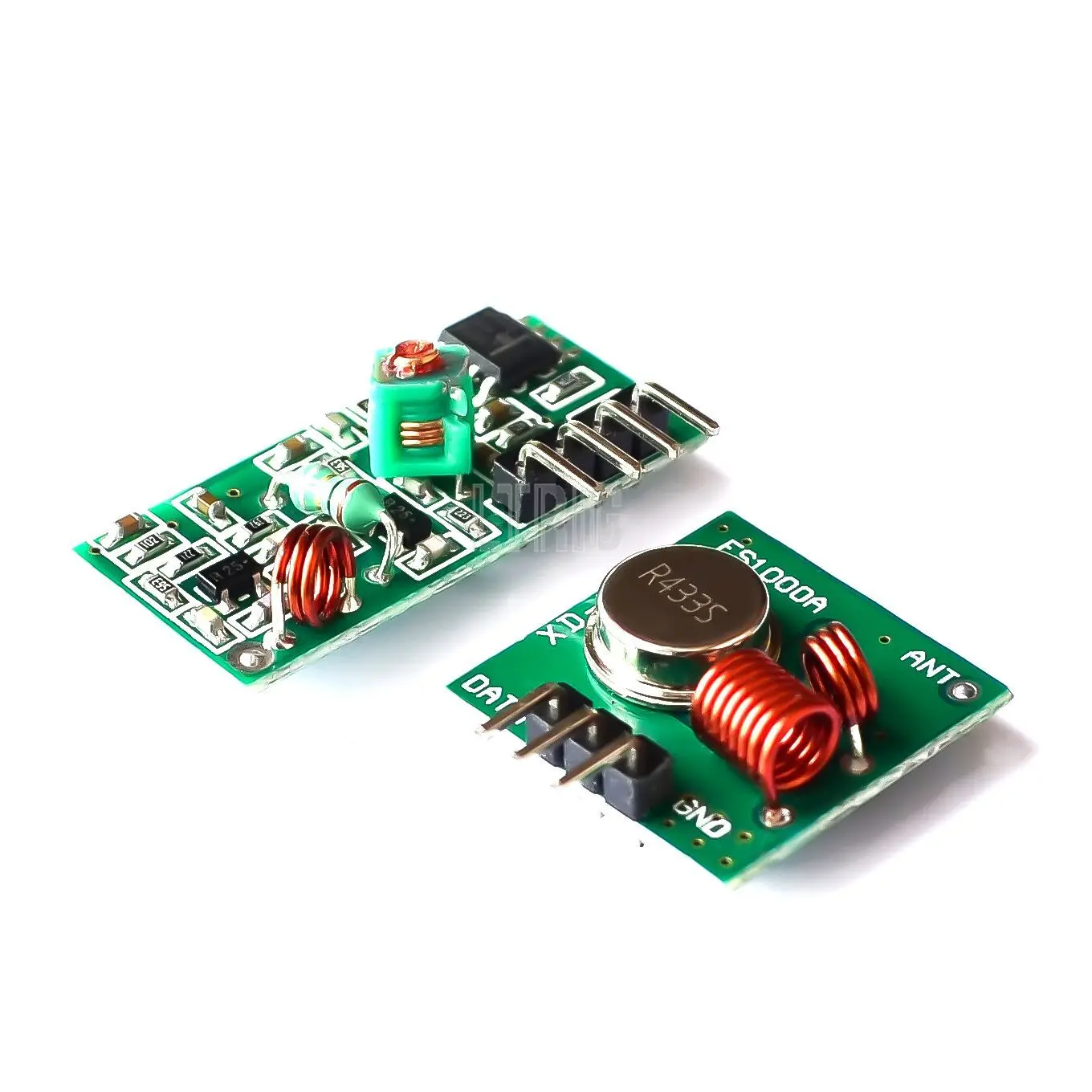

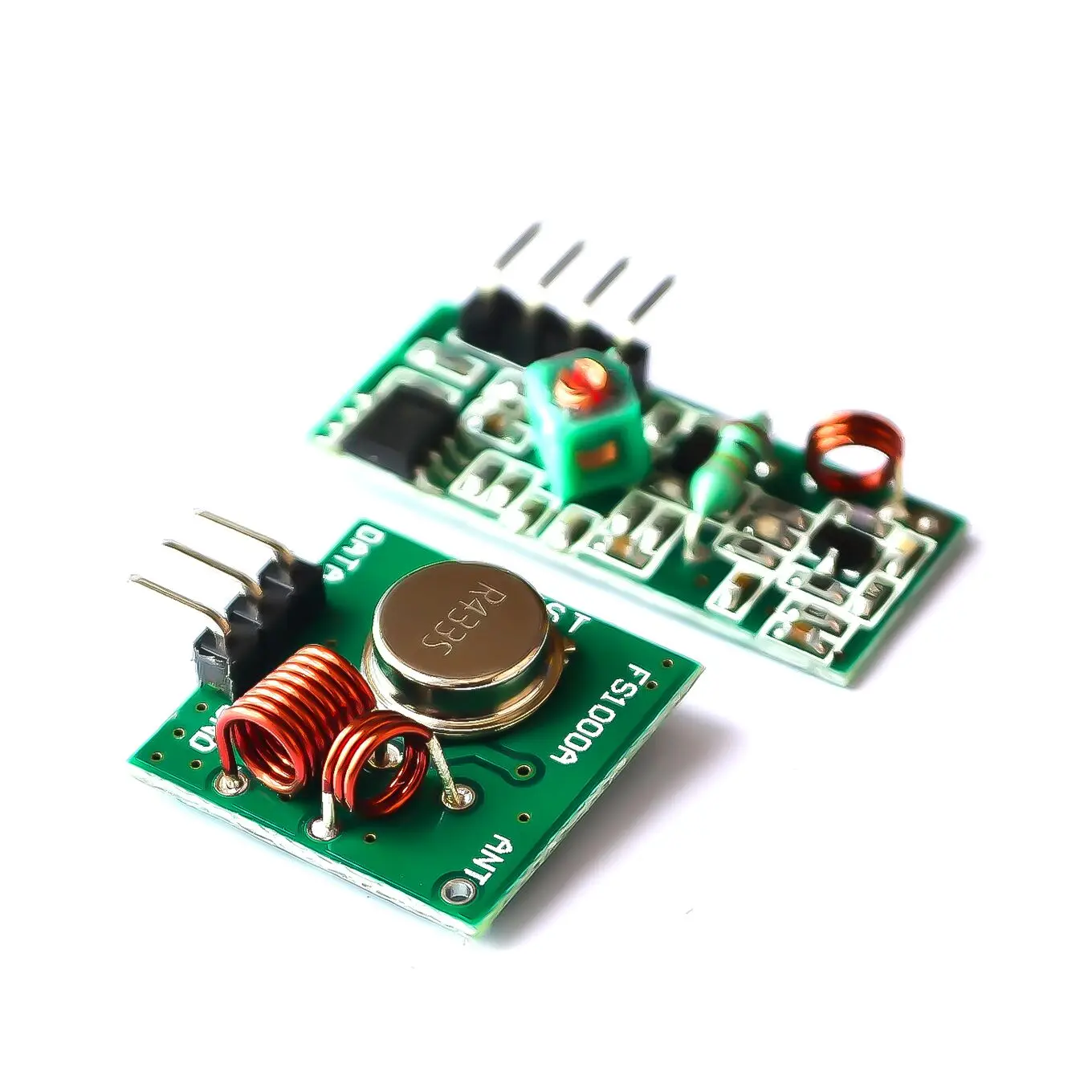

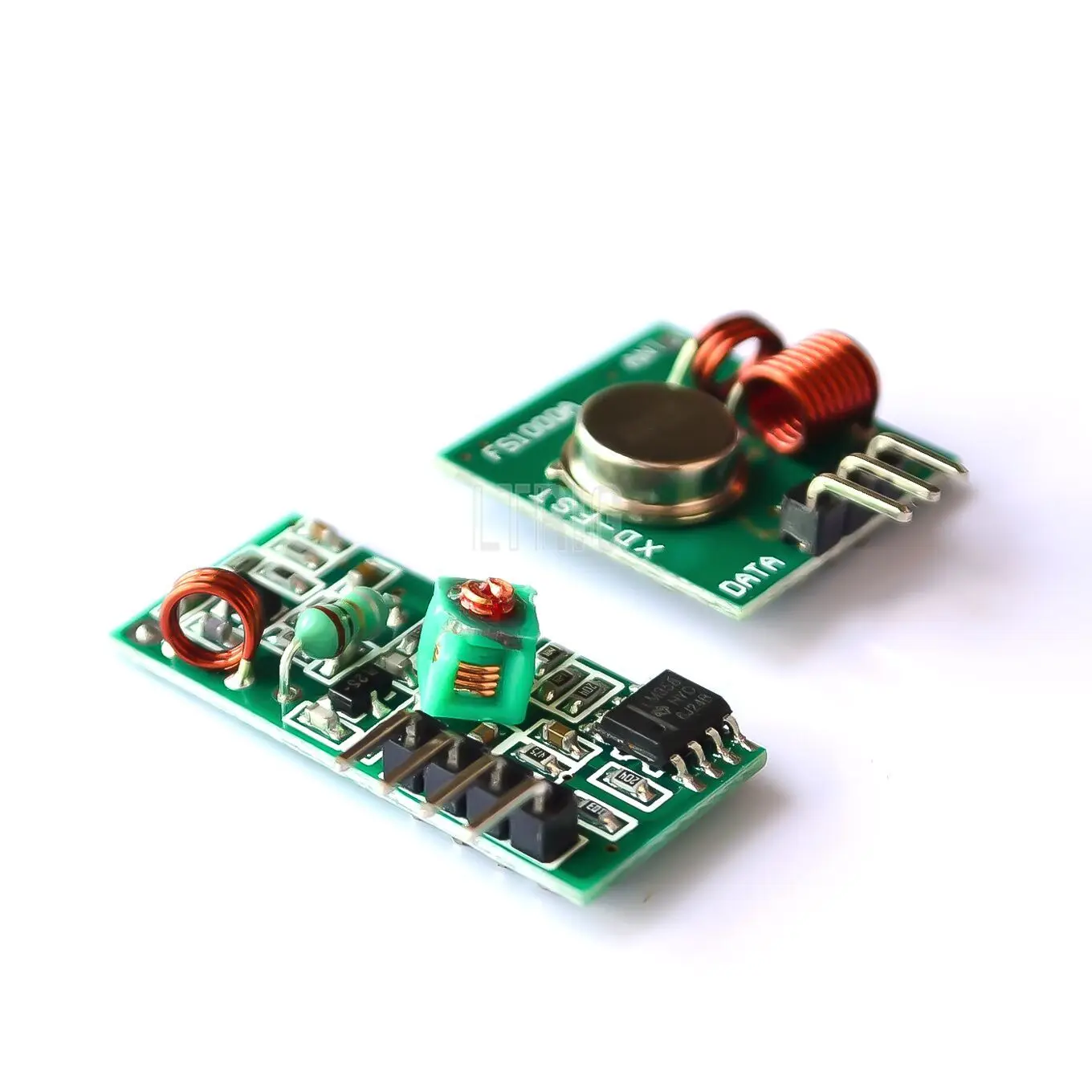

LTRIG Custom 1PCSair RF wireless receiver module & transmitter module board Ordinary super regeneration 315/433MHZ DC5V

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

Description:

Product Model: XY-MK-5V

Operating voltage : DC5V                quiescent current: 4MA

Receiving frequency: 433.92MHZ

Receiver sensitivity: - 105DB

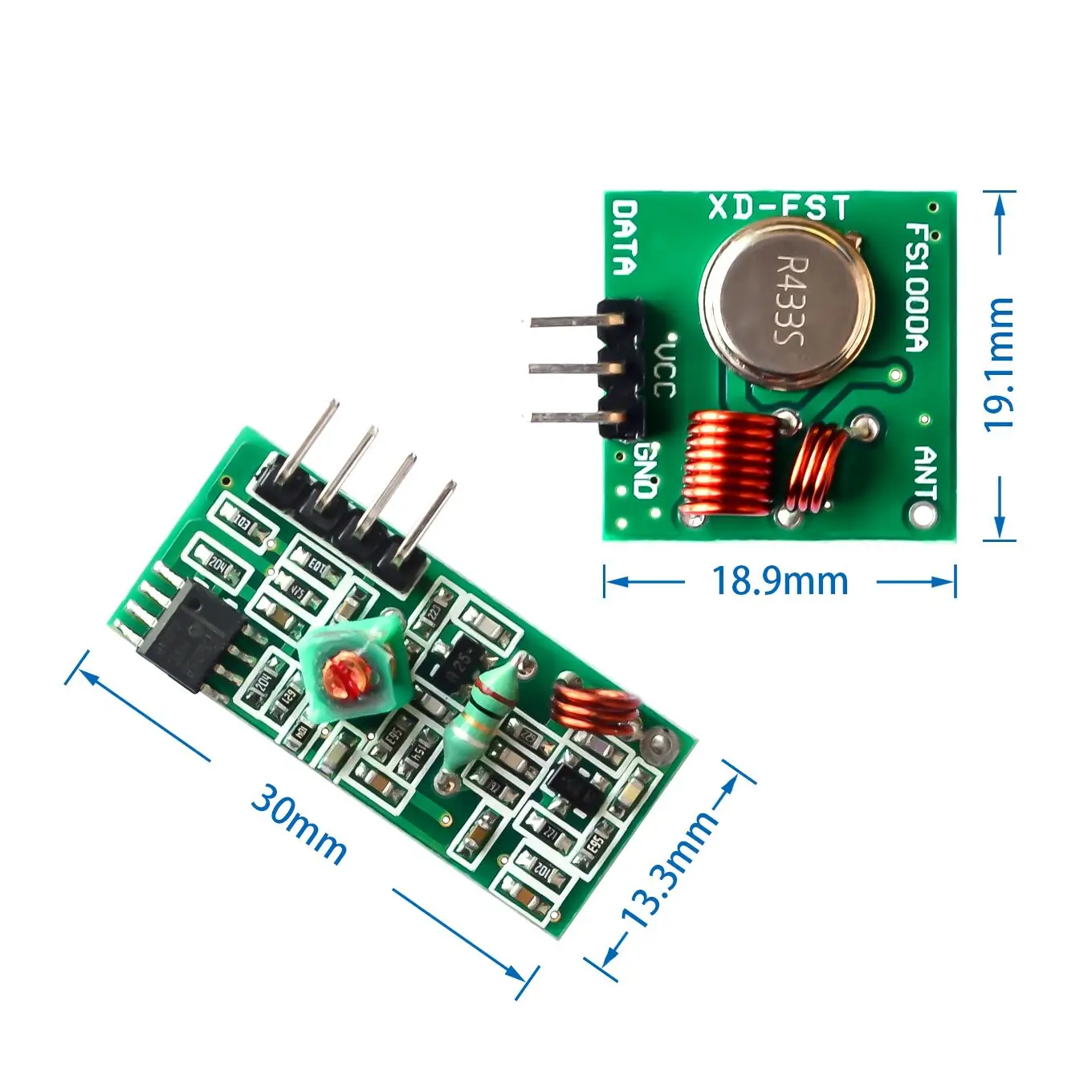

Size : 30 * 14 * 7mm   external antenna: 32CM single core wire wound into a spiral

Technical parameters of the transmitter head

Product Model: XY-FS

Launch distance: 20 -200 meters (different voltage, different results)    Operating voltage: 3.5-12V     Dimensions: 19 * 19mm

Ways of working: AM                transfer rate: 4KB / S          transmit power: 10mW

Transmitting frequency: 433M

An external antenna: 25cm ordinary multi-core or single-core line

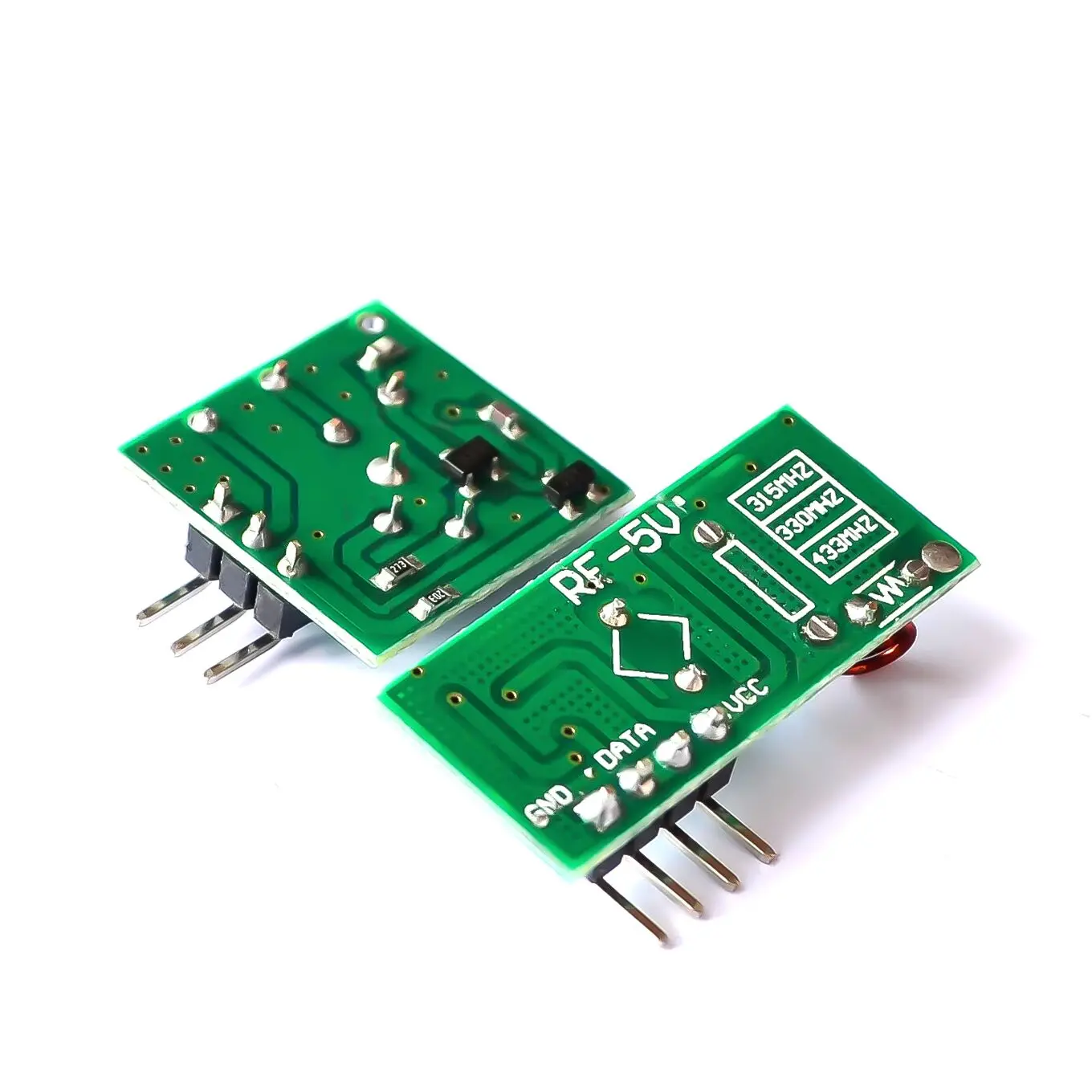

Pinout from left → right: ( DATA ; VCC ; GND )
