CIGS Light weight flexible 90W 150W 350W 600W Solar Panels For Reliable Paneles Solares Flexible 300w
- Category: >>>
- Supplier: Sunway Solar Co. Ltd.
Share on (1600308385018):
Product Overview
Description
What is CIGS?
CIGS is an abbreviation for solar cells made from Copper Indium Gallium Selenide(CIGS)
CIGS made from Copper Indium Gallium Selenide,offered the same benefits as A-Si(Amorphous Silicon)-lightweight,flexible,peel-and-stick application,and reaches efficiencies exceeding 16%.It is more stable and can curve to 360 degree.
CIGS made from Copper Indium Gallium Selenide,offered the same benefits as A-Si(Amorphous Silicon)-lightweight,flexible,peel-and-stick application,and reaches efficiencies exceeding 16%.It is more stable and can curve to 360 degree.
Product Details Chi tiết sản phẩm

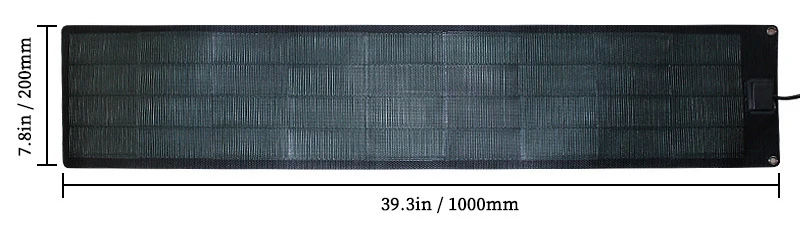

Flexible lightweight solar cells and modules can go where rigid glass modules can't.

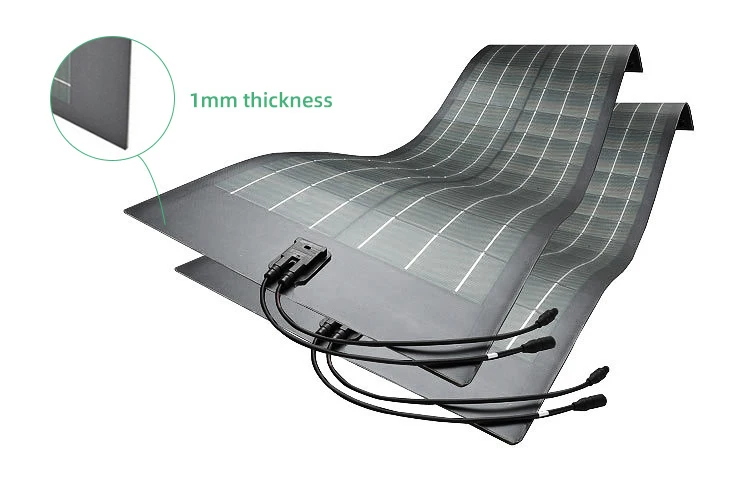

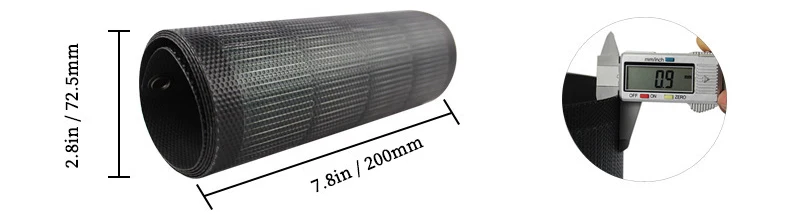

This makes it possible to add solar energy generation to low load capacity roofs, structures such as carports and storage facilities, curved surfaces, vehicles and many other applications.Thickness 1mm only
Easy joint to your yacht,boat or RV roof,or fixed on your caravans,motorhomes,bicycle,other vehicles for outdoor using

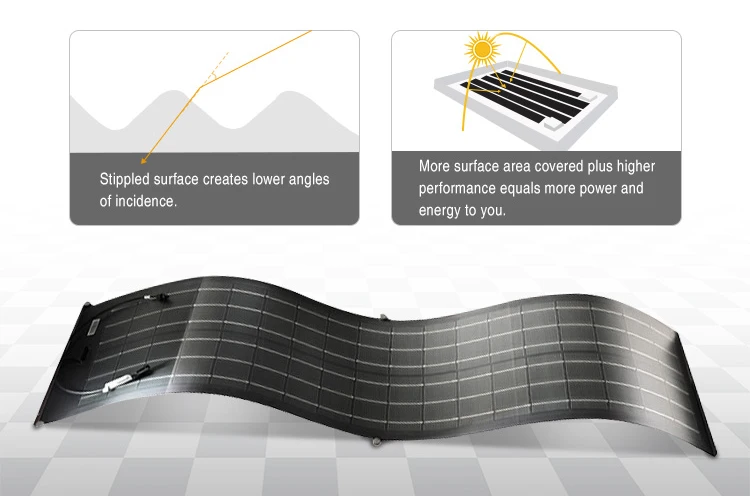

Better ability of luminousness
It absorbs light over the widest spectral range,not only within the visible light spectrum in the same manner

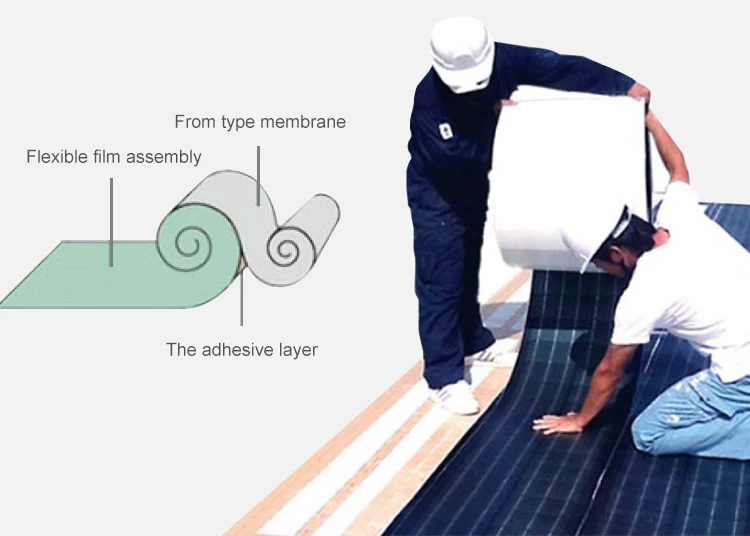

Easy to install
Without any brackets or equipments,no penetrations,ballast or racking required

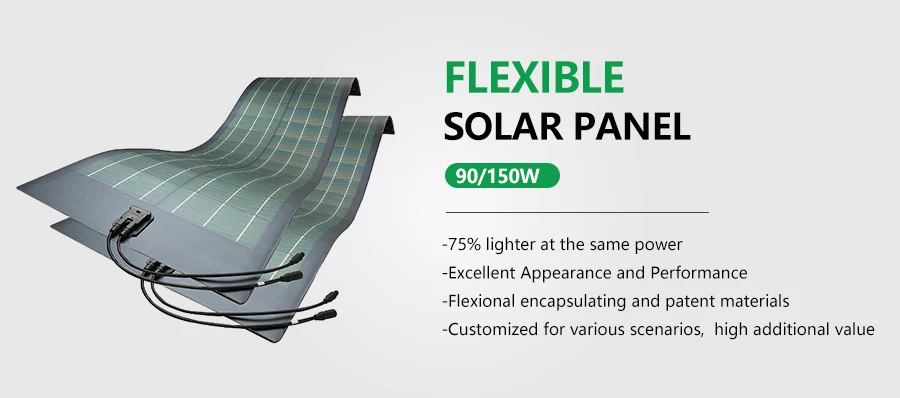

Hot sale CIGS 150W thin film flexible solar panel , solar panel flexible,rollable solar panels
Products Description Miêu tả
Flexible solar panels are made by using sunpower cells with more than 20% efficiency.The cells are embeddedin unique and highly resilient polymers that provide strength and durability.Their flexible non-glass construction is tough enough to walk on and light weight.
Model | CIGS90W | CIGS150W | |
Pmax(wp) | 90 | 150 | |
Vmp(V) | 20.6 | 37.1 | |
Imp(A) | 4.37 | 4.37 | |
Voc(v) | 25.6 | 46.1 | |
Isc | 4.89 | 4.89 | |
N/W(kg) | 1 | 2 | |
Dimension(mm) | 960*640*1 | 1665*646*1 | |
Number of cells | 40(20*2) | 72(36*2) | |
Power Tolerance | 0.03 | 0.03 | |
Encapsulation | ETFE lamination+EVA+Cellls+EVA+TPT | ||
Junction box | Ip67 rated9(built in bypass diode) | ||
Solar cells advantage | Each cell built in bypass diodes | ||
Color | Black | ||
Features | 1. Flexible solar panels can be widely used for Boat, Yacht, Caravan, Vehicle RV, Electrical Car... 2.Technology:CIGS amorphous silicon thin film battery to achieve high conversion efficiency. 3.Durable: polyester film encapsulated, ultraviolet resistant, moisture resistant 4.Shadow tolerance: good outside working performance under low light condition 5. Material: TPT+EVA+SunPower solar cells+EVA+Frosted PET 6. Light weight, easy to carry and install | ||
Connection method Phương thức kết nối

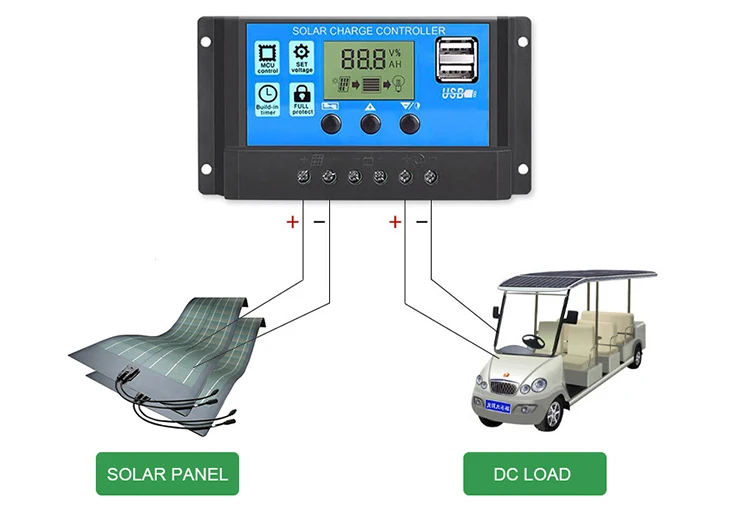

1.flexible solar panel is link to the controller,then output to the electrical appliances through the controller

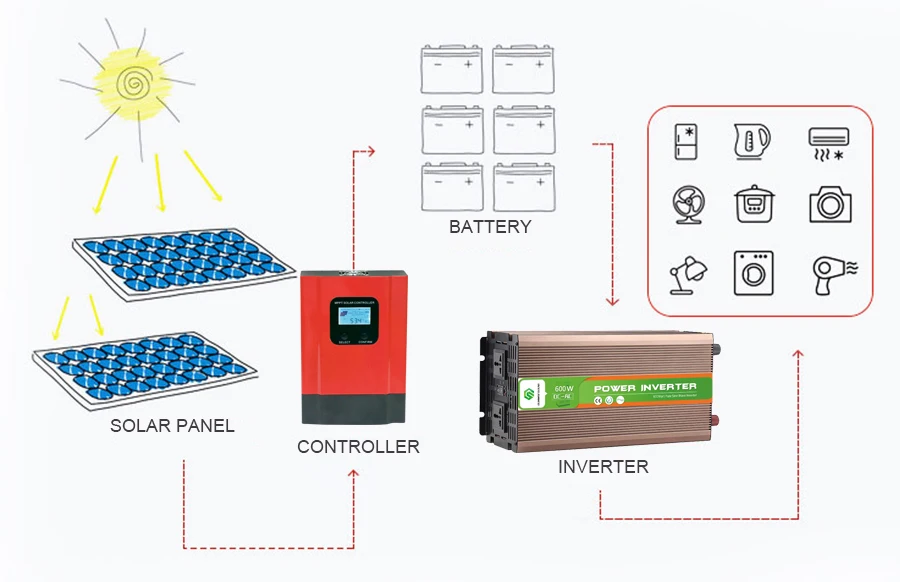

2. CIGS solar panel is connected with battery,then output to the electrical appliances through the battery
Hot sale CIGS 150W thin film flexible solar panel , solar panel flexible,rollable solar panels

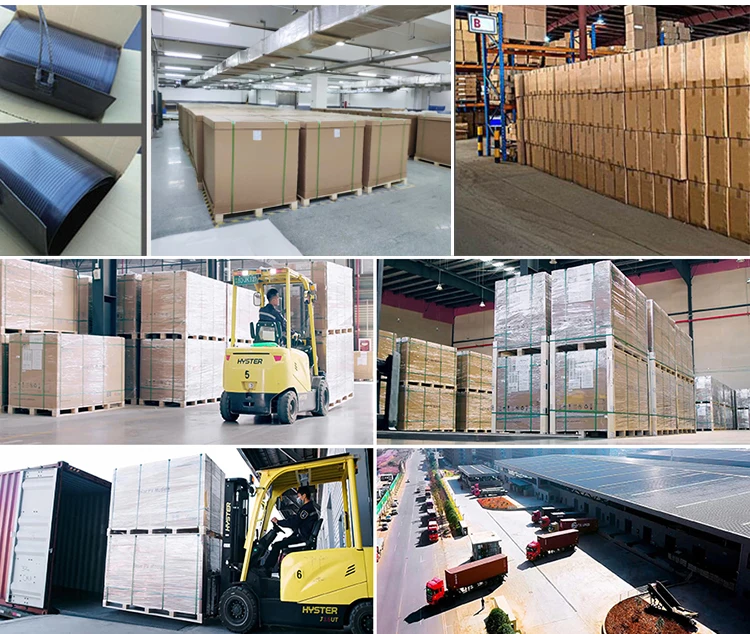

Product Packaging Đóng gói sản phẩm

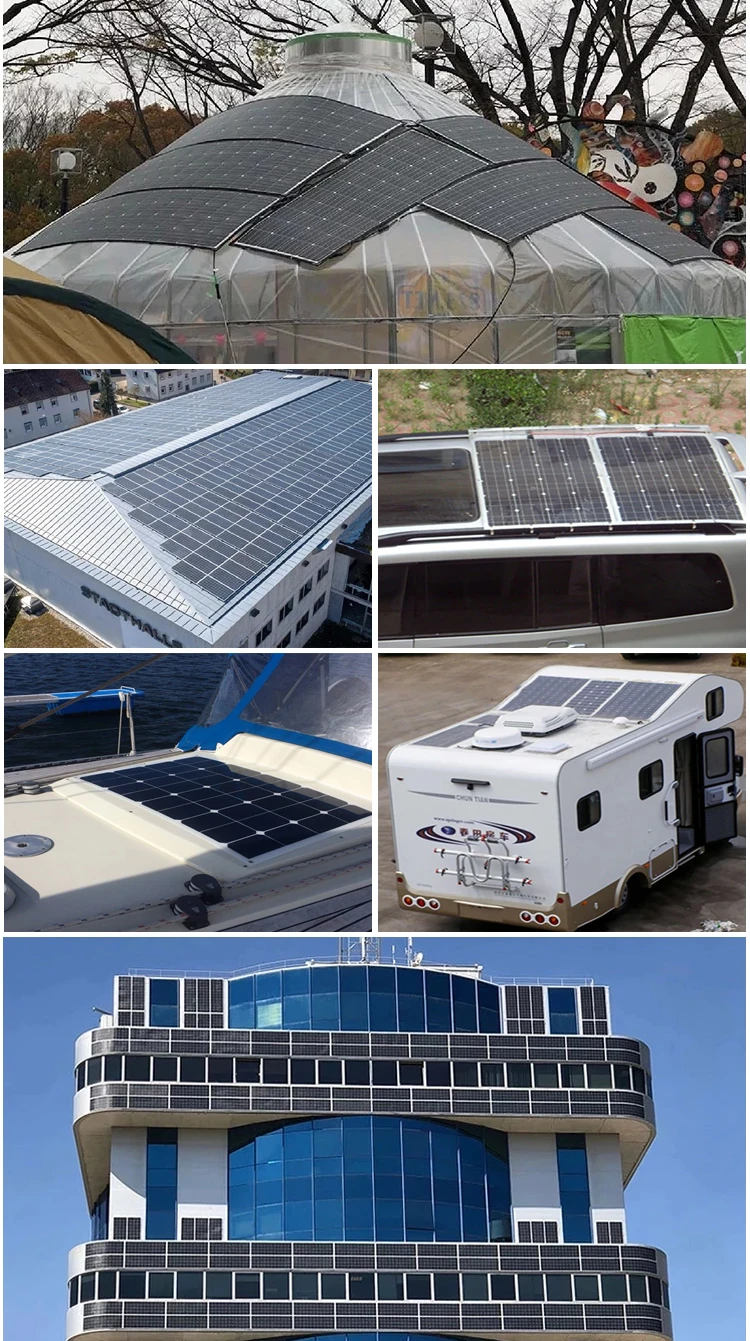

Application Ứng dụng

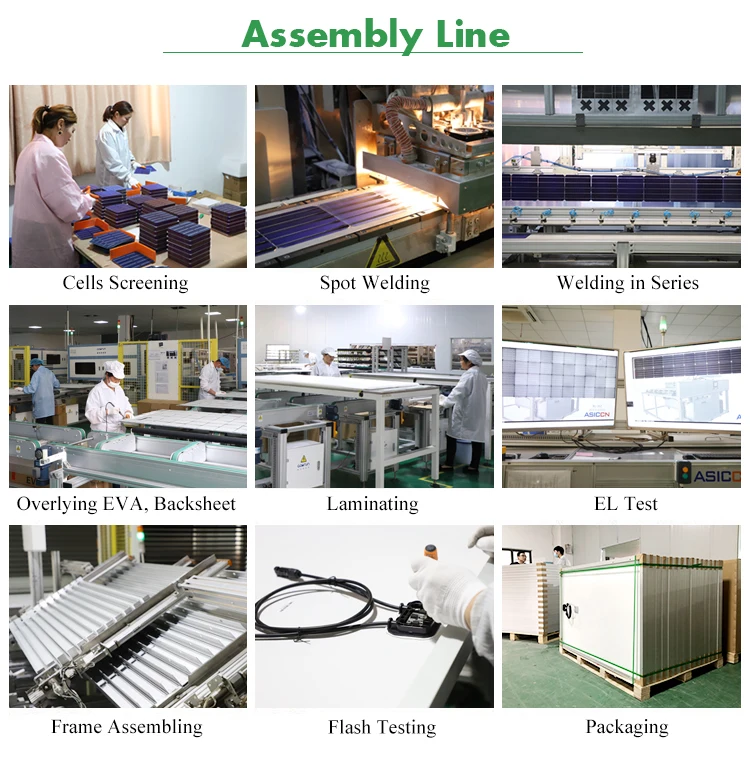

Our factory Giới thiệu nhà máy
Certifications Chứng nhận chất lượng quốc tế

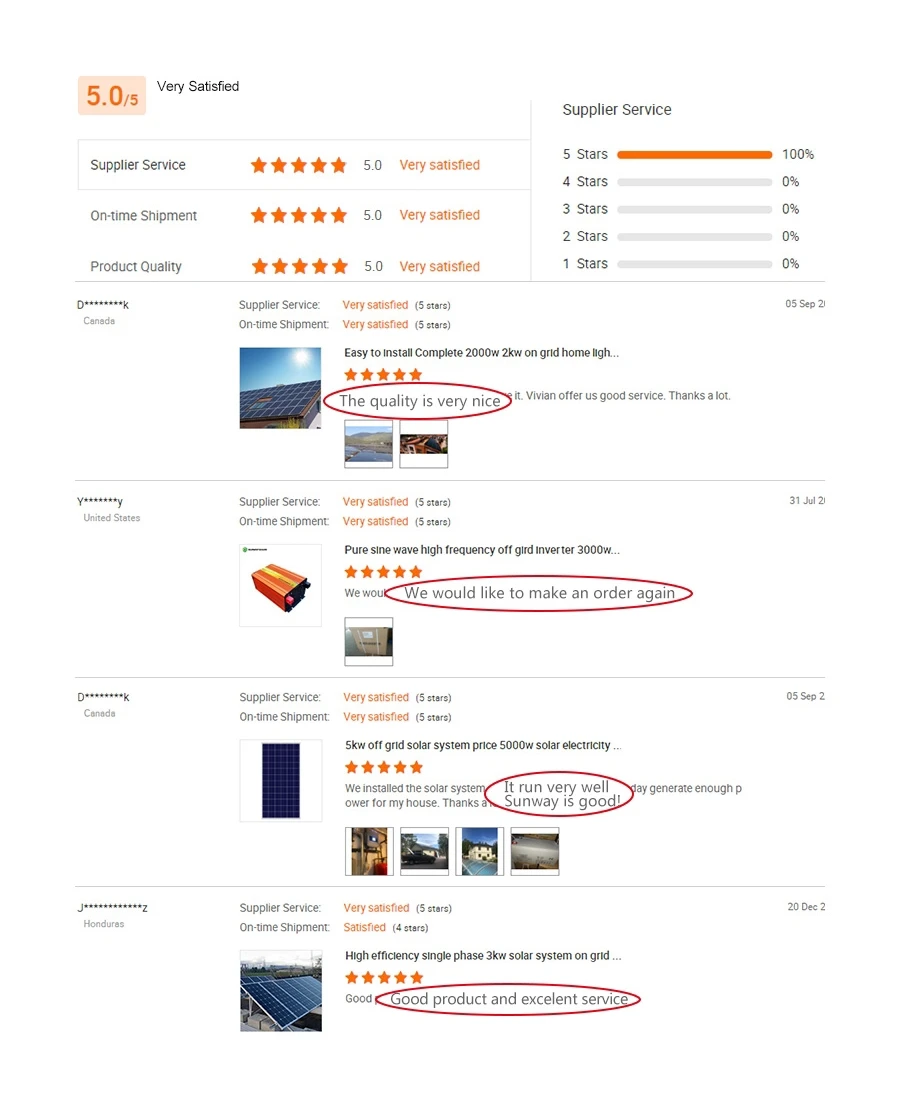

Feedback Phản hồi của khách hàng

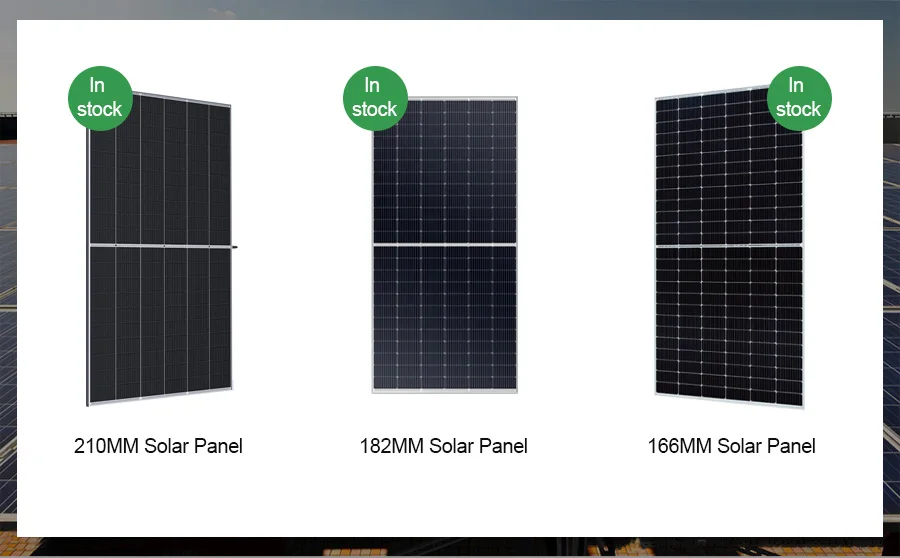

We Recommend
