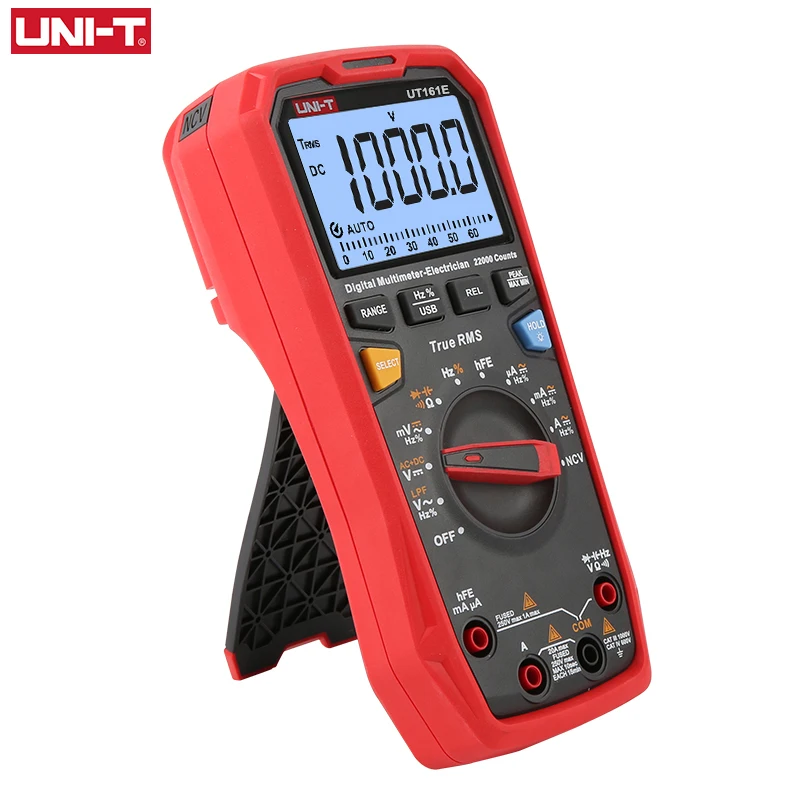

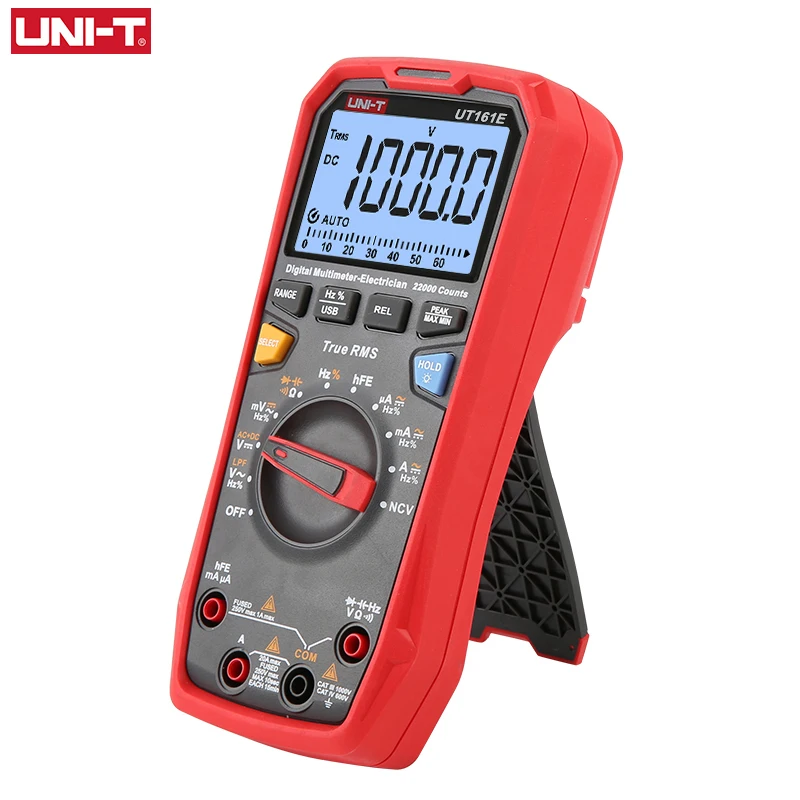

UNI T UT161E 1000V 22000 Count Digital Multimeter Profesional Tester True RMS CE Voltmeter Electric Tools AC DC Voltage Meter
- Category: >>>
- Supplier: Uni-Trend Technology (China) Co. Ltd.
Share on (1600308403293):
Product Overview
Description
Product Paramenters
1000V True RMS Digital Multimeter
UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC. Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
UT161 series are CE certified, suitable for the European market.
UT161 series are CE certified, suitable for the European market.
Features
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
● LPF ACV
● ACV+DCV
● Transistor hFE
● Peak Hold
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
● LPF ACV
● ACV+DCV
● Transistor hFE
● Peak Hold
Specifications | Range | UT61B+/UT161B | UT61D+/UT161D | UT61E+/UT161E | ||||
Certifications (UT161 Series only) | CE/RoHS/cETLus | |||||||
Safety ratings | CAT III 1000V/CAT IV 600V | |||||||
AC voltage (V) | 1000V | ±(1%＋3) | ±(1%＋3) | ±(0.8%＋10) | ||||
DC voltage (V) | 1000V | ±(0.5%＋3) | ±(0.5%＋3) | ±(0.05%＋5) | ||||
AC current (A) | 10A | ±(1.2%＋5) | ||||||
20A | ±(1.2%＋5) | ±(0.8%＋10) | ||||||
DC current (A) | 10A | ±(1%＋2) | ||||||
20A | ±(1%＋2) | ±(0.5%＋10) | ||||||
Resistance (Ω) | 60MΩ | ±(1%＋2) | ±(1%＋2) | |||||
220MΩ | ±(0.5%＋10) | |||||||
Capacitance (F) | 60mF | ±(3%＋5) | ±(3%＋5) | |||||
220mF | ±(3%＋5) | |||||||
Frequency (Hz) | 10MHz | ±(0.1%＋4) | ±(0.1%＋4) | |||||
220MHz | ±(0.01%＋5) | |||||||
Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) | ±(2%＋5) | ±(2%＋5) | ||||
Temperature (℃/℉) | -40℃~1000℃ | ±(1%＋3) | ||||||
-40℉~1832℉ | ±(1%＋6) | |||||||
Display count | 6000 | 6000 | 22000 | |||||
Bandwidth (Hz) | 40Hz~500Hz | 40Hz~1kHz | 40~10kHz | |||||
LPF ACV | √ | |||||||
LoZ ACV | √ | |||||||
ACV+DCV | √ | |||||||
Transistor hFE | √ | |||||||
Peak Hold | √ | √ | ||||||
Analog bar | 31 | 31 | 46 | |||||
General Characteristics | ||||||||
Power | 1.5V battery (R03) x 4 | |||||||
Product net weight | 350g | |||||||

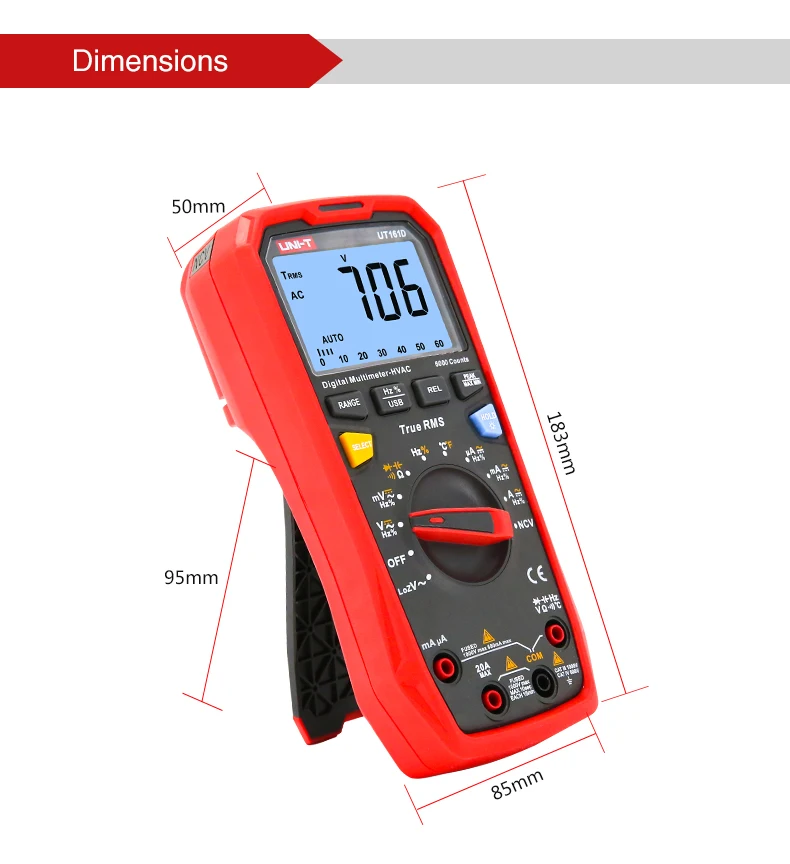

Product size | 190mm x 90mm x 50mm | |||||||

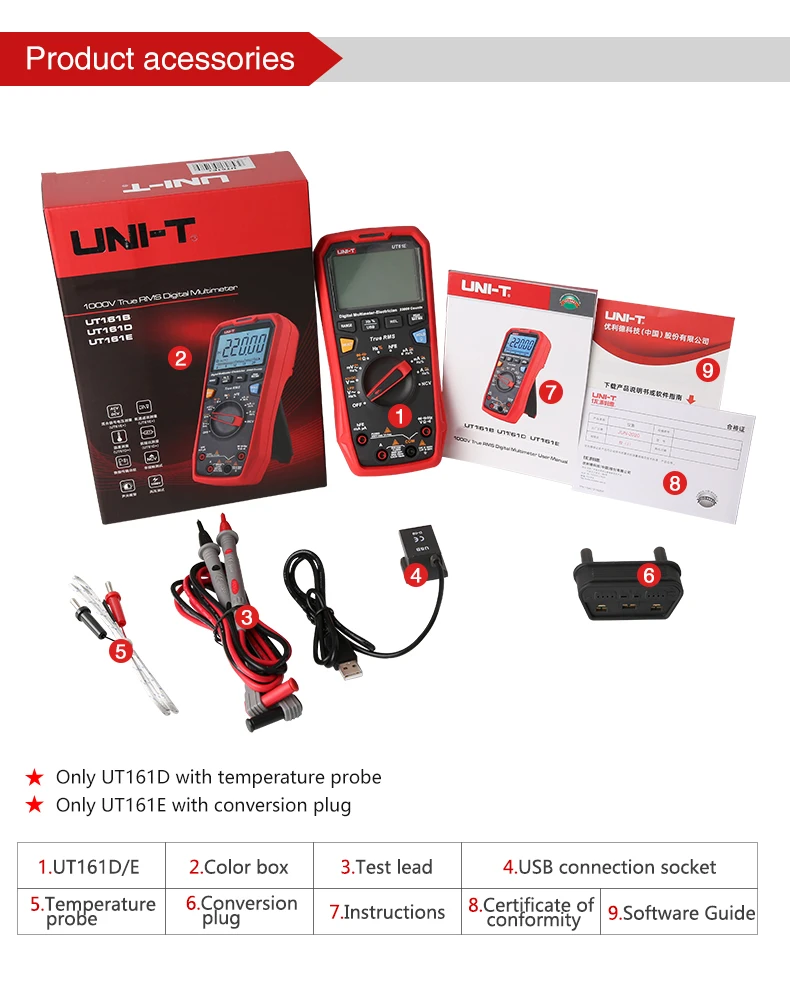

Standard accessories | Battery, gold plated test leads, USB cable, temperature probe (UT61D+/161D), multi-purpose socket (UT61E+/161E), English manual | |||||||
Standard individual packing | Gift box, cloth bag | |||||||
Standard quantity per carton | 20pcs | |||||||
Standard carton measurement | UT61+ series: 480mm x 370mm x 365mm; UT161 series: 480mm x 370mm x 325mm | |||||||
Standard carton gross weight | UT61+ series: 15.2kg; UT161 series: 17.8kg | |||||||
Optional accessories | Bluetooth/APP | |||||||
