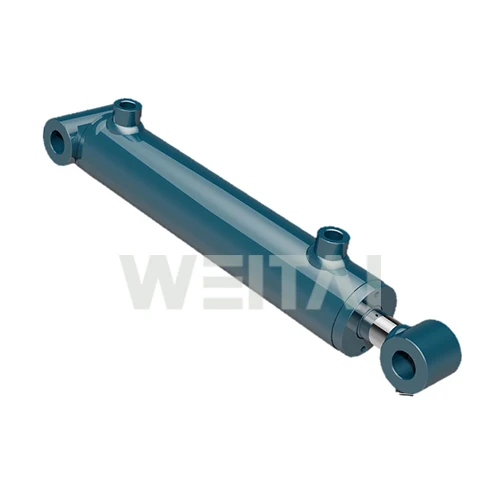

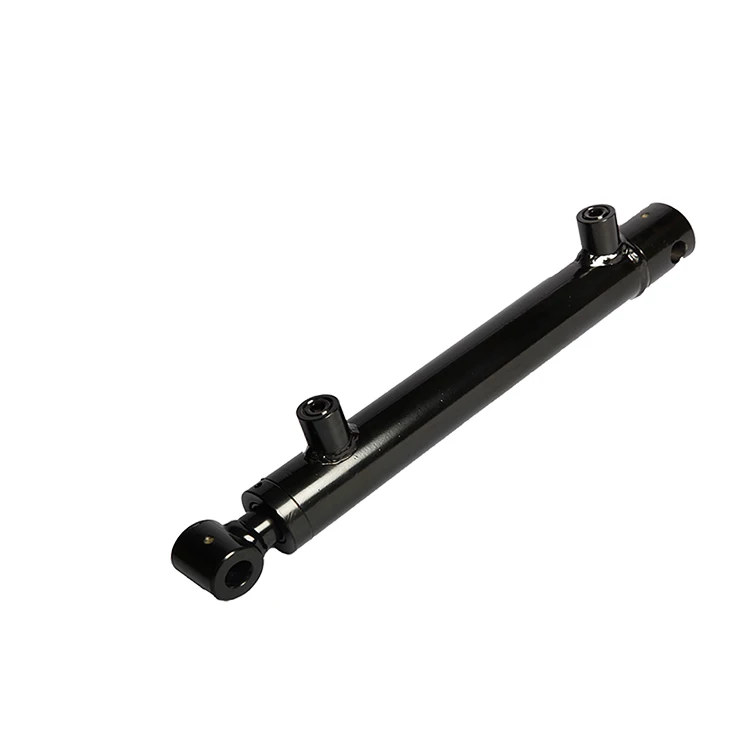

heavy duty Welded Hydraulic Cylinder Cross Tube for farm machinery
- Category: Pneumatic & Hydraulic >>>
- Supplier: Qingdao Weitai Hydraulic Co. Ltd.
Share on (1600308488694):
Product Overview
Description
Products Description
Welded Hydraulic Cylinder(Cross Tube)
Features:
● Cross-tube mounted design; Double-acting application.
● 3000PSI Rated pressure, 6000PSI testing pressure.
● Imported world famous brands and Chinese top brands sealing system.
● High quality Cold Drawn steel tube, with good regidity.
● CNC Rolled tube inner surface, with roughness of 0.2~0.4um.
● Superior strength chrome-plated rod, anticorrosion for a long life.
● High grade Ductile Iron bar directly machined Gland and Piston, with high strength.
● Heavy-Duty welded construction, automatic welding for good quality.
● Twin-lip piston seals for maximum efficiency.
● 100% factory tested under at least 1.5 times of the rated pressure.
Materials:
Materials:
● GLAND - High grade ductile iron
● TUBE - High quality Steel tube, precision skived and rolled
● TUBE SEAL - O-Ring with anti-extrusion backup washer
● ROD - Chrome Plated C1045 Steel
● ROD CLEVIS - High tensile steel
● END CAP - Casting steel
● PISTON - High grade ductile iron, precision machined
● PISTON SEAL - Urethane Seal Rubber
● GLAND SEAL - Polyurethane U-cup
● ROD WIPER -Urethane ● PORTS - NPT (SAE optional)
● COLOR - Red, black, or as required
Related Products
Features
● 3000PSI Rated pressure, 6000PSI testing pressure.
● Imported world famous brands and Chinese top brands sealing system.
● High quality Cold Drawn steel tube, with good rigidity.
● CNC Rolled tube inner surface, with roughness of 0.2~0.4um.
● Superior strength chrome-plated rod, anticorrosion for a long life.
● High grade Ductile Iron bar directly machined Gland and Piston, with high strength.
● Heavy-Duty welded construction, automatic welding for good quality.
● Twin-lip piston seals for maximum efficiency.
● 100% factory tested under at least 1.5 times of the rated pressure.
MODEL | BORE &STROKE | ROD DIA | PIN SIZE | PORTS |
WTCL1504 | 1" | 1.5"X4" | 3/4" | SAE#6 |
WTCL1506 | 1" | 1.5"X6" | 3/4" | SAE#6 |
WTCL1508 | 1" | 1.5"X8" | 3/4" | SAE#6 |
WTCL1508-ASAE | 1" | 1.5"X8" | 3/4" | SAE#6 |
WTCL1510 | 1" | 1.5"X10" | 3/4" | SAE#6 |
WTCL1512 | 1" | 1.5"X12" | 3/4" | SAE#6 |
WTCL1514 | 1" | 1.5"X14" | 3/4" | SAE#6 |
WTCL1516 | 1" | 1.5"X16" | 3/4" | SAE#6 |
WTCL1518 | 1" | 1.5"X18" | 3/4" | SAE#6 |
WTCL1520 | 1" | 1.5"X20" | 3/4" | SAE#6 |
WTCL1524 | 1" | 1.5"X24" | 3/4" | SAE#6 |
WTCL1528 | 1" | 1.5"X28" | 3/4" | SAE#6 |
WTCL1530 | 1" | 1.5"X30" | 3/4" | SAE#6 |
WTCL1532 | 1" | 1.5"X32" | 3/4" | SAE#6 |
WTCL1534 | 1" | 1.5"X34" | 3/4" | SAE#6 |
WTCL1536 | 1" | 1.5"X36" | 3/4" | SAE#6 |
