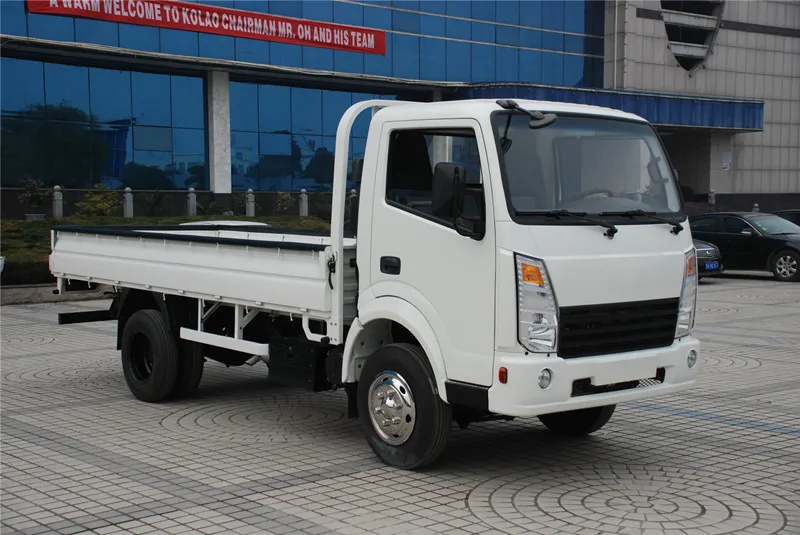

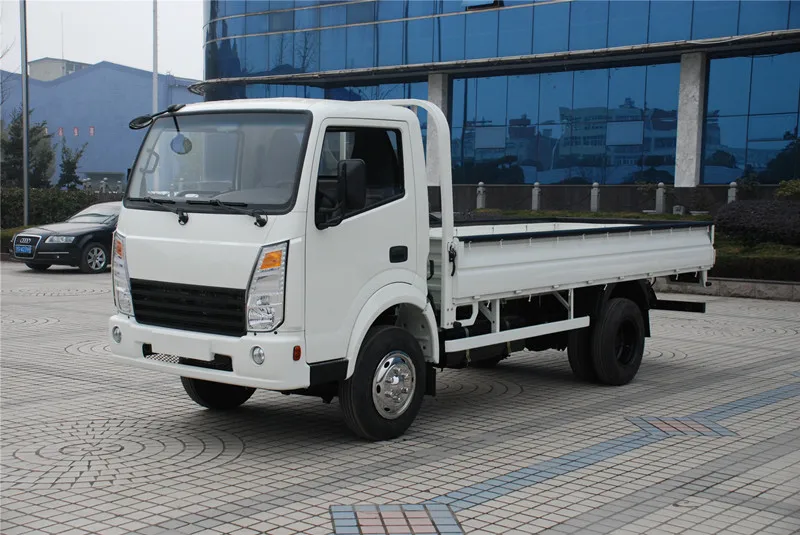

2-2.5ton light truck Euro 2/ Euro 4 SPECIFICATIONS:
| Model No. | QX1037 | |||
| Dimension & Weight | Overall | L | mm | 6,100 |
| W | mm | 1800 | ||
| H | mm | 2220 | ||
| Wheelbase | mm | 3,200 | ||
| Tread | FR | mm | 1520 | |
| RR | mm | 1395 | ||
| Cargo | L | mm | 4,310 | |
| W | mm | 1,710 | ||
| H | mm | 400 | ||
| Weight | Gross | kg | 5,100 | |
| Curb weight | kg | 2,520 | ||
| Rated Payload | kg | 2,000 | ||
| Minimum turning diameter | m | ≤14 | ||
| Engine | Engine Model | D4BH | ||
| Displacement | cc | 2476 | ||
| Bore x stroke | mm | 91 X 100 | ||
| Compression Ratio | 22:01 | |||
| Maximum Power | ps/rpm | 100/3800 | ||
| Maximum Torque | n.m/rpm | 225/2000 | ||
| Fuel tank capacity | L | 85 | ||
| Maximum Speed | KM/H | 110 | ||
| Chssis | Transmission Model | 5MTI210L | ||
| Transmission | 5 Speed Manual | |||
| Transmission Gear Ratio | 1st | 5.016 | ||
| 2nd | 2.672 | |||
| 3rd | 1.585 | |||
| 4th | 1 | |||
| 5th | 0.77 | |||
| R | 4.783 | |||
| Rear Axle Gear Ratio | 6.167 | |||
| Suspension | FR | Dependent Leaf Spring | ||
| RR | Dependent Leaf Spring | |||
| Brake Type | FR | Drum | ||
| RR | Drum | |||
| Steering Type | Hydraulic Power recirculating ball | |||
| Tyre | FR | 6.50R16LT-14PR | ||
| RR | 6.50R16LT-14PR | |||
| Spare Tyre | 1 | |||
| Standard Equipment | Exterior | Bumper | Body Color | |
| Side&Rear Step | With | |||
| Mud guard | Front & Rear | |||
| Cabin | single | |||
| Headlight | High quality Reflector | |||
| Interior | Room mirror | Anti-reflection | ||
| Door window | Power window | |||
| Door lock | Central lock | |||
| Seat | Leather, Reclinable | |||
| Seating capa | Person | 3 | ||
| Air conditioner | With | |||
| Safety Feature | Front Foglamp | With | ||
| Seat belt | Driver & passenger | |||

Hubei Qixing Group is a state-owned large-scale enterprise group, which was founded in 1980. We’re a national key high-tech enterprise, which mainly engaged in the production and operation of automobile body& chassis, electric trucks, SKD/CKD trucks, automobile mould, special vehicle and spare parts, intelligent equipment, photovoltaic energy, new energy, etc. Qixing has two major industrial parks which are Qixing Mechinery and photovoltaic comprehensive development park, five major service entities which are international trade, hotel, logistics, natural gas and real estate. Qixing Group has 15 sub companies and more than 3,000 employees, covering an area of 1.33 million square meters and total assets is more than 5 billion yuan. The annual output value is more than 7 billion yuan. The vehicle body is the pillar industry of the Qixing Group.
Qixing is very famous for the truck cabin, SKD/CKD trucks and electric trucks, we're the main supplier of the truck cabins to the famous domestic automobile companies, for example, Dongfeng, Shacman, Sinotruck, Saic Hongyan, Dayun, Sany, XCMG, Zoomline and so on, and the all products are also exported to the oversea markets like America, Russia, Ukraine, Canada, German, Iran, Turky, Pakistan, Brazil, Laos, Vietnam and so on.
