Product Overview

Description

Digital Hearing Aids, Invisible Bte/Ric/Cic Hearing Aid

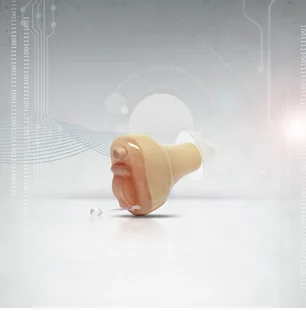

ETIMBRE InstantFit CIC







•


  ETIMBRE





  • Manually Controlled Digital Hearing aid with Dual-core and Low Power Consumption


  • Intelligent Noise Reduction in all Frequencies


  • 4-Channel WDRC


  • 16 Frequency Bands for Fine Adjustment


  • Dynamic Feedback Compression System(DFC)


  • Power-on Indicator


  • 4 Programs


  • Low Battery Indicator


  • Tele-coil input(U BTE)


  • Direct Audio Input(BTE)


  • Power-on Delay


  • Available in: BTE,BTE OE, InstantFit CIC

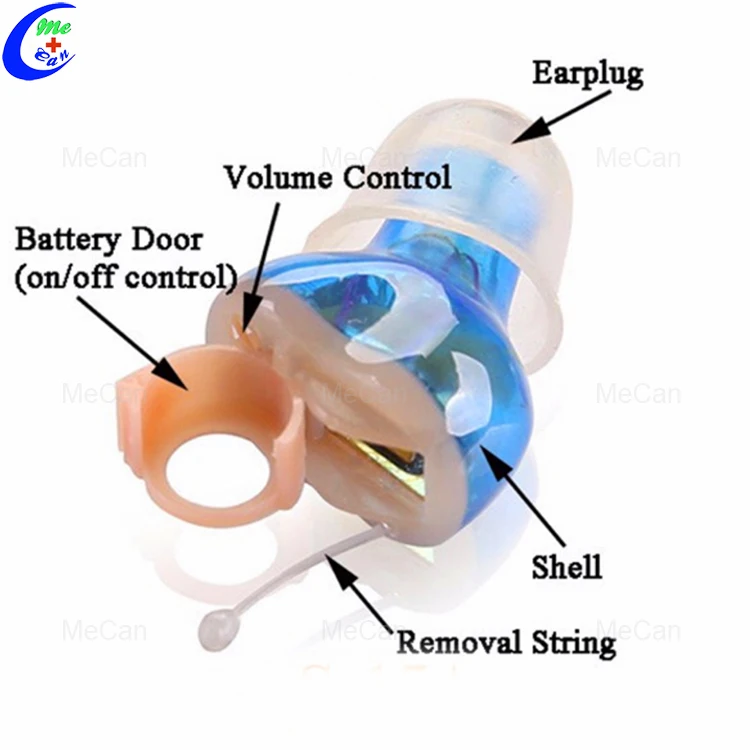

ETIMBRE InstantFit CIC



Technical Specifications	InstantFit CIC
MAX-SSPL90	106dBSPL
HFA-SSPL90	101dBSPL
Peak Gain	31dB
HFA Full-on Gain	25dB
Frequency Range	200-4800HZ
THD at	500HZ :0.8%
	800HZ :0.4%
	1600HZ:0.1%
Eq.Input Noise Level	23dBSPL
Battery Current Drain	0.6mA
Attack Time	6ms
Release Time	16ms



Click for More Information!!!

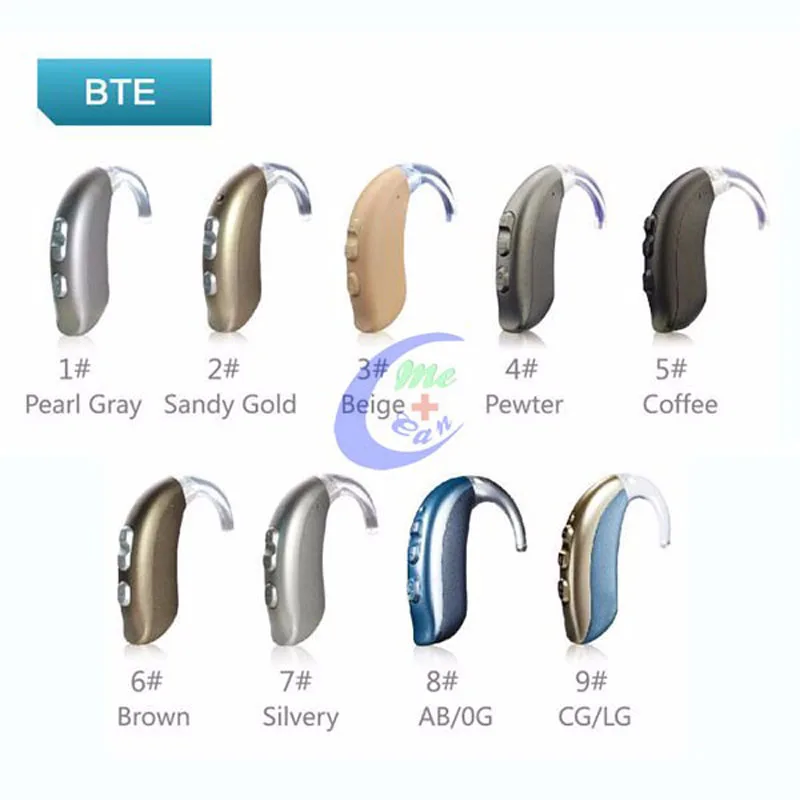

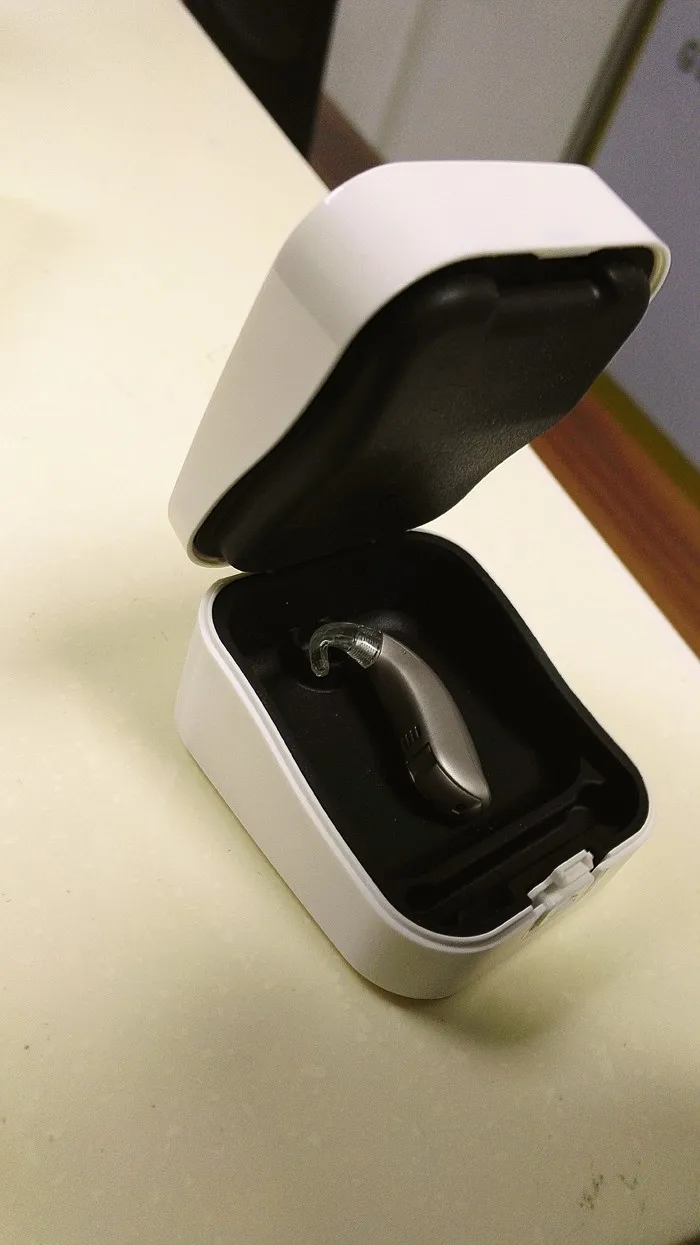

ETIMBRE BTE



ETIMBRE

•



  • Manually Controlled Digital Hearing aid with Dual-core and Low Power Consumption


  • Intelligent Noise Reduction in all Frequencies


  • 4-Channel WDRC


  • 16 Frequency Bands for Fine Adjustment


  • Dynamic Feedback Compression System(DFC)


  • Power-on Indicator


  • 4 Programs


  • Low Battery Indicator


  • Tele-coil input(U BTE)


  • Direct Audio Input(BTE)


  • Power-on Delay


  • Available in: BTE,BTE OE, InstantFit CIC









ETIMBRE BTE



Technical Specifications	BTE	BTE P	BTE U
MAX OSPL90	126dBSPL	132dBSPL	138dBSPL
HFA OSPL90	121dBSPL	125dBSPL	131dBSPL
Peak Gain FOG50	56dB	68dB	74dB
HFA FOG50	51dB	59dB	65dB
Frequency Range:f1-f2	200Hz~5300Hz	200Hz~5300Hz	200Hz~5000Hz
THD at	500Hz:3.1%	500Hz:4.0%	500Hz:4.5%
THD at	800Hz:1.0%	800Hz:1.5%	800Hz:3.0%
THD at	1600Hz:1.0%	1600Hz:1.5%	1600Hz:3.0%
Eq. Input Noise Level	26dB	28dB	30dB
Battery Current Drain	1.8mA	2.0mA	3.0mA





Click for More Information!!!
