Road Construction Machinery Hamm Road Roller Electrical Water Pump CLG6114E
- Category: Road Roller >>>
- Supplier: Newindu,Construction,Engineering,(Shanghai),Co.,Ltd.
Share on:
Product Overview
Description
Product Description

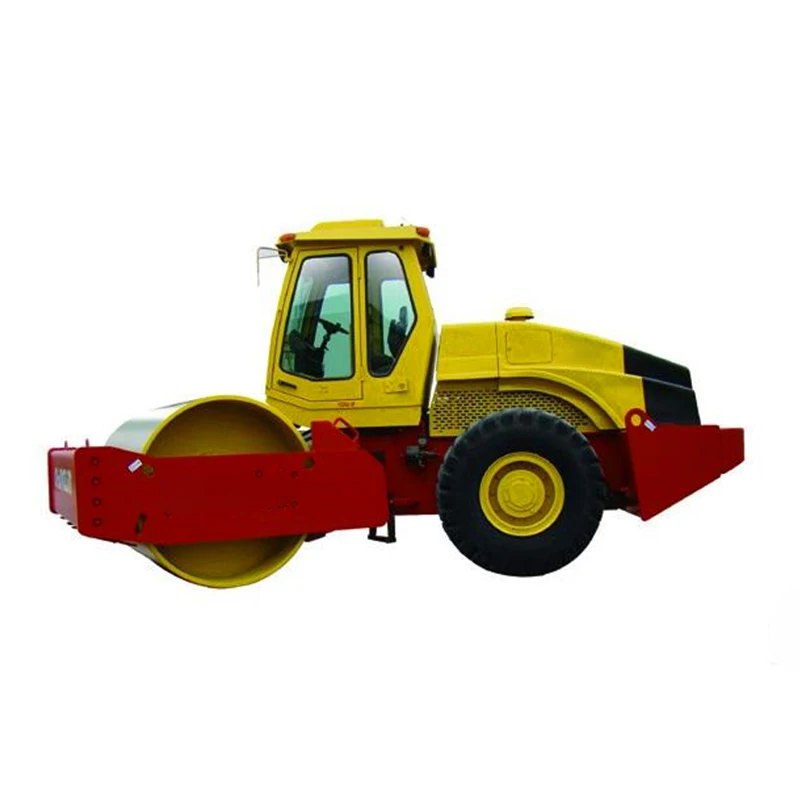

China TOP China 14ton Road roller CLG6114E model capacity
Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure
Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.
Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.
| Type | Unit | CLG6114E |
|---|---|---|
| Operating weight | kg | 14000 |
| Load on front drum | kg | 8200 |
| Load on rear wheels | kg | 5800 |
| Drum width | mm | 2130 |
| Static linear load | N/cm | 385 |
| Vibration frequency(Low/High) | Hz | 28/35 |
| Nominal amplitude(High/Low) | mm | 1.86/0.88 |
| Excitation force(High/Low) | KN | 305/225 |
| Travel speed | km/h | 0~12 |
| Steering angle | ° | ±33 |
| Swing angle | ° | ±10 |
| Theoretical gradeability | % | 55 |
| Min. external turning radius | mm | 6415 |
| Engine model | B5.9 | |
| Engine power | kw | 110 |
| Rated engine speed | r/min | 2200 |
| Engine oil consumption | g/kW.h | 232 |
| Hydraulic oil tank capacity | L | 240 |
| Fuel tank capacity | L | 240 |
