Wireless access point 4g MiFis wifi mifis

Share on (1600308901656):


Price:$28.60 - $33.30

Quantity:


Product Overview

Description



Product Description






























































































































































Description

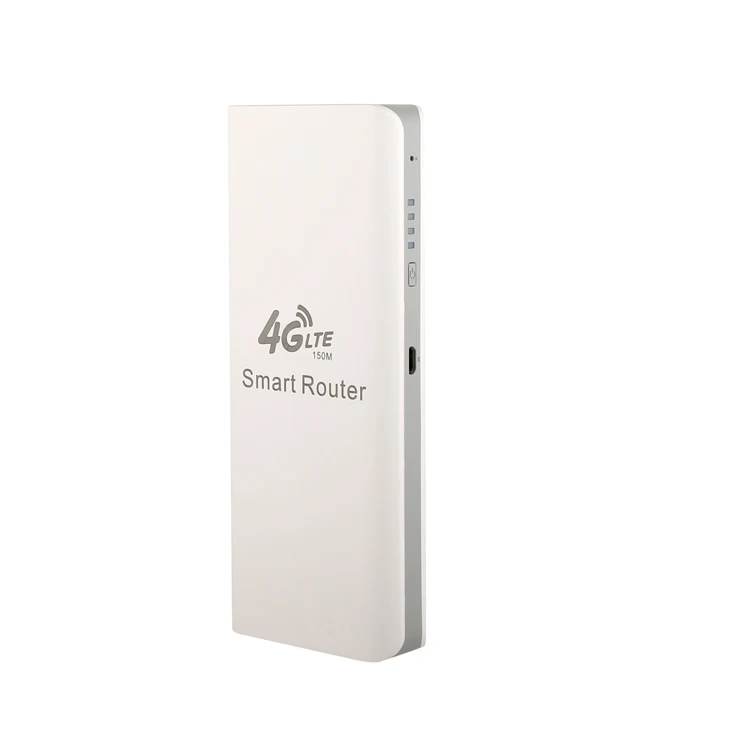

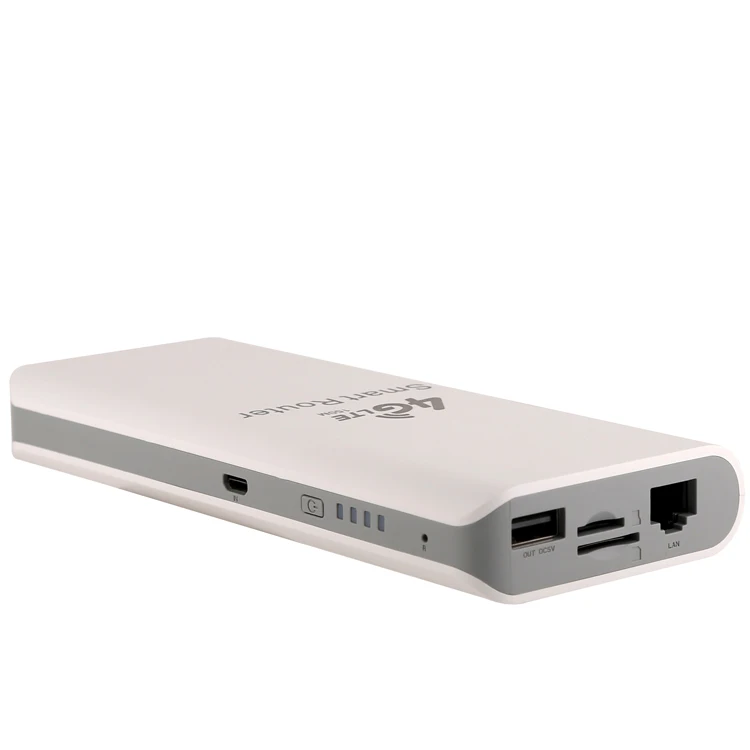

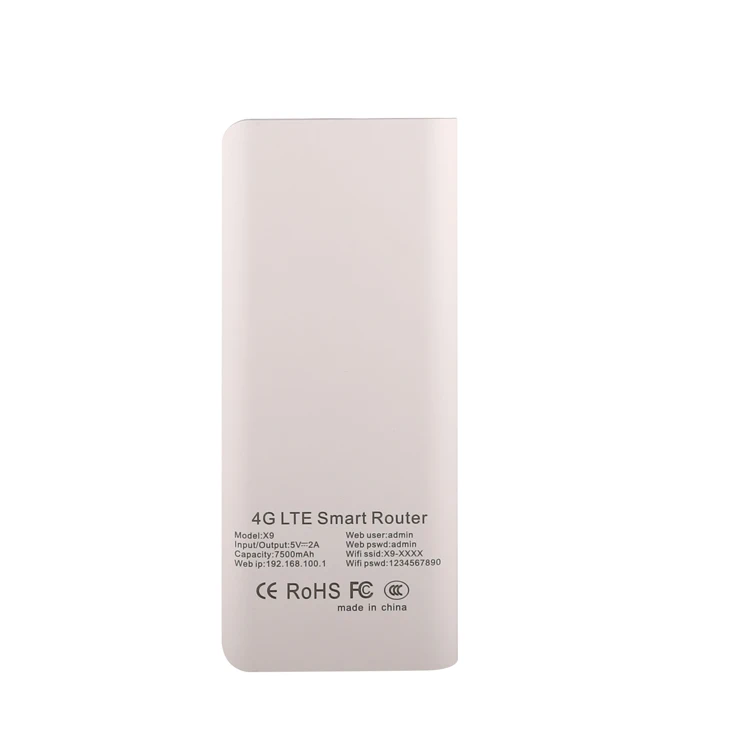

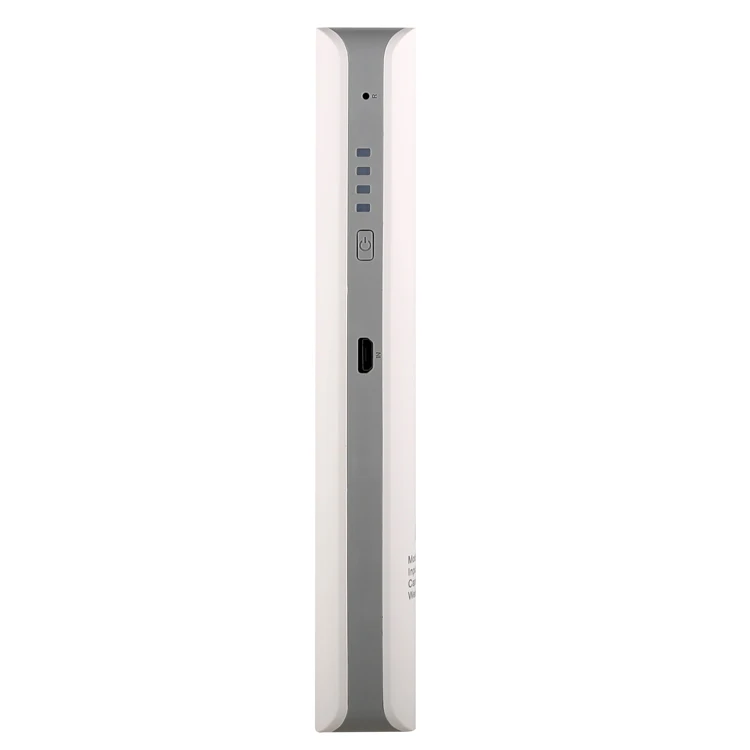

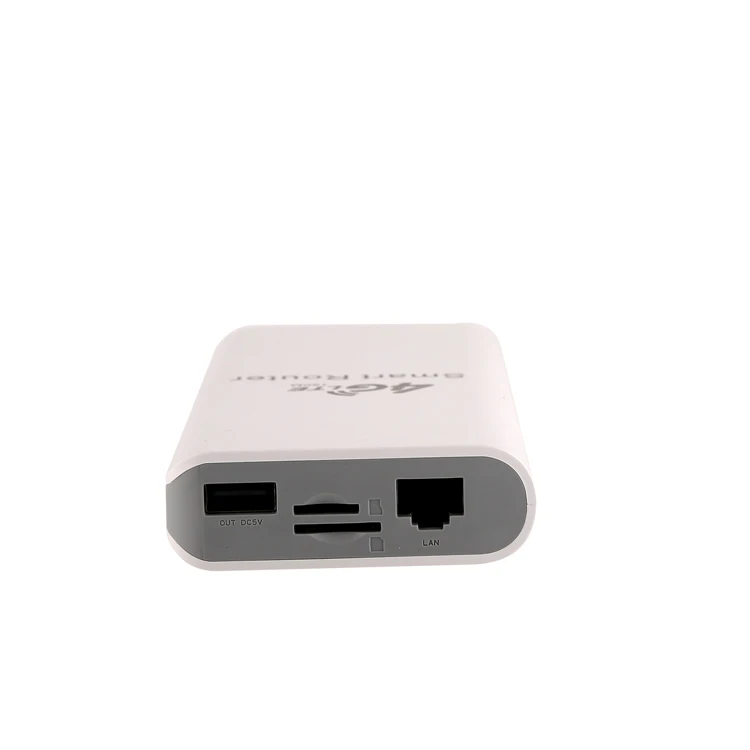

Wireless access point 4g MiFis wifi mifis

Item no.



ZXH-9



Application Scenarios



Home,Office,IoT,Security, Journey



Concurrent Clients



10



CPU



MDM9207



Flash/Memory



FLASH 2Gbit/DDR2 1Gbit



SIM Card



2 FF



Wifi



IEEE 802.11b/g/n



Chipset: Realtek RTL8189ES



RF antenna



2*2 MIMO, FPC



Peak Rate



FDD-LTE: DL 150Mbps ,UL50Mbps



TDD-LTE: DL 130Mbps ,UL35Mbps



UMTS/WCDMA: DL 42Mbps, UL 5.76Mbps



EDGE/GPRS: DL 473.6Kbps, UL 171.2Kbps



Frequency



2.4G



Wifi Feature



Transmission distance: Default coverage radius 100m (open environment)



1~11 Channel (North America/Canada)



1~13 Channel (Europe / Australia)



1~14 Channel (Japan)



SSID broadcast



WPA-Personal,WEP(64-Bit),WEP(128-Bit)



Language



English/French/German/Spanish/Portuguguese/Arabic others can be added per request



Browser



Google Chrome, Mozilla Firefox,Microsofte IE ,360 IE/ucweb



Settings



WIFI Parameter



Login Password



Apn add/Edit/Delete



Network Mode



DHCP Server



Mac Filter



Button



Reset, WPS, Power



TF Card



up to 32G



USB port



USB2.0 that is used to provide internal power supply;  input 5V/1A



Detachable Battery



7500mAh, Polymer Li-ion



Power Suppply



DC 5V/1A



Compatible OS



Android, Windows XP/7/8.1/10, Mac, Linux



Sleep Mode



Automatic



Frequency



FDD: B1/B3/B5; TDD: B38/B39/B40/B41;


WCDMA: 2100; GSM: 850/900/1800/1900



FDD: B1/B3/B5/B7/B8/B20; TDD: B38/B40/B41;


WCDMA: B1/B5/B8; GSM: 850/900/1800/1900



Operating Environment



Operating Temperature:Normal: 0°C to +45°C;


Operating Humidity:-20° C to +70° C


Operating Humidity:5%~ 95%


Storage Humidity:5%~ 95%



Dimension



Device: 165*68*23mm;



Pack Box: 200*70*26mm;



Package



Device*1, Cable*1pc, Manual*1pc, Battery*1pc;



We can make different frequencies according to different customers from different countries, so contact with us for more


  information if you have any queries!








Packaging & Shipping


Each pc with device*1pc, cable*1pc, battery*1pc user manual*1pc into pp bag, pp bag into color box, 100pcs/ctn. Samples often delivered by courier such as DHL, Fedex, UPS, TNT etc., small orders often delivered by air or sea, formal orders often delivered by containers.


lte wireless router.jpgrouter backup battery.jpgrouter wifi mobile.jpg





Our Services


1. Your inquiry will be replied professionally within 24hours;


2. Sample test order accepted;


3. Logo printing, gift box, label, manual and software design order make;


4. OEM/ODM orders are highly welcome;


5. Small order accepted for market research;


6. Monthly output over 60,000 pcs guarantee your delivery on time;


7. Some models has ready stock for retailer customer;


8. Rich experience engineer support on software&hardware;


9. Payment accept T/T, Western Union and Moneygram;


10. 1 year warranty;


11. Best service after sales;





Company Information


Shenzhen Junhaoyue Technology Co., Ltd. is a high-tech company, professional in fixed wireless terminal 4g, fixed wireless terminal 3g, fixed wireless terminals and fixed wireless phone developing and manufacturing. With the development of communication technology, we involved in wifi router, 4g wifi router, 4g outdoor router and wifi 6 router developing from 2018 and have made many popular models ever since then. Our new product such as 4g dual sim router have been ready in the market also. Our products sold to Mexico, French, Greece, Netherlands, Nigeria, Angola, Argentina, Chile, Brazil, Australia, USA etc. We take credit and quality as our business principle and we sincerely hope to establish long-term cooperative relationships with customers all over the world! Warmly welcome to negotiate with us if you have any requirements!


1200mbps wifi router.jpghome wifi router.jpgmobile internet router.jpgrouters 4g sim card.jpg





FAQ


Q: After the 4G card is plugged in, the 4G light of the 4G router is not lit, which causes the Internet to be unavailable?


A: In one case, the 4G card is not inserted properly. You should cut off the power of the 4G router  and re-insert the card. In


     another case, the 4G card is not activated, and the card insert shall be used after activation according to the card manual.


Q: 4G router works normally, the 4G light is on, and the mobile phone is connected to 4G router Wi-Fi but cannot access the


     Internet?


A: Enter the routing setting page (the default is 172.16.0.1, the username and password are both admin), check the status---


    whether the WAN port obtains the IP address. If it is not obtained, it is recommended to reset the 4G router reset. Identify the


    Internet through the APN setting, insert the 4G card into the mobile phone, view the APN information on the mobile phone, and


    enter the 4G router setting page---network setting---APN setting to fill the APN information of the mobile phone to 4G Router


    APN settings.


Q: 4G router WAN port address is normal, 4G lights are normal, mobile phones cannot connect to Wi-Fi?


A: Each 4G card has a data plan. In this case, please check your data plan and recharge in time.


Q: Is sample order available?
     Yes, it's available upon request;
Q: How long do you need to prepare sample ?
     Depending on different products, it may take 3-5 days;


Q: How long delivery time for formal order?


A: Generally speaking it’ll take about 20-30 days subject to your order quantity;
Q: What's your Order MOQ?


A: For sample test, can make 1pc at least;
     For standard model, usually MOQ is 1k per model.;
Q: What payment terms do you accept?


A: For samples, we accept WESTERN UNION, MoneyGram or BANK T/T in  advance;


    For formal order, 30% deposit and balance after goods ready but before shipment;


Q: How much will the express delivery cost for the sample?
A: The express delivery cost depends on the sample quantity, weight, carton
measurement and which country you would like to


    send;
Q: How to ship the goods to us?


A: For samples order, usually delivered by carrier like DHL, TNT, FEDEX etc.;


     For small order, can delivered by air, also can by courier;


     For formal order, usually delivered by sea in order to save transportation cost;
