KC Plug adapter lead acid battery charger 6v 12v 24v led ac dc regulated wall mount battery chargers

Share on:

Price:$3.47 - $4.63
Price in USD:Details


Product Overview


Product Description

Product Name
JY battery charger for Li-ion, Lead-acid,Ni-MH battery
120℃ resistant PC Resin enclosure;  Eco-friendly and safe material;
CC-CV for li-ion battery charging;
CC-CV-trickle for Lead-acid charging;
Other costumized charging mode;
Anti-backflow function alternative;
Instruction LED: Red=Charging Green=Full;
UL (UL1310)
TUV GS CE (EN60335-2-29)
TUV CB (IEC60335-2-29)

Latest reliable design, low operating temperature
Fire-proof enclosure, UL-listed dc cord
Accurate voltage control(±1%, ±2%) for safe charging
100% pcb/ dielectric/ ate/ aging test before packaging
pass ERP efficiency test

Details Images

Ultrasonic welding

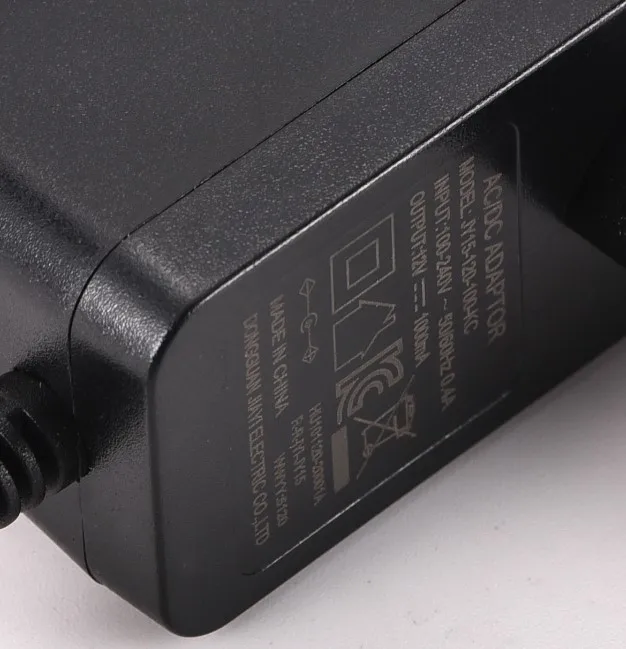

Laser etching label with KC mark
adhesive PET label (optional)

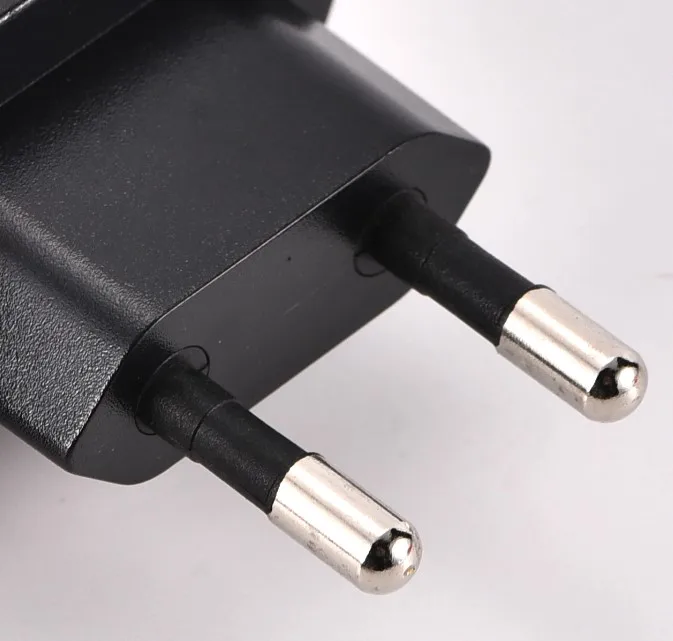

Durable copper blades according to KC plug standard and passes salt spray test / tumbling barrel test

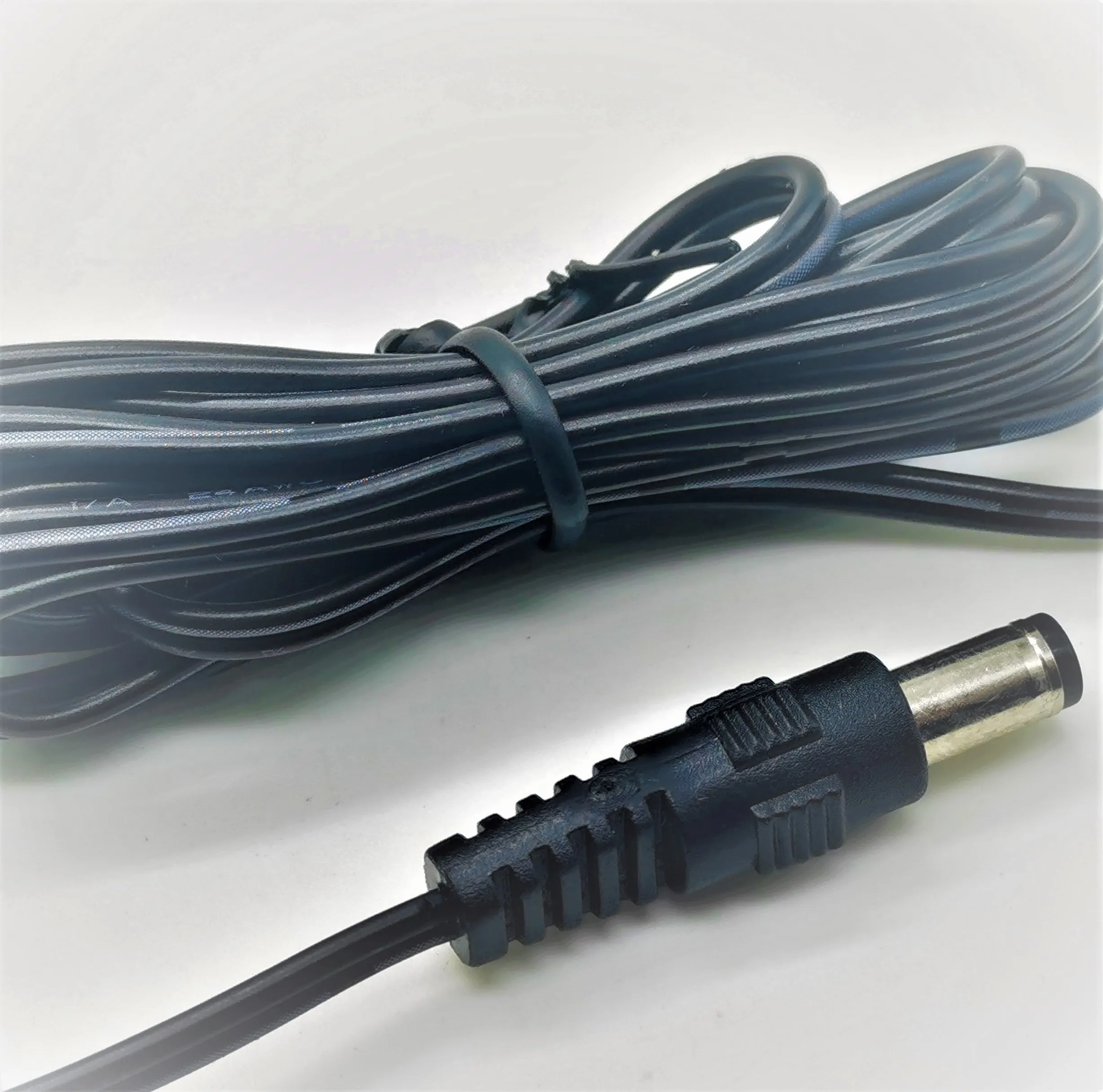

Reliable 2464/2468/SPT dc cord with UL file no. printed on the surface,  withstand swinging and bending.
DC plug size: 5.5x2.1x10mm straight center+ or other size/ type/ customized


Package 1: PE bag + white box + canton
Package 2: PE bag + division plate + canton
Package 3: PE bag + "#" division + canton
request for detailed info

Company Introduction

Dongguan Jiayi Electronic Co.,Ltd, established in 2003, is a company focused on
the design, development, manufacturing, and sales of various adaptors, battery chargers, transformers, etc. Jiayi has passed the certification of ISO9001:2015 and provide about 8,000,000 high-quality products annually. The safety products have got certification of UL/ETL/GS/CE/CCC/PSE/KC/BIS/SAA and acquired very good reputation in the world market among the past 20 years.


Q: Do you offer samples for testing?
A: Yes, we offer samples for testing. Delivery cost collect. Small-amount mass samples need negotiation.
Q: Sample & mass production lead time?
A: About 3-5 days for sample and 15-30 days for mass production.
Q: How about the packages?
A: Usually white box + canton.
Q: what about MOQ & payment method?
A: usually MOQ is 1000 pcs.For trial order we discuss the lead time and quantity. Payment method is TT 30% deposit and 70% balance before shipping.
