Ultrasonic Water Tank Liquid Depth Level Meter Sensor with Temperature Display
- Category: >>>
- Supplier: Changzhou Manorshi Sensor Technology Co. Ltd.
Share on (1600309137336):
Product Overview
Description

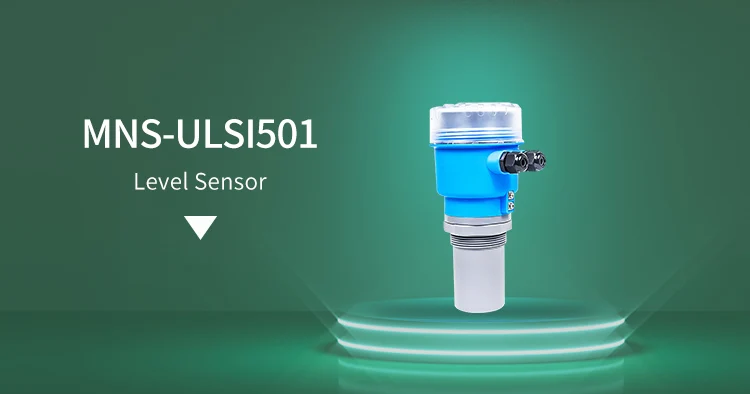

MNS-ULSI501
This is a ultrasonic level sensor.

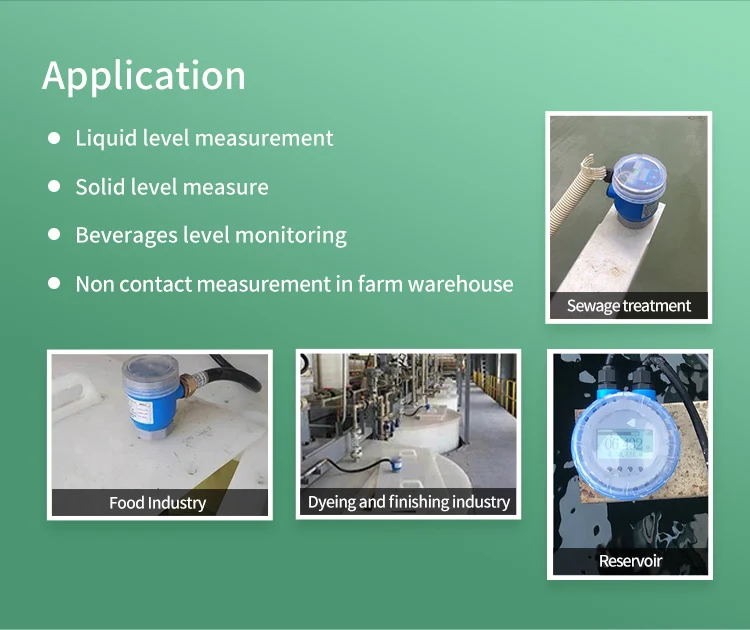

Application
● Liquid level measurement
● Solid level measure
● Beverages level monitoring
● Non contact measurement in farm warehouse
● Solid level measure
● Beverages level monitoring
● Non contact measurement in farm warehouse
Level Range | 0-5...70M optional |
Accuracy | 0.25%-0.5%FS |
Output | 4-20mA/750Ω load resistance |
1-5V/0-5V/0-10V(3 wires) | |
Bline Zone | 25~120cm |
Working Pressure | 2 Bar 220VAC+15% 50Hz |
Power supply | 24VDC 120mA 12VDC |
Working temp | -20°C~+80°C |
Resolution | 3mm or 0.1%FS (Max of them) |
Display | English language display: Level measurement,Distance measurement, transmission value |
Water Proof | IP68 |
Pressure port | M68*2.0 male; G 1-1/2 " male; M108*2.0 male |
