Product Overview

Description



Product Introduction


High Quality Mini Metal Gantry CNC Flame Plasma Cutting Machine More Economical than Laser Cutting Machine

                                                                                                        *Launched by SHANGHAI ZHAOZHAN Automation Company.

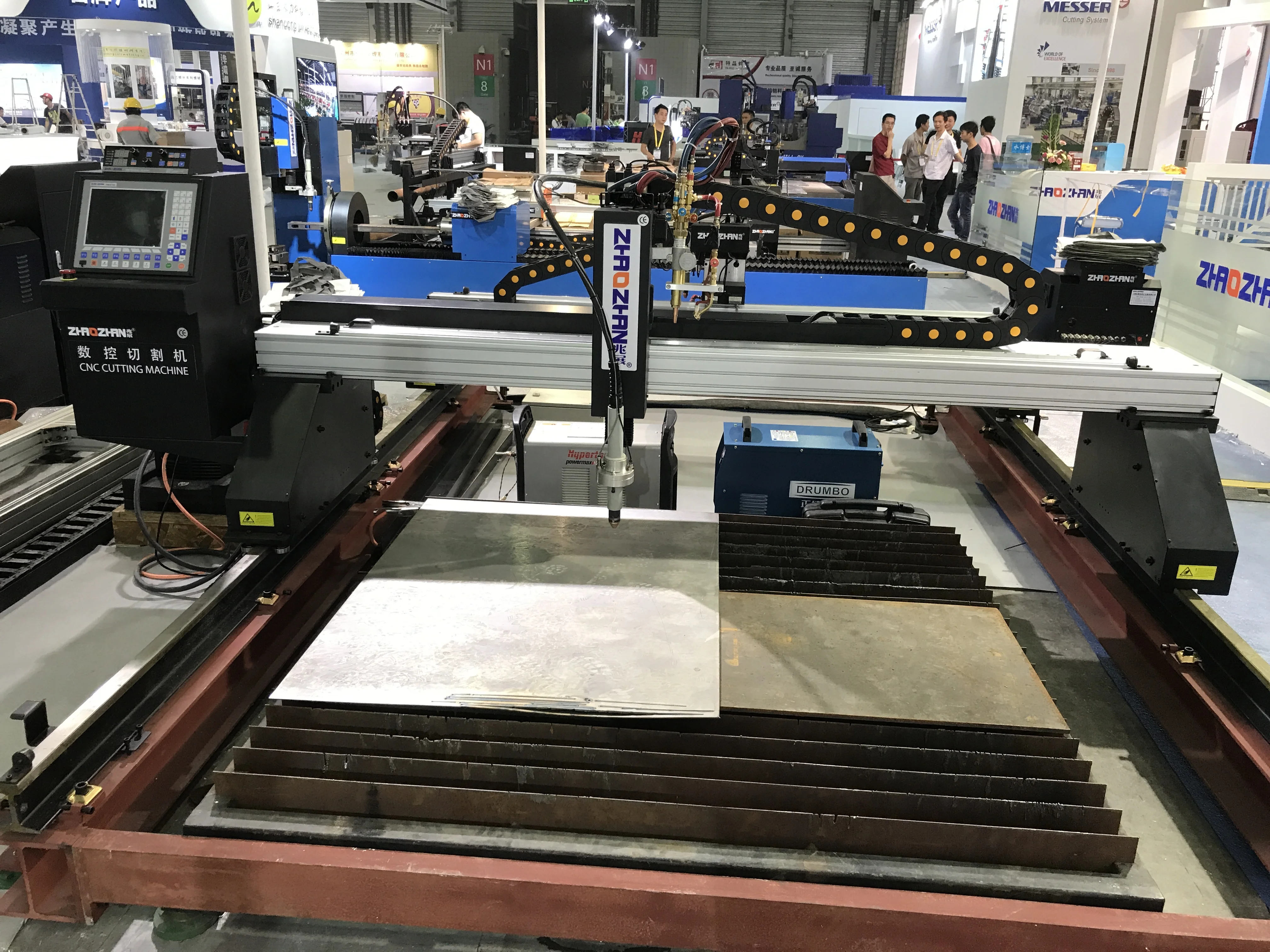

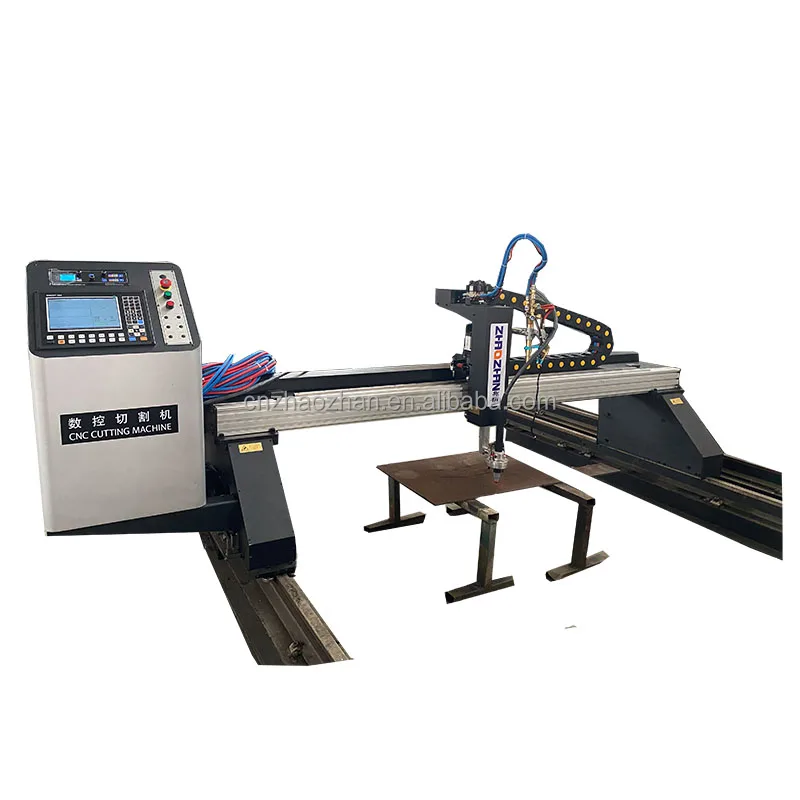

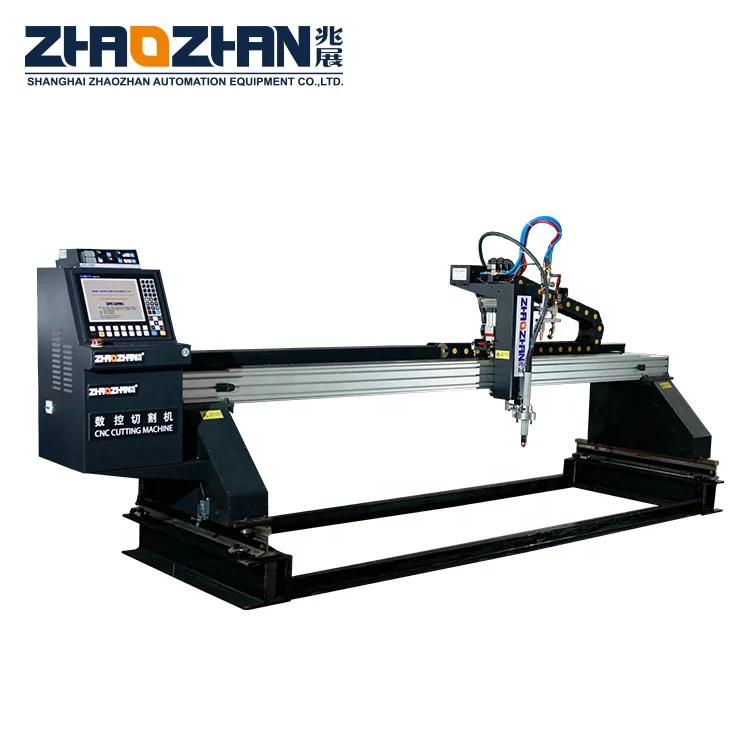

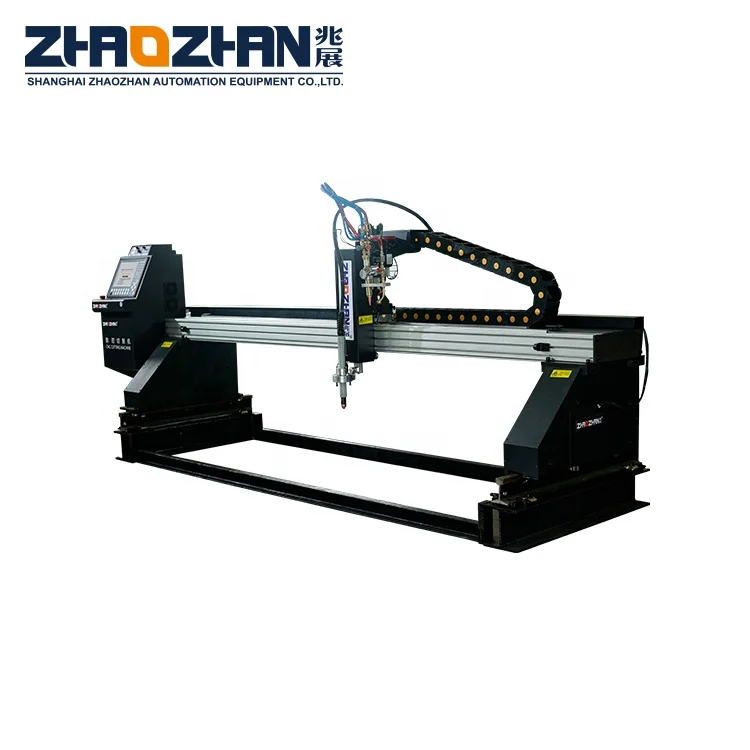

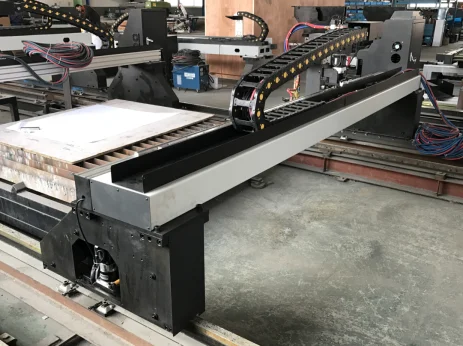

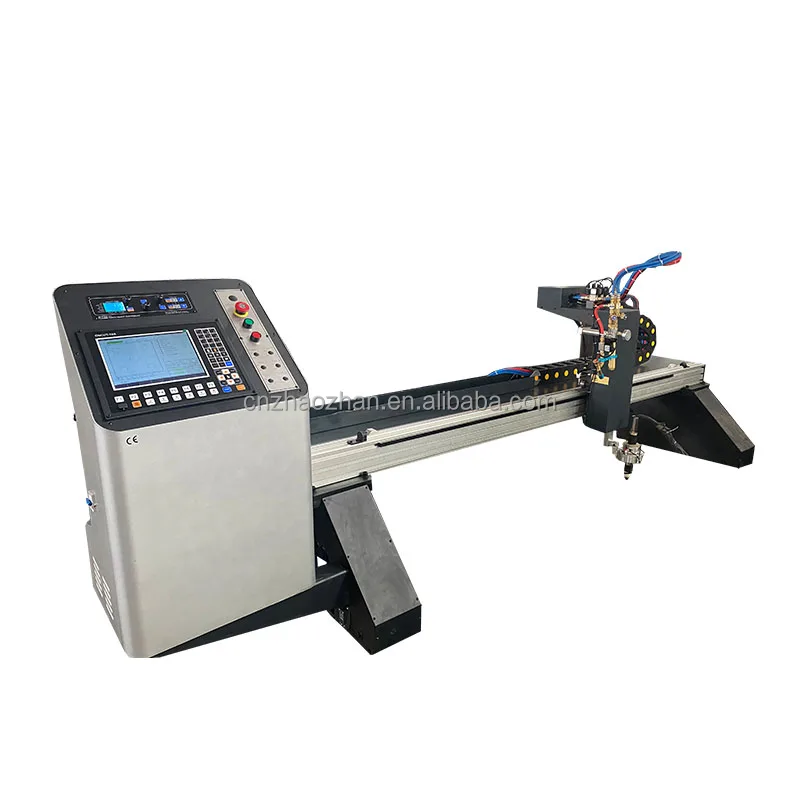

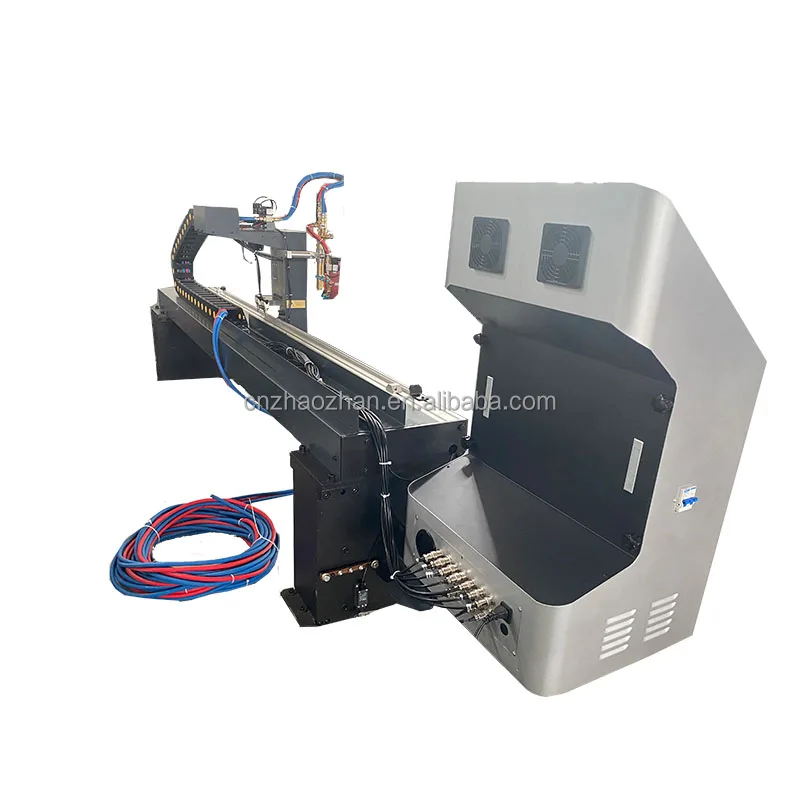

GANTRY STYLE CNC FLAME PLASMA CUTTING MACHINE

1.Each leg of machine using two pieces of 14mm Q345B steel processed. That keep the machine good supporting and stability when machine fast move forward and backward in high precision.

2.The beam made from 2 parts. Front part is used aluminum alloy structure, that for keeping high precision. And it is easy for machine function update or modification in the future.

3.Rear part of the beam is used 45# steel folded to strengthen the machine's structure. That make machine with two beam structure, and reasonable used both aluminum alloy and steel's each advantage to provide machine extreme stability, and flexibility performance.

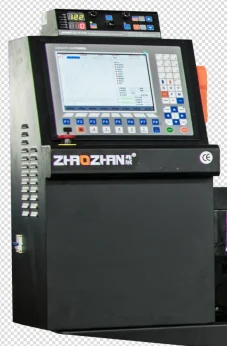

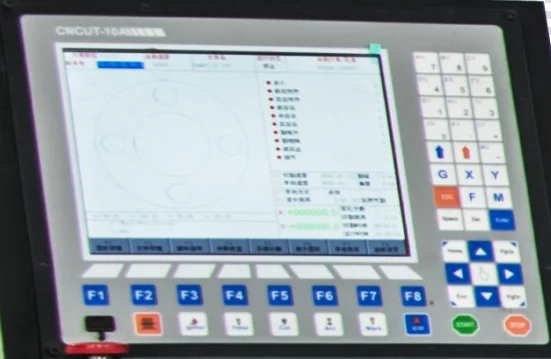

4.Machine standard with CNCUT-10A 10 inch color controller, and ZZ-PTHC new plasma THC. With 24kg/m fine grinding guide, and dual used plasma and flame function. Servo motors or step motors are optional. There are several sizes of this machine can be choose.







We only serve the best quality and supply the best operation system for your convenience.


Workable of sheet metal cutting machine / automatic key cutting machine / sheet cutting machinery

Hypertherm for plasma generator(source supply)

choose accrding to your piercing capacity



Product Description


Name
                         OEM GANTRY STYLE CNC FLAME PLASMA CUTTING MACHINE
Model
ZZ-2580C-ST
ZZ-3080C-ST
ZZ-4080C-ST
ZZ-2580C-SE
ZZ-3080C-SE
ZZ-4080C-SE-
Motor Style
Dual Drive of 86 Series Step Motors + Reduce Gear Boxes
Dual Drive of Panasonic Servo Motors + Reduce Gear Boxes
Effective Cutting
Range for Each Tool X*Y
2000*
6000mm
2500*
6000mm
3000*
6000mm
2000*
6000mm
2500*
6000mm
3000*
6000mm
Customizing
                         Track length (effective cutting length Y axis) can be customized
                                                             for extending cutting length
Moving speed
                         0-6000mm/min
                           0-10000mm/min
Torch lifting distance
                                                                               ≤150mm
Input Power
                    Single Phase AC 220V                                     Approximately 1200W
                        Single Phase AC 220V
                        Approximately 1500W
Work Precision
                                                                       ±0.2mm/meter
Flame (Gas) Cutting Thickness
                                 Piercing Capacity: 5 - 60 mm Edge Start: 5 - 120mm
Plasma Cutting Thickness
                              Depends on the cutting capacity of the Plasma Generator
Cutting Table And Base
                                           We will supply drawings of cutting table.
                                    Base (H-beam) and cutting table are not supplied.

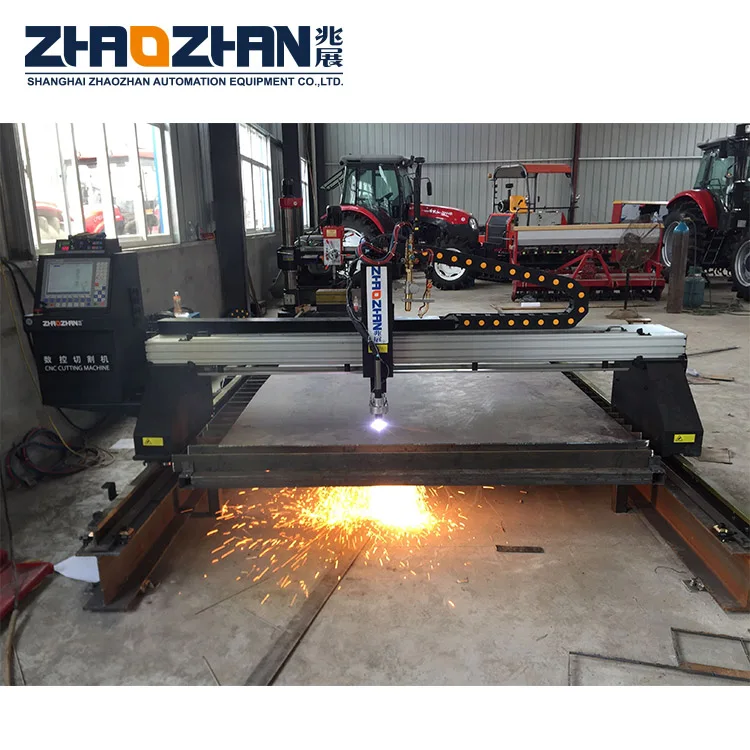

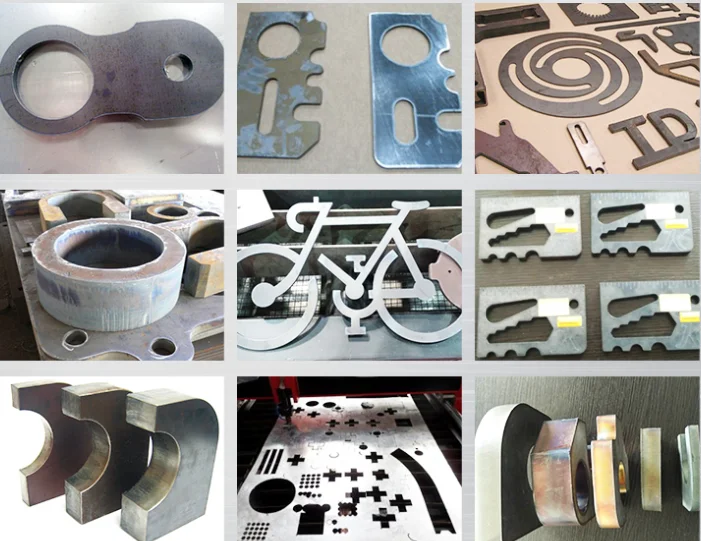

Cutting Samples






Our Company

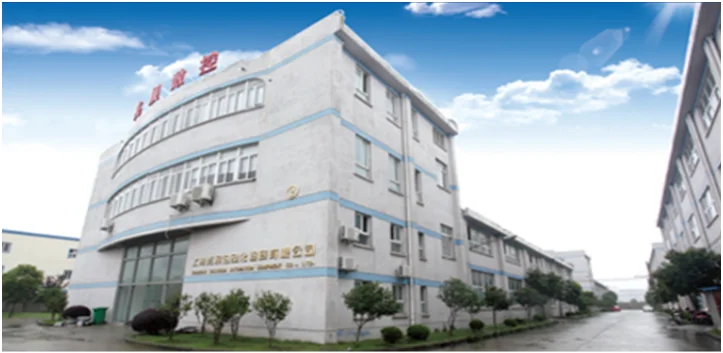

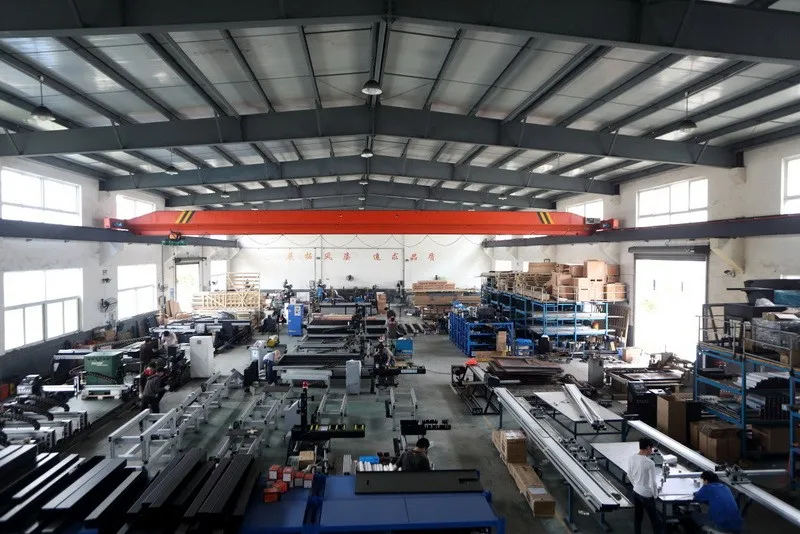

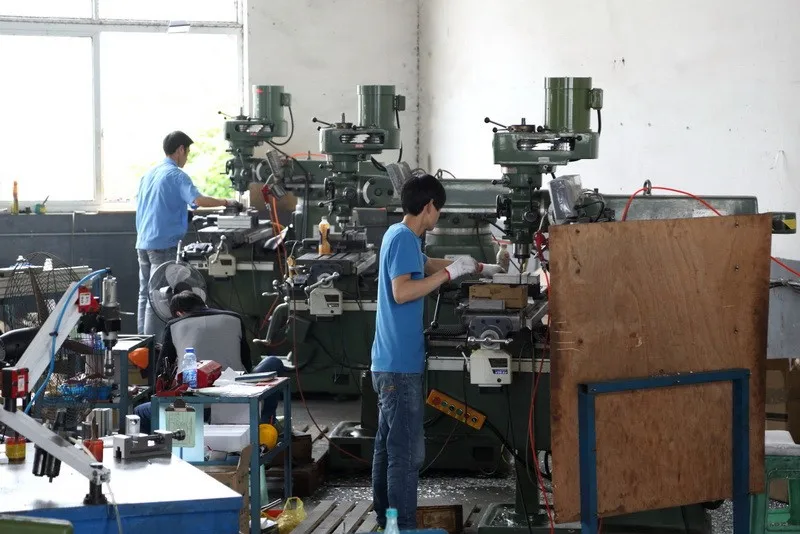

Our Factory






Shanghai Zhaozhan Automation Equipment Co.,Ltd.

                                  Our Tenet, "  Quality-oriented,Honesty-centered,

                                                                          Scientific management,Harmonious development."



Certifications




Our Service




Trust us!

Pre-sale service : Call us no matter cooperate or not. you may get unexpected surprise. We will devote ourselves into knowing clients specific needs and requirements to suggest them the most suitable machine with best price,

Selling service : Patiently and thoughtfully answer all of ur concers, and provide you most valuable suggestion to gurantee our clients to get the most benifit from our cooperation

After sale service 24 hours technician online for your questions . Latest software is always available.Traning videos and CD in english will help clients better use machines easily. 12 months warranty for free for all parts broken under non human factors. After warranty we can renewal our contract, so that u can enjoy our same warranty service for the whole life of machine.
