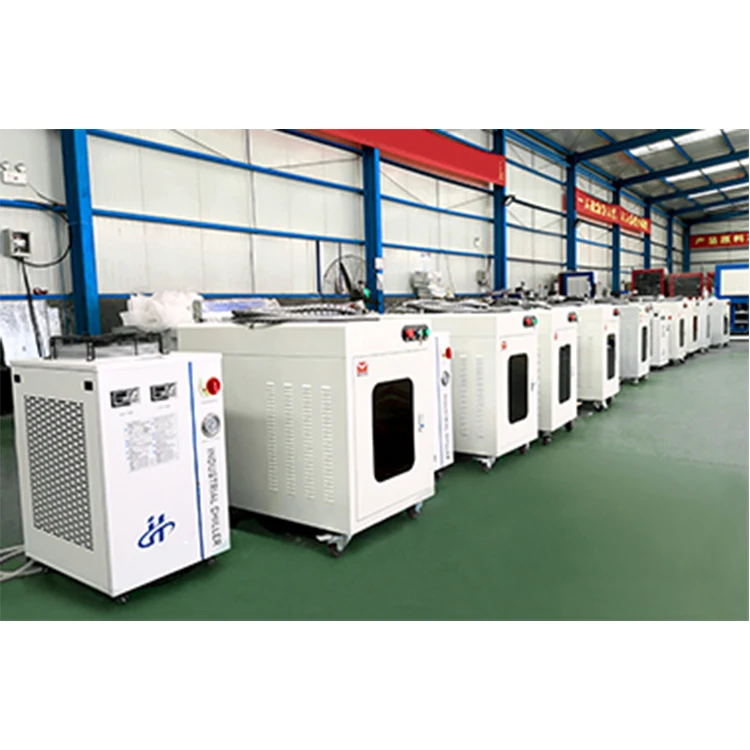

Morn Fiber Laser 1000w 2000w Metal Stainless Steel Laser Welder Double Wobble Handheld Welding Head Laser Welding Machine
- Category: >>>
- Supplier: Morn Laser Technology Co. Ltd.
Share on (1600309435239):
Product Overview
Description
Product Description

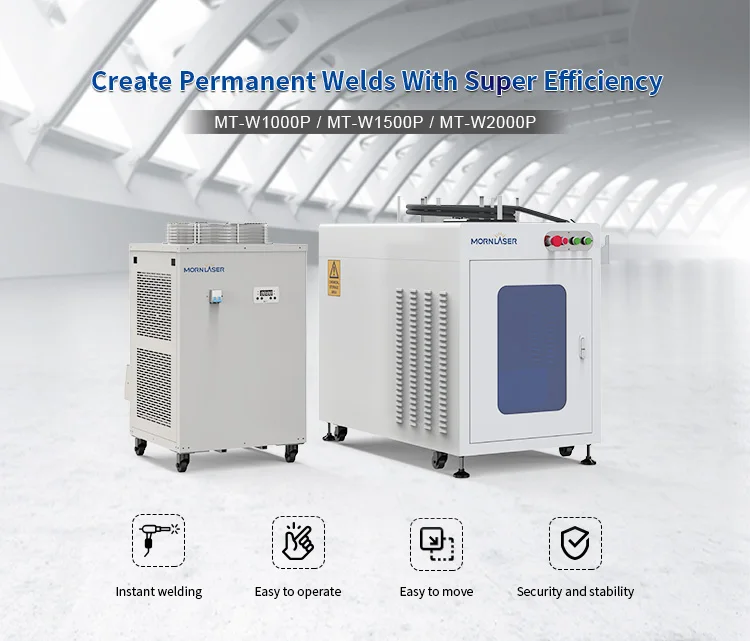

Handheld Fiber Laser Welding Machine
Morn Laser handheld laser welding machine features the best fiber laser beam and high welding speed without consumables. It best suits long-distance, large part welding with barely any heat affected area. 2-10 times faster than traditional welding, a machine can save at least 2 welders a year. It welds carbon steel, stainless steel, brass, copper, iron and more sheet metals and metal tubes.
Advantages
● Welding of maximum 5mm thick metal sheets with freely adjustable light spot;
● Sheet welding speed reaches 10m/min, 5-10 times faster than traditional argon arc welding;
● Ultra low power consumption;
● No consumables required for narrow welds;
● Super easy to operate,10 minutes to master;
● Part contact electrical interlock turns off the laser power if the welding head is not in contact with the welded parts;
● Long lifespan up to 100,000 hours.
Machine Parameter
Equipment model | MT-W1000P/MT-W1500P/MT-W2000P |
Laser source | Raycus |
Laser power | 1000W/1500W/2000W |
Output power tunability (%) | 10-100% |
Laser head | Handheld |
Laser wavelength | 1080±5nm |
Fiber diameter | 100μm |
Frequency of pulse | 1-5000KHZ |
Fiber laser optic length | 8m |
Spot size | φ0.2-1.8mm |
Welding depth | 0.5-4mm |
Water chiller | 1000w/1500w/2000w |
Total power | 5KW/6KW/8KW/10KW |
Ambient temperature | 10℃~40℃ |
Relative humidity | ≤70% |
Power supply | AC220V,50 /60Hz,Single Phase AC 380V,50/60Hz,Three Phase |
NW | 220kg |
Max welding thickness | ||||
Power | Stainless steel | Carbon steel/Galvanized sheet | ||
1000w | 4mm | 3mm | ||
1500w | 4.5mm | 3.5mm | ||
2000w | 5mm | 4mm | ||

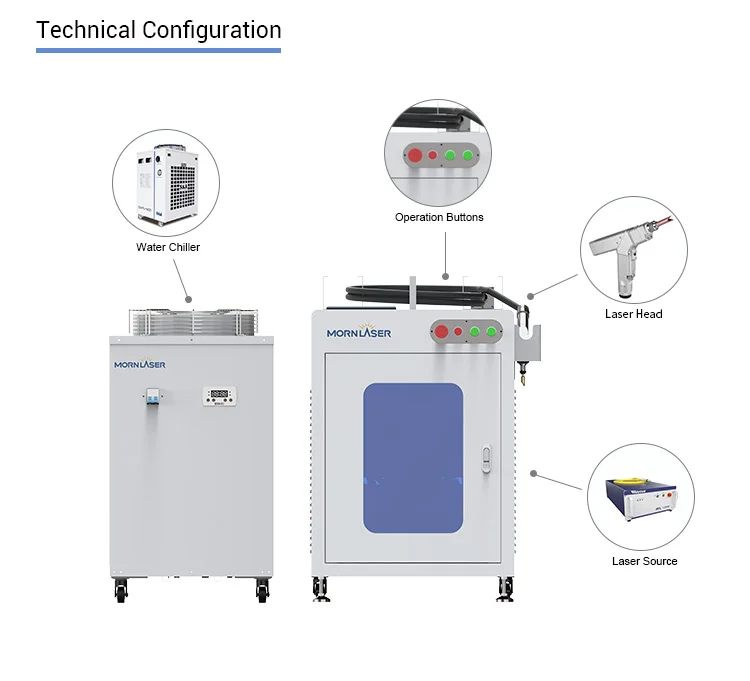

Machine Details
More stable and cost effective than yag laser source. The lifetime is over 100,000 hours

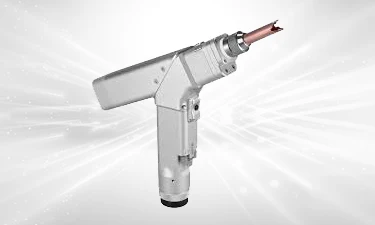

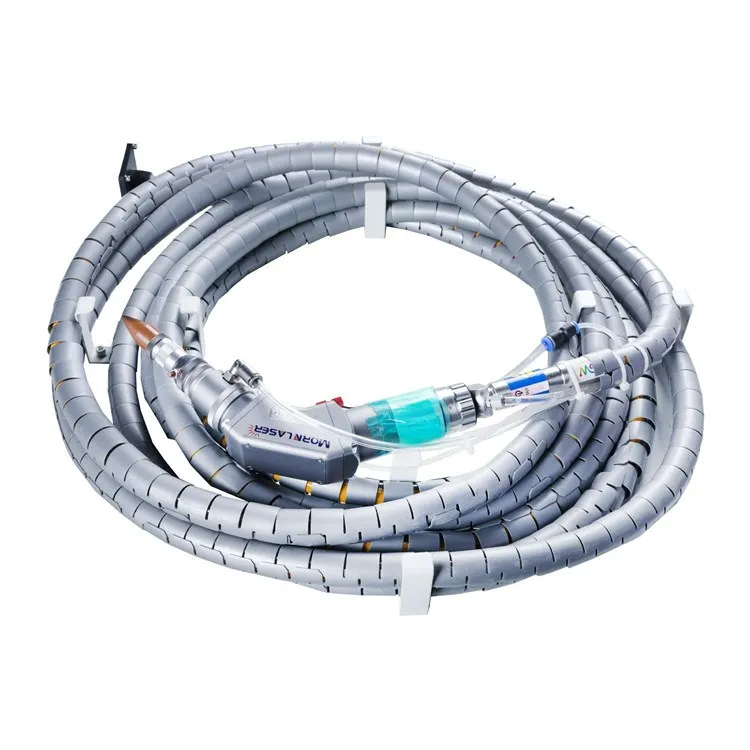

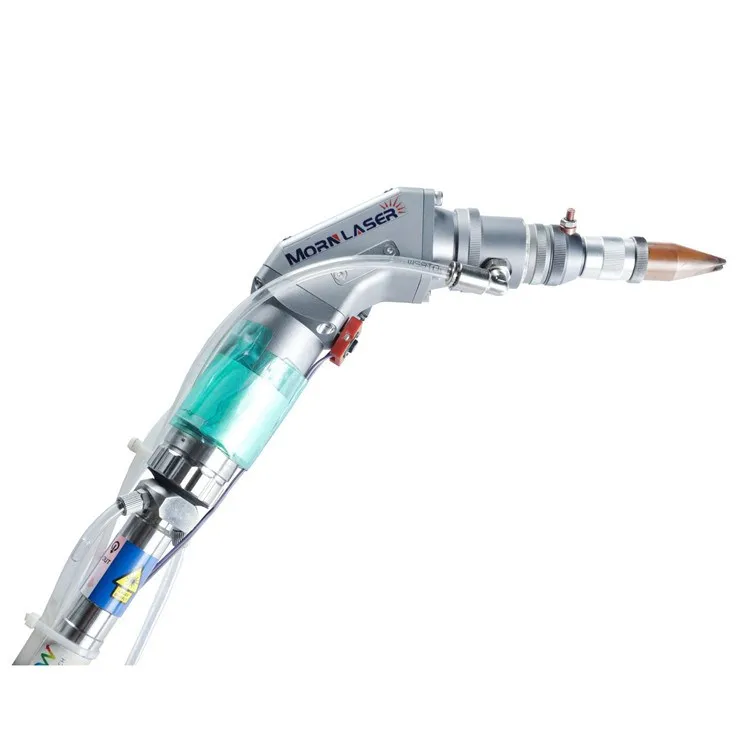

Laser head
Imported laser welding head, corrosion resistant, high temperature resistance, longer service life than other ordinary laser heads
.

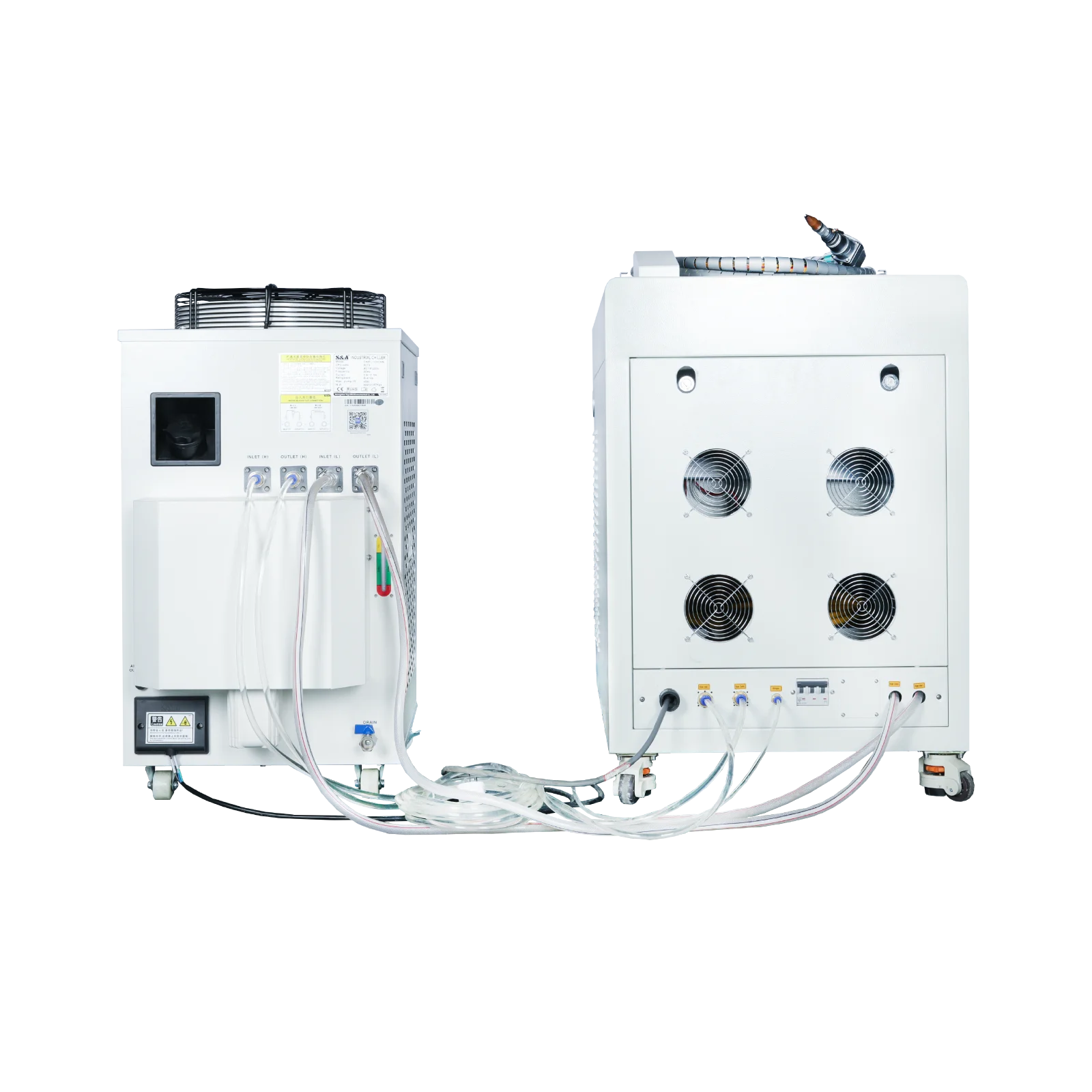

Advanced water chiller with better cooling effect, no noise and no pollution.

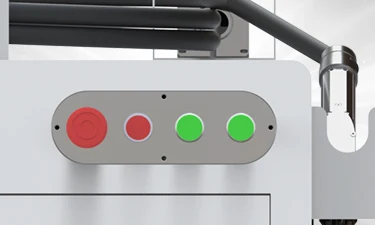

Simple operation, easy to Learn, comfortable handle, good safety performance

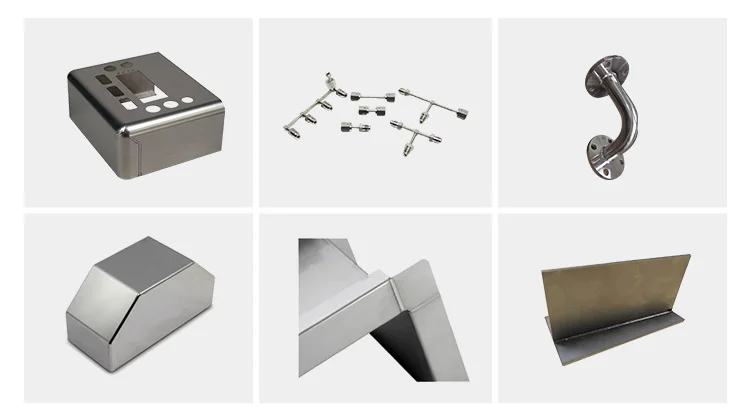

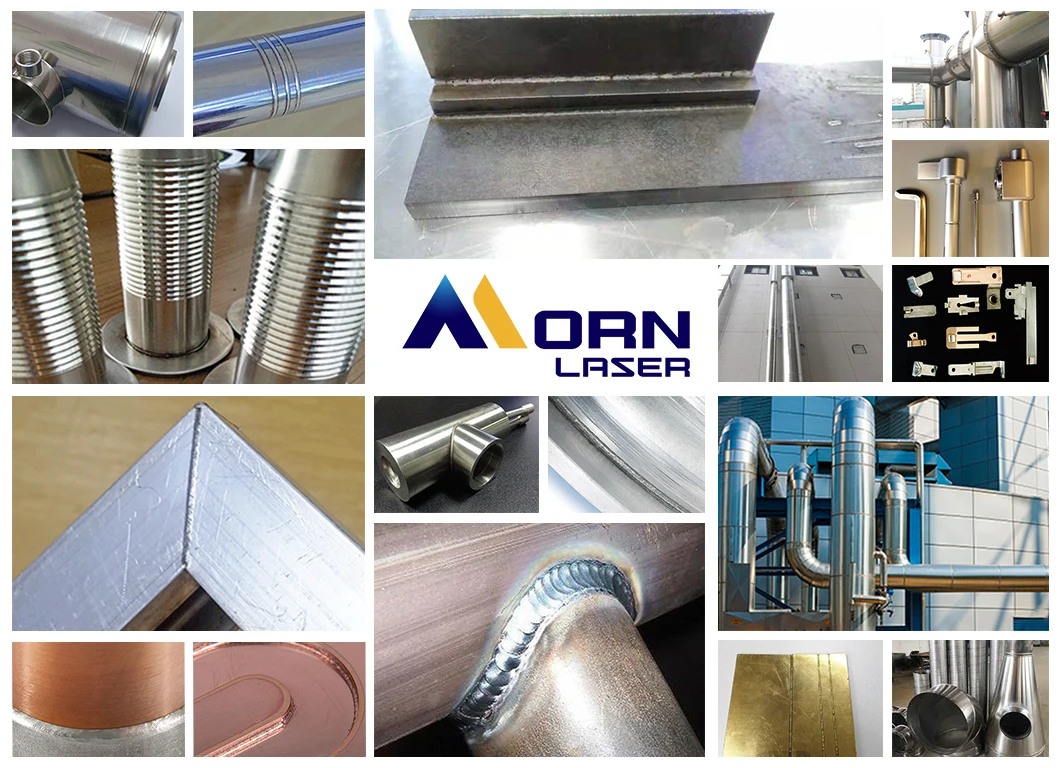

Application & Sample
Applications
Widely used for welding of metal words, kitchen cabinets. steel structures. stairs, shelves.ovens, stainless steel door and window guardrails, elevators. distribution boxes, stainless steel houses etc.
Materials
Titanium, aluminum. copper.zinc. gold, silver, carbon steel and stainless steel, and also cooper brass, cooper-titanium.
nickel-cooper. cooper-titanium and many other dissimilar metals.
About Morn Laser
FAQ
Q: How to select the suitable machine?
A: Tell us your material, detail requirements in words, pictures or video.
We will recommend you the suitable model with the reasonable price.
Q: How thick can 1000W laser welder weld?
A: The 1000w laser welding machine can weld metals up to 4mm thick.
Q: Can carbon steel be welded?
A: Yes, not only carbon steel, almost all metals can be welded
Q: Can the machine be customized according to my requirements ?
A: Sure, we have a dedicated technical team with rich experience. Our goal is to make you satisfied.
