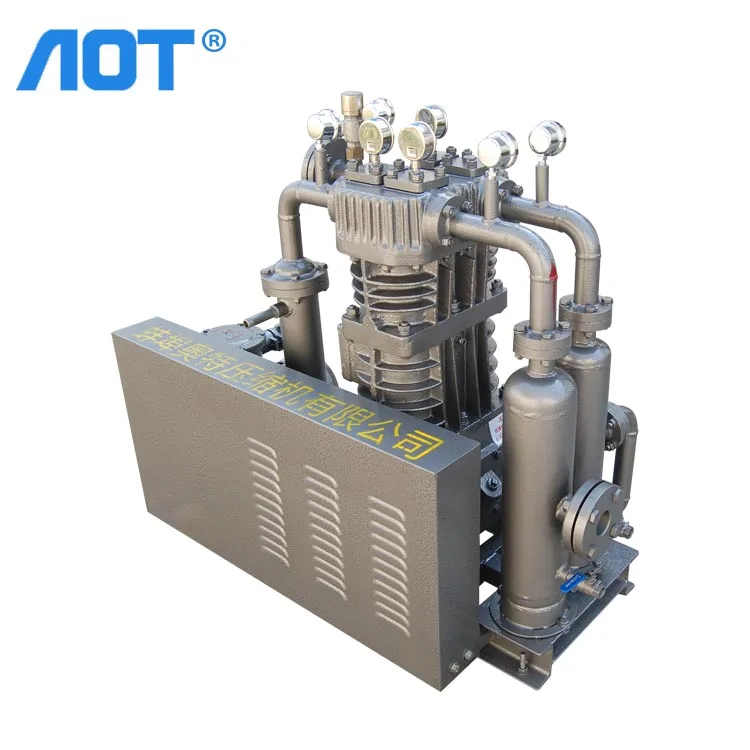

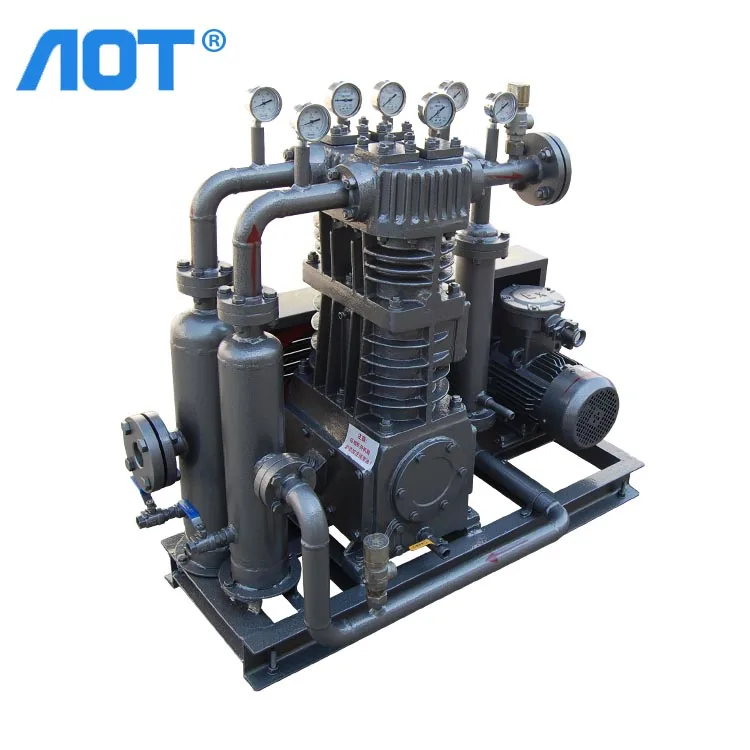

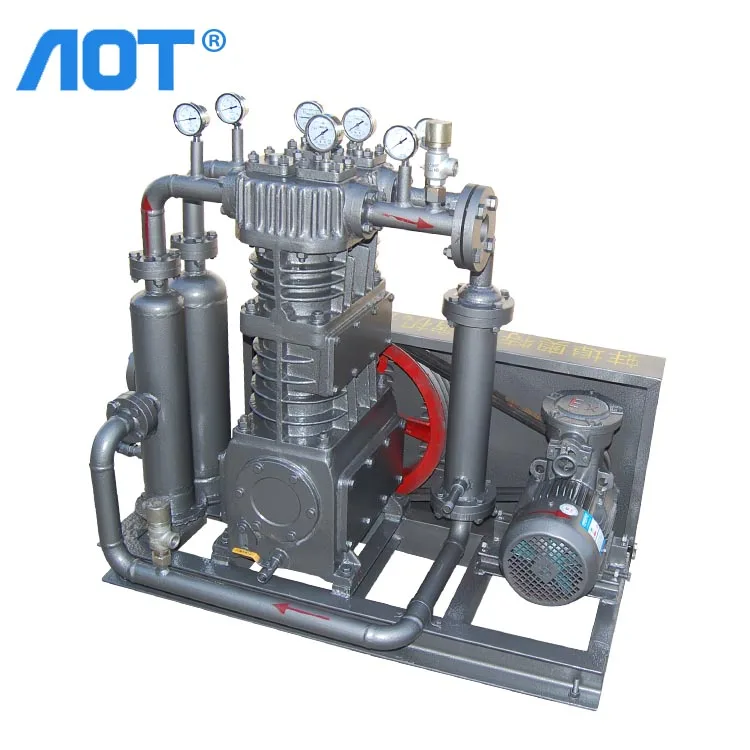

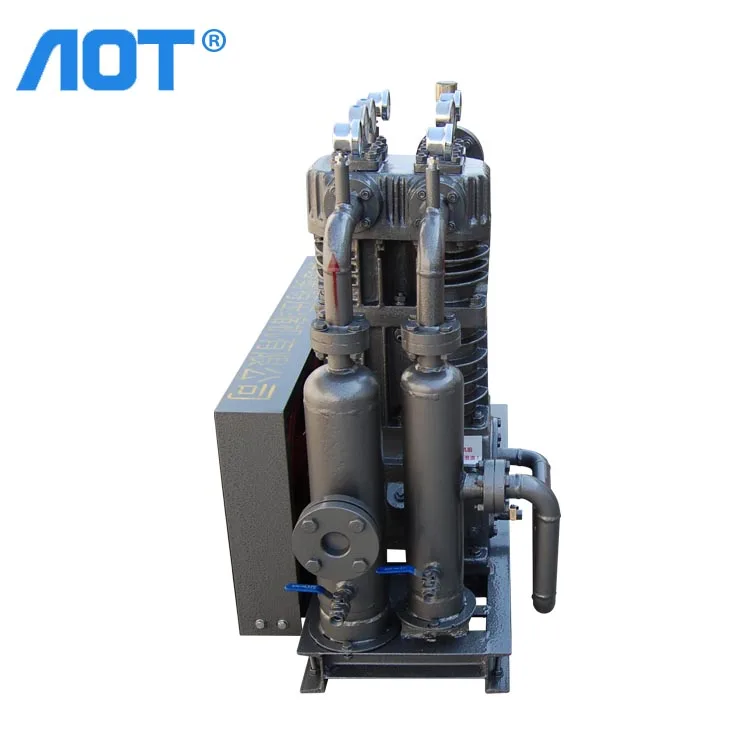

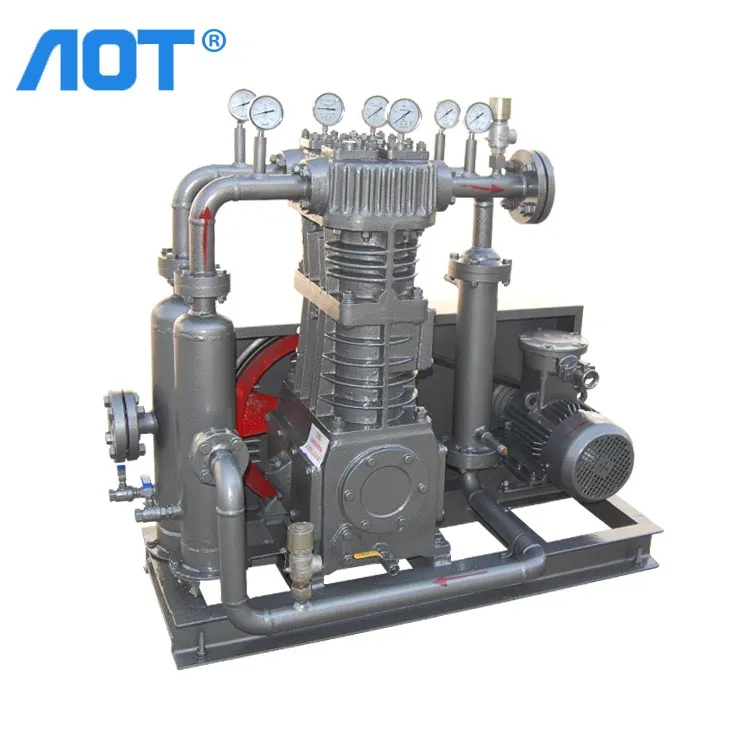

Ethylene Compressor Exporter Ethylene Piston Compressor silent Ethylene Gas Compressor
- Category: >>>
- Supplier: Bengbu Aot Compressor Co. Ltd.
Share on (1600309489697):
Product Overview
Description
Product Description
Our company provides chlomethane compressor, low temperature ethylene compressor, rich gas compressor, vinyl chloride compressor, gas compressor, BOG compressor and so on.
Application: chemical plant, industrial gas factory, etc
Compressor | Product Model | ZW-1.8/15 | |||
Type | Z type | ||||
Compressed medium | Ethylene | ||||
Nominal volume flow(m³/mim) | 100 | ||||
Compression stage | 3 | ||||
Cylinder number | 3 | ||||
driving mode | Belt | ||||
Noise (sound pressure level) dB(A) | ≤85 | ||||
Cooling mode | Air cooling | ||||
Rotational speed (r/min) | 500 | ||||
Suction pressure (MPa G) | Normal pressure | ||||
Discharge Pressure (MPa G) | 1.0~1.5 | ||||
Suction temperature (℃) | 30 | ||||
Discharge temperature (℃) | ≤140 | ||||
Crankshaft, connecting rod, cross head | Oil lubrication | ||||
Cylinder, Packing | Oil-free lubrication | ||||
Motor | Model | YB3-180L-4 | |||
Explosion-proof grade | DIIBT4 | ||||
Rotational speed (r/min) | 1470 | ||||
Rated voltage (V) | 380 | ||||
Rated frequency(Hz) | 50 | ||||
Rated current (A) | 43.1 | ||||
Rated power (Kw) | 22 | ||||
Compressor size (L×W×H) mm | ≈2400×1400×1400 | ||||
Weight(kg) | ≈1000 | ||||
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
No. | Name | Number | Note |
1 | Compressor host | 1 | / |
2 | Explosion-proof motor | 1 | / |
3 | Gas-liquid separator | 1 | / |
4 | Air-cooling | 1 | / |
5 | Shared chassis | 1 | / |
6 | Belt | 1 set | / |
7 | Piping components | 1 set | / |
8 | Random spare parts | 1 set | / |
9 | The technical documentation | 1 set | / |
10 | Explosion-proof control cabinet | 1 set | / |
FIVE REASONS TO CHOOSE AOT COMPRESSOR:
1. Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.
2. "Tailored" for customers:
According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs of
customers.
3. A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to
facilitate the timely tracking service.
4. 24 Monthly free warranty
All factory compressors are Free warranty for 24 months, lifetime warranty, so that users can be more assured.
5. Perennial spare parts support
1. Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.
2. "Tailored" for customers:
According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs of
customers.
3. A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to
facilitate the timely tracking service.
4. 24 Monthly free warranty
All factory compressors are Free warranty for 24 months, lifetime warranty, so that users can be more assured.
5. Perennial spare parts support
Our company stock spare parts for every factory compressor, to ensure the long-term use of users, remove users' worries.
Please tell me inlet pressure,outlet pressure,voltage frequency,capacity,the usage of compressor, I will recommend a suitable gas
compressor.
If you want to send me the inquiry,please fill the below technical information:
1. The flow rate: _____Nm3/hr
2. Inlet pressure: _____ Bar
3. Discharge pressure: _____ Bar
4. Voltages and Frequency : ______V/PH/HZ
5. Ethylene gas compressor application:
If you are interested in it,please contact me freely
compressor.
If you want to send me the inquiry,please fill the below technical information:
1. The flow rate: _____Nm3/hr
2. Inlet pressure: _____ Bar
3. Discharge pressure: _____ Bar
4. Voltages and Frequency : ______V/PH/HZ
5. Ethylene gas compressor application:
If you are interested in it,please contact me freely
