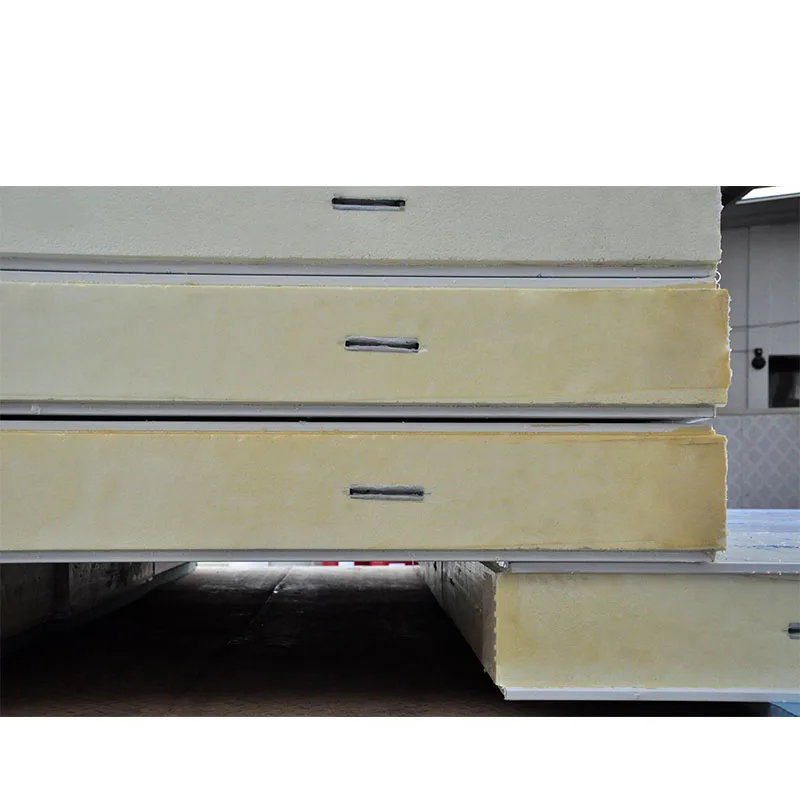

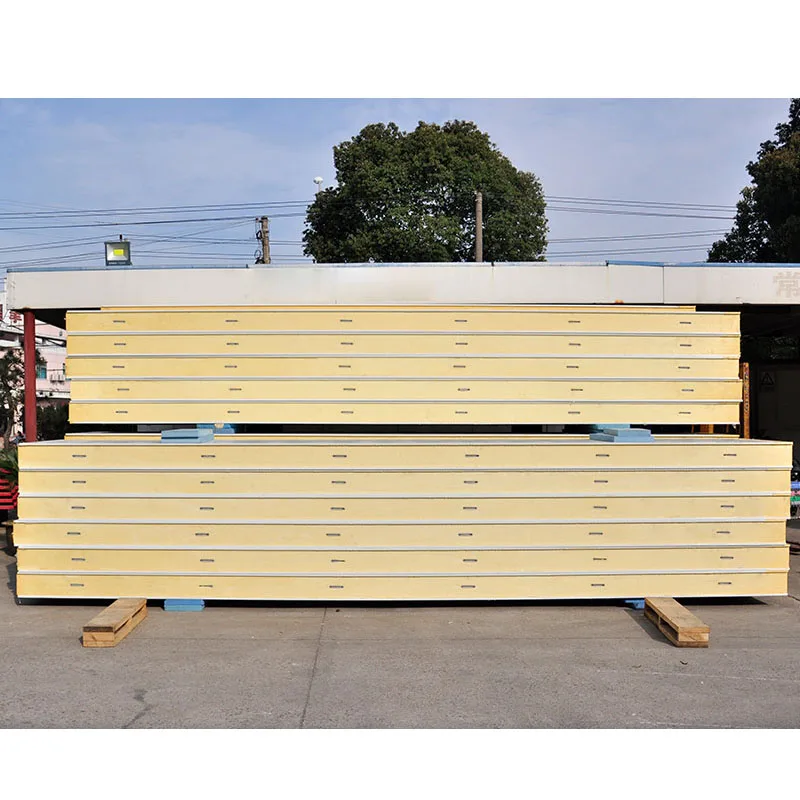

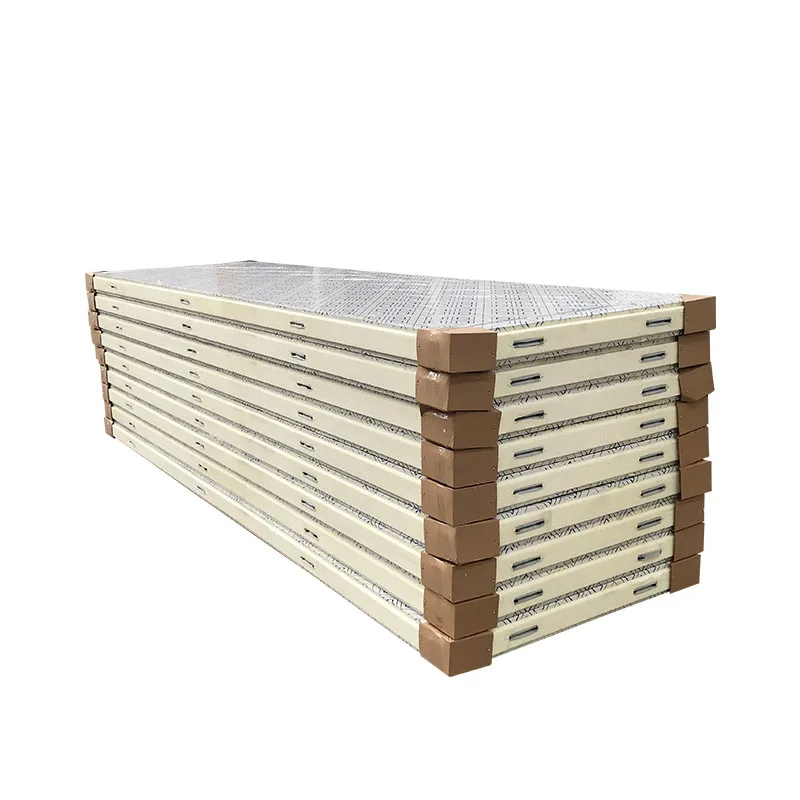

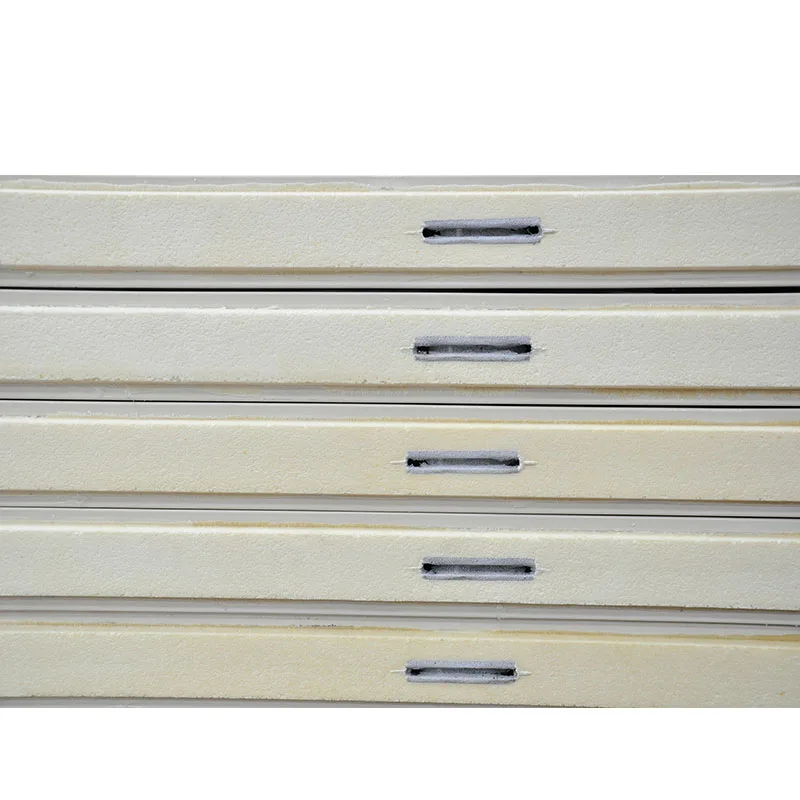

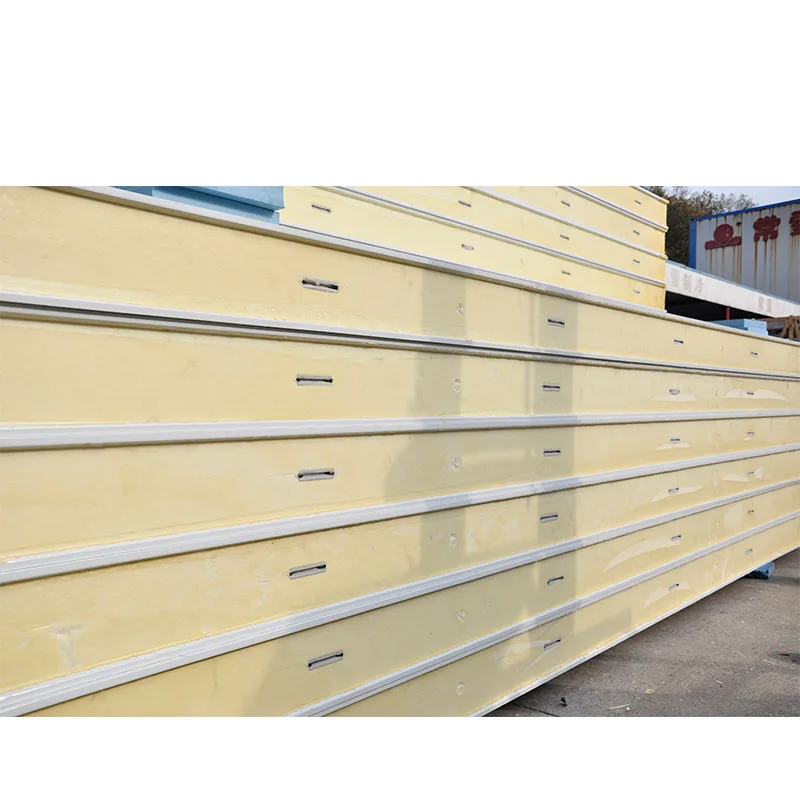

Top Quality goods insulated exterior sandwiched wall panels high density polyurethane panel good insulator
- Category: >>>
- Supplier: Changzhou Yejun Cold Chain Technology Co. Ltd.
Share on (1600309588804):
Product Overview
Description
Products Description
Cold room structure
Changxue cold room consists of cold room panel (PU sandwich panel), cold room door, condensing unit, evaporator (air
cooler),temperature controller, air curtain, copper pipe, expansion valve and other refrigeration fittings
cooler),temperature controller, air curtain, copper pipe, expansion valve and other refrigeration fittings
Cold room applications
Cold room is widely used in food industry, medical industry, and other related industries.
In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable
warehouse,supermarket,hotel, restaurant, etc.
In medical industry, cold room is usually used in hospital, pharmaceutical factory, blood center, gene center, etc.
Other related industries, such as chemical factory, laboratory, logistics center, they also need cold room.
In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable
warehouse,supermarket,hotel, restaurant, etc.
In medical industry, cold room is usually used in hospital, pharmaceutical factory, blood center, gene center, etc.
Other related industries, such as chemical factory, laboratory, logistics center, they also need cold room.
Advantage
1.The combination of cold room is made of polyurethane cold storage panels which assembled into a room with evaporator and cold
storage refrigeration system to control its inner temperature.
2.The polyurethane panel is light and with ingenious structure, convenient to assemble and operate,no need professional
technician;
3.With brand compressor which is forceful and has a long life span;
4.The operating system is stable and reliable with low failure rate and low noise.Its high efficiency refrigeration system saves much electricity;
5.We could custom-made as per your requests,we could make the inner temp. between 10℃ to -50℃.
storage refrigeration system to control its inner temperature.
2.The polyurethane panel is light and with ingenious structure, convenient to assemble and operate,no need professional
technician;
3.With brand compressor which is forceful and has a long life span;
4.The operating system is stable and reliable with low failure rate and low noise.Its high efficiency refrigeration system saves much electricity;
5.We could custom-made as per your requests,we could make the inner temp. between 10℃ to -50℃.
For cold room projects, the following factors should be fully
considered:
1.What is the application of the cold room?
It will affect the temperature of cold room needed to be, and the choice of thickness of pu panel and material covered on panel.
2.What is the size of the cold room?
It will affect the choice of condensing unit and air cooler, basing on the cold room temperature.
3.Which country will the cold room be located in? How about the climate?
It will affect the choice of voltage and condenser, if the temperature is high all the year, we need to choose condenser with
bigger evaporation area.
It will affect the temperature of cold room needed to be, and the choice of thickness of pu panel and material covered on panel.
2.What is the size of the cold room?
It will affect the choice of condensing unit and air cooler, basing on the cold room temperature.
3.Which country will the cold room be located in? How about the climate?
It will affect the choice of voltage and condenser, if the temperature is high all the year, we need to choose condenser with
bigger evaporation area.
Application for example | Room Temperature |
Fruit & Vegetable | -5 to 10 ℃ |
Chemical factory,medicine | 0 to 5 ℃ |
Ice cream, ice storage room | -10 to -5 ℃ |
Frozen meat storage | -25 to -18 ℃ |
Fresh meat storage | -40 to -30 ℃ |
Brand name | Thunder-wind |
Model number | Cold room |
Certification | CE ISO9001 |
Dimension(L*W*H) | customized |
Temperature | -60~+70 degree |
Thickness | 50mm/75mm/100mm/120mm/150mm/200 |
Width | 1150mm standard or customized |
Density | 38~45kg/m3 |
Material | Stainless steel/color steel/galvanized steel |
Character | Heat insulation/water-proof/ecofriendly |
Product Keywords | cold room cold storage chiller room cooling room freezer room,cold room chicken and meat,cold room ce approved |
Product packaging
Company Profile
Changzhou Yejun Cold Chain Technology Co., Ltd. is specialized in manufacturing air coolers/evaporators, air cooled condensers, air cooled/water cooled condensing units, cold room panels/doors to people who are interested in them. One-stop service is available at our side, that means you will get everything for whole refrigeration system.
With professional technical support, progressive production equipment, together with honesty and concentration, the refrigeration equipments are being exported to countries like the United States, Canada, UK, Ireland, Dubai, Australia, etc.
Thanks to the great support and positive feedback from customers, we has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to you!
With professional technical support, progressive production equipment, together with honesty and concentration, the refrigeration equipments are being exported to countries like the United States, Canada, UK, Ireland, Dubai, Australia, etc.
Thanks to the great support and positive feedback from customers, we has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to you!
Certifications
FAQ
Q1: Are you a factory or a trading company?
A1: We are a factory
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, South America, Europe and USA.
Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.
Q6:Can we do our OEM logo?
A6:Yes,we can do OEM logo for you.
Q7:Can you do our country plug?
A7:Yes,we can do the plug according to your request without extra cost.
A1: We are a factory
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, South America, Europe and USA.
Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.
Q6:Can we do our OEM logo?
A6:Yes,we can do OEM logo for you.
Q7:Can you do our country plug?
A7:Yes,we can do the plug according to your request without extra cost.
Products Description

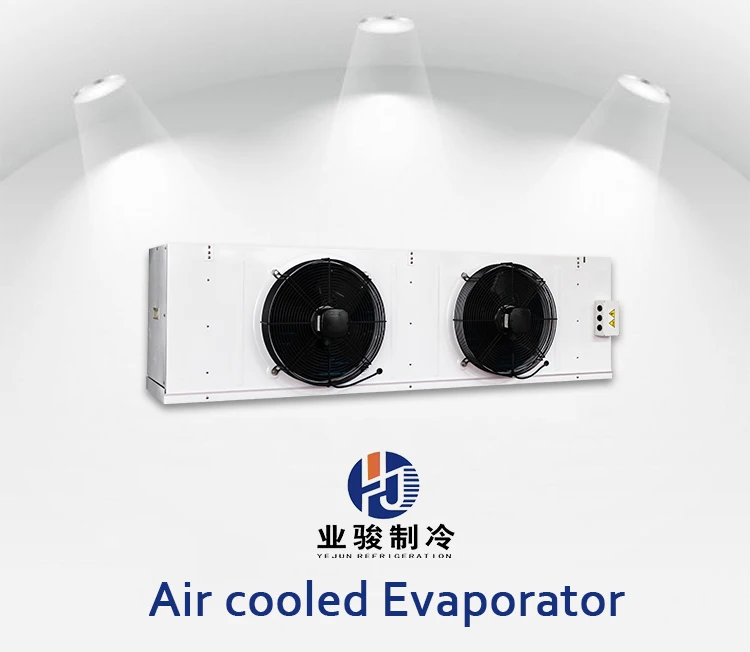

Evaporator Introduction
Cold room evaporator can be used as cooling device in different kinds of cold storages, like chiller room, frozen room and blast freezer room.
There are DL, DD and DJ model cold room evaporator, which are suit for different room usages.

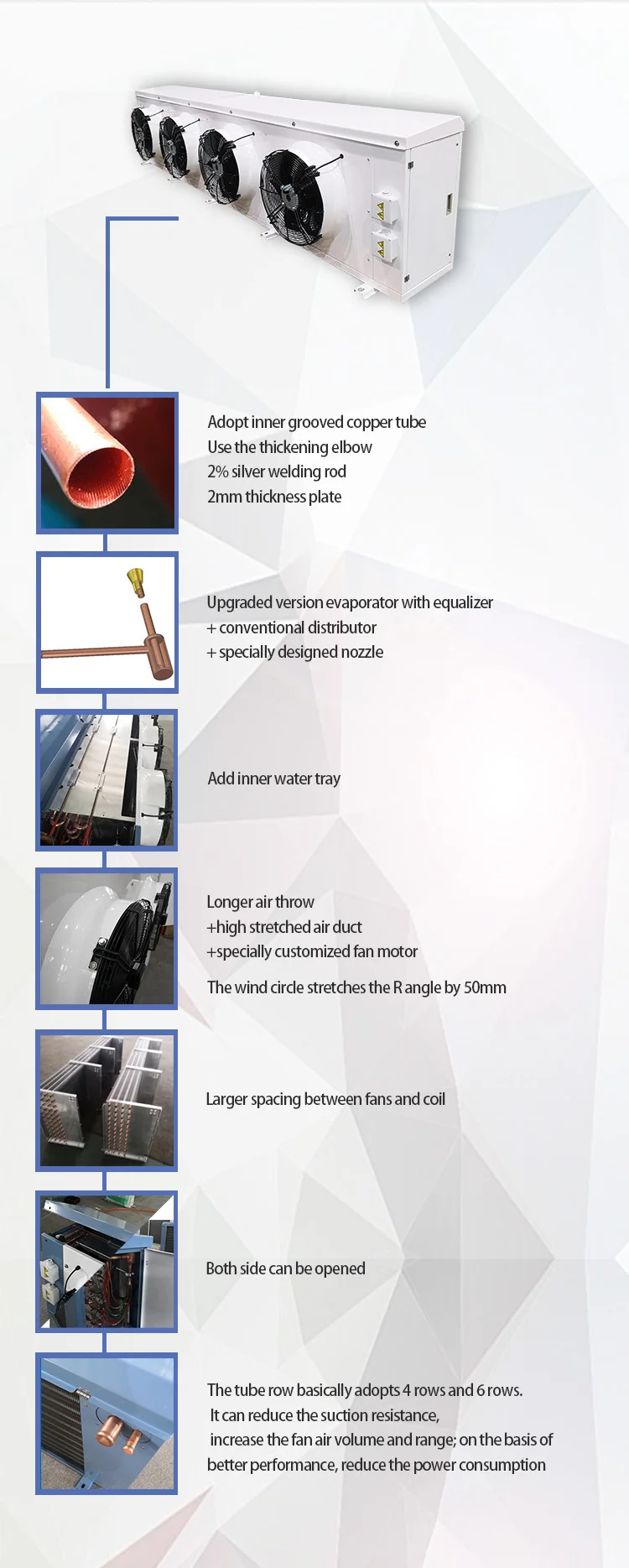

Cold room evaporator features:
1.Cold room evaporator has reasonable structure, uniform frosting and high efficiency heat exchange.
2.The shell is made of high-quality steel with surface plastic-sprayed, which is corrosion-resistant. Stainless steel shell is
optional.
3.Cold room evaporator are assembled with high-quality fan motor with low noise, big air volume. Air duct can be customized for long-distance air.
4.Cold room evaporator is equipped with U-shaped stainless copper pipe evenly, which can shorten the defrosting time.
5.Water defrosting and electric defrosting are optional.
2.The shell is made of high-quality steel with surface plastic-sprayed, which is corrosion-resistant. Stainless steel shell is
optional.
3.Cold room evaporator are assembled with high-quality fan motor with low noise, big air volume. Air duct can be customized for long-distance air.
4.Cold room evaporator is equipped with U-shaped stainless copper pipe evenly, which can shorten the defrosting time.
5.Water defrosting and electric defrosting are optional.
How to select evaporator:
1.When the cold room temperature is around 0℃, select 4.5mm(DL model) as fin space.
2.When the cold room temperature is around -18℃, select 6mm(DD model) as fin space.
3.When the cold room temperature is around -25℃, select 9mm(DJ model) as fin space.
2.When the cold room temperature is around -18℃, select 6mm(DD model) as fin space.
3.When the cold room temperature is around -25℃, select 9mm(DJ model) as fin space.
The main tech.data for DD type water defrost evaporator
Note: The tech. data is based on R22,T(r)=-18°C, △T=10°C.
Model | Ref.capacity (kW) | Cooling Area (㎡) | Fan Qty | Diameter (mm) | Volume (m³/h) | Fan motor (n*w) | Vlotage |
DD-60 | 12 | 60 | 2 | 500 | 2*6000 | 2*550 | 380v 50Hz 3Ph |
DD-80 | 15.9 | 80 | 2 | 500 | 2*6000 | 2*550 | |
DD-100 | 20 | 100 | 3 | 500 | 3*6000 | 3*550 | |
DD-120 | 24 | 120 | 3 | 500 | 3*6000 | 3*550 | |
DD-140 | 28 | 140 | 4 | 500 | 4*6000 | 4*550 | |
DD-160 | 32.1 | 160 | 4 | 500 | 4*6000 | 4*550 |
The main tech.data for DJ type water defrost evaporator
Note: The tech. data is based on R22,T(r)=-25°C, △T=10°C.
Note: The tech. data is based on R22,T(r)=-25°C, △T=10°C.
Model | Ref.capacity (kW) | Cooling Area (㎡) | Fan Qty | Diameter (mm) | Volume (m³/h) | Fan motor (n*w) | Vlotage |
DJ-40 | 7.8 | 40 | 2 | 500 | 2*6000 | 2*550 | 380v 50Hz 3Ph |
DJ-55 | 9.8 | 55 | 2 | 500 | 2*6000 | 2*550 | |
DJ-70 | 12.8 | 70 | 3 | 500 | 3*6000 | 3*550 | |
DJ-85 | 15.7 | 85 | 3 | 500 | 3*6000 | 3*550 | |
DJ-100 | 18.8 | 100 | 4 | 500 | 4*6000 | 4*550 | |
DJ-115 | 21.6 | 115 | 4 | 500 | 4*6000 | 4*550 | |
DJ-140(A) | 23.9 | 140 | 4 | 500 | 4*6000 | 4*550 | |
DJ-140(B) | 23.9 | 140 | 2 | 600 | 2*10000 | 2*1500 | |
DJ-170(A) | 29 | 170 | 4 | 550 | 4*7500 | 4*750 | |
DJ-170(B) | 29 | 170 | 3 | 600 | 3*10000 | 3*1500 |
