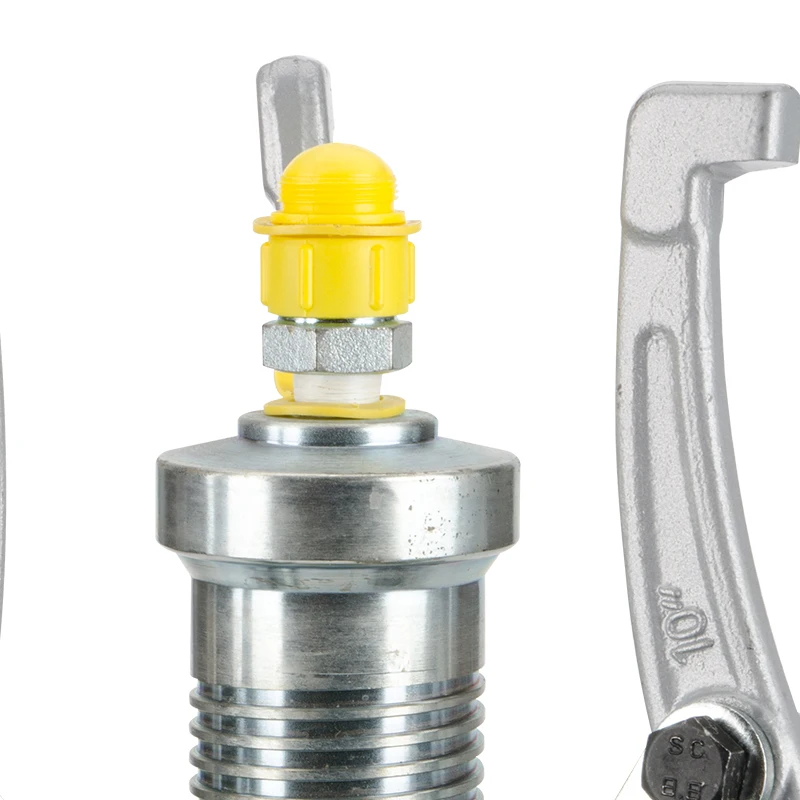

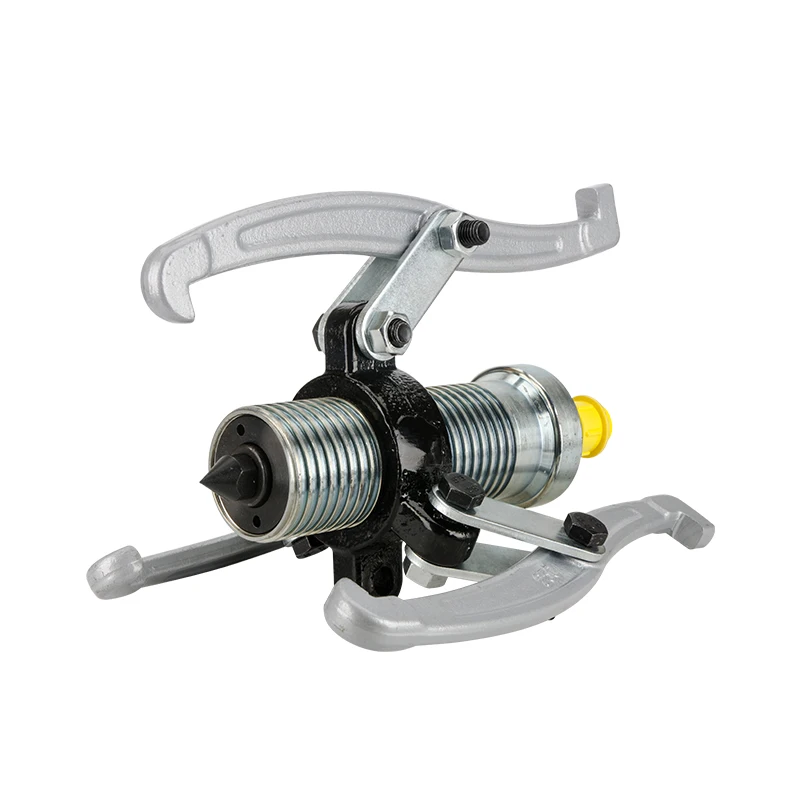

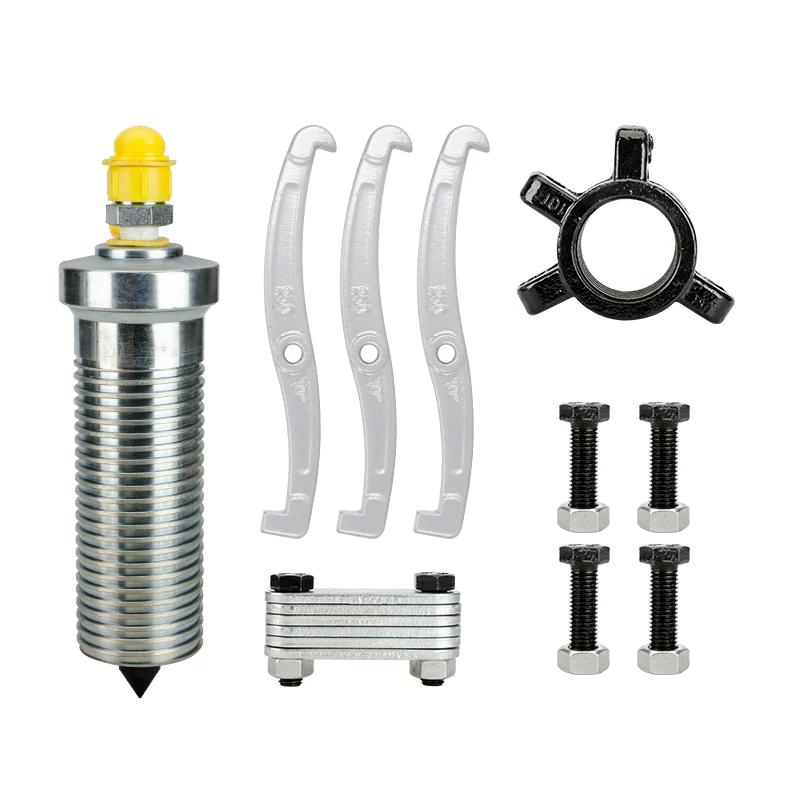

YL 15 Split Hydraulic Gear Puller Axle Bearing Puller Hydraulic puller
- Category: >>>
- Supplier: Taizhou Score Tool Co. Ltd.
Share on (1600309754685):
Product Overview
Description
Product Description

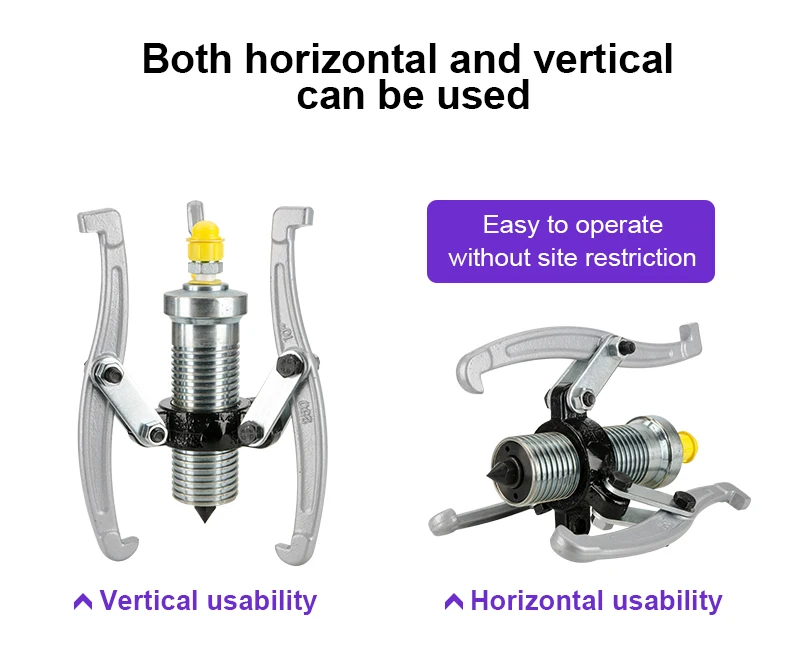

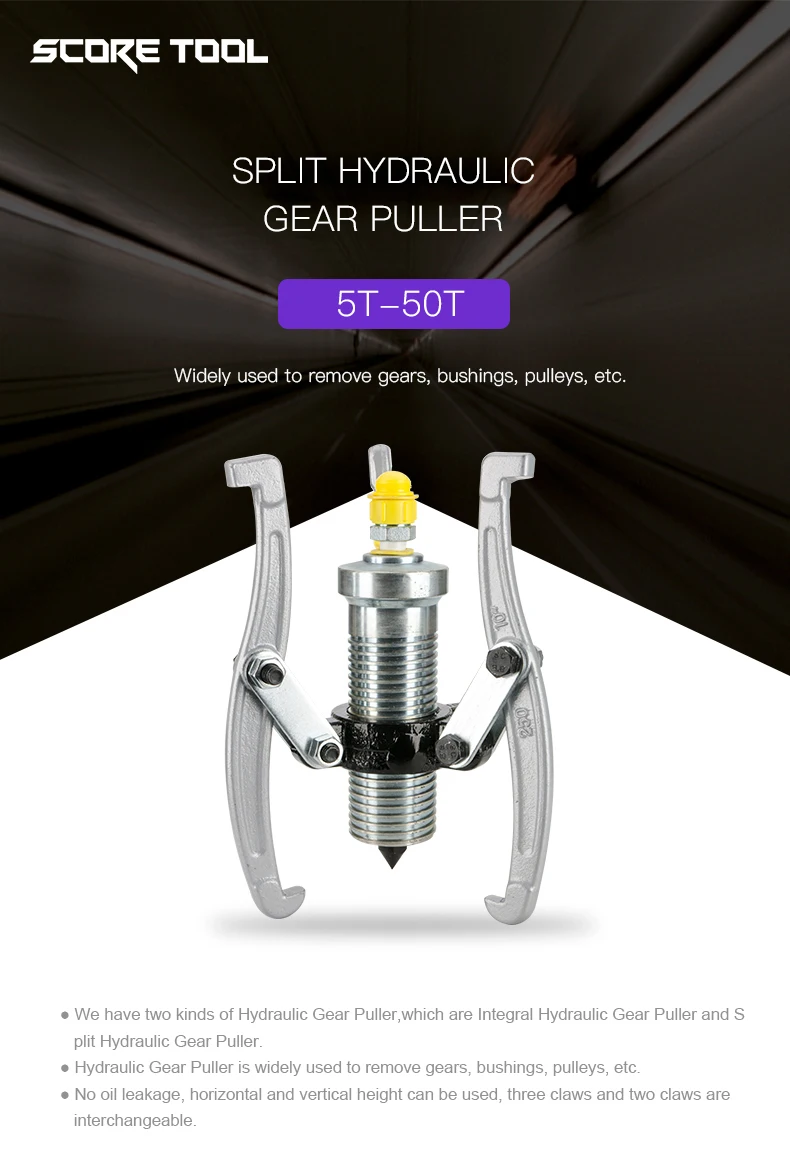

We have two kinds of Hydraulic Gear Puller,which are Integral Hydraulic Gear Puller and Split Hydraulic Gear Puller.Hydraulic Gear Puller is widely used to remove gears, bushings, pulleys, etc.No oil leakage, horizontal and vertical height can be used, three claws and two claws are interchangeable.

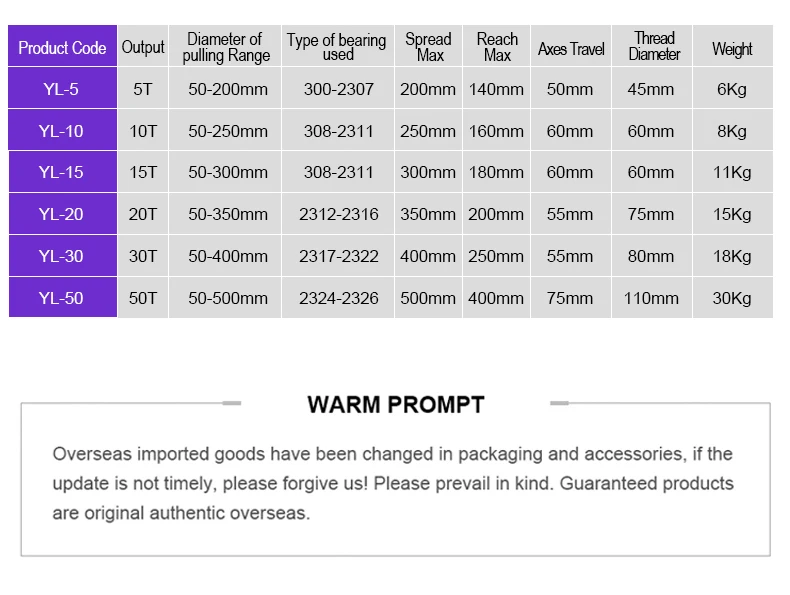

| PRODUCT CODE | OUTPUT(T) | DIAMETER OF PULLING RANGE(mm) | SPREAD MAX (mm) | REACH MAX(mm) | AXES TRAVEL(mm) | THREAD DIAMETER(mm) | TYPE OF BEARING USED | WEIGHT (KG) |
YL-5 | 5 | 50-200 | 200 | 140 | 50 | 45 | 300-2307 | 6 |
| YL-10 | 10 | 50-250 | 250 | 160 | 60 | 60 | 308-2311 | 8 |
| YL-15 | 15 | 50-300 | 300 | 180 | 60 | 60 | 308-2311 | 11 |
| YL-20 | 20 | 50-350 | 350 | 200 | 60 | 80 | 2312-2316 | 15 |
| YL-30 | 30 | 50-400 | 400 | 250 | 70 | 90 | 2317-2322 | 18 |
| YL-50 | 50 | 50-500 | 500 | 400 | 75 | 110 | 2324-2326 | 30 |
