Product Overview
Description
Product Description
Application:

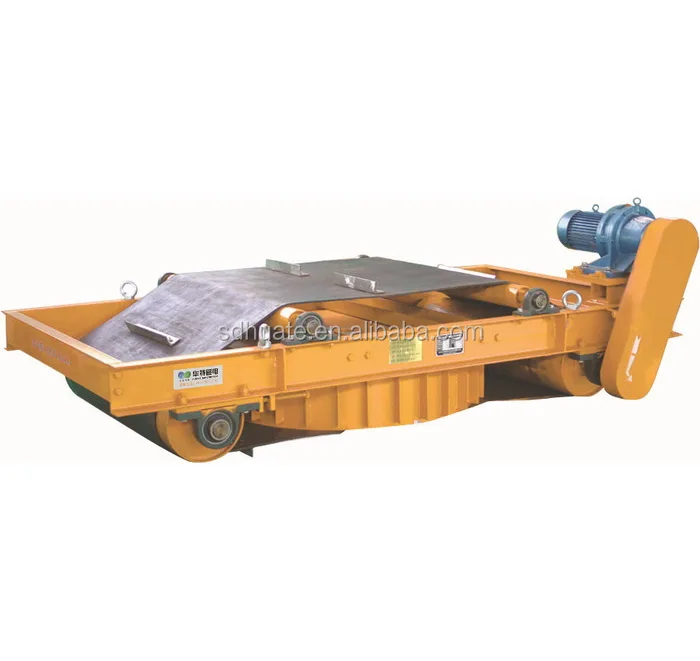

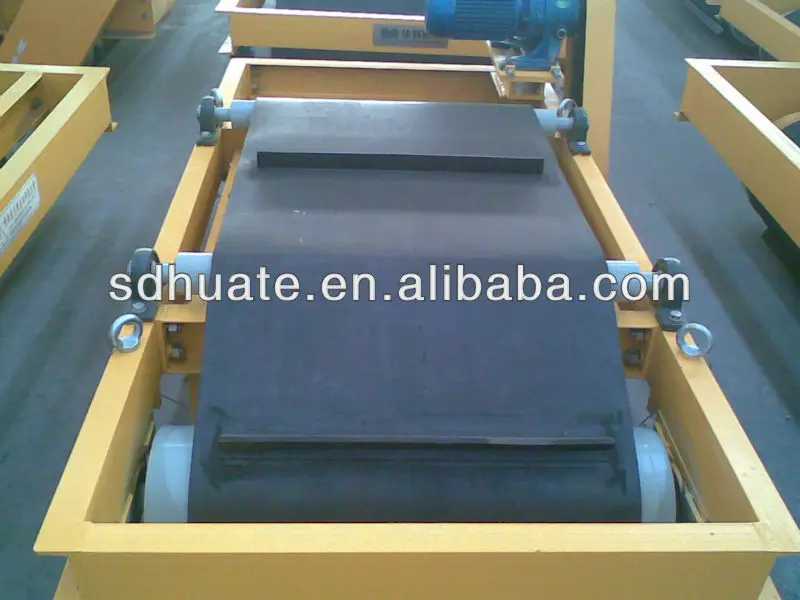

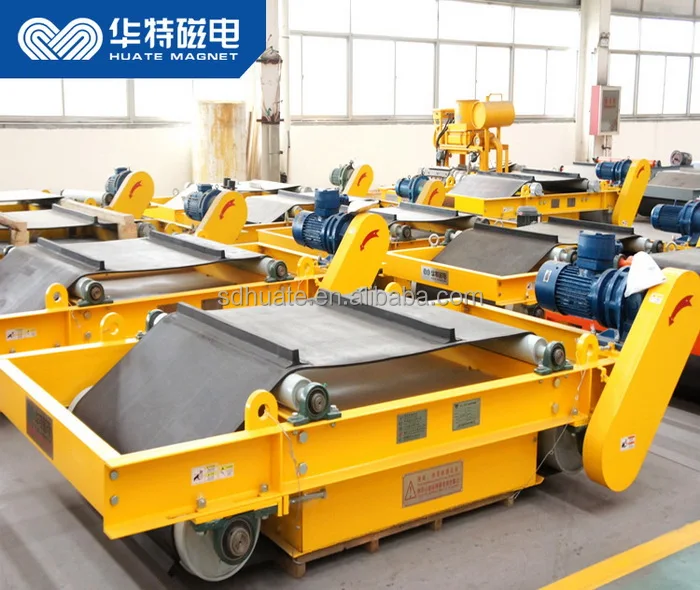

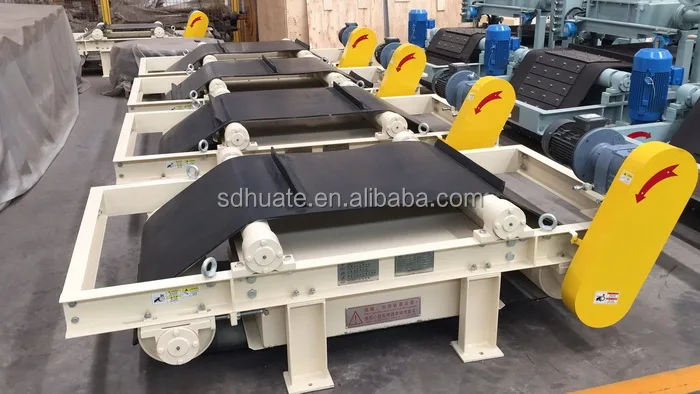

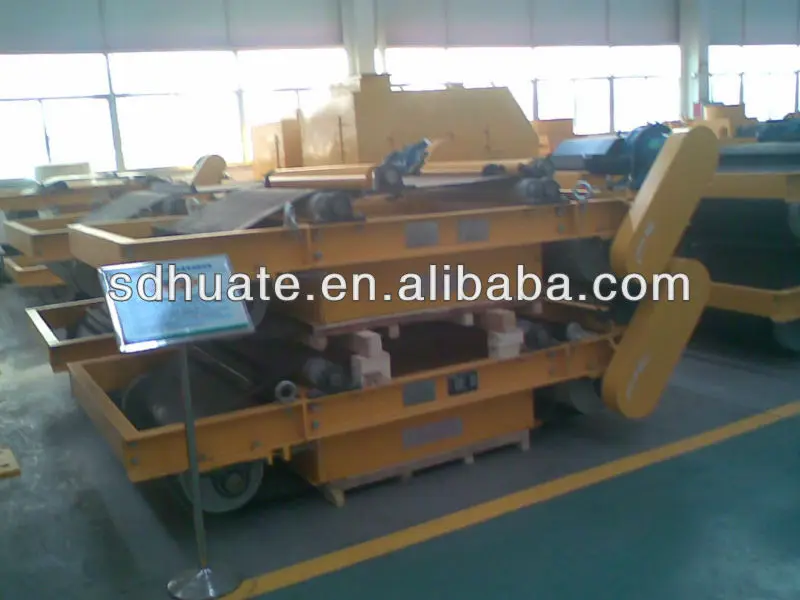

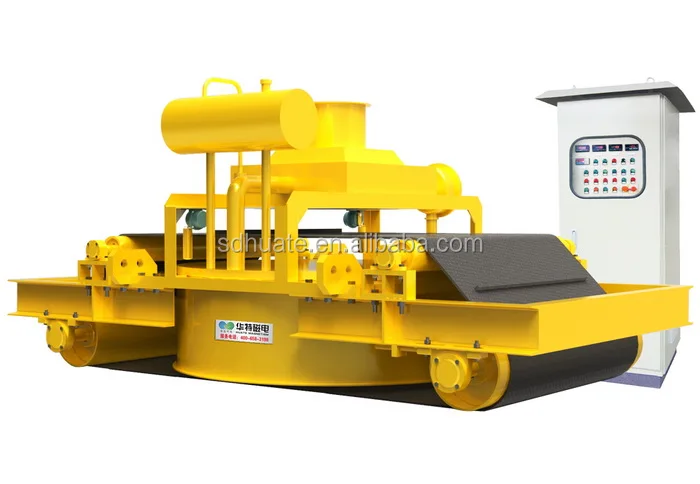

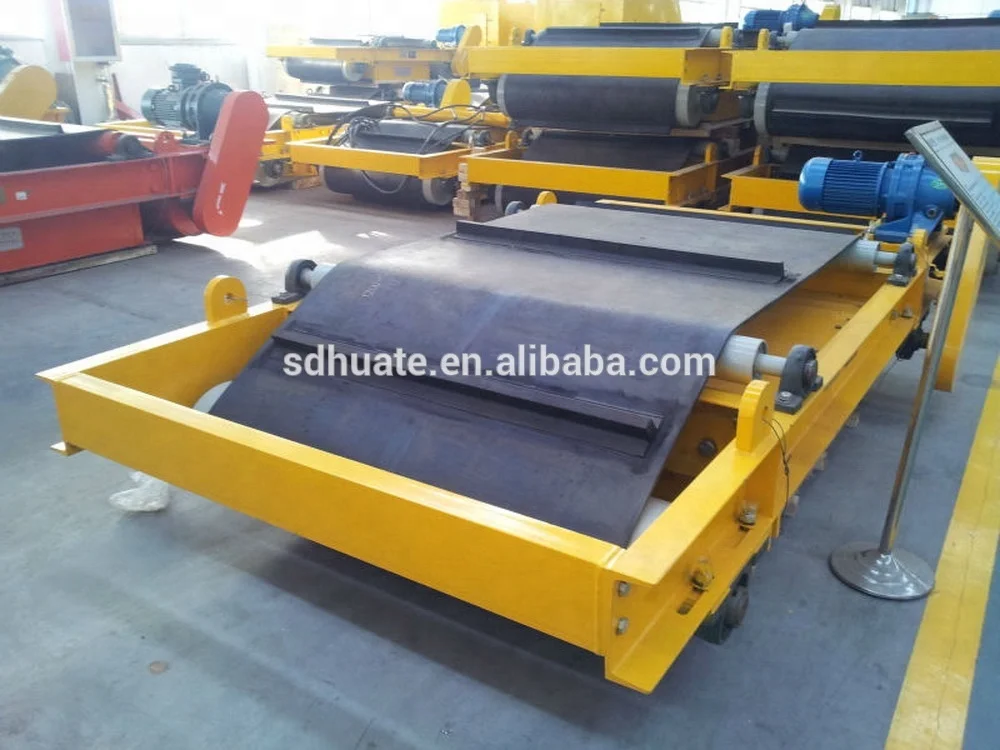

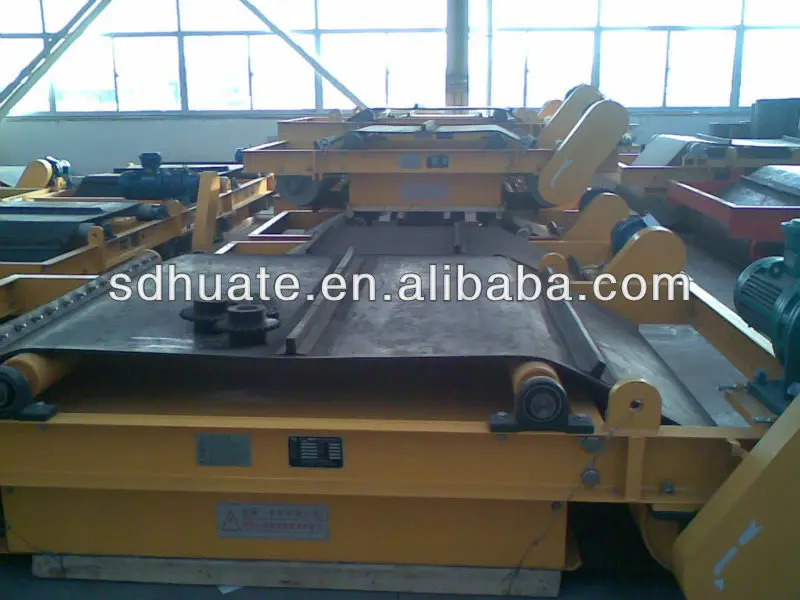

RCYD series suspended self-cleaning overband tramp magnetic separator is made up of permanent magnetic system and iron-cleaning system. It can be used together with various kinds of belt conveyors, vibrating conveyors etc. to attract ferrous elements of 0.1~35 kg from non-magnetic materials and clean automatically in continuous duty occasions. This machine is widely used in cement, thermal power, metallurgy, mining, chemical, glass, paper, coal and other industries.
Working Principle:

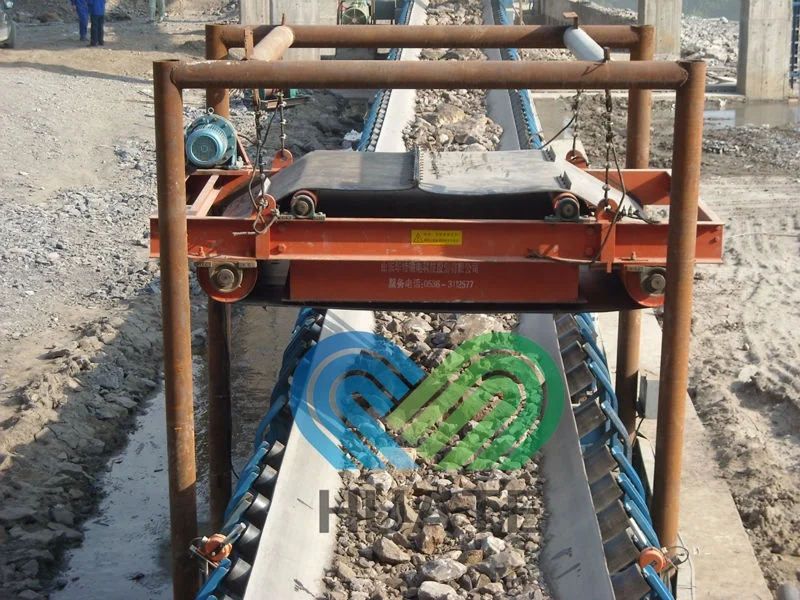

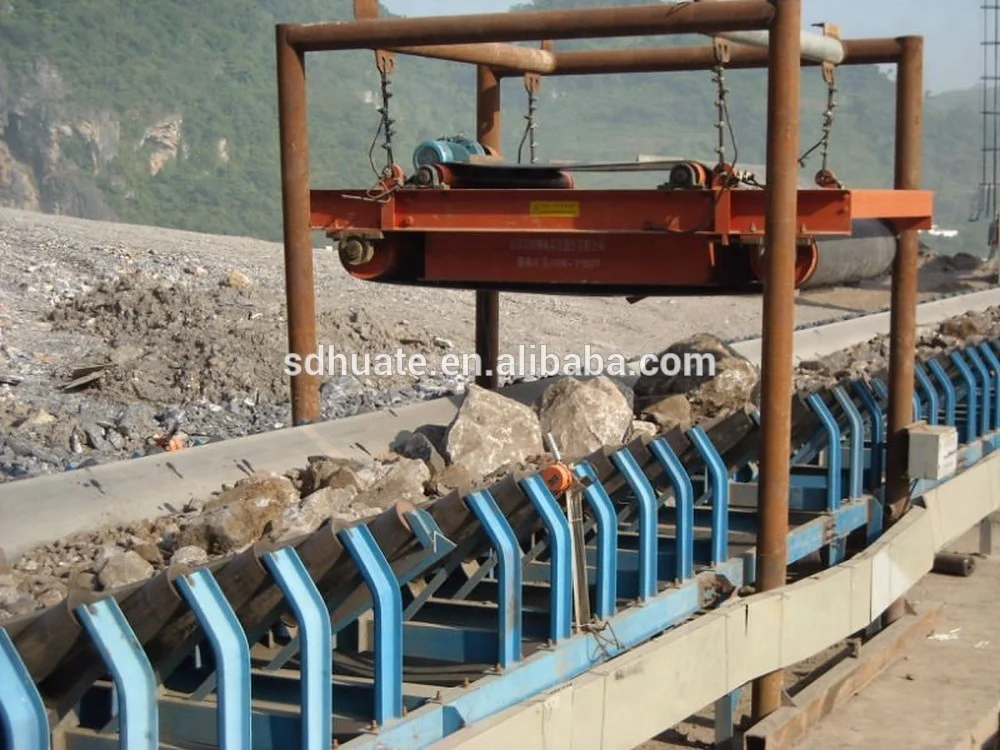

Material is conveyed underneath an overband magnetic separator which attracts, lifts and then removes disruptive tramp ferrous metal. The size and type of magnetic system (permanent or electro) is dictated by the conveyor width, depth of material on the conveyor and the nature of the tramp ferrous metal.

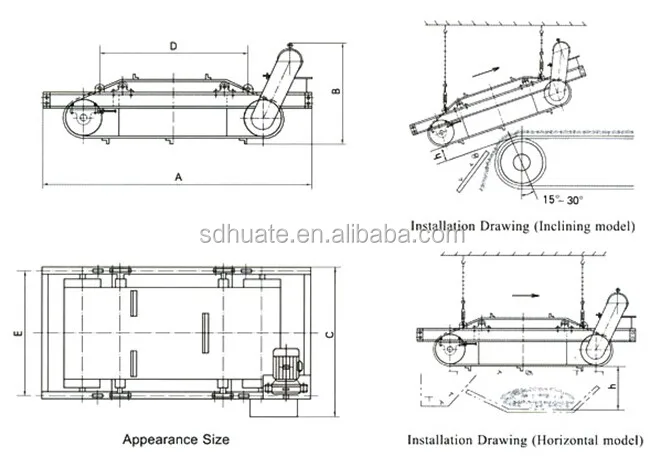

The overband magnetic separators are mounted either across the conveyor belt (i.e. Crossbelt) or in line with the conveyor belt over the head pulley of the conveyor (i.e. Inline).
The overband magnetic separators are mounted either across the conveyor belt (i.e. Crossbelt) or in line with the conveyor belt over the head pulley of the conveyor (i.e. Inline).
Technical Features
1. Sustainable and reliable magnetic field, with high magnetic intensity.
2. Compact structure, light, and easy to maintain.
3. The wholly sealed structure makes the magnetic separator waterproof, dust-proof and corrosion resistant. It can work steadily in extremely harsh occasions.
4. Low energy consumption and reliable performance.
5. Optional magnetic intensity at RSH: 700Gs,900Gs,1200Gs,1500Gs or more.
2. Compact structure, light, and easy to maintain.
3. The wholly sealed structure makes the magnetic separator waterproof, dust-proof and corrosion resistant. It can work steadily in extremely harsh occasions.
4. Low energy consumption and reliable performance.
5. Optional magnetic intensity at RSH: 700Gs,900Gs,1200Gs,1500Gs or more.
Technical Specifications
Model | Applicable belt width | Suspension height | Magnetic field intensity | Material depth | Driving power | Applicable belt speed | Weight |
mm | h mm | >mT | ≤mm | kW | ≤m/s | kg | |
RCYD-5 | 500 | 150 | 60 | 80 | 1.5 | 4.5 | 750 |
RCYD-6 | 600 | 175 | 60 | 120 | 1.5 | 920 | |
RCYD-6.5 | 650 | 200 | 70 | 150 | 2.2 | 1200 | |
RCYD-8 | 800 | 250 | 70 | 200 | 2.2 | 1400 | |
RCYD-10 | 1000 | 300 | 70 | 250 | 3 | 1900 | |
RCYD-12 | 1200 | 350 | 70 | 300 | 4 | 2650 | |
RCYD-14 | 1400 | 400 | 70 | 350 | 4 | 3700 | |
RCYD-16 | 1600 | 450 | 70 | 400 | 5.5 | 4950 | |
RCYD-18 | 1800 | 500 | 72 | 450 | 7.5 | 6100 | |
RCYD-20 | 2000 | 550 | 72 | 500 | 11 | 8900 |
Related Products

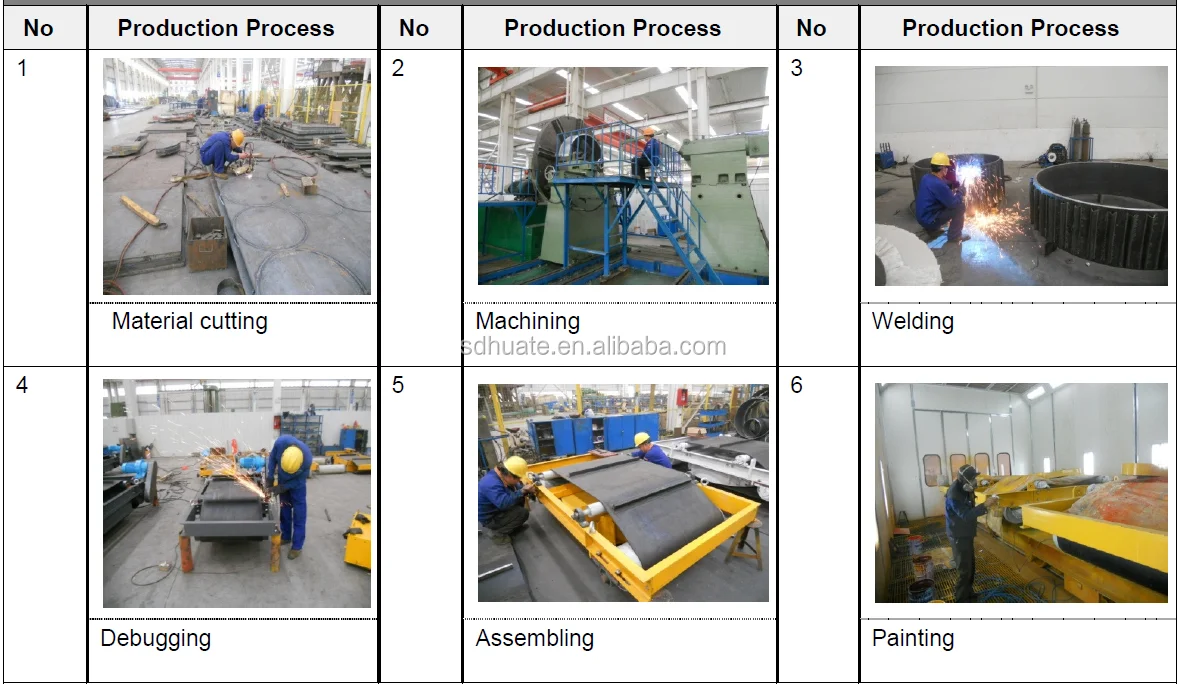

Production Flow
Company Profile
HuaTe, engaged in R & D, manufacturing and technical services of electric-magnetic separation equipment for nearly 30 years, providing customers with packaged solutions. The company specializes in the design, manufacture and supply of superconducting magnetic separator, high gradient magnetic separator, drum magnetic separator, iron separator, mineral processing line, magnetic stirrer, non-ferrous metal separation equipment, non-metallic mineral processing equipment, ocean & lake ecological equipment and so on more than 9 categories, 80 series and more than 700 models. Our service scope involves coal, mine, electricity, building material, metallurgy, port, environmental protection and so on more than 10 fields. With more than 15,000 customers, our equipment are exported to the USA, Germany, Japan, Italy, Norway, South Africa, Brazil, India, Pakistan and many other countries.
After-Sales Service
“Create value for customers wholeheartedly” has always been HuaTe’s mission since its establishment. With our top tier installation team and professional after-sale service, we will always place both product quality and our customers at our ultimate priority. Where there are our products, there will be HuaTe’s service, and our brand has left a deep impression on our customers all over the world.
Certifications
HuaTe has gained the certification of CE, quality, environment and occupational health and safety management systems. We have a comprehensive quality control system, modern testing machines, and professional supervision team in order to ensure the high quality of our products.
