FSTB WYC combination tube thermostat capillary thermostat for SPA heaters
- Category: >>>
- Supplier: Foshan Tongbao Hualong Contrls Co. Ltd.
Share on (1600309898548):
Product Overview
Description

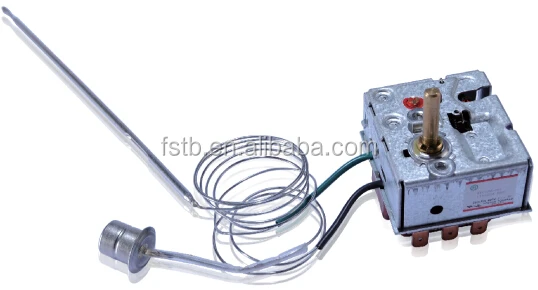

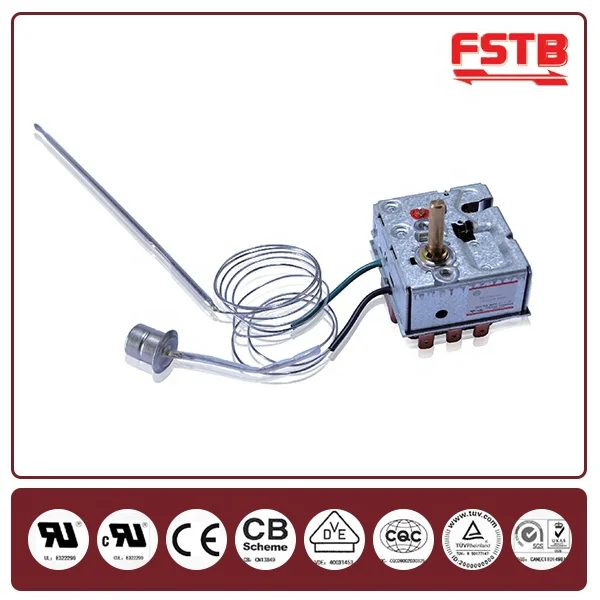

FSTB WYC combination tube thermostat capillary thermostat for SPA heaters
Product Description
Thermostat, WYC series, is a combination thermostat equipped with the double function of regulating temperature and limiting temperature. It has the advantages of accurate temperature controlling, wide control range, great contact capacity, longer life. It is suited for big power type electric appliances for commercial and suited for electric-thermal control and overheat protection.
Parameters :
Rated current and rated voltage of switch | 11-12: 23(3) A AC400V |
21-22: 23(3) A AC400V | |
31-32: 23(3) A AC400V | |
Insulation resistance | ≥100MΩ (normal) |
Dielectric strength | 2000V. AC 1min (normal) |
Life cycles | Temperature regulator(TR)>100000 |
Safety temperature breaker(STB)>1000 | |
Test gradient | ≤1.0℃/min (liquid medium) |
Max. ambient temp. | 80℃ |
Control range | Temperature regulator(TR)0-200℃ |
Safety temperature breaker(STB)0-300℃ | |
Switch type | Triphase |
Safety certificates | Fimko |
Advantages:
- accurate temperature controlling;:
- great contact capacity;
- wide control range;
- high reliabilities.
Dimension of main body :
FOR MORE INFORMATION, PLEASE FEEL FREE TO CONTACT US OR VISIT OUR WEBSITE: //www.thermostat-gb.com/html/Capillary_Thermostat/
