Небольшая электрическая гидравлическая листовая металлическая качели 4*3200, ножницы, цена
- Category: Shearing Machines >>>
- Supplier: Accurl,Cnc,Machine(anhui),Manufactory,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

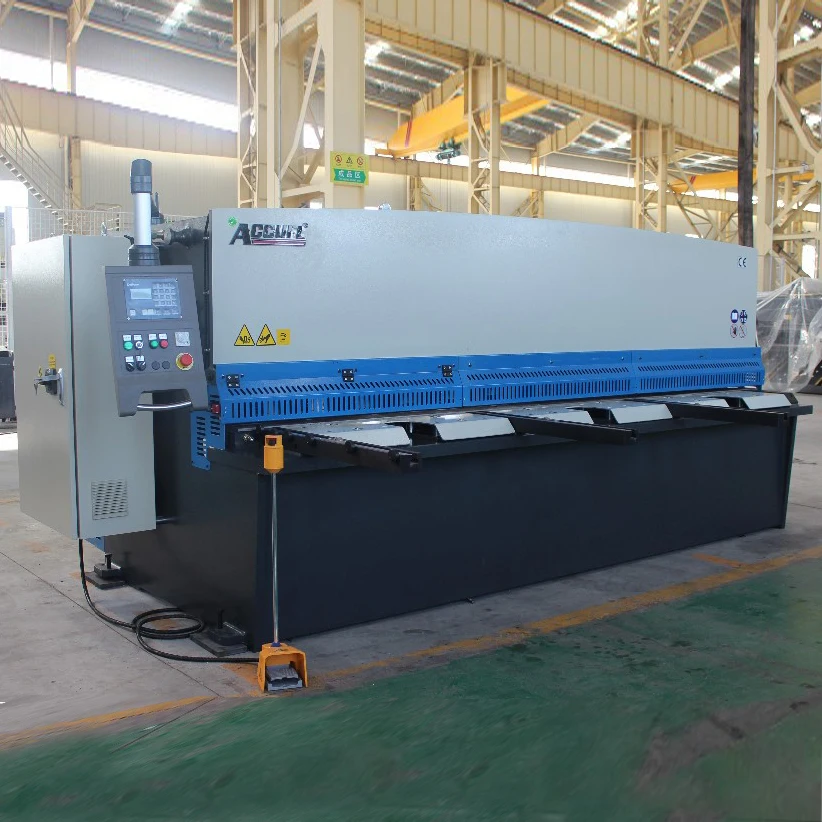

Hydraulic CNC Shearing Machine for Metal Shear Cutting Machine
ACCURL MS7 Hydraulic Swing Beam Shear can cut all kind of metal sheet to maintain the highest production capacity with maximum precision and quality. More than just cutting; NC MS7 is developed by expert engineers of ACCURL reflects innovative technology with all aspects of it.
Standard Equipment:
1. Wear resistant blades for Top blade 4 cutting edge and Bottom blade 4 cutting edge.
2. Portable foot pedal is eligible for single and automatic cutting.

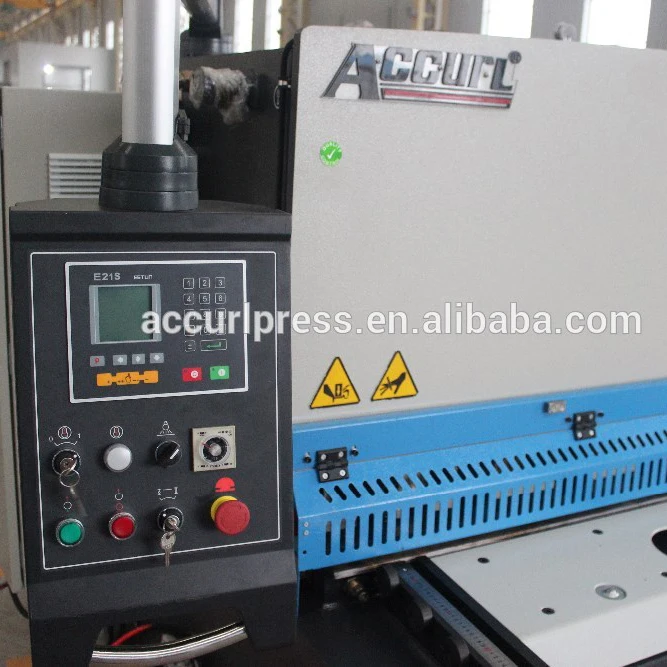

3. ESTUN E21s NC controller System.
4. NC controlled motorized backgauge system.
5. 600 mm motorized back gauge system with 0.1 mm accuracy.
6. Front support arms with T slot, ruler and flip stop.
7. Squaring arm.
8. Scales with metric and inches.
9. Cutting line illumination and shadow line.
10. Central lubrication system.
11. Front finger protection guard appropriate to CE norms, 1 m left side collapsible and switch protected.
12. Rear sliding plates.
13. Front sliding plates with ball bearings on the table.
2. Portable foot pedal is eligible for single and automatic cutting.
3. ESTUN E21s NC controller System.
4. NC controlled motorized backgauge system.
5. 600 mm motorized back gauge system with 0.1 mm accuracy.
6. Front support arms with T slot, ruler and flip stop.
7. Squaring arm.
8. Scales with metric and inches.
9. Cutting line illumination and shadow line.
10. Central lubrication system.
11. Front finger protection guard appropriate to CE norms, 1 m left side collapsible and switch protected.
12. Rear sliding plates.
13. Front sliding plates with ball bearings on the table.
Details Images
MACHINE DESIGN
ACCURL Shears features a rigid frame for min deflection under the load. The frame steels are German origin and designed using SOLIDWORKS 3D programming and made with quality steel Improved Q235 using the latest technology.
Feature:
* The machine welding is made by welding plant and welding robots.
* After the welding,we make stress relief process by vibration system.
* After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
* Allreference surfaces and connection holes are machined.
* The machine welding is made by welding plant and welding robots.
* After the welding,we make stress relief process by vibration system.
* After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
* Allreference surfaces and connection holes are machined.
SHEARING PROCESS
Perfect design in every aspect; By choosing the new and improved CNC Swing Beam Shears MS7 Series, you will bring modern-day
technology to your company with maximum
safety, high accuracy and unique ease of use.
Blade gap, cutting length are all adjusted based on material selection and thickness automatically.
technology to your company with maximum
safety, high accuracy and unique ease of use.
Blade gap, cutting length are all adjusted based on material selection and thickness automatically.
QUALITY
ACCURL, known as one of the top worldwide manufacturers in the sheet metal industry,
proudly announces its latest shear model to the market,Variable Rake Hydraulic Shears.
The critical parts of the Accurl shearing machine are manufactured in Germany.The carefully selected components come from
long-term partners. We rely on our quality and therefore give our shears a 3-year warranty.
proudly announces its latest shear model to the market,Variable Rake Hydraulic Shears.
The critical parts of the Accurl shearing machine are manufactured in Germany.The carefully selected components come from
long-term partners. We rely on our quality and therefore give our shears a 3-year warranty.
PNEUMATIC SHEET SUPPORT SYSTEM
Monobloc Panel Type support system:
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts.
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts.
CNC CONTROL UNIT
* 7" widescreen TFT Colour LCD display * Back / front gauge control
* Panel based housing
* Retract function
* Cutting angle and gap control
* Stroke length limitation
* Manual movement of all axes
* Force control
* Return to Sender function
* Program memory for 100 programs
* Sheet support system.
* Panel based housing
* Retract function
* Cutting angle and gap control
* Stroke length limitation
* Manual movement of all axes
* Force control
* Return to Sender function
* Program memory for 100 programs
* Sheet support system.
DAC360T CNC Control Unit
ACCURL has chosen the very powerful new generation DELEM DAC360T offers an higher level of efficiency in programming and control of guillotine. The winning MADE in Netherlands design and the high quality of all the construction details, guarantee prestigious performances and long product life.
SPECIFCATIONS
Type | cut Thickness mm | cut length mm | shear Angle Degree | SPM min-1 | Back Gauge mm | Throat Depth mm |
MS7-4*2500 | 4 | 2500 | 1°30′ | ≥22 | 600 | 100 |
MS7-4*3200 | 4 | 3200 | 1°30′ | ≥18 | 600 | 100 |
MS7-4*4000 | 4 | 4000 | 1°30′ | ≥12 | 600 | 100 |
MS7-6*2500 | 6 | 2500 | 1°30′ | ≥16 | 600 | 120 |
MS7-6*3200 | 6 | 3200 | 1°30′ | ≥12 | 600 | 120 |
MS7-6*4000 | 6 | 4000 | 1°30′ | ≥10 | 600 | 120 |
MS7-6*6000 | 6 | 6000 | 1°30′ | ≥7 | 600 | 120 |
MS7-8*2500 | 8 | 2500 | 1°30′ | ≥14 | 600 | 120 |
MS7-8*3200 | 8 | 3200 | 1°30′ | ≥12 | 600 | 120 |
MS7-8*4000 | 8 | 4000 | 1°30′ | ≥10 | 600 | 120 |
MS7-10*3200 | 10 | 3200 | 1°50′ | ≥12 | 600 | 120 |
MS7-10*4000 | 10 | 4000 | 1°50′ | ≥6 | 600 | 120 |
MS7-12*2500 | 12 | 2500 | 2° | ≥10 | 800 | 170 |
MS7-12*3200 | 12 | 3200 | 2° | ≥9 | 800 | 170 |
MS7-12*4000 | 12 | 4000 | 1°80′ | ≥8 | 800 | 170 |
MS7-12*6000 | 12 | 6000 | 2° | ≥4 | 800 | 320 |
MS7-16*2500 | 16 | 2500 | 2°9′ | ≥9 | 800 | 315 |
MS7-16*3200 | 16 | 3200 | 2° | ≥8 | 800 | 320 |
MS7-16*4000 | 16 | 4000 | 2° | ≥7 | 20-1000 | 320 |
MS7-16*6000 | 16 | 6000 | 2° | ≥4 | 20-1000 | 320 |
MS7-20*3200 | 20 | 3200 | 2°30′ | ≥5 | 1000 | 320 |
MS7-20*6000 | 20 | 6000 | 2°30′ | ≥4 | 1000 | 150 |
MS7-25*2500 | 25 | 2500 | 3° | ≥5 | 1000 | 325 |
MS7-25*3200 | 25 | 3200 | 3° | ≥5 | 1000 | 325 |
MS7-32*2500 | 32 | 2500 | 3°30′ | ≥4 | 1000 | 350 |
MS7-32*3200 | 32 | 3200 | 3°30′ | ≥4 | 1000 | 350 |
