Clinical Applications:Dialysis Access

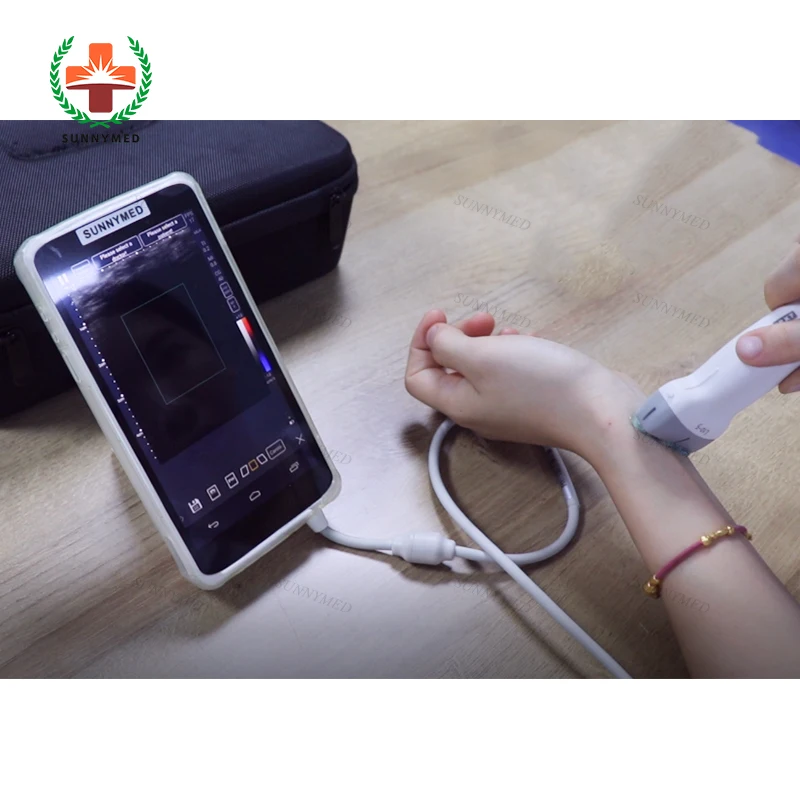

Line Placement (CVC, PICC)
Emergency & ICU

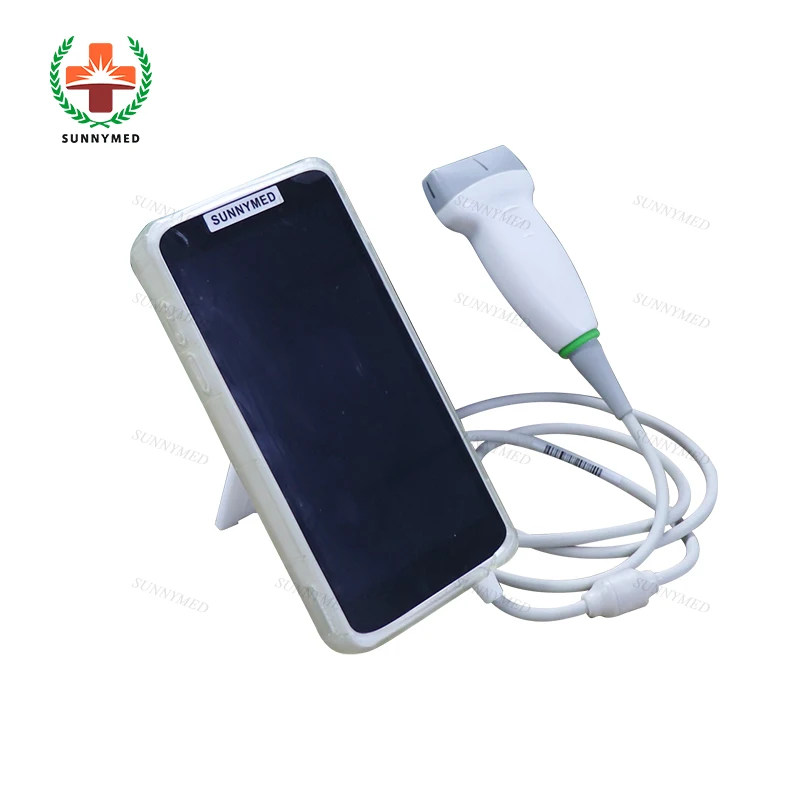

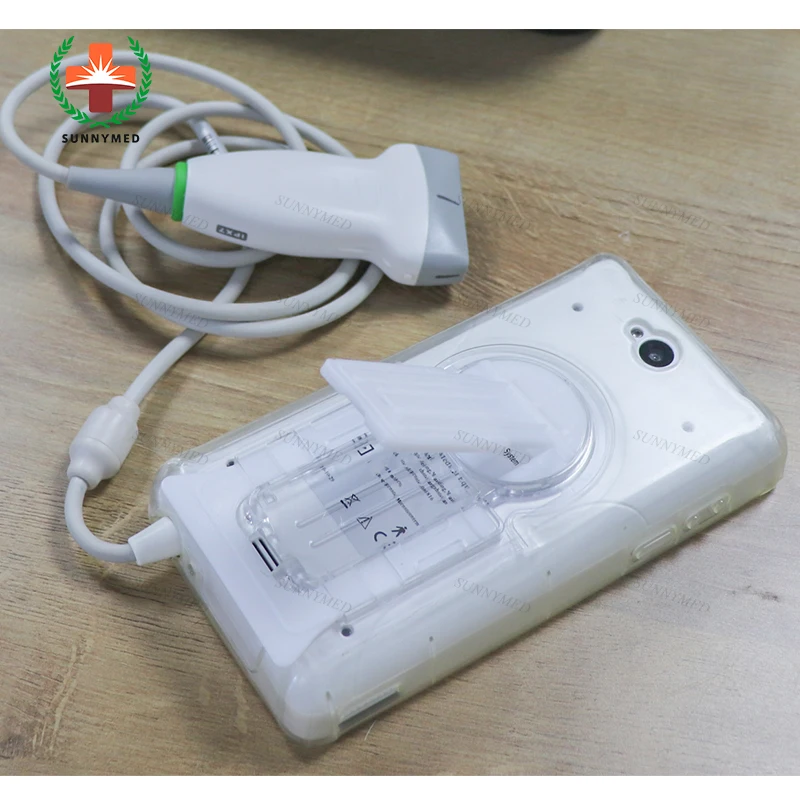

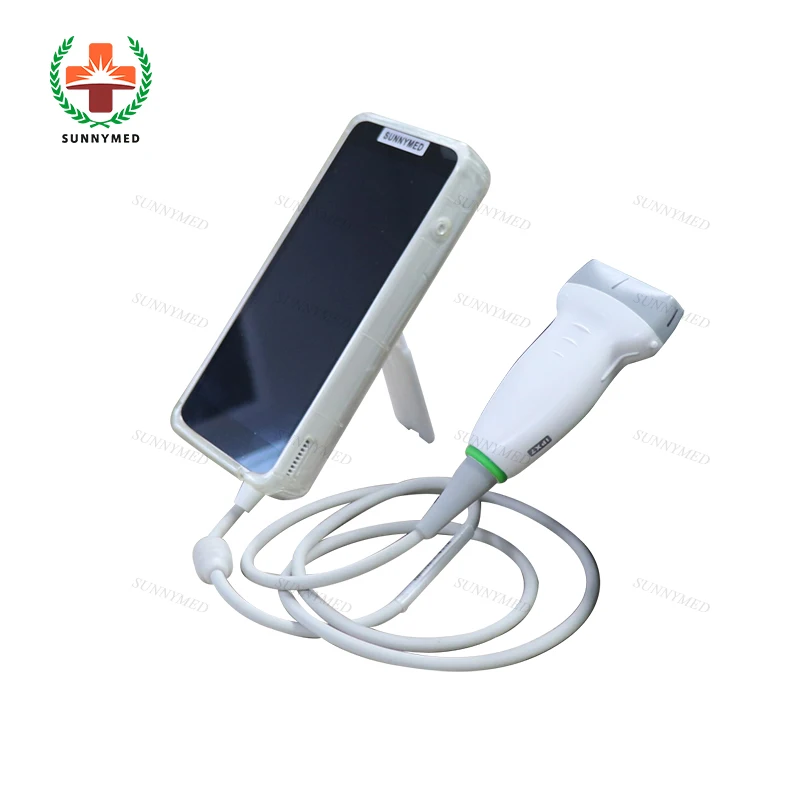

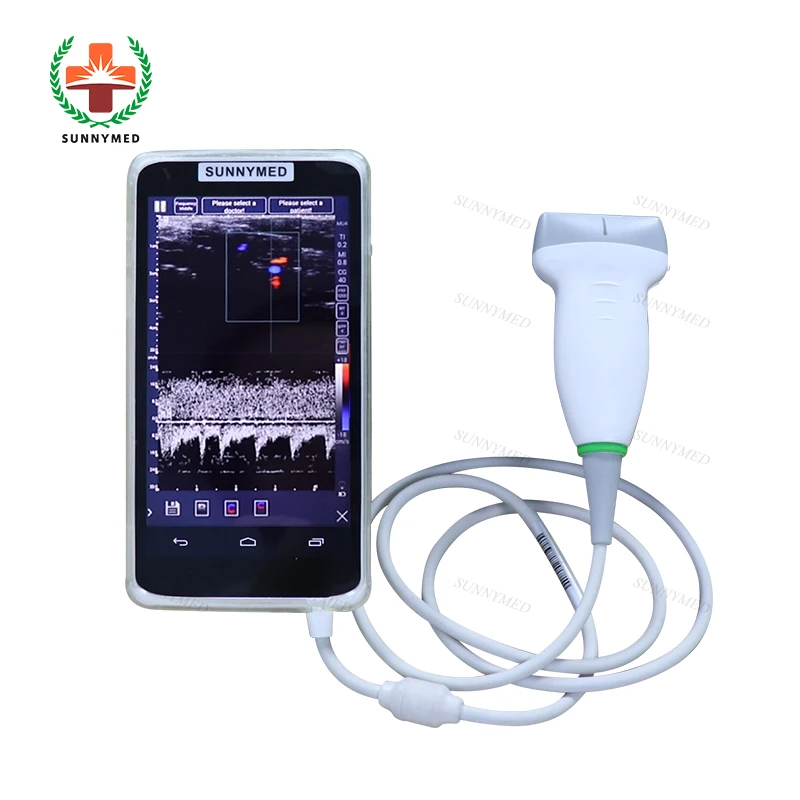

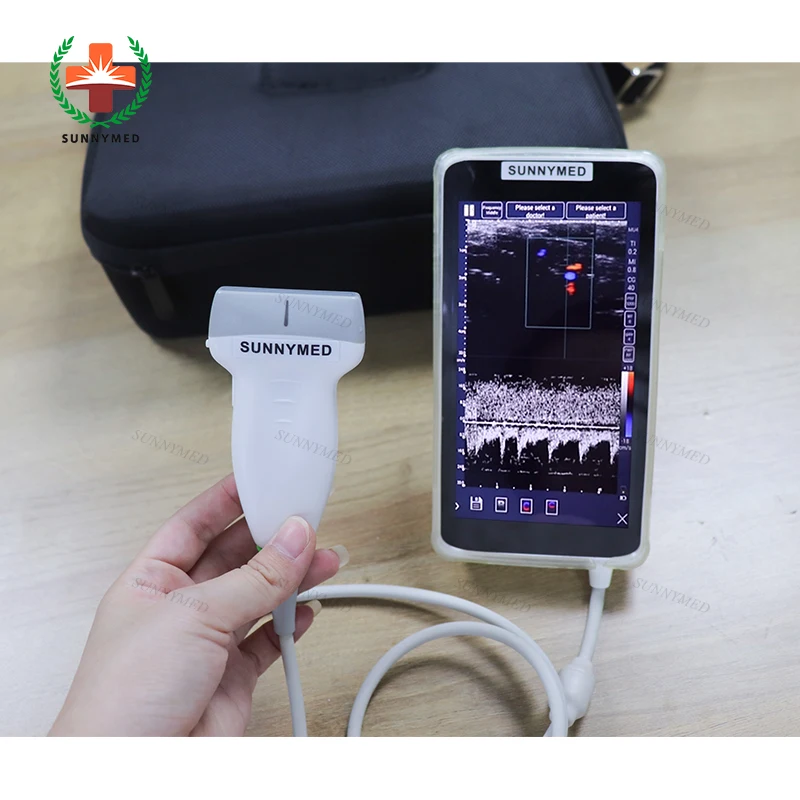

Product Description:Handheld Ultrasound Scanner

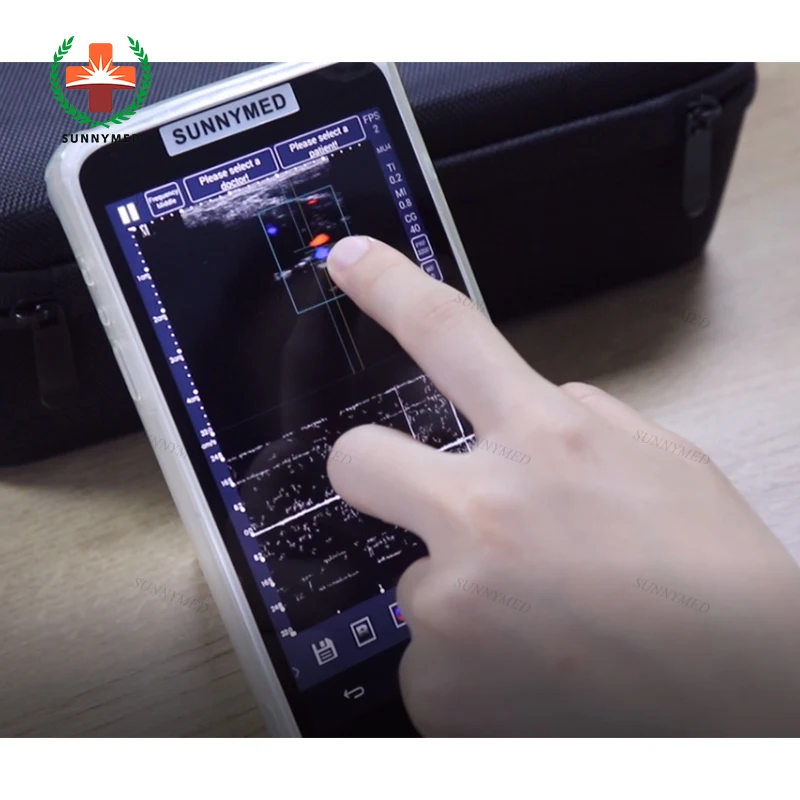

Monitor:6 inch LCD high-resolution (1280*720) full touch screen
Probe Type:128 elements
Frequency:Convex array 2-5MHZ / Linear array 5-10MHZ
Imaging Mode:B ,C ,M, PW, Steer
Color Doppler:Gain, Steer, PRF, WF etc.
Frame Rate:Convex:16fps / Linear:24ps
Depth Convex:≤200mm / Linear: ≤70mm
Gain Convex:0~150dB adjustable
Linear: 0~120dB adjustable
Image:Processing Line smoothing, Frame smoothing, Transversal filter, Longitudinal filter, Sharpening, Gamma transformation, etc.
Power:Built-in battery(5400mAh) to support 2h for continuous scanning
Image Format JPEG, DICOM
Language:Over 60 different language including English, Spanish, German, Russia, Portuguese, Turkish, Polish, Italian etc.
Measurement:Length, Area, Arrow, Angle, Perimeter, Text.
Camera:5M auto foc
Wireless:Connection WIFI, BLUETOOTH,3G/4G(LTE,WCDMA/EDGE/GPRS/GSM)
Connection Interface Micro USB2.0, HDMI,3.5mm headphone jack,
File Management:Patient file & image file
Cloud image :storage, cloud file management, standard API & SDK interface, Information sharing platform
Technical Training:Online and offline tutorial, self-built online training material
Remote Software:Update Yes
Net Weight:Convex:570g / Linear:550g
Main unit (Monitor and 1pc Transducer included): 1set
USB wire: 1pc

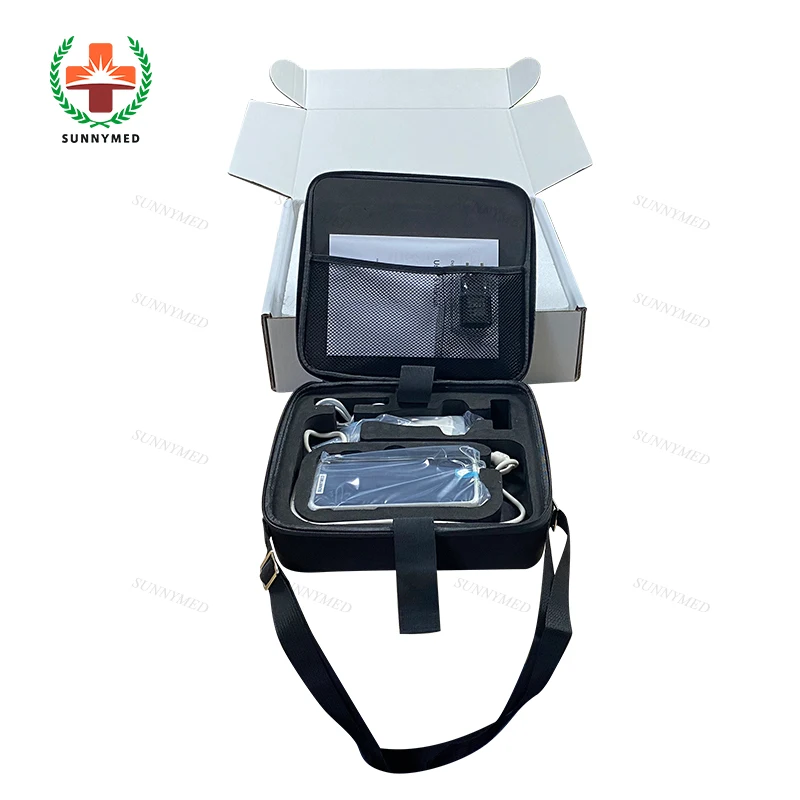

Carrying bag: 1pc
