SWIFT High Quality 16MP Microscope Camera USB3.0 CMOS Camera C Mount Eyepiece Adapter
- Category: >>>
- Supplier: M Tec (Xiamen) Co. Ltd.
Share on (1600310001360):
Product Overview
Description
Product Description
SWIFT OPTICAL INSTRUMENTS
For ninety five years, Swift Optical Instruments has been a trusted global producer of quality microscopes and microscope accessories. During that time, we've partnered with K-12 teachers and university educators across the United States to provide them with innovative solutions to meet the increasingly complex STEM teaching needs of the 21st century. Our microscopes are complemented by a full line up of accessories and upgrade possibilities, including digital cameras with software powered by Swift, slide kits, illumination options, and more.
SWIFT Line is designed to meet ever-increasing and challenging needs of teachers and students. Through innovation, design and quality workmanship, SWIFT Line offers high quality microscopes that meet customer's needs. SWIFT Line includes durable microscopes for classroom use with student-proof features and versatile hybrid microscopes. Our constant commitment to enduring quality and technical excellence ensures that you are getting the best product for your application. EASY-TO-USE: Just mount this SWIFT 16MP megapixel digital camera onto your microscope's trinocular port or regular eyetube to record full-color pictures and videos ACCURATE FIELD VIEW: REDUCTION LENS ensures that the digital camera displays an accurate field of view to the microscope's magnifications VERSATILE MOUNTING SYSTEM -- the reduction lens will fit a 23.2mm ocular port or tube, included adapters fit 30mm, and 30.5mm tube sizes FAST USB 3.0 CONNECTION for lightning-fast transfer speeds between the digital camera and the computer COMPATIBLE SOFTWARE with Windows, Mac, and Linux from CD or Internet links of SWIFT MegaPixel Digital Camera Warranty Information * Five (5) Year Warranty for Microscopes: Microscopes come with a five (5) year warranty against manufacturing defects. Does not cover normal wear, routine maintenance, add-on accessories, damage resulting from repair by unauthorized parties, accident, alteration, shipping, misuse or abuse is not covered. * One (1) Year Warranty for Electrical and Video components. Does not cover light bulbs, batteries, fuses, or electrical cords. * All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period. Proof of original purchase is required. Buyers are responsible for shipping to and from our warehouse for warranty services. The warranty does not cover damages resulting from normal wear and tear, abuse, or unauthorized repairs. * For customers living outside the United States, Swift Optical Instruments, Inc. will provide standard warranty service. Both inbound and outbound shipping costs (including duties and taxes) is the responsibility of the consumer. | ||||||
Sensor type | CMOS |
Sensor size | 1/2.33'' |
Imaging area | 6.18mm*4.66mm |
Pixel size | 1.335μm*1.335μm |
Resolution | 16MP |
FPS/resolution | 4632*3488 @6.0fps, 2320*1740 @15.0fps, 1536*1160 @26.0fps |
Scan mode | Progressive |
Data transfer | USB3.0 |
Binning | 1*1, 2*2, 3*3 |
Exposure time | 0.2ms-2000ms |
Sensitivity | R: 2453LSB, Gr: 2444LSB, Gb: 1054LSB, B: 996LSB |
Dynamic range | 74dB |
Max. signal to noise ratio | 47.5dB |
Lens mount | C-Mount |
Software | SWIFT imaging 3.0 |
Spectral range | 380-650nm (with IR-cut Filter) |
White balance | ROI white balance/manual temp tint adjustment/NA for monochromatic sensor |
Color technique | Ultra-fine TM color engine/NA for monochromatic sensor |
Capture/control API | Native C/C++, c#/VB.NET, directshow, twain and labview |
Recording system | Still picture and movie |
Cooling system | Natural |
Operating temperature (in centidegree) | -10~50 |
Storage temperatue (in centidegree) | -20~60 |
Operating humidity | 30~80%RH |
Storage humidity | 10~60%RH |
Power supply | DC 5V over PC USB Port |
Operating system | Microsoft® Windows® Vista /7/8/10 (32 &64 bit), OSx (Mac OS X), Linux |
PC requirements | CPU: equal to Intel Core2 2.8GHz or higher memory: 2GB or morE; USB port: USB2.0 high-speed port; Display: 17'' or larger; CD-ROM |
Detailed Images

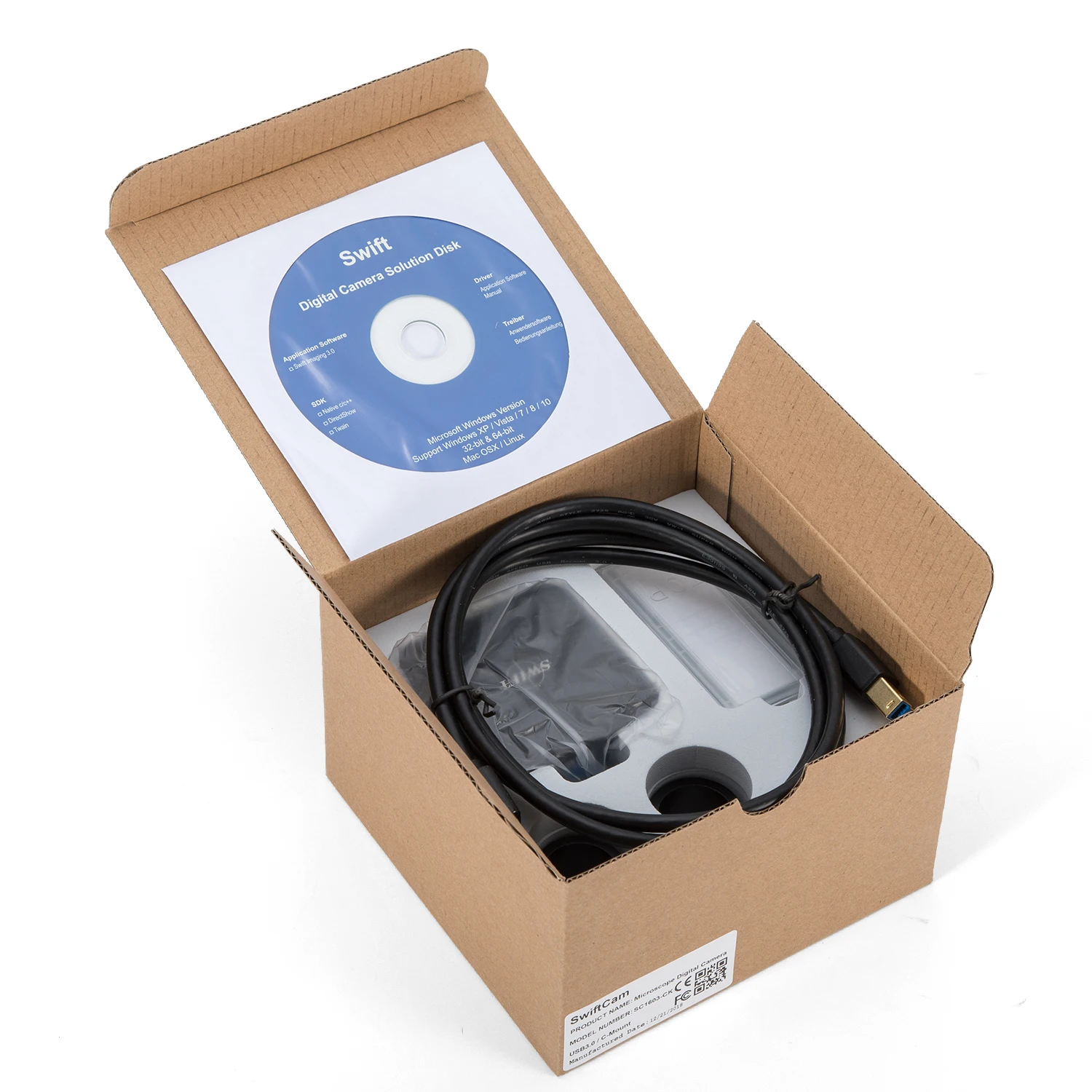

EVA lining + Kraft paper packing
Well-equipped set
Space saving

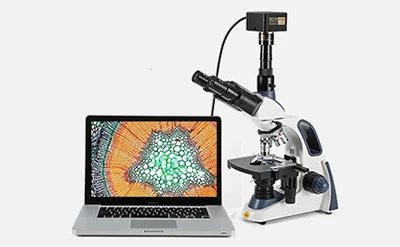

WORKING WITH TRINOCULAR MICROSCOPES

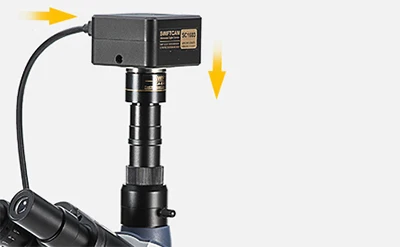

Step 1
Attach the C-Mount adapter to the microscope's trinocular port, attach the reduction lens to the Swiftcam, and insert the Swiftcam into the port

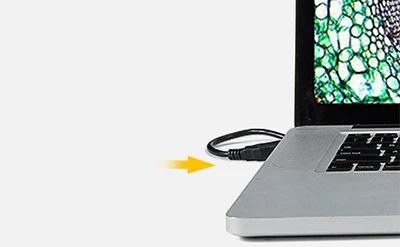

Step 2
Then insert the USB into the USB port of your desktop or laptop computer
Step 3
Open the Swift Imaging 3.0 application on your computer to livestream, capture photographs and video, and annotate or edit your
images

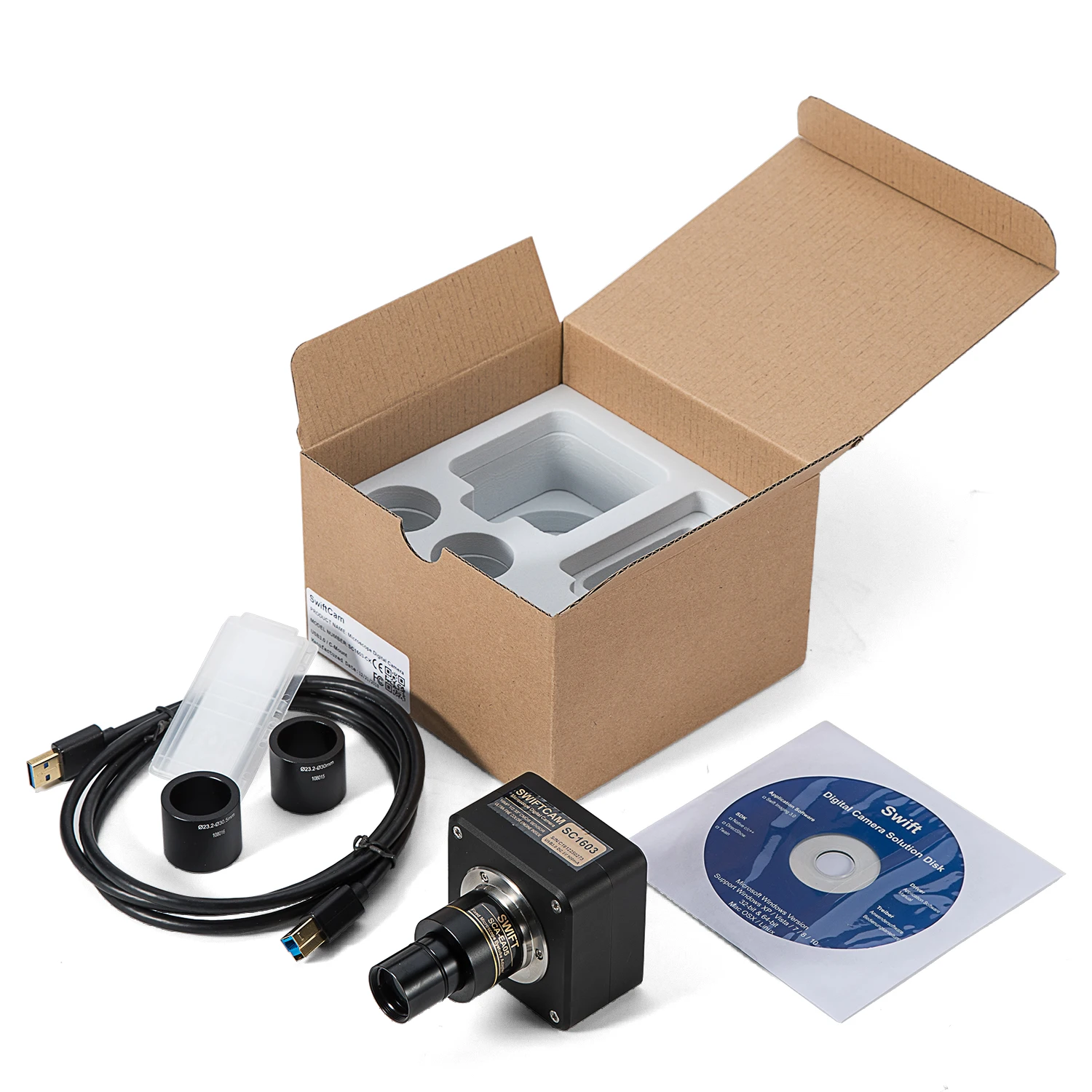

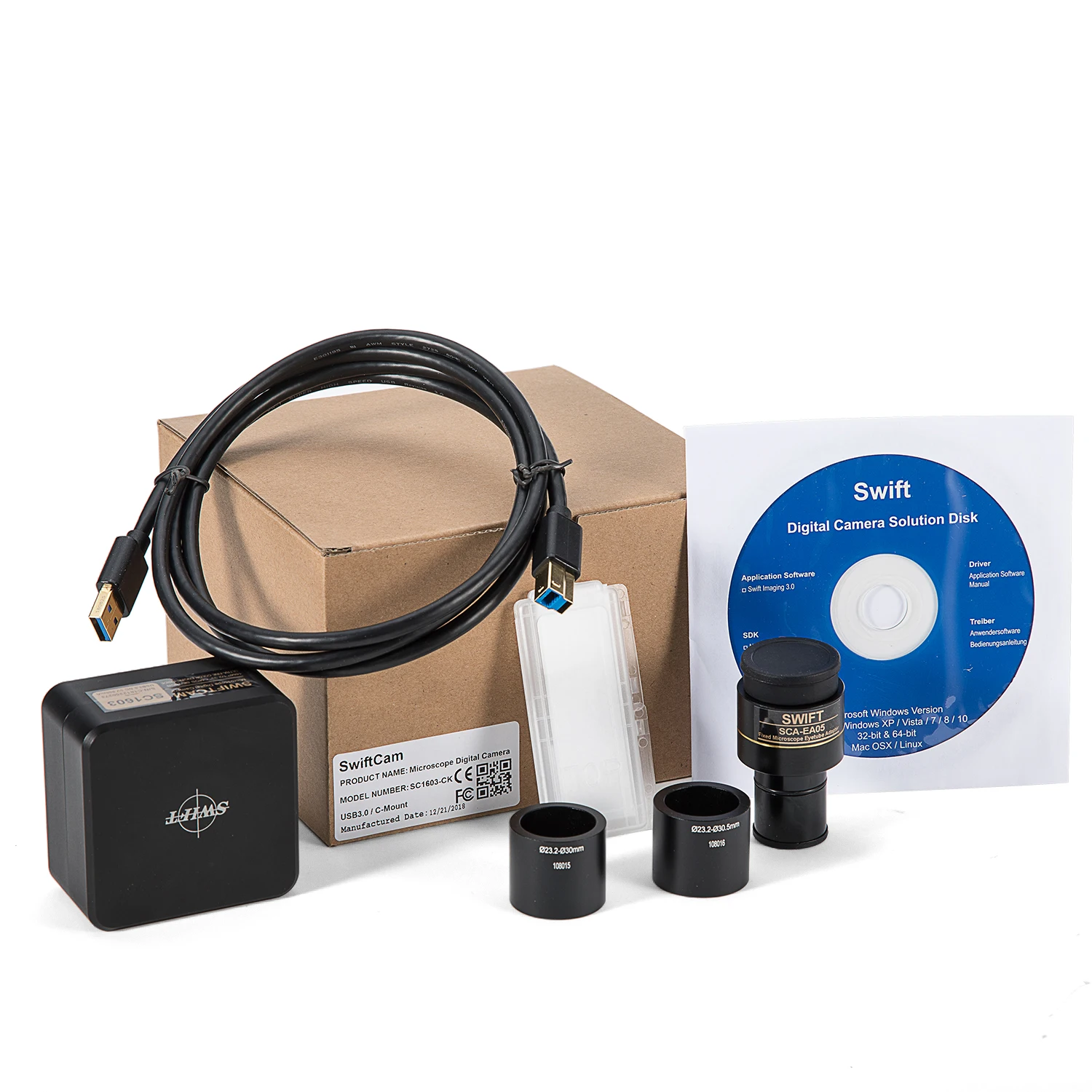

PACKING LIST
1*USB 3.0 cable
1*0.5X reduction lens
1*φ23.2-φ30mm eyepiece tube adapter
1*φ23.2-φ30.5mm eyepiece tube adapter
1*Calibration slide
1*Software CD
1*Quick start guide
We rigorously test and inspect every single unit before shipping to ensure that each microscope reaches our standards for excellence.
OUR TIPS
Not Include In Our Box
Computer and microscope... sold separately
Application
School, university, college, lab, hospital, clinic, medicine, research, vet, dentistry, hobby, gift, etc

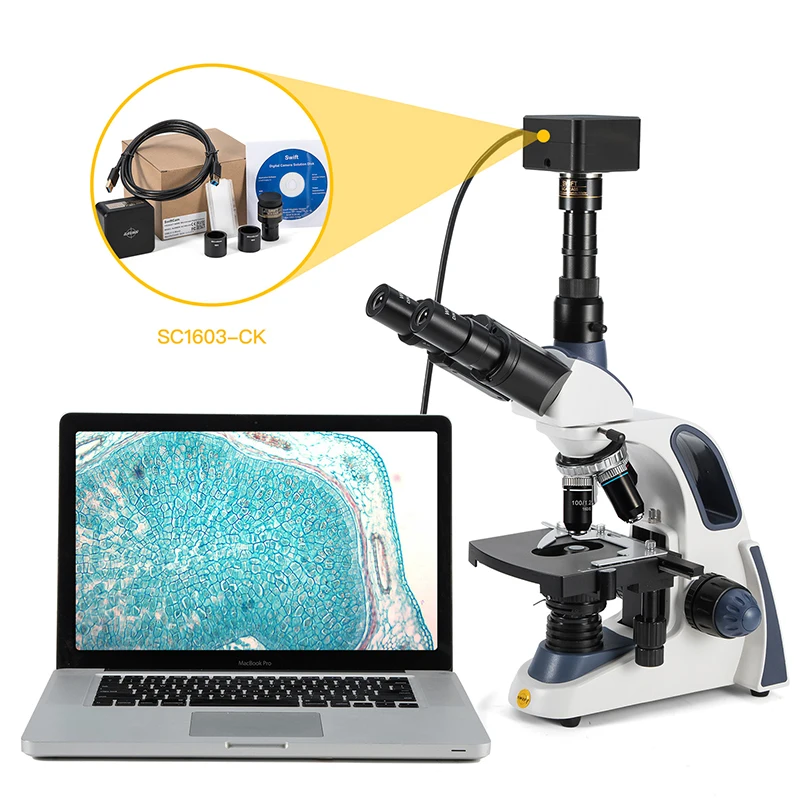

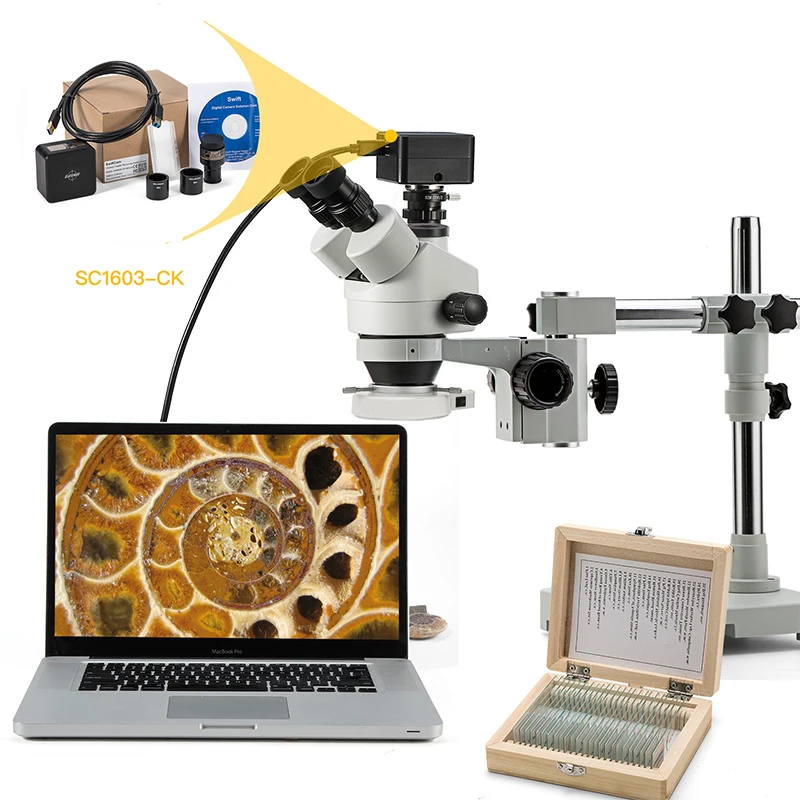

Anywhere you want to use our SC1603-CK
Observe cells, bacteria, animal, plant specimens, etc
How to Match Our Microscopes
You can buy an extra microscope as SW350T, SW380T, S7-TP520-EA10-56, etc
