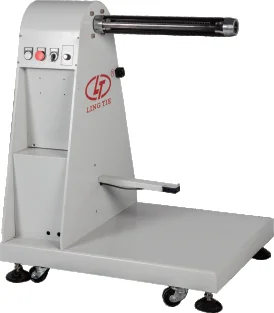

Automatic Feeding Machine for PET, PVC, PC Roll Material
Automatic Feeding Machine for PET, PVC, PC Roll Material
Automatic Feeding Machine for PET, PVC, PC Roll Material
Automatic Feeding Machine for PET, PVC, PC Roll Material
Automatic Feeding Machine for PET, PVC, PC Roll Material
Automatic Feeding Machine for PET, PVC, PC Roll Material
Automatic Feeding Machine for PET, PVC, PC Roll Material

Automatic Feeding Machine for PET, PVC, PC Roll Material

Share on (1600310014844):


Price:$3,000.00

Quantity:


Product Overview

Description



Product Description


Name
Automatic feeding machine
Model
LTC-300C
Max.Wed Width
300mm
Power
0.12kw
Tension
1-25N
Weight
30kg
Machine Size
L500*W300*H450mm


Unwinding shaft adopts air expansion shaft, convenient operation.
No material sensor. Automatic stops without material.


The body adopts electrostatic spraying and paint baking, solvent resistance, not easy to drop paint.
The fuselage is equipped with moving rollers for easy handling.

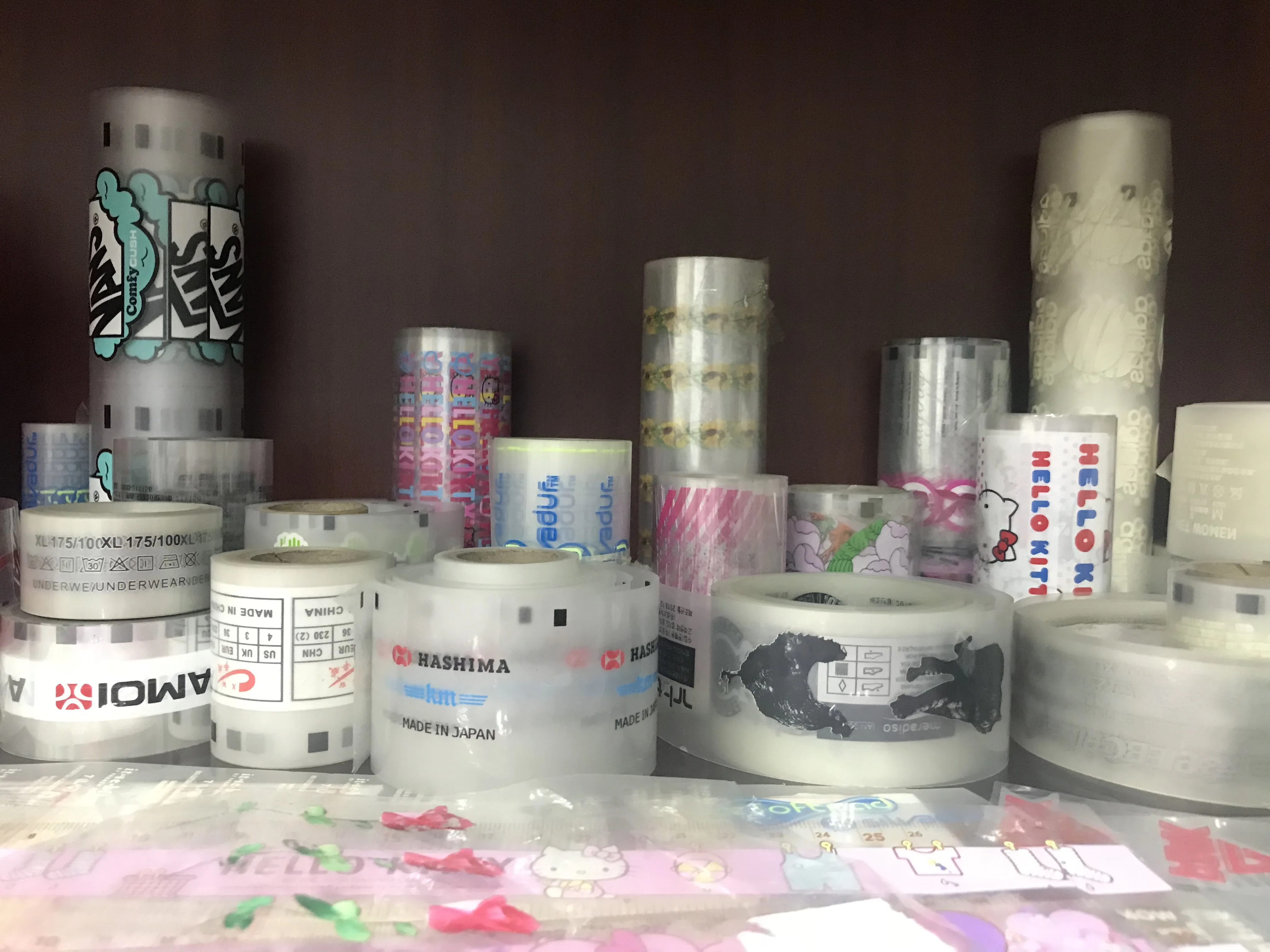

Application
heat transfer labels and stickers, membrane switches, IMD, IML, FPC, RFID, graphic overlay, nameplate and non-woven fabric, PVC, PET, PP, PC, PE, BOPP, etc.

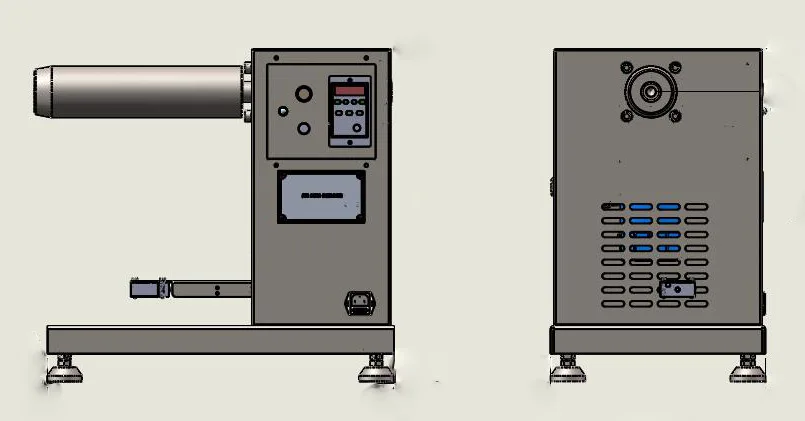

Detailed Images

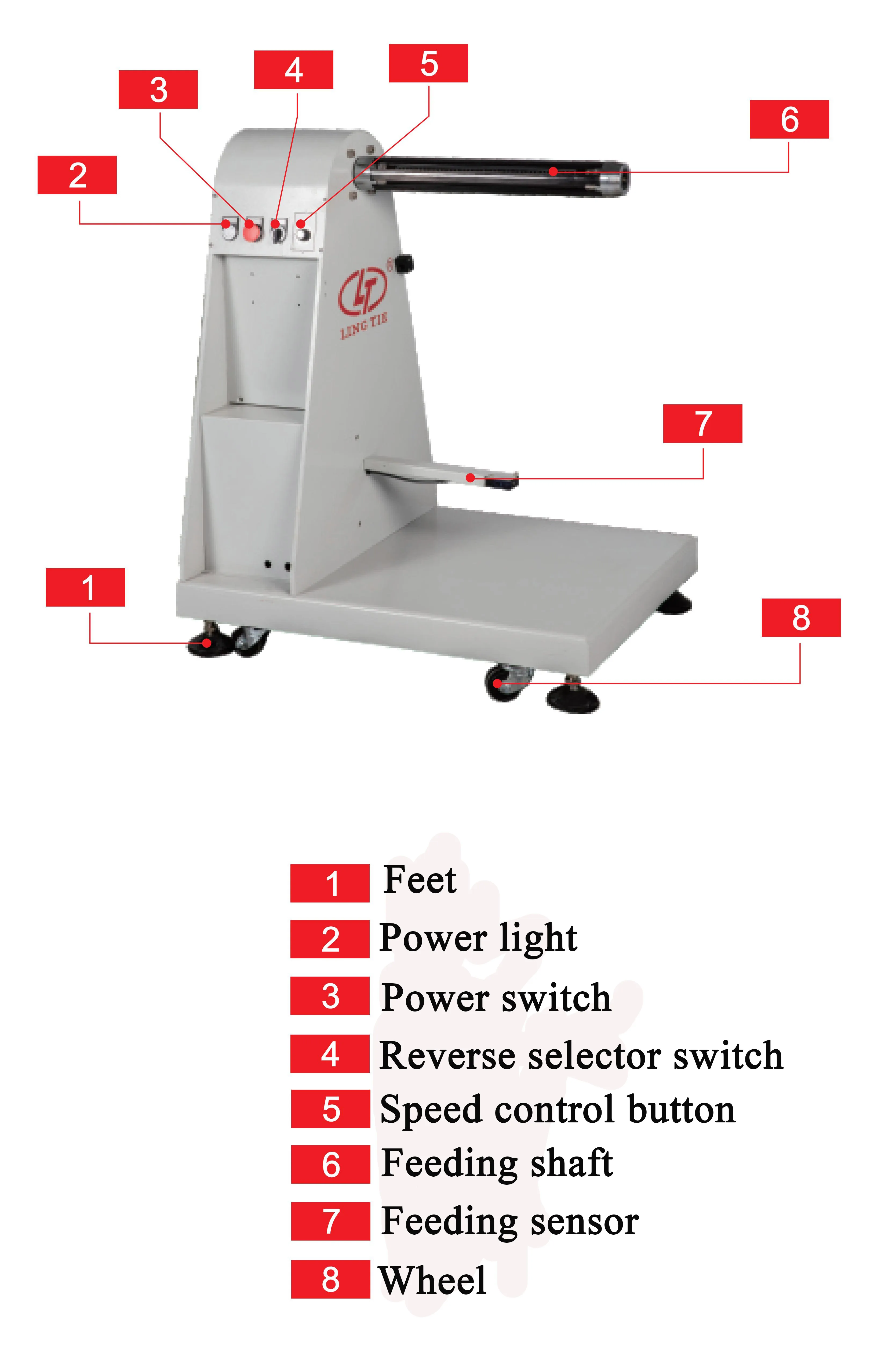

Main features
1) Mitsubishi frequency converter is adopted to control the feeding speed automatically.
2) Adopt German precision motor and reduce to ensure stable operation of the machine.
3) The feeder is controlled by an imported photoelectric switch to avoid scratching the material, and the feeding length can be automatically adjusted.
4) Using electromagnetic tension control, tension size can be arbitrarily adjusted.
5) Automatic stops without material.
Technical Parameters

Name
Automatic feeding machine

Model
LTC-400C
LTC-500C
Max.Wed Width
400mm
500mm
Power
0.25kw
0.5kw
Tension
1-25N
1-25N
Weight
60kg
170kg
Machine Size
L500*W700*H800mm
L700*W950*H1100mm


Recommended Collocation

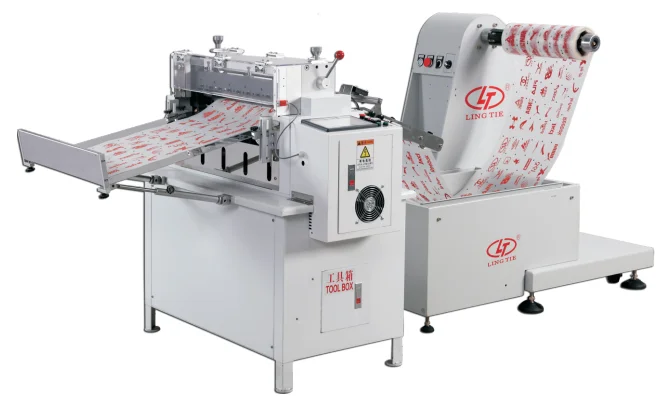

Automatic feeding machine + sheet cutting machine
Sheet cutting machine can cut the printed roll into sheets.

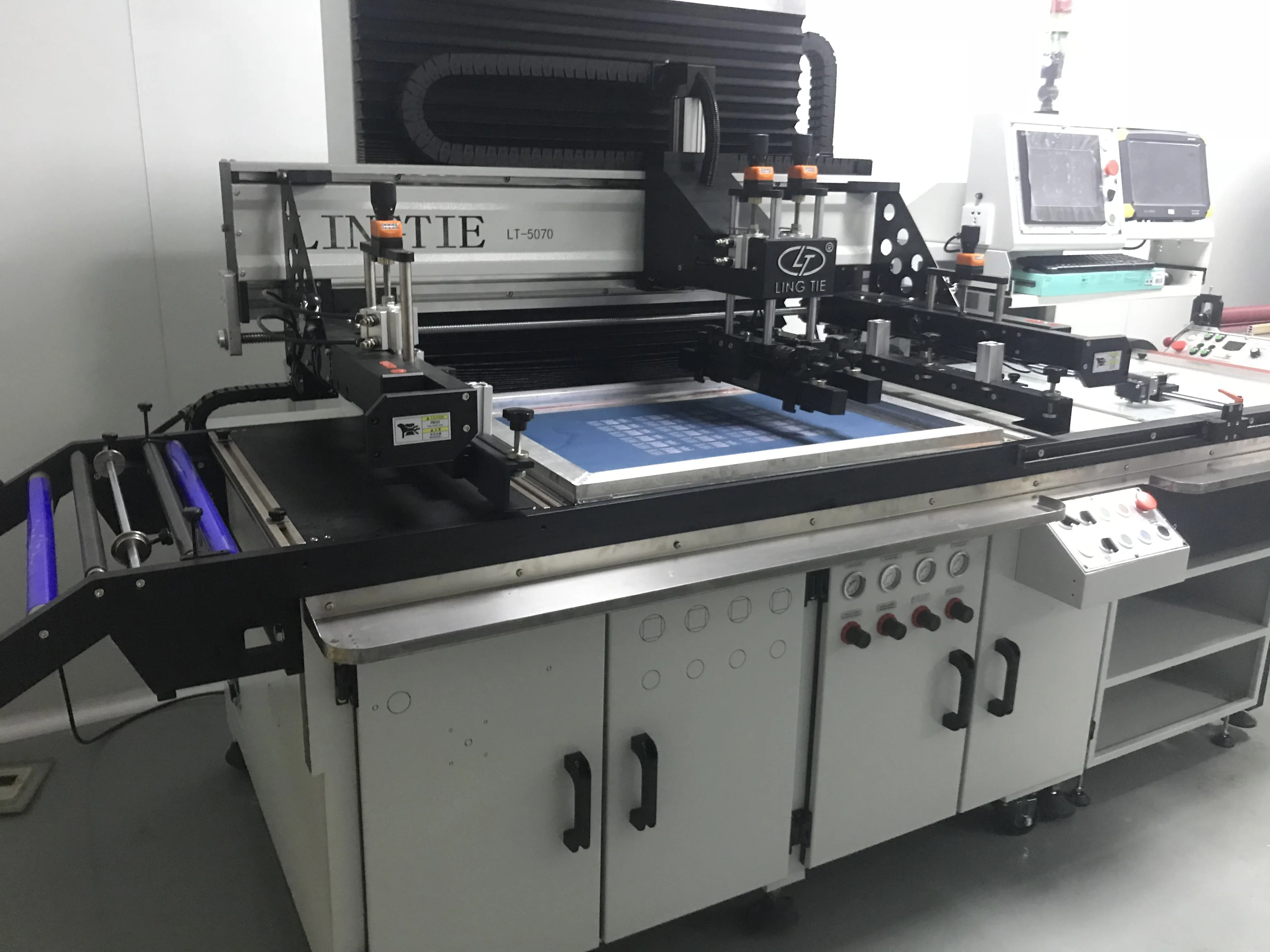

Automatic feeding machine + automatic printing machine
Combine the automatic feeding machine with the automatic printing machine to print the roll film material in roll.

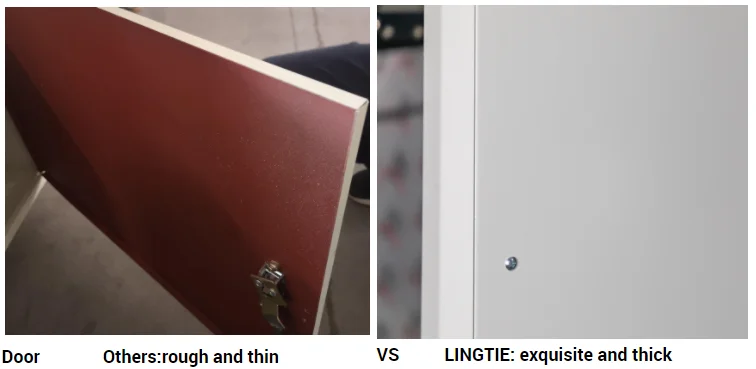

Our Highlights

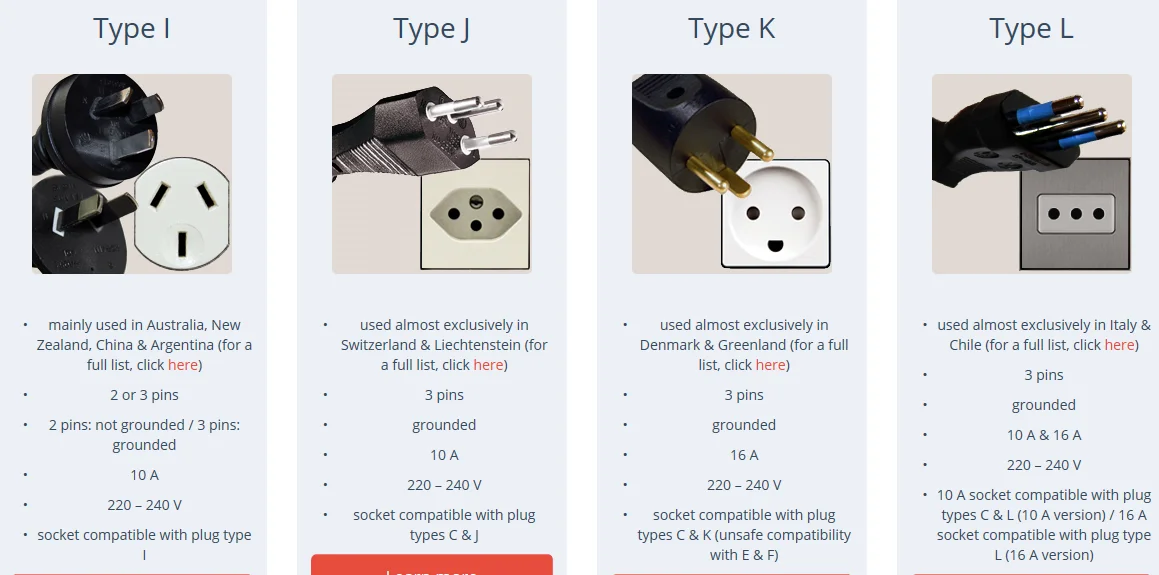

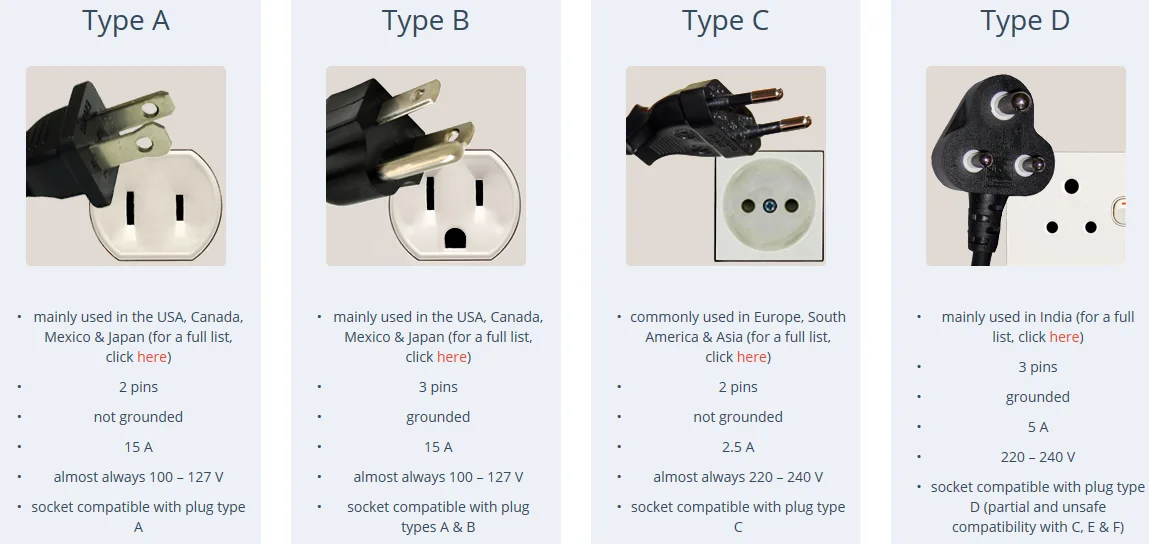

Optional Plug








Best Selling

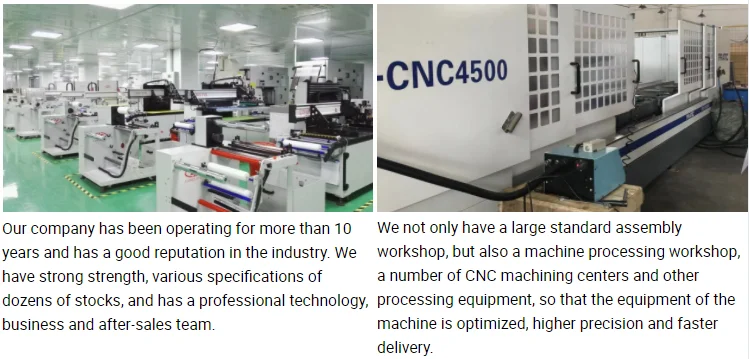

Exihibition ＆ Client Factory
