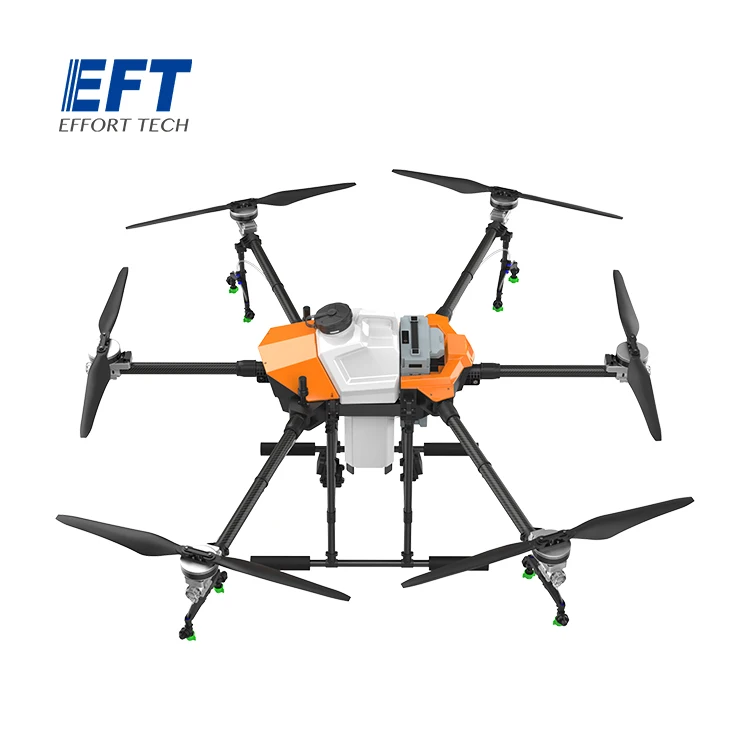

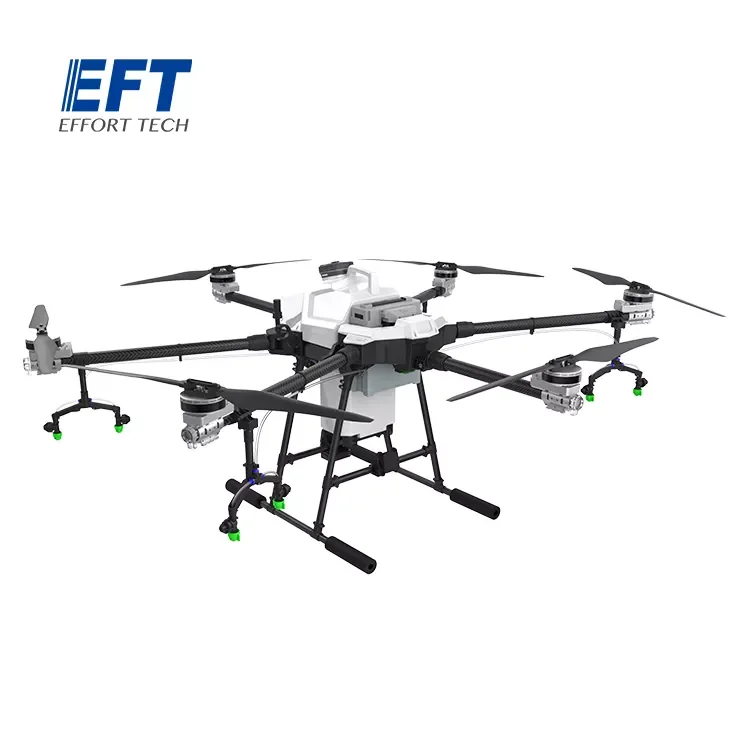

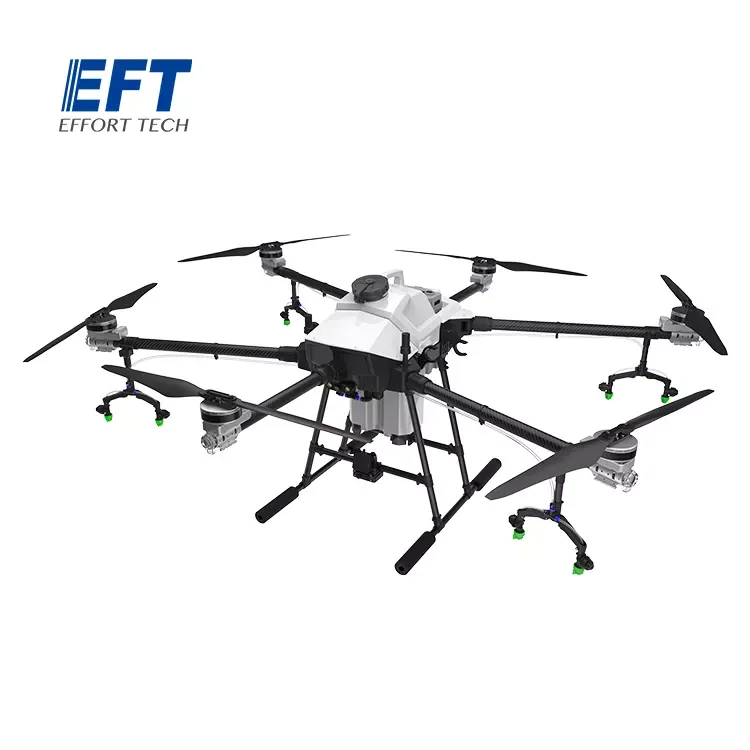

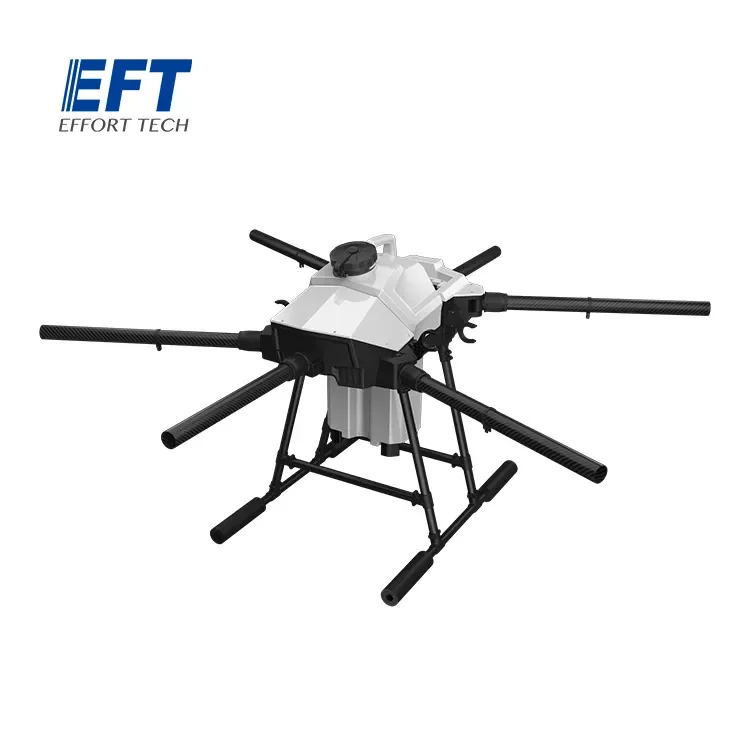

NEW EFT G620 6 Axis 20L 20KG Agricultural Spray Drone 5L 8L Pump With Hobbywing X9 Power System agriculture spray pump
- Category: >>>
- Supplier: Shenzhen Pansen Electronics Co. Ltd.
Share on (1600310029838):
Product Overview
Description
Model Number：
Frame ：G620
Tank capacity：20L/20KG
Frame weight：10.85KG
Take-off weight：51.2KG

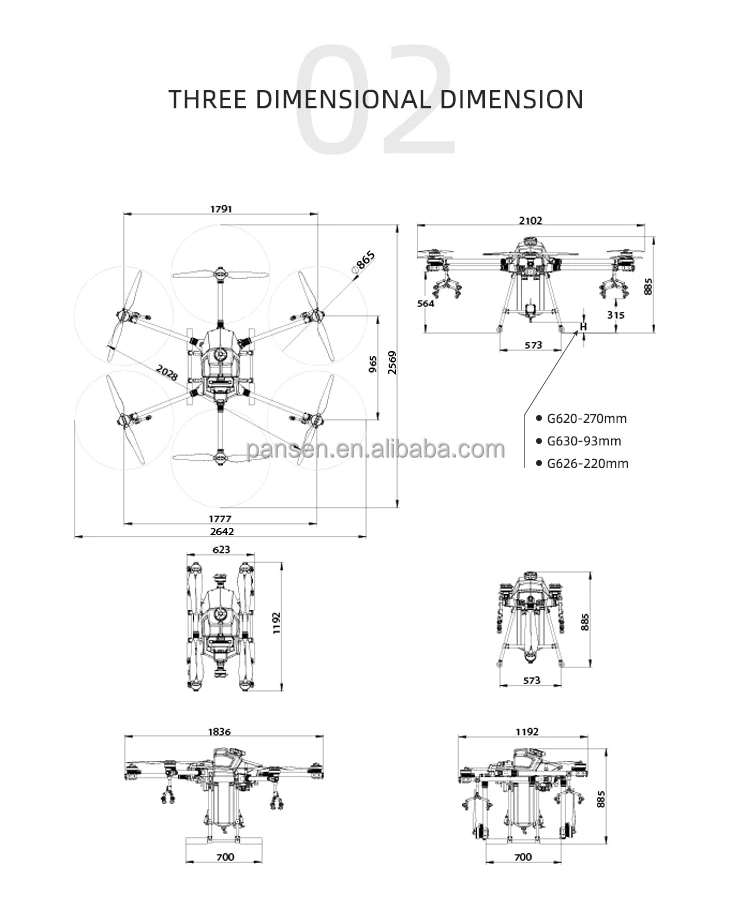

Expanded size：2642mm*885mm

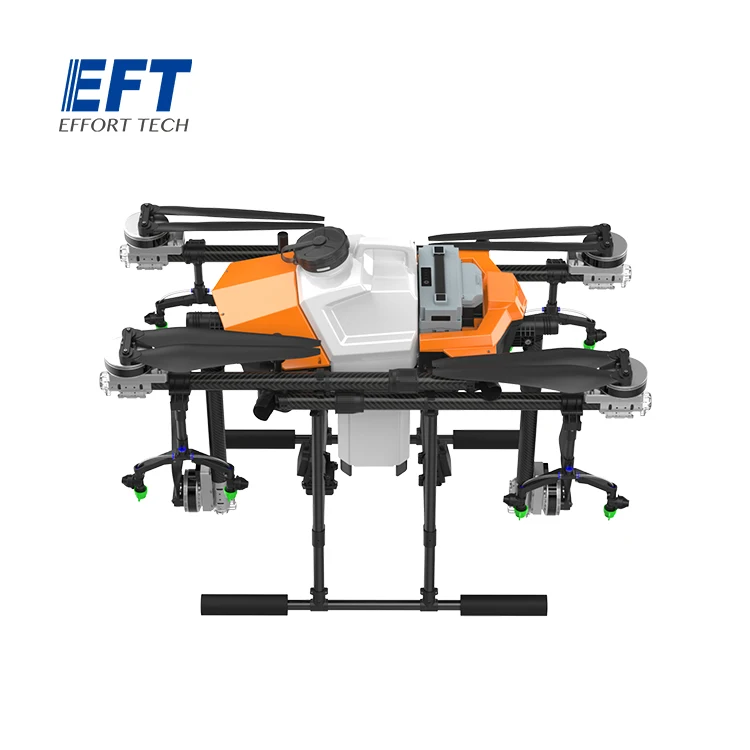

Folding size:：1192mm*885mm
Battery compartment: 184*119mm
Support voltage:：14S
Recommended battery：OKCELL 22000mAh 14S or TATTU 22000mAh 14S
X9 Motor:
Maximum pulling force: 21.5KG/axis
Recommended battery: 12S lipo
Recommended takeoff weight (single axis): 7.0-9.5KG
Weight (including propeller) 1450g
Dimensions: 151.2x133.3mm
Hobbywing 8L Brushless Water Pump:
Operating voltage: 12-14S (DC44-60.9V)
Working current: <2A
Weight: 685g
water inlet diameter: 10.5mm
water outlet diameter : 6.5mm
Amount power: 60W
Opening flow: 8L/min
Size: 140*95*70mm
Working pressure: 0.5Mpa
Protection level: IP67
Fixed PWM throttle stroke: 110-1940US
Product function introduction：
1.automatic operation, one key take-off and landing
2.Follow the terrain(optional), altitude hold and fly straight
3.Precise point, long range cruise
4.Power alarm, break point continue to spray
5.Monitor flow and spray evenly
6.The algorithm is reliable and stable
7.Cell phone monitoring, voice broadcasting
8.GPS/BD/GNASS three mode positioning
9.Google map, worldwide use
Tank capacity：20L/20KG
Frame weight：10.85KG
Take-off weight：51.2KG
Expanded size：2642mm*885mm
Folding size:：1192mm*885mm
Battery compartment: 184*119mm
Support voltage:：14S
Recommended battery：OKCELL 22000mAh 14S or TATTU 22000mAh 14S
X9 Motor:
Maximum pulling force: 21.5KG/axis
Recommended battery: 12S lipo
Recommended takeoff weight (single axis): 7.0-9.5KG
Weight (including propeller) 1450g
Dimensions: 151.2x133.3mm
Hobbywing 8L Brushless Water Pump:
Operating voltage: 12-14S (DC44-60.9V)
Working current: <2A
Weight: 685g
water inlet diameter: 10.5mm
water outlet diameter : 6.5mm
Amount power: 60W
Opening flow: 8L/min
Size: 140*95*70mm
Working pressure: 0.5Mpa
Protection level: IP67
Fixed PWM throttle stroke: 110-1940US
Product function introduction：
1.automatic operation, one key take-off and landing
2.Follow the terrain(optional), altitude hold and fly straight
3.Precise point, long range cruise
4.Power alarm, break point continue to spray
5.Monitor flow and spray evenly
6.The algorithm is reliable and stable
7.Cell phone monitoring, voice broadcasting
8.GPS/BD/GNASS three mode positioning
9.Google map, worldwide use
