AOTAI best high frequency soldadoras tig IGBT inverter maquina de soldar tig 250 200 ac dc aluminum tig welder welding machine
- Category: TIG Welder >>>
- Supplier: Shenzhen Aotainibian Technolocy Co. Ltd.
Share on (1600310056054):
Product Overview
Description
TIG-200A best inverter welder dc welding machine tig/mma pcb welder
If you order more, please contact us to check the cheapest shipping cost and machine price. we accept OEM orders.
MMA/TIG/MIG welder and air plasma cutting machine manufacturer
If you order more, please contact us to check the cheapest shipping cost and machine price. we accept OEM orders.
MMA/TIG/MIG welder and air plasma cutting machine manufacturer
Digital argon arc welding machine inverter dc tig200 industrial welders tig/mma high frequency tig welder

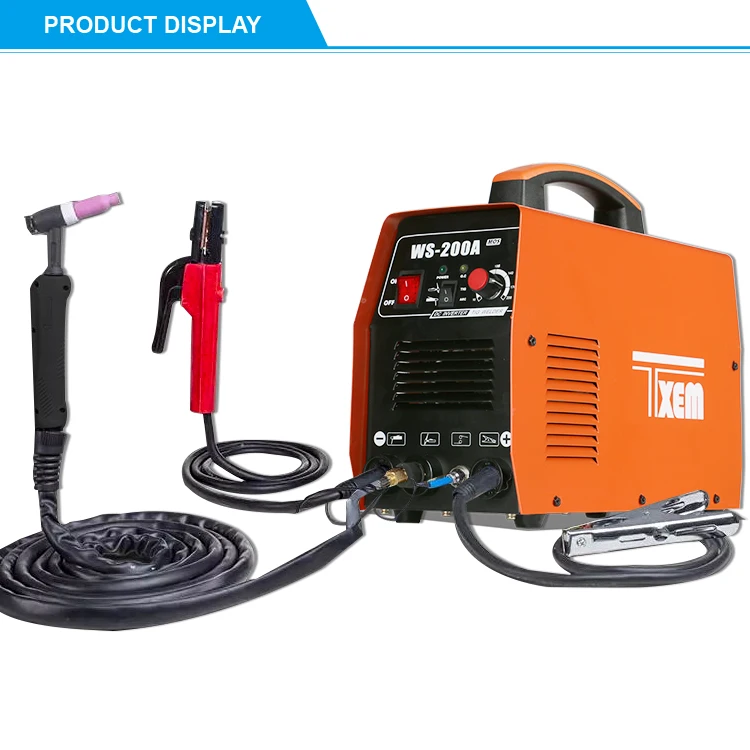

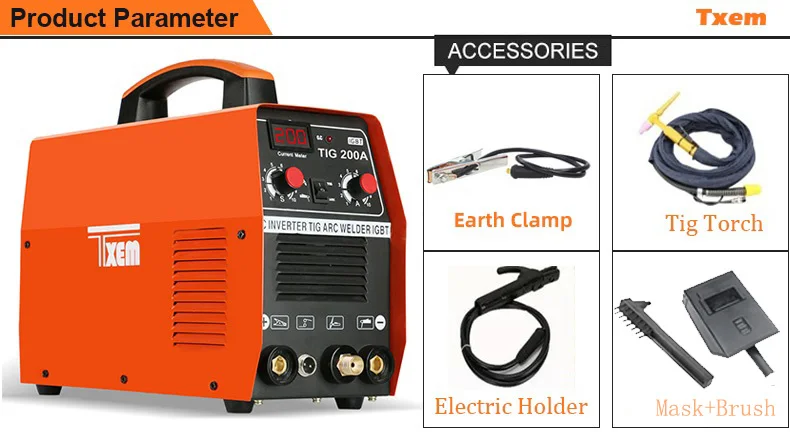

About accessories:
1PCS WP17 or QQ150 tig torch
1PCS 1.2m ground clamp
1PCS 1.8m electric holder
1PCS Manual
1PCS Mask & Brush
Model | TIG/MMA-200A | TIG/MMA-200A |

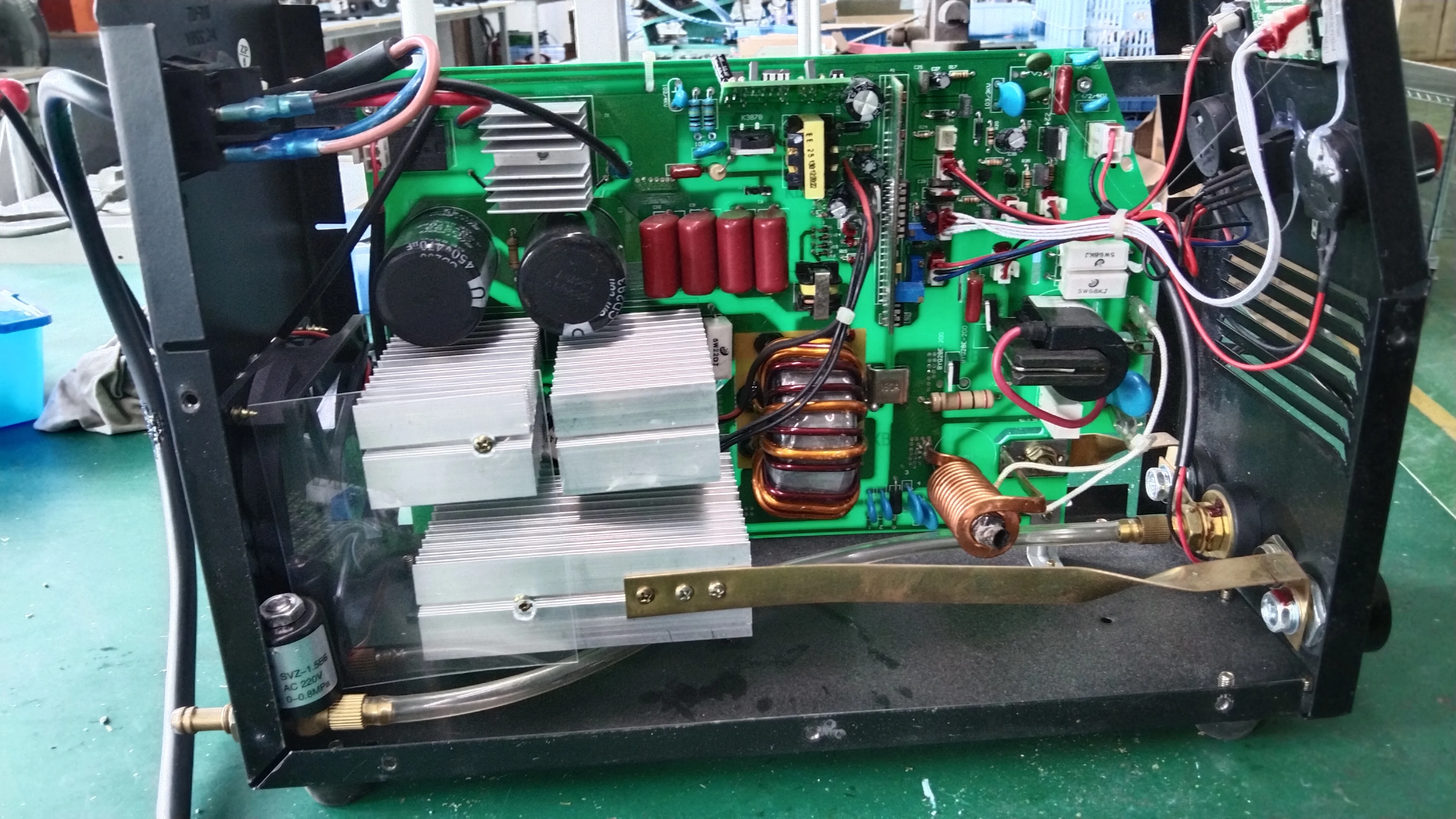

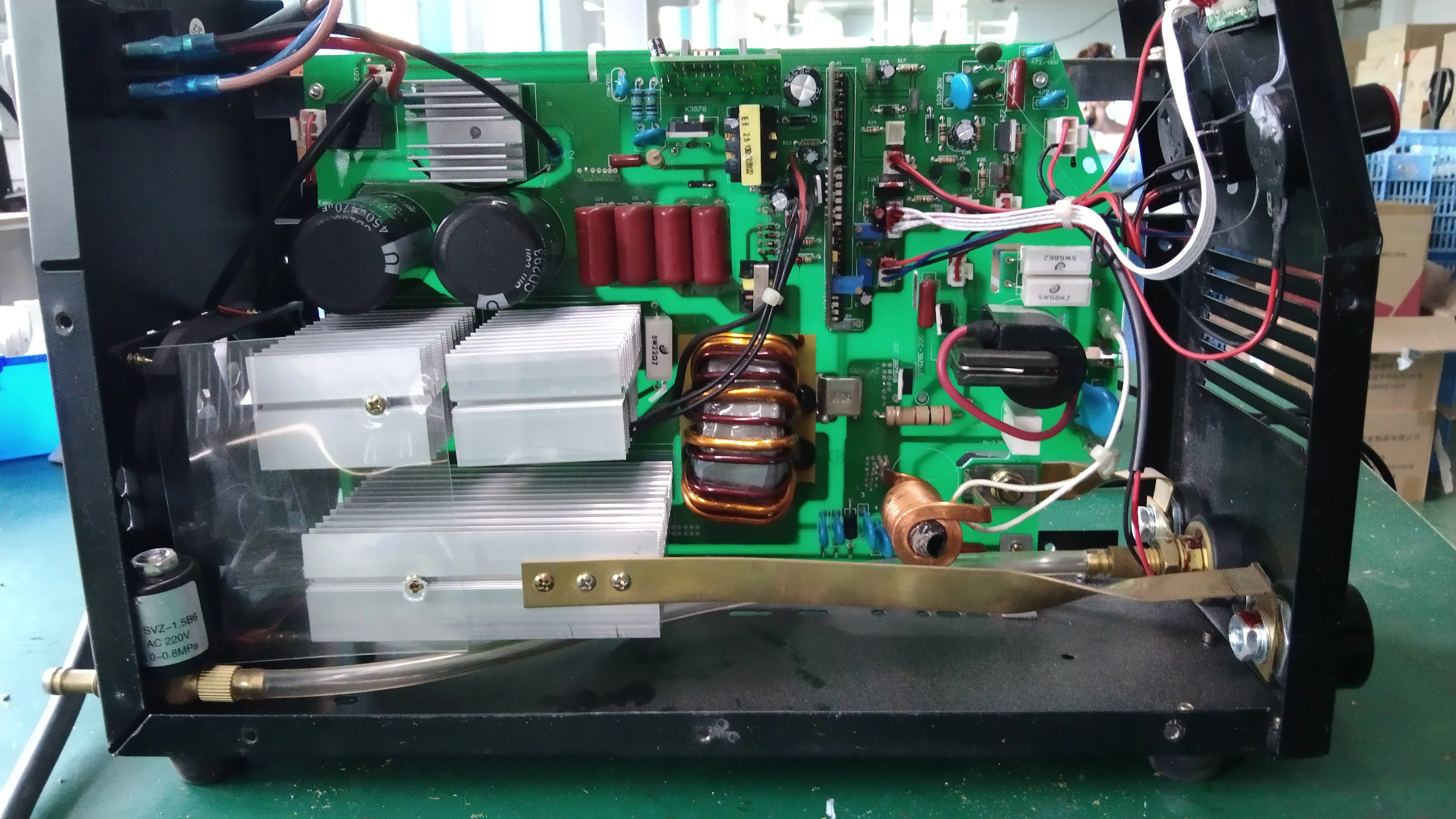

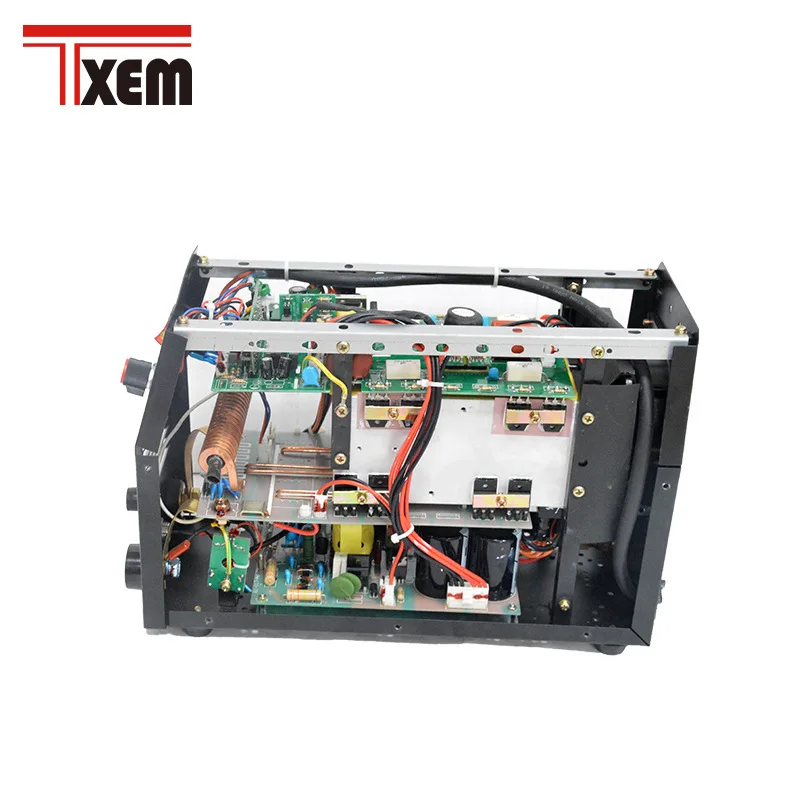

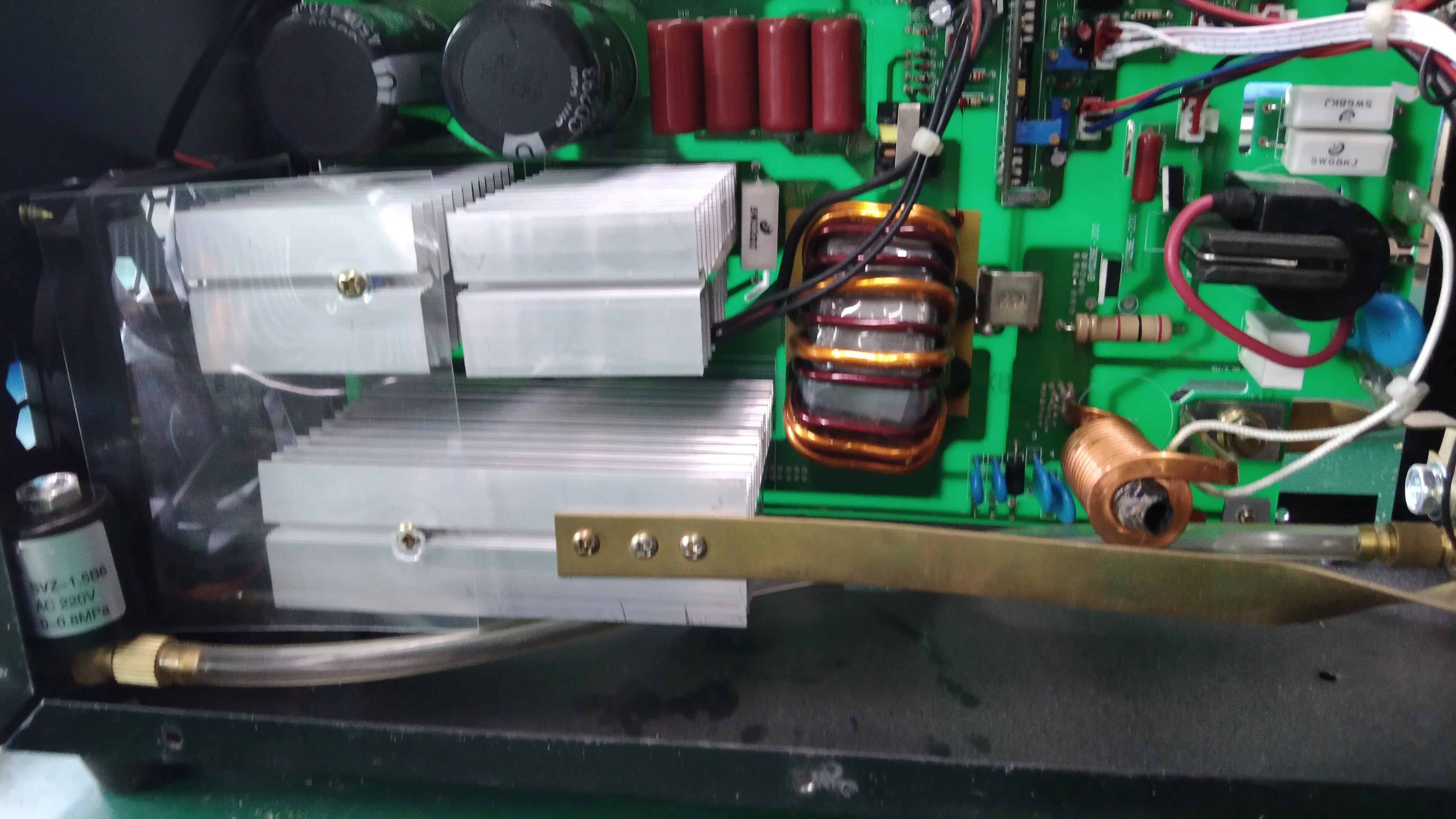

Type | IGBT 1 PCB | IGBT 3 PCB |
AC Input Voltage(V) | AC 220V(110V can do) | AC 220V(110V can do) |
Rated Input Power Capacity(KVA) | 6.6 | 7.5 |
Ignition Mode | high frequency ignition | high frequency ignition |
Input Frequency(Hz) | 50/60 | 50/60 |
Non-load Voltage(V) | 61 | 61 |
Output current range(A) | 20-200 | 20-200 |
Rated Duty Cycle(%) | 60% | 60% |
Efficiency(%) | 85% | 85% |
Class of Insulation | F | F |
Protection class of case | IP21 | IP21 |
Electrode diameter(mm) | 1.6-4.0 | 1.6-4.0 |
Welding thickness(mm) | 2-8 | 2-8 |
N.W./G.W.(kg) | 5/7.5 | 8.5/9 |

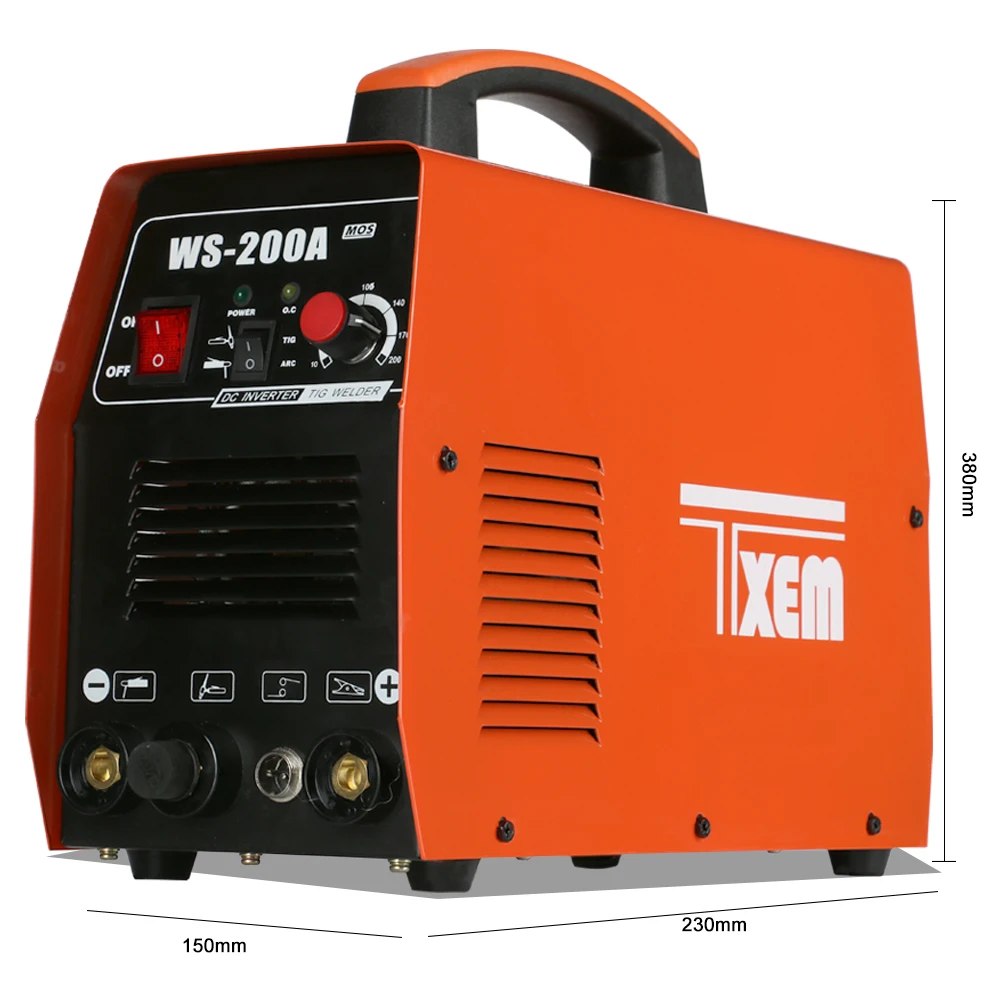

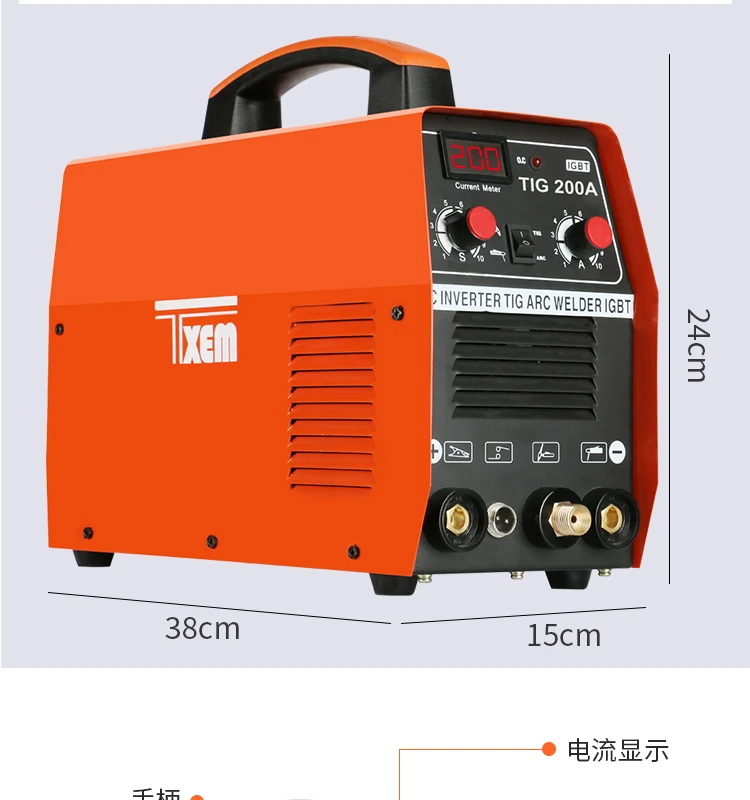

Machine Size(LxWxH mm) | 380*150*240 | 380*150*240 |
Package Dimension(LxWxH mm) | 460*275*300 box+foam | 460*275*300 box+foam |
Accessories | 1.8m 16mm electric holder 1.2m 16mm ground clamp wp-17 4m torch mask, brush, manual | 1.8m 16mm electric holder 1.2m 16mm ground clamp wp-17 4m torch mask, brush, manual |

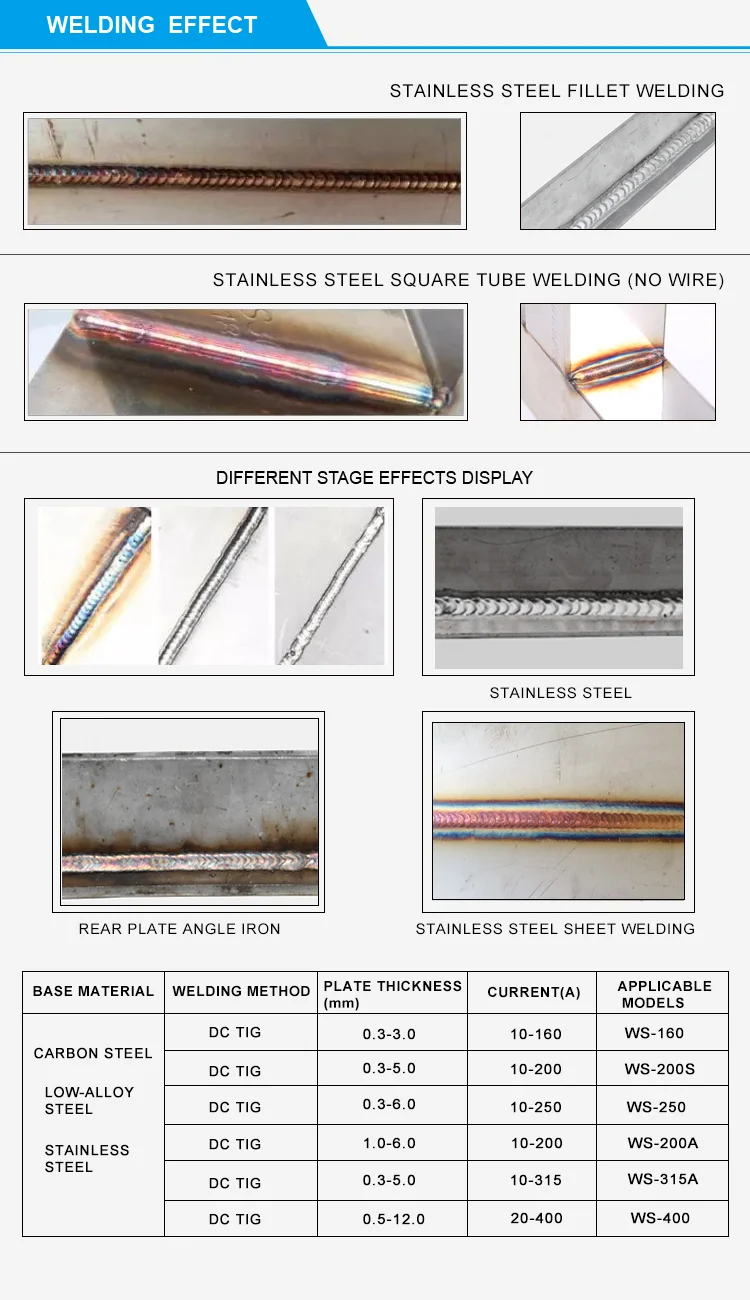

Welding Effect
