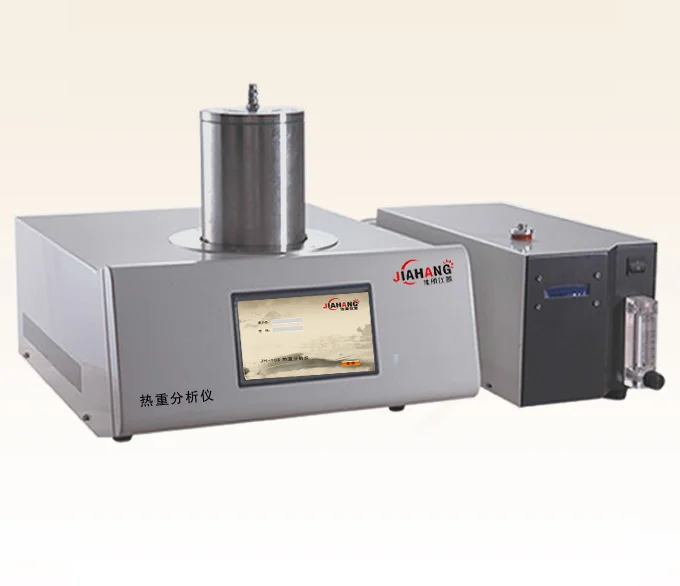

thermogravimetric TGA analyzer 1350 degree thermo gravimetric analyzer instrumentation analysis
- Category: >>>
- Supplier: Shanghai Jiahang Instruments Co. Ltd
Share on (1600310060427):
Product Overview
Description
Products Show
The High-precision thermogravimetric analyzer has obtained a national patent, patent number ZL 2009 0039640.8. Thermogravimetric analysis (TG, TGA) is to observe the change of sample quality with temperature or time during the process of heating, constant temperature or cooling, and the purpose is to study the thermal stability and composition of materials. It is widely used in research and development, process optimization and quality monitoring in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials.
Instrument innovation:
1: Advanced control system. The temperature can be controlled quickly and stably;
2: After the sample is installed in place, the insulation door will be automatically closed;
3: The software has built-in test records, data processing and report formats, and automatically issues actual reports;
4: Built-in high temperature platinum sensor.
Product Paramenter
Thermogravimetric Analyzer，
1: Advanced control system. The temperature can be controlled quickly and stably.2: Friendly man-machine interface. The temperature of the cold and hot plates and the power of the heat flow can be directly displayed on the large-screen LCD.
3: Concise operation. Electric moving splint, the clamping force LCD display is adjustable, and the heat preservation door is automatically closed after the sample is installed in place. 4: Intelligent data processing. Highly automated computer data communication and report processing system, flat panel thermal conductivity meter belt
5: There is a computer communication interface, and the temperature curve is displayed in real time.
6: Automatically generate and print test reports. The software has built-in test records, data processing and report formats, and automatically issues actual reports.
temperature range | Room temperature~1550℃ |
Temperature resolution | 0.1℃ |
Temperature fluctuation | ±0.1℃ |
Heating rate | 1~80℃/min |
Temperature control method | Heating, constant temperature, cooling |
Cooling time: | 15min (1000℃…100℃) |
Balance measuring range | 1mg～2g, can be expanded to 30g |
Resolution | 0.1μg |
Constant temperature time | 0～300min arbitrarily set |
Display method | Chinese characters large-screen LCD display |
atmosphere | Inert, oxidizing, reducing, static, dynamic |
Atmosphere device | Built-in gas flow meter, including two-way gas switching and flow rate control |
software | Intelligent software can automatically record TG curve for data processing and print experimental reports |
Data interface | RSS-232 interface, dedicated software (free software upgrades from time to time) |
power supply | AC220V 50Hz |
Baseline adjustment | Users can adjust the baseline through the slope and intercept of the baseline |
Power supply | AC 220V 50Hz |
Company Profile
Certificate Display
Exhibition Display
Shipping Methods
FAQ
Q: What services are supported?
Answer: Provide lifetime free online technical support
Q: How long is the warranty period of the Thermogravimetric Analyzer sold?
Answer: The warranty is 1 year, and free system upgrade service is provided during the warranty period.
Q: How long is the delivery time?
Answer: Within 15 days after receiving the deposit, the specific delivery time depends on the order quantity.
Q: If you find a quality defect, what is the term?
Answer: We will bear all repair costs, if still not satisfied, we will refund.
Q: What is the minimum order quantity?
Answer: For the instrument, the minimum order quantity will be 1 set. For consumable parts, please try to contact us for proper confirmation.
Q: What is the packaging of your products?
Answer: Pack the instrument with PE film, fiber cloth and wooden box.
