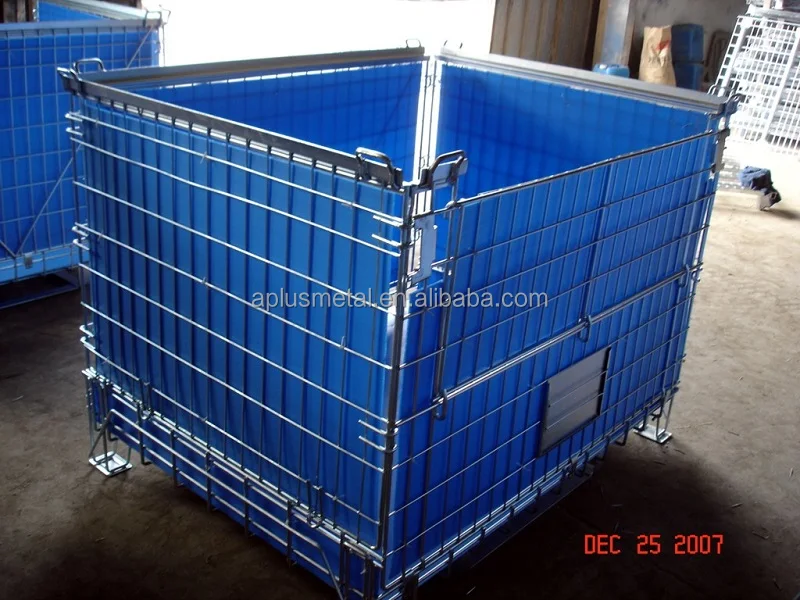

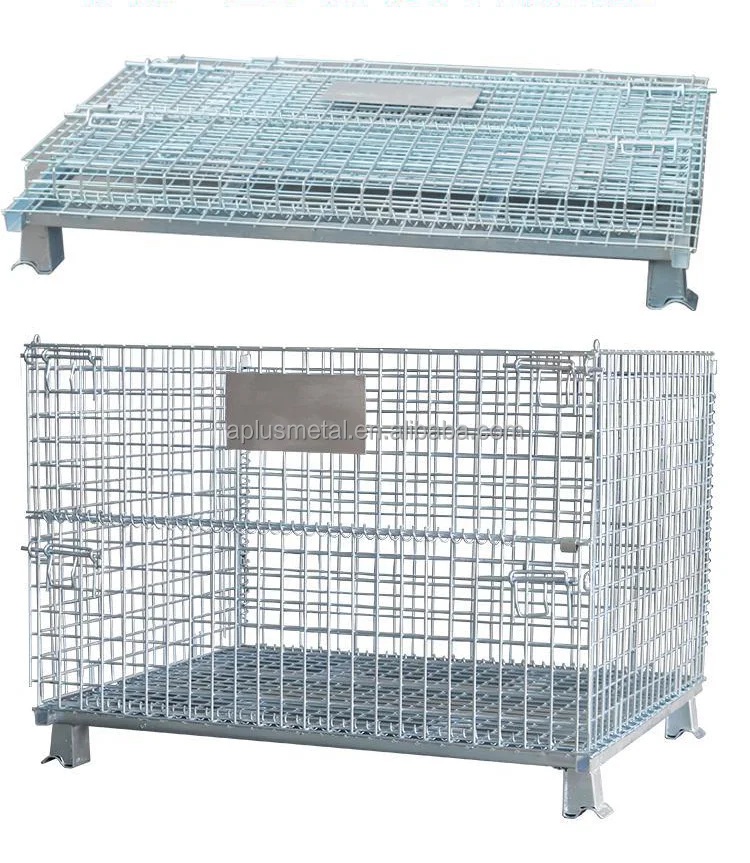

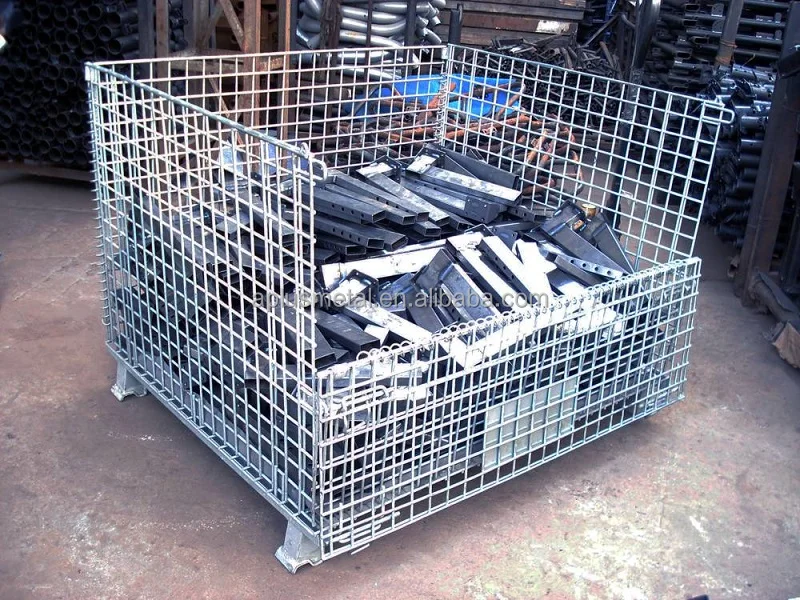

Warehouse Pallet Storage 50x100 Mesh Inside PP Sheet Steel Collapsible Wire Container
- Category: Cargo & Storage Equipment >>>
- Supplier: Nanjing A-Plus Metal Products Co. Ltd.
Share on (1600310246370):
Product Overview
Description
Product Name | Wire mesh container | ||||||
Size | Customized | ||||||
Wire Mesh Size | 50*50mm; 50*100mm; 100*100mm | ||||||
Wire Diameter | 3.0 ~ 6.0mm | ||||||
Load Capacity | 100 ~ 2000kg | ||||||

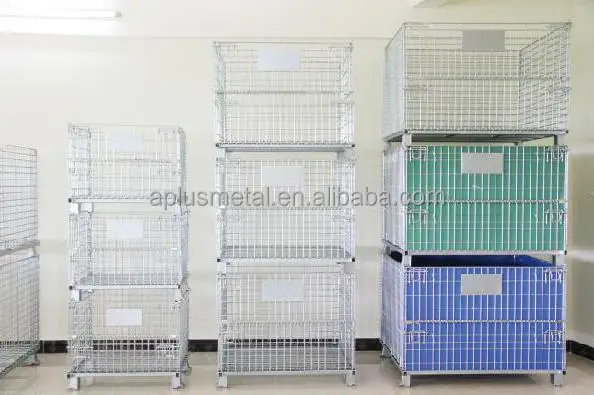

Stacking Level | 3 ~ 4 levels | ||||||
Surface Treatment | Galvanised | ||||||
Castor Installation | Available(4pcs) | ||||||
A series | ||||||||||
Style No. | Wire dia | Wire mesh | Outside dimension | Inside dimension | Load capacity | |||||
AP-A01 | 5.5mm | 50*50mm | 800x600x640mm | 750x550x500mm | 600kg | |||||
AP-A02 | 4.8mm | 50*50mm | 800x600x640mm | 750x550x500mm | 500kg | |||||
AP-A03 | 4.8mm | 50*100mm | 800x600x640mm | 750x550x500mm | 400kg | |||||
B series | ||||||||||
Style No. | Wire dia | Wire mesh | Outside dimension | Inside dimension | Load capacity | |||||
AP-B01 | 6.0mm | 50*50mm | 1000x800x840mm | 950x750x700mm | 1200kg | |||||
AP-B02 | 5.5mm | 50*50mm | 1000x800x840mm | 950x750x700mm | 1000kg | |||||
AP-B03 | 5.5mm | 50*100mm | 1000x800x840mm | 950x750x700mm | 900kg | |||||
AP-B04 | 4.8mm | 50*50mm | 1000x800x840mm | 950x750x700mm | 800kg | |||||
AP-B05 | 4.8mm | 50*100mm | 1000x800x840mm | 950x750x700mm | 600kg | |||||
C series | ||||||||||
Style No. | Wire dia | Wire mesh | Outside dimension | Inside dimension | Load capacity | |||||
AP-C01 | 6.0mm | 50*50mm | 1200x1000x890mm | 1150x950x750mm | 1600kg | |||||
AP-C02 | 5.5mm | 50*50mm | 1200x1000x890mm | 1150x950x750mm | 1200kg | |||||
AP-C03 | 5.5mm | 50*100mm | 1200x1000x890mm | 1150x950x750mm | 800kg | |||||
AP-C04 | 4.8mm | 50*50mm | 1200x1000x890mm | 1150x950x750mm | 800kg | |||||
AP-C05 | 4.8mm | 50*100mm | 1200x1000x890mm | 1150x950x750mm | 700kg | |||||
AP-C06 | 4.8mm | 100*100mm | 1200x1000x890mm | 1150x950x750mm | 500kg | |||||
