High quality stainless steel welding rod electrode AWS E308L 16

Product Overview

Description

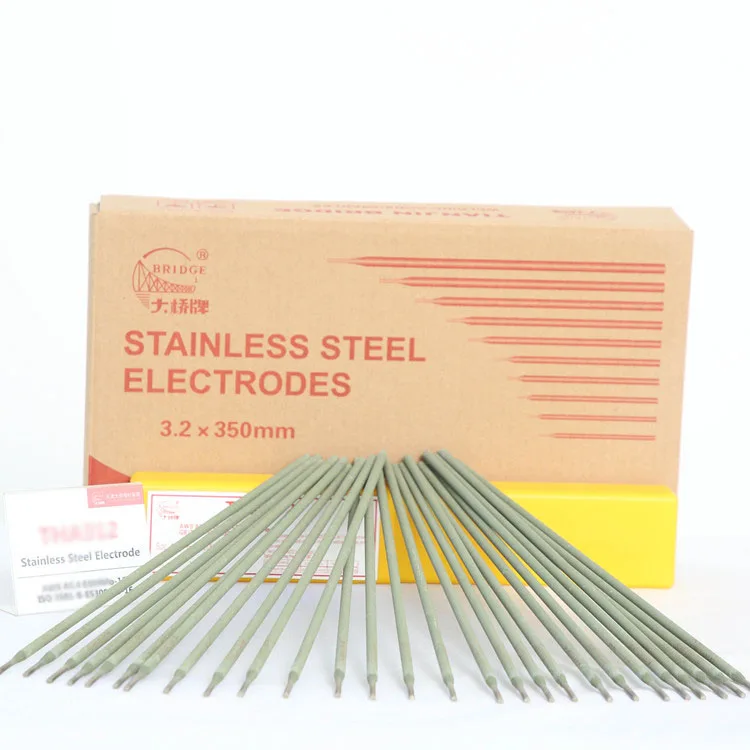

stainless steel welding rod



PRODUCT DISPLAY



THA002

Rutile type ultra-low carbon Cr18Ni9 stainless steel electrode

                                                GB/T 983 E308L-16

AWS A5.4 E308L-16

ISO 3581-B-ES308L-16

Applications: It is suitable for welding low carbon 00cr18ni9 stainless steel structure, also can be used to the corrosion resistance of stainless steel structure,such as the 0cr19ni11ti, whose working temperature below 300 ℃, it is mainly used for manufacture of synthetic fiber, fertilizer, oil and other equipment.

Features:THA002 is a coated rutile type of ultra-low carbon Cr18Ni9 stainless steel electrode.Both AC and DC can be used and can be all-position welding. It can reach  excellent welding performance, stable arc, little spatter, easy slag removal and good weld appearance. The deposited metal has good resistance to intergranular corrosion.

Welding Positions:PA,PB,PD,PF

Attention:

1.Electrode must be approved by 320-350 ℃ for 1 hour before welding, dry the electrode when use it.

2. The rust, oil, water and other impurities of the weld must be removed before welding.

3.Recommended DC power supply, because AC welding has a shallow penetration, the current should not be too large, in order to avoid the coating redness and cracking.

4. To minimize the amount of heat input and welding electrode oscillating amplitude shoulds not be too big.

5.Preheat and interlayer-temperature should remain below 150 ℃

DEPOSIT COMPOSITION(QualityScore):                      %

items	C	Cr	Ni	Mo	Mn	Si	P	S	Cu
Requir- ements	≤0.04	18.0-21.0	9.0- 12.0	≤0.75	0.5-2.5	≤1.00	≤0.04	≤0.03	≤0.75
Typical Results	0.029	19.60	9.60	0.08	0.94	0.73	0.028	0.010	0.10

MECHANICAL PROPERTIES:

items	Tensile Strength Rm/MPa	Elongation A/%
Requir-  ements	≥510	≥30
Typical Results	565	46

TYPICAL OPERATING PROCEDURES:(AC,DC+)

Diameter in(mm)	2.0	2.5	3.2	4.0	5.0
Current in(A)	25-50	50-80	80-110	110-160	160-200

Classification Society Certification:

Ship inspection agency	CCS
Recognition level	304L

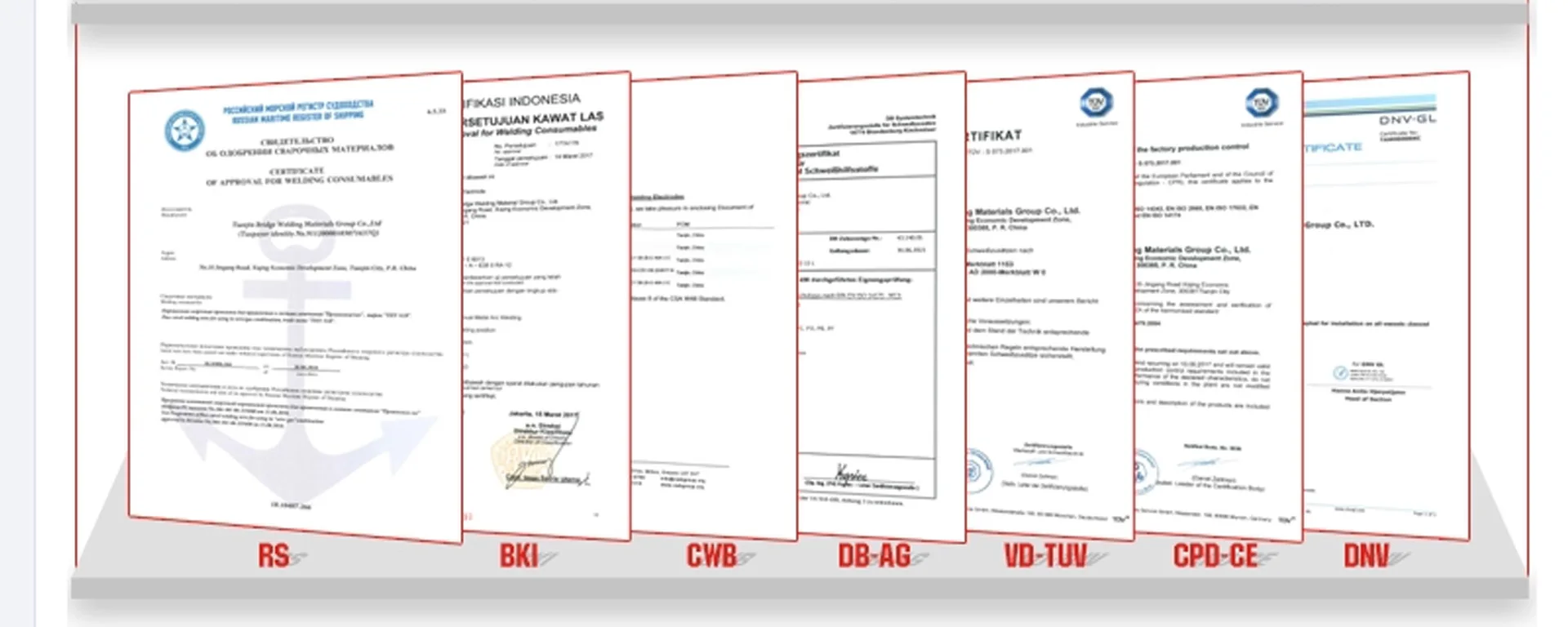

Certificates of products

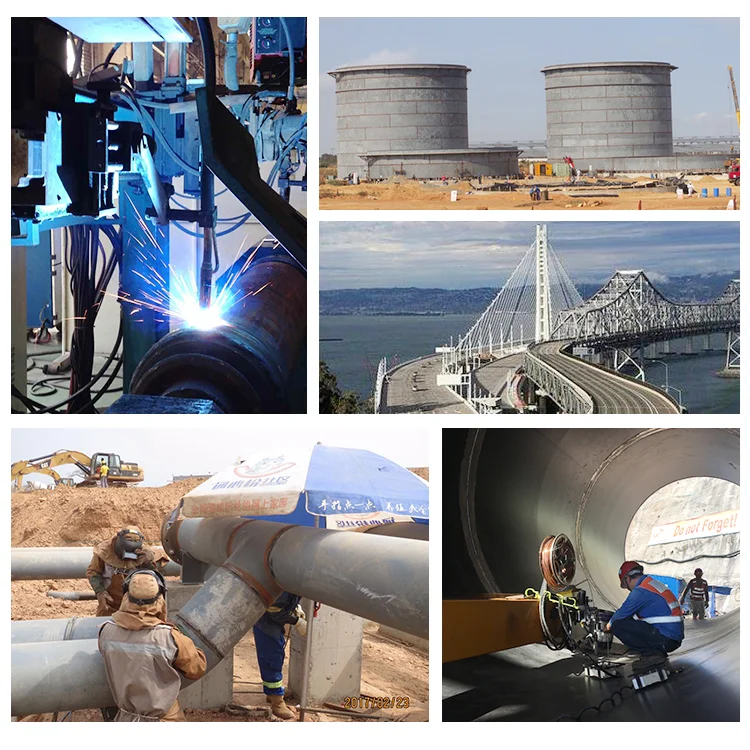

PRODUCT APPLICATION



Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade

applied to hydro steel at Laos pumped storage power station

E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project

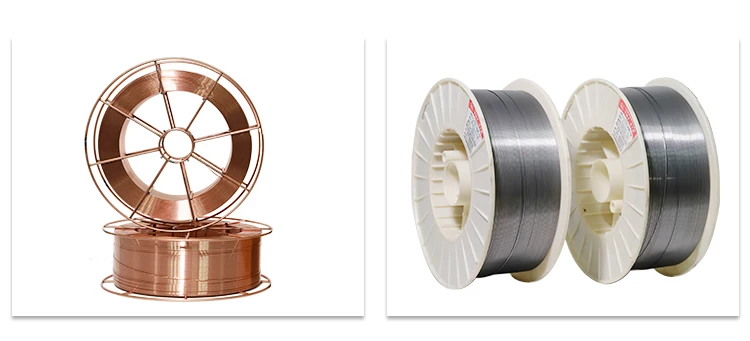

RELATED PRODUCTS
