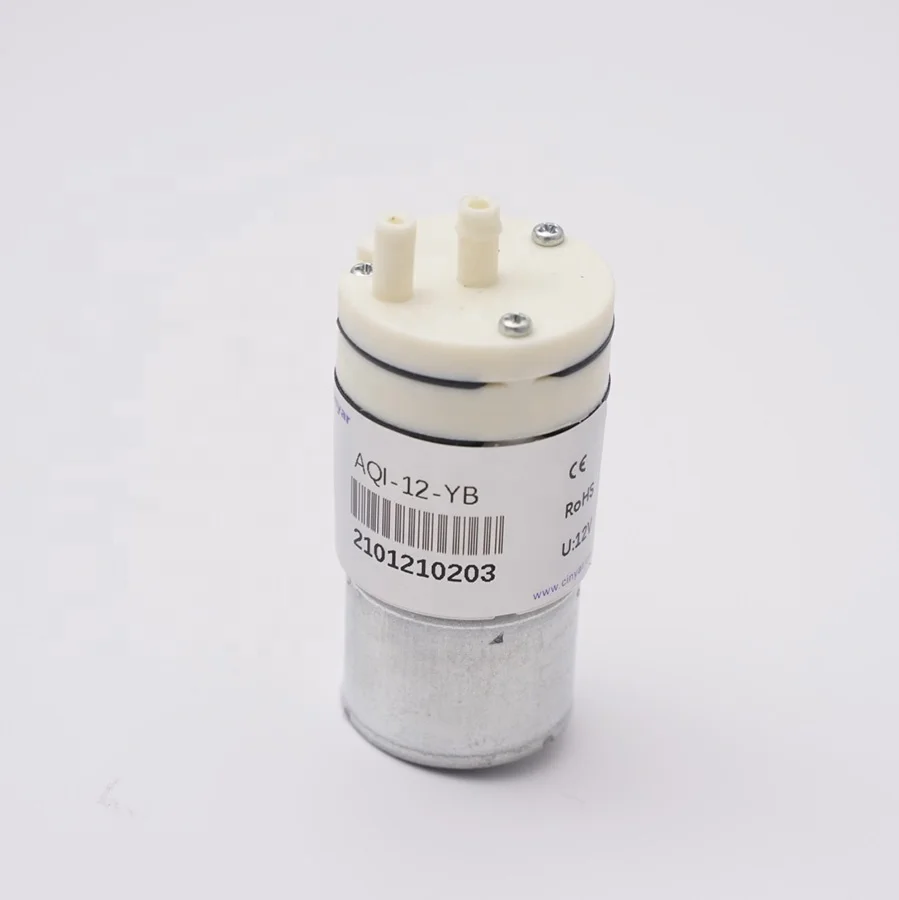

Cinyar AQI 12V/24V DC EPDM High Power Long Life Micro Chemical Liquid Metering Diaphragm Pump But Poor Oil Resistance
- Category: >>>
- Supplier: Cinyar Fluid Technology(Shanghai) Co. Ltd.
Share on (1600310535645):
Product Overview
Description
ITEM | VALUE |
Warranty | 1 years |
Customized support | OEM, ODM, OBM |
Brand Name | Cinyar |
Model Number | AQI Liquid Diaphragm Pump |
Place of Origin | China |
Shanghai | |
Application | Automotive Industry, Biofuel Industry, Developing World Water Solutions, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Utilities, Irrigation and Agriculture, Marine, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions, Other |
Horsepower | 3W |
Power Source | Electric |
Pressure | 90KPa |
Structure | Rotary Pump |
Cable Length | 175mm, 135mm |
Outlet Size | N/M |
Voltage | 12V 24V DC |
Power | 3W |
Load Current | 250mA/150mA |
Max Flow | 400ml/min |
Max Test Noise | 50dB |
Max Pressure | 90KPa |
Certification | RoHS, CE |
Color | White |
Weight | 42g |
Precision | 5% |
Mounting Type | Various per usage |
Motor Life | 3000h |
Tube | Various per usage |
Working | Operating temperature: 5-50℃ Operating Humidity: 0-90%RH |
pulse | Stamping |
Pump head | EPDM |
Cinyar Fluid Technology (Shanghai) Co., Ltd, is a high-tech enterprise founded by returnees talents, micro pump experts, supply chain management experts. We provide the most suitable micro fluidic product solutions for global enterprises. Our current production line includes peristaltic pump, diaphragm pump and accessories. The products are widely used in medical, smart home, environment protect apparatus, industry laboratory, food and beverage, modern agriculture, and other innovative areas. Cinyar has always been adhering to the “Customer Oriented" business philosophy and is committed to “Let all customers using wonderful pump".
With our strong R&D team, the factory has certified ISO9001 by SGS. The products passed the CE, RoHS certification. We have the patents over 100 and expected to 200 at 2023. With "satisfaction and excellent" quality and professional service, Cinyar enjoyed good reputation and highly recognized in our customers.
With our strong R&D team, the factory has certified ISO9001 by SGS. The products passed the CE, RoHS certification. We have the patents over 100 and expected to 200 at 2023. With "satisfaction and excellent" quality and professional service, Cinyar enjoyed good reputation and highly recognized in our customers.
