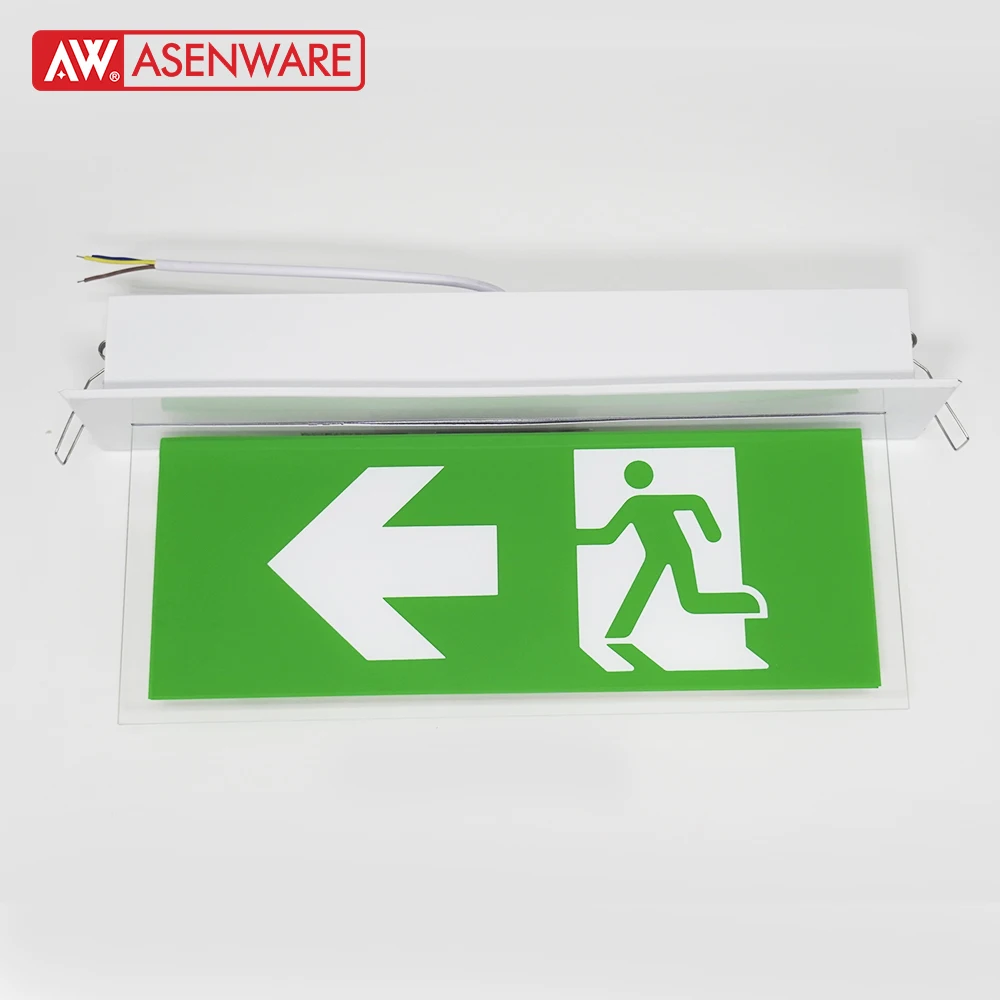

  • Aluminum Housing International Standard High Quality Edge Lit LED Exit Sign
Aluminum Housing International Standard High Quality Edge Lit LED Exit Sign
Aluminum Housing International Standard High Quality Edge Lit LED Exit Sign
Aluminum Housing International Standard High Quality Edge Lit LED Exit Sign
Aluminum Housing International Standard High Quality Edge Lit LED Exit Sign
Aluminum Housing International Standard High Quality Edge Lit LED Exit Sign
Aluminum Housing International Standard High Quality Edge Lit LED Exit Sign
Aluminum Housing International Standard High Quality Edge Lit LED Exit Sign

Aluminum Housing International Standard High Quality Edge Lit LED Exit Sign

Share on (1600310548801):


Price:$12.00 - $13.20

Quantity:


Product Overview

Description





LED Exit Sign
AW-EL306






✍ Introduction



The General Emergency Light is used for high profile commercial and industrial building, available with multi LED bars, available with 3h duration time, with battery protection and easy installation. And it has charging, power and fault indicators.

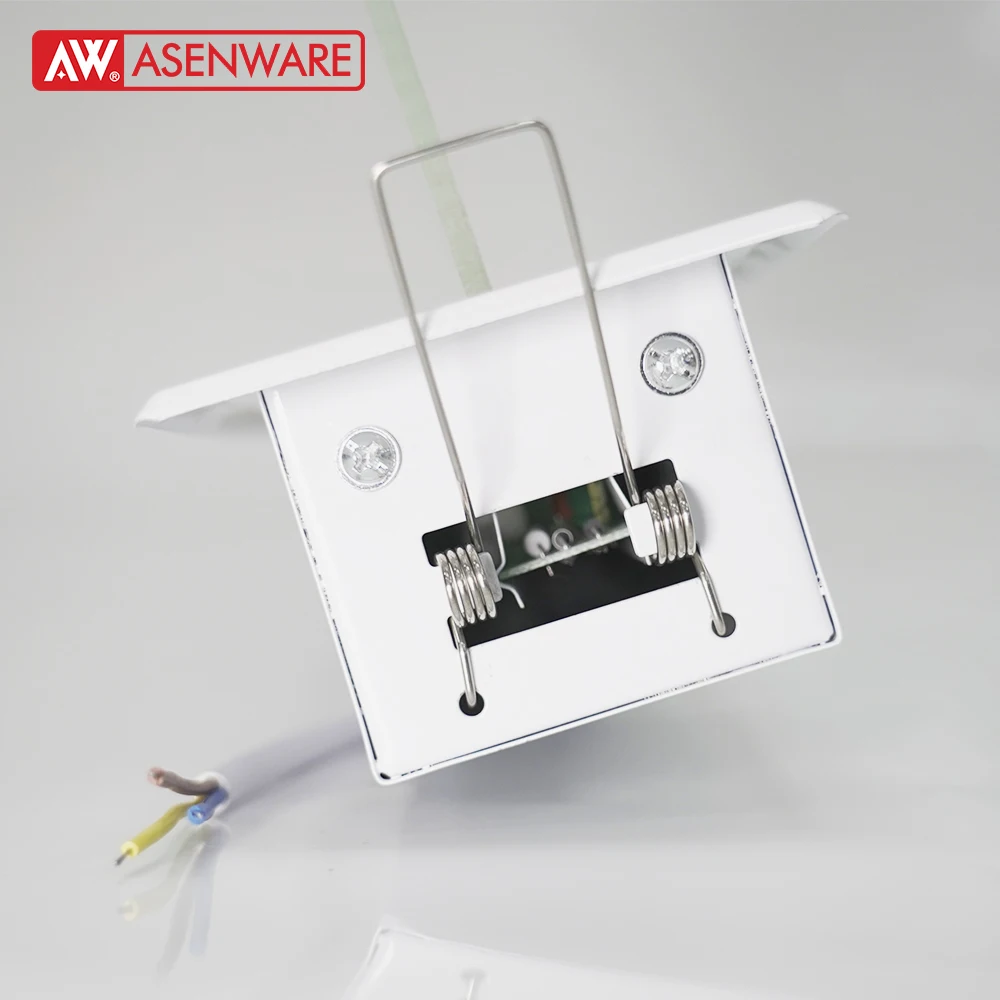

☑ Lifting installation

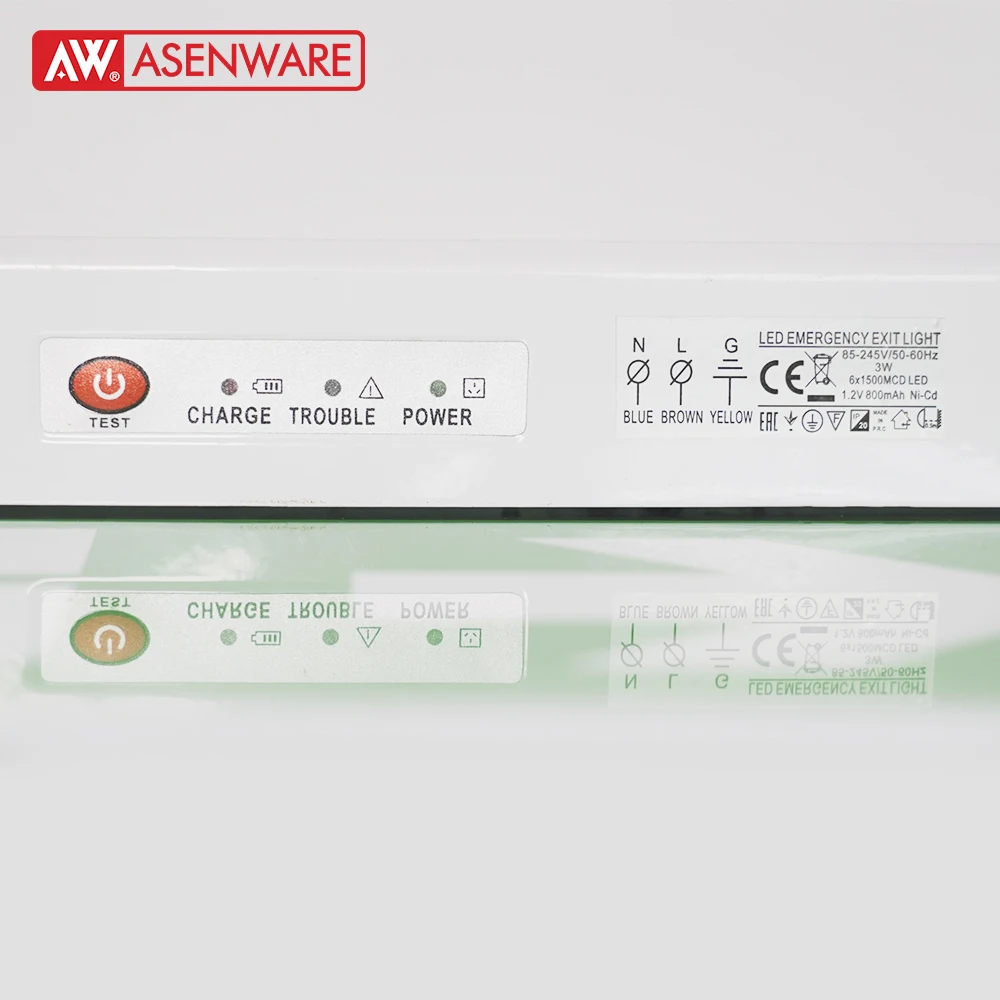

☑ LED indicators
☑ Complete functional test with every activation
☑ Meets all requirements of latest EN60598-1 & EN60598-2-22


✪ Technical Specification


Operating Voltage
220VAC 50/60Hz
Rated Wattage
Charging 2W; Emergency 1W
Rated Light output
40-50LM
Charging time
48h
Rated duration of operation
2h/3h
Battery type
Nickle-cadmium battery 1.2V
Battery discharge cut-off voltage
0.9V
Battery charge voltage limits
1.4V
Maximum charge current
35mA
Protection class
IP30
Environmental
Temperature range: -5 to 40°C (23~104°F)
Humidity: 5 to 95% RH, non-condensing
Materials
Aluminium+Acrylic
Application
For indoor use only
Size
40cm*0.58cm*19.5cm
Weight
About 900g
