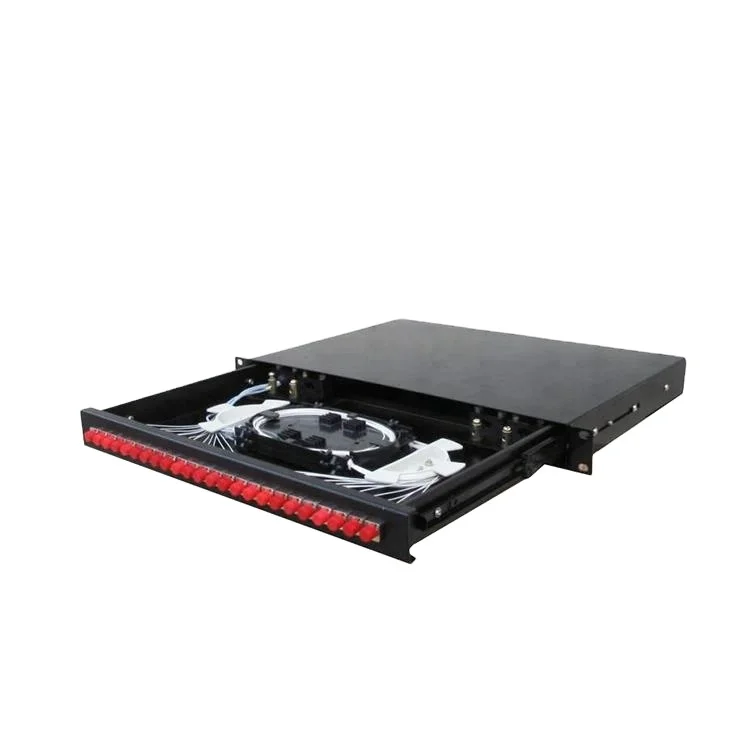

FCST03105 24 Port 96 Core Fiber Optic Distribution Box Patch Panel And ODF For ODN Network Distributing With Adaptor And Pigtail
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd.
Share on (1600310613645):
Product Overview
Description
Detail Images
Products Description
Product Overview

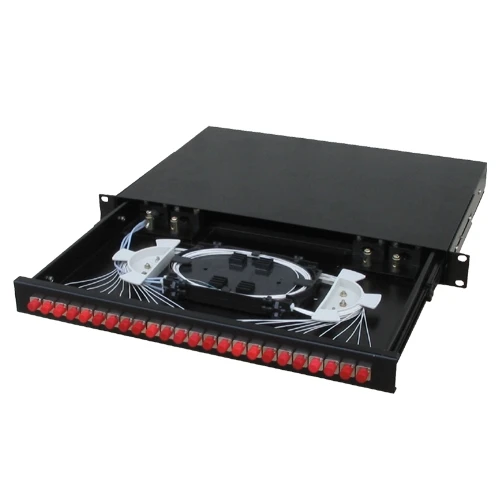

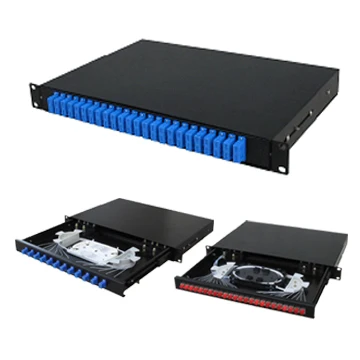

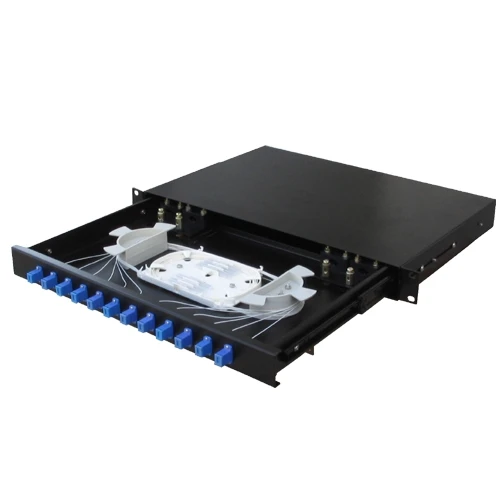

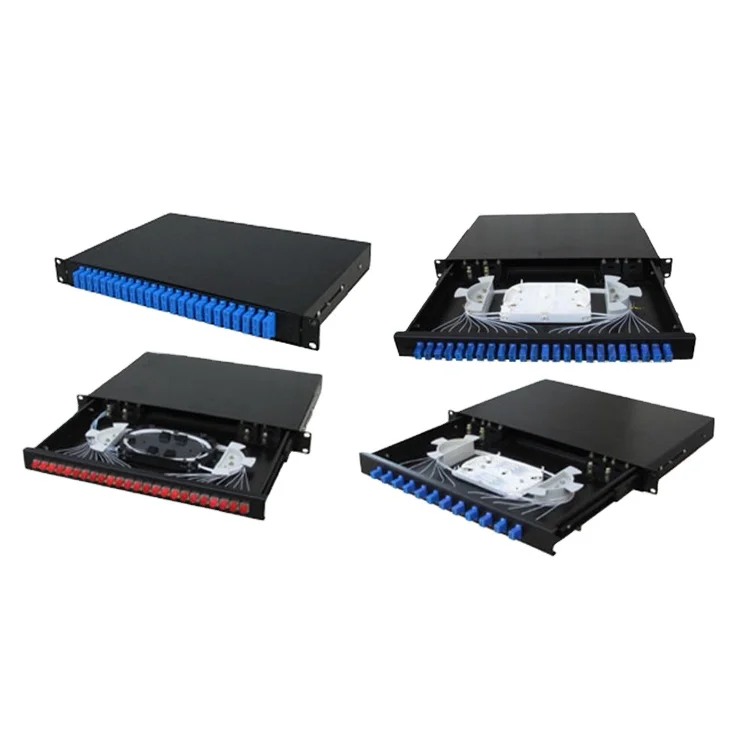

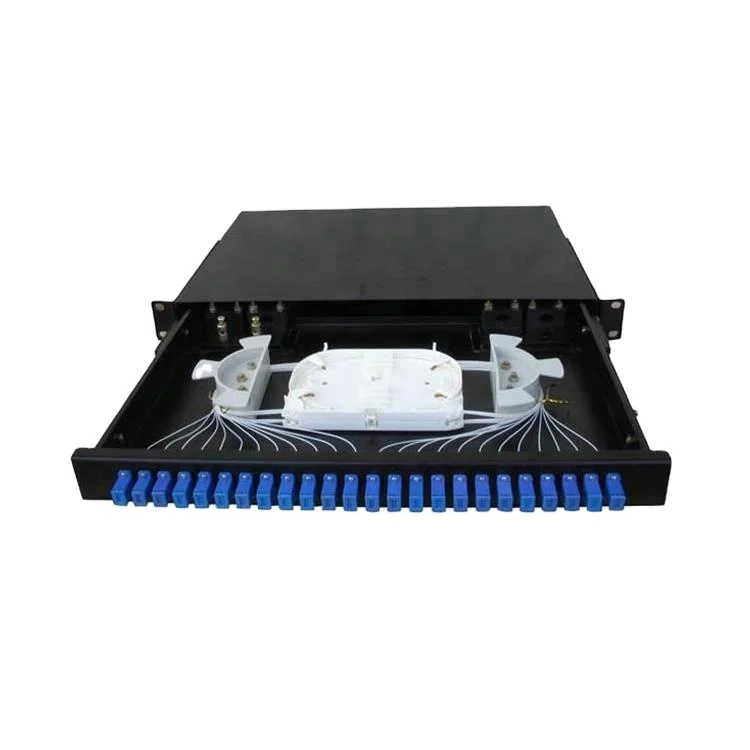

FCST03105 Fiber Optic Patch Panel is the device that terminates between the optical cables and the optical communication equipments, with the function of splicing, termination, storing and patching of optical cables.It consists of housing and splice tray. The splice tray is used in the cabinet for the function of splicing of the fiber optic cables. The housing is made of cold rolling steel, with powder coating. It is used in indoor environment.
Product Advantages
-All property indexes are in accordance with National YD/T925-1997 Standard
-Special fiber routing designs to ensure the bending radii greater than 40mm.
-Adopting the splice trays for easy operations.
-19" rack mounted.
-Adopting static powder coating techniques, rust-proof and beautiful appearance.
-Special fiber routing designs to ensure the bending radii greater than 40mm.
-Adopting the splice trays for easy operations.
-19" rack mounted.
-Adopting static powder coating techniques, rust-proof and beautiful appearance.
Type | FCST03105-1U | FCST03105-2U | |
Max Capacity | 48cores | 96cores | |
Panel Connector | SC Duplex | SC Duplex | |
Dimension (L*W*H,mm) | 482*300*1U | 482*300*2U | |
Adaptor Port | 24 | 48 | |
Net Weight（kg） | 4.5 | 5.9 | |
Packing | 5pcs/Carton 27.5kg 0.073m³（485*420*350mm） | 4pcs/Carton 24.8kg 0.094m³（495*340*545mm） | |
Optical Fiber Winding Radius | ≥40mm | ||
Lateral Pressure-resistance | 500N | ||
Shock-resistance | 750N | ||
Fiber Length Left In Tray | ≥1.6m | ||
Material | Cold Rolled Steel or Aluminum | ||
Storage Temperature | -45~+65℃ | ||
Recommend Products
Company Profile
As a 17 years old company in fiber optic tools field, we can distribute and provide full of your test instruments and tools
related to the fiber optic field. Our products include test instruments like Optic Test Domain Reflectometry, fiber optic power meter, fiber optic light resource, fiber optic identifier, visual fault locator, Passive Optical Network power meter and fiber optic tools like cable slitter, cable stripper, cleaning tools, fusion splicers. We have got I S O 9001 certification in 2020, we promise to ship out the goods within 7days after your order confirmed. We will set up four warehouses which cover Latin countries, east European countries, African countries, southeast Asian countries in order to ship the goods in 2 days after the order confirmed in the near future.
related to the fiber optic field. Our products include test instruments like Optic Test Domain Reflectometry, fiber optic power meter, fiber optic light resource, fiber optic identifier, visual fault locator, Passive Optical Network power meter and fiber optic tools like cable slitter, cable stripper, cleaning tools, fusion splicers. We have got I S O 9001 certification in 2020, we promise to ship out the goods within 7days after your order confirmed. We will set up four warehouses which cover Latin countries, east European countries, African countries, southeast Asian countries in order to ship the goods in 2 days after the order confirmed in the near future.

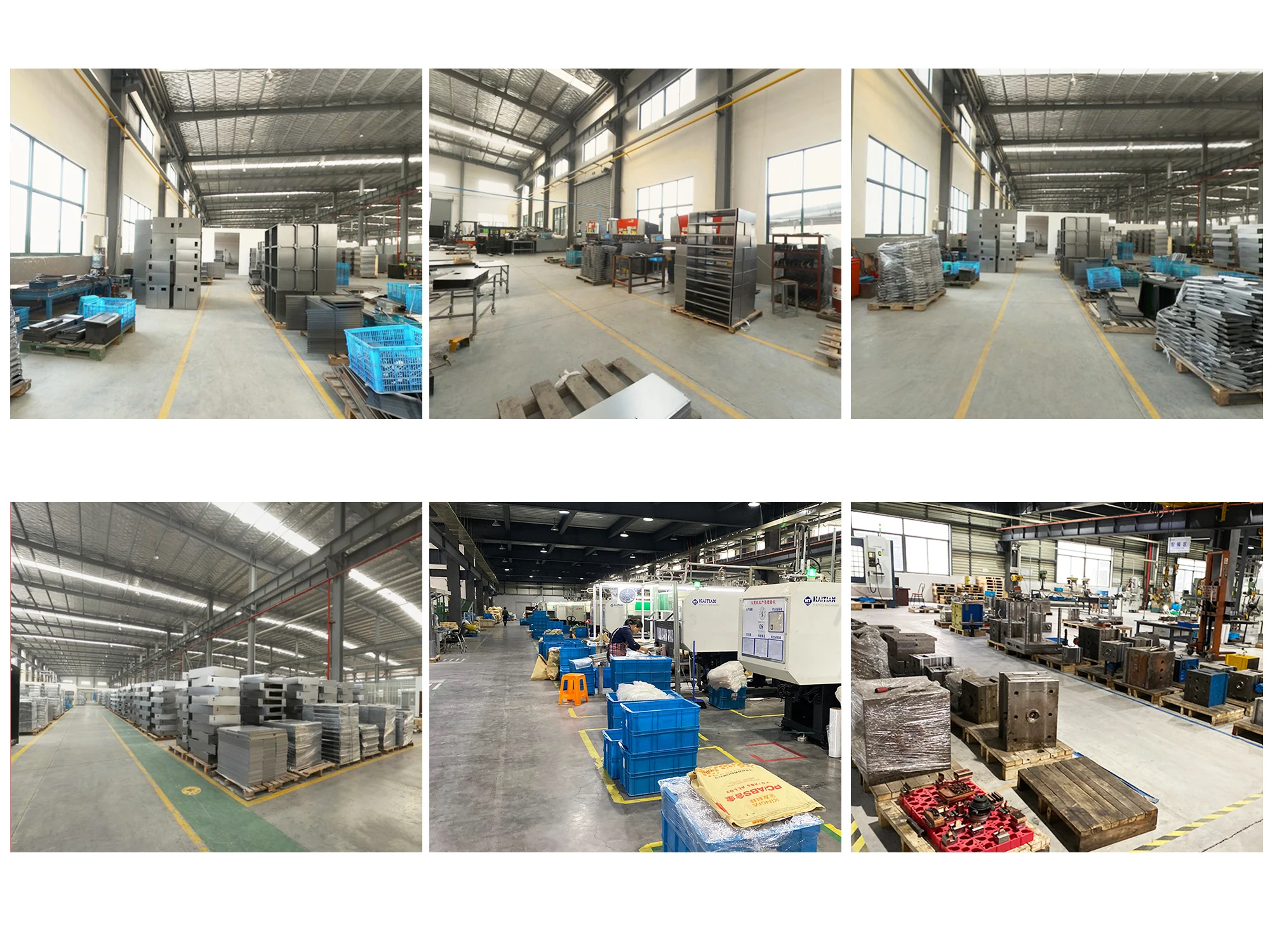

Our Factory
