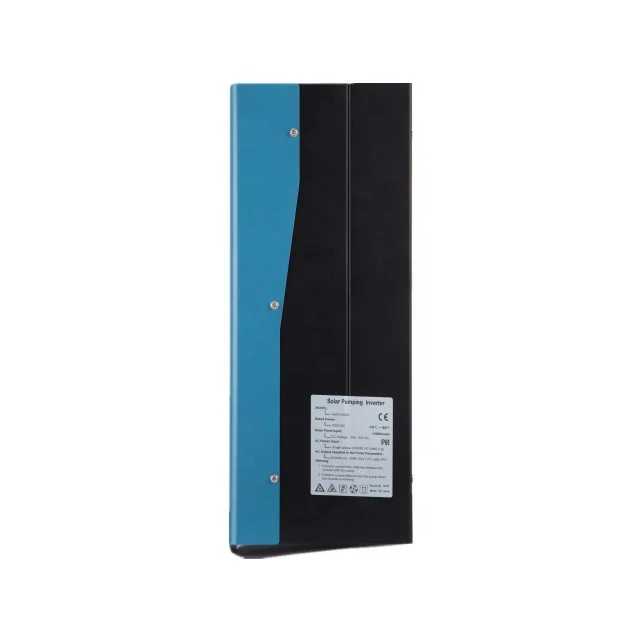

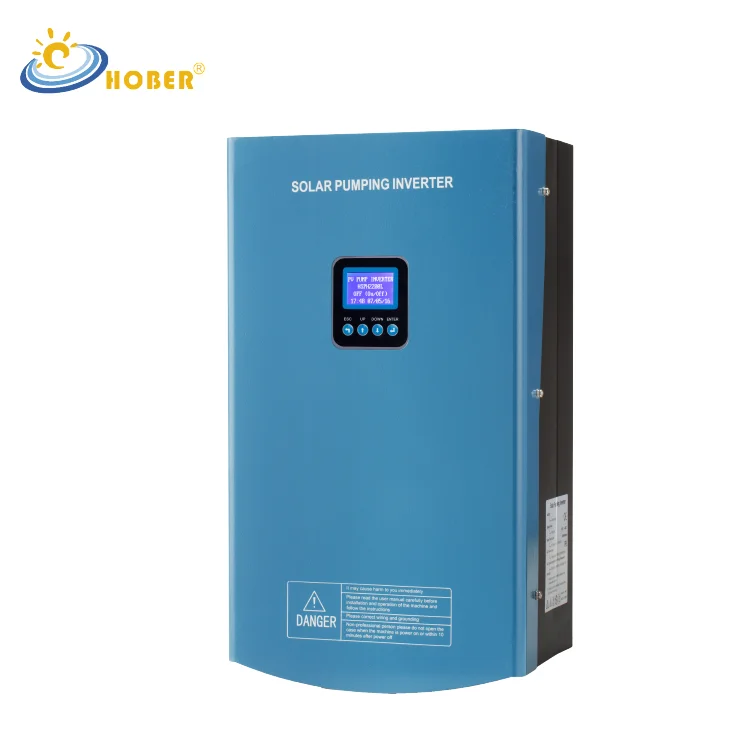

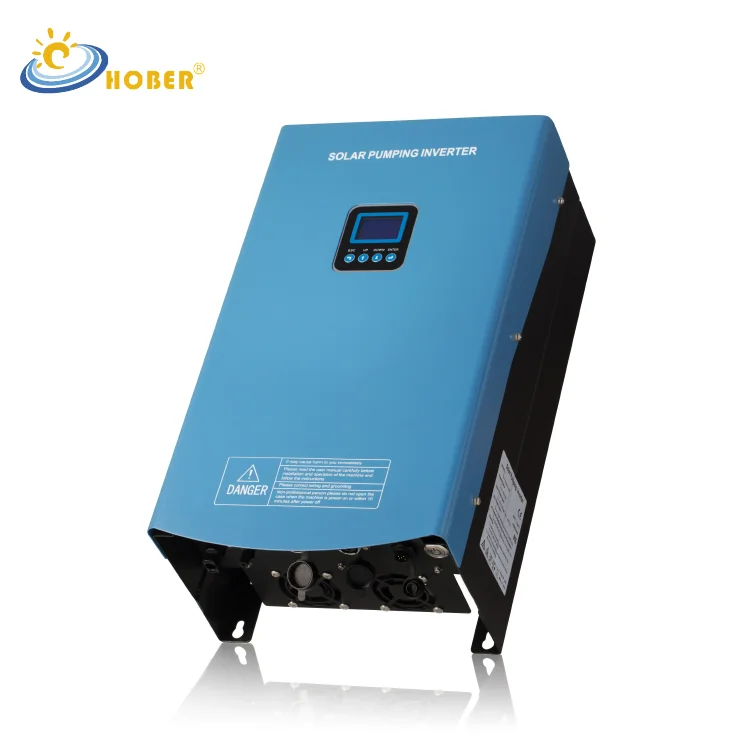

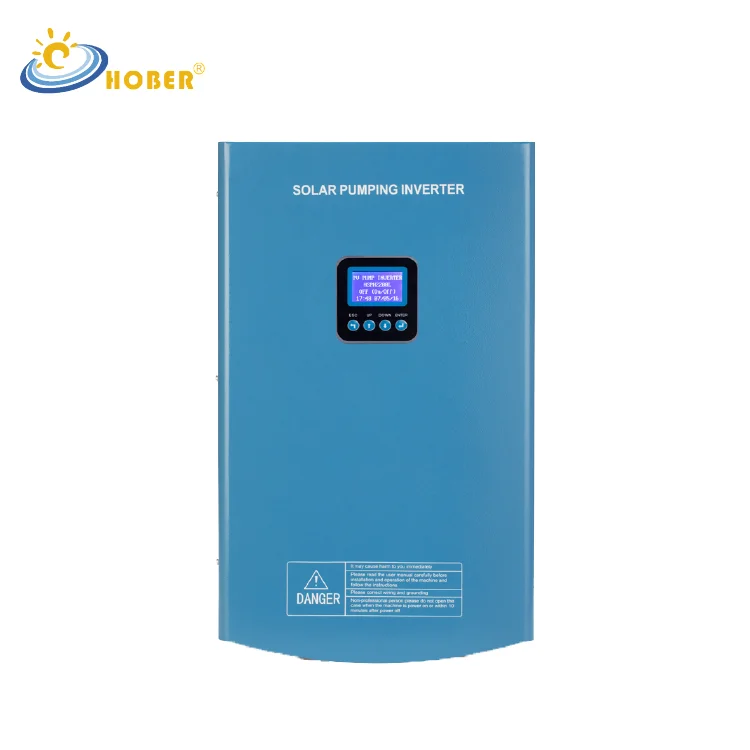

1 Phase 220v 2.2kw MPPT IP65 solar water pump inverter vfd for pump hybrid pump inverter for agriculture
- Category: Solar Pump Inverter >>>
- Supplier: Foshan Hober Electric Co. Ltd.
Share on (1600310659030):
Product Overview
Description
Products Description
Inverter Feature:
Smart:
Full automatic operation, no need programming, user-friendly
Modular design, easy install , operate & maintain
Support remote monitoring & control (2G/4G/WIFI for option)
Support Logo/Lable/Color/Function OEM Serive
Efficient:
1:1 match to AC pumps with strong overload capacity
30% more water output with advanced inverter control algorithm
Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm
Built-in booster with lower solar operating voltage to reduce solar panels costs
Good ROI (Return on Investment) against diesel powered pumping
Reliable:

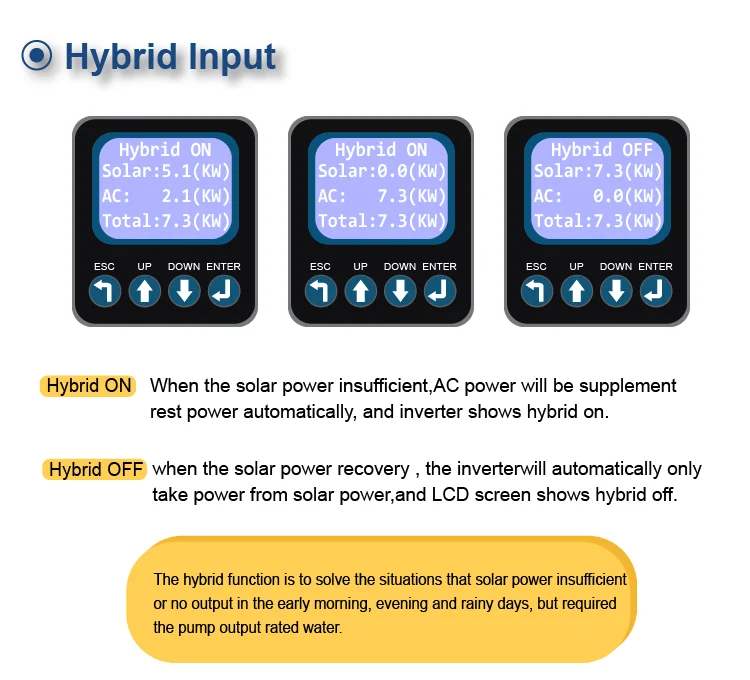

Hybrid function –Solar power priority, grid power/generator dual input as compensation
Key parts use famous brand components, longer service life
Wide range of input voltage
IP65 design, continuous full-load operation between -10℃ to +60℃
Compatible with all AC pumps (0.37kw-150kw)
Certification qualified from authoritative third party, inverters can be exported to all countries
Professional & Independent R&D team, good service for pre-sales and after-sales
Fast delivery and quick response
Comprehensive Protections:
Soft start
DC Input Anti-reverse
AC Input/Output Phase lost(3Phase)
AC Output Short Circuit
AC Output Unbalance (3Phase)
Pump Dry run protection By sensor/ software
Water Over Flow of Tank
Solar Low power
Over Load
AC Output Over Current
Full automatic operation, no need programming, user-friendly
Modular design, easy install , operate & maintain
Support remote monitoring & control (2G/4G/WIFI for option)
Support Logo/Lable/Color/Function OEM Serive
Efficient:
1:1 match to AC pumps with strong overload capacity
30% more water output with advanced inverter control algorithm
Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm
Built-in booster with lower solar operating voltage to reduce solar panels costs
Good ROI (Return on Investment) against diesel powered pumping
Reliable:
Hybrid function –Solar power priority, grid power/generator dual input as compensation
Key parts use famous brand components, longer service life
Wide range of input voltage
IP65 design, continuous full-load operation between -10℃ to +60℃
Compatible with all AC pumps (0.37kw-150kw)
Certification qualified from authoritative third party, inverters can be exported to all countries
Professional & Independent R&D team, good service for pre-sales and after-sales
Fast delivery and quick response
Comprehensive Protections:
Soft start
DC Input Anti-reverse
AC Input/Output Phase lost(3Phase)
AC Output Short Circuit
AC Output Unbalance (3Phase)
Pump Dry run protection By sensor/ software
Water Over Flow of Tank
Solar Low power
Over Load
AC Output Over Current
Product Paramenters
Model | HSPH2200L | ||
Solar Panel DC Input | Max Voc Voltage | 450V | |
Min Vmp Voltage | 200V | ||
Recommend Vmp Voltage | ≥300V (Only Solar), ≥340 V (Hybrid Power) | ||
Max MPPT Efficiency | 99% | ||
Max Input Current | 15A | ||
Number Of Strings | 1 | ||
Over load Power | 3800W | ||
Note | Automatic. MPPT Function to Identify the Voc and Vmp of Solar Panel,without programming | ||
Hybrid AC/Generator Input | Voltage | 1 Phase 220/240V | |
Max Input Current | 18A | ||
Hybrid Mode | Y | ||
AC Output (For Pump, Rerator, Fan Parameters) | Max Adapted AC Pump Horse Power | 3 HP | |
Max Adapted AC Pump Power | 2200W | ||
Drive Mode | 3Phase Variable Frequency Drive | ||
Max Output voltage | 380/400/440V | ||
Max Output frequency | 50 ~ 60 Hz (support program range 15 to 60Hz) | ||
Max Output Current | 21 A | ||
Max Efficiency | 97% | ||
Water Level Sensor(Borehole / Tank) | Yes | ||
GPRS SMS Monitor&Controller | YES(Optional) | ||
Support Remote Monitoring & Control System (SPMCS) | YES(Optional) | ||

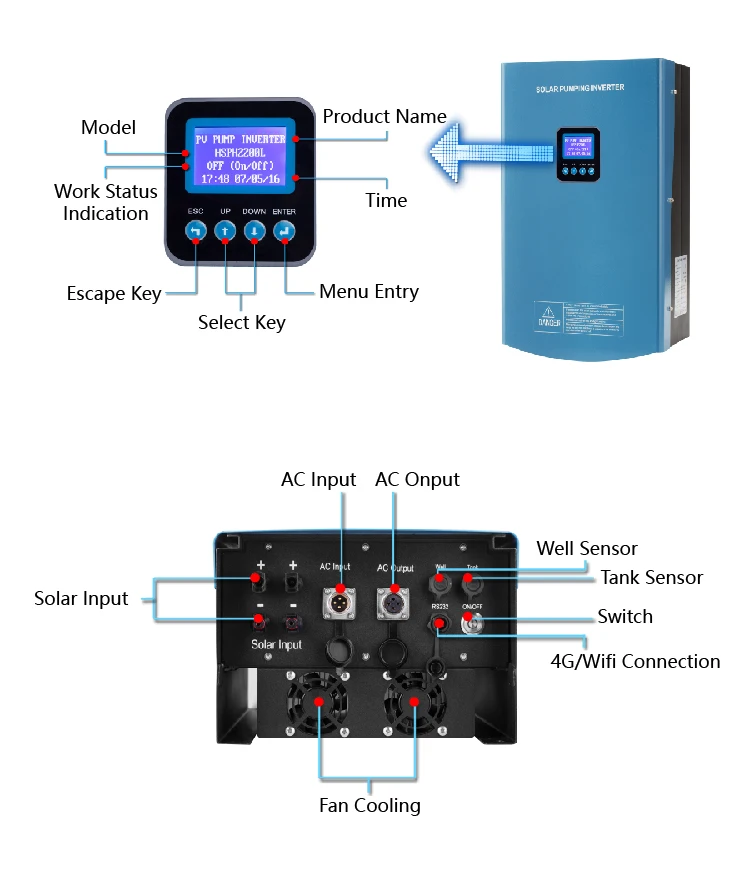

Display | LCD display | ||
Waterproof | IP65 | ||
Noise | < 75dB | ||
Cooling Method | Force Cooling by Fan | ||
Operating Enviornment | Operating Environment Temperature | -10 to 60℃, Above 60℃ need to derate load | |
Max Humidity | 95%RH | ||
Using Altitude | < 3000m, Above 3000m need to derate load | ||
Others | Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc | ||

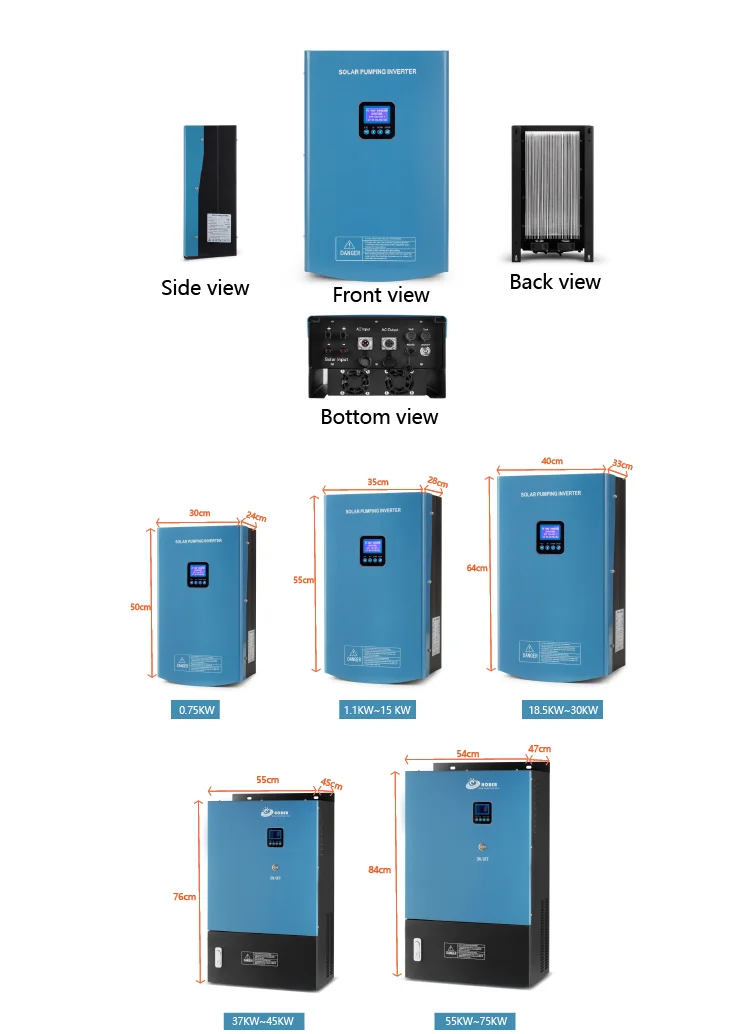

Package | Size | 550*350*285 MM | |
Weight | 14KG | ||
Application

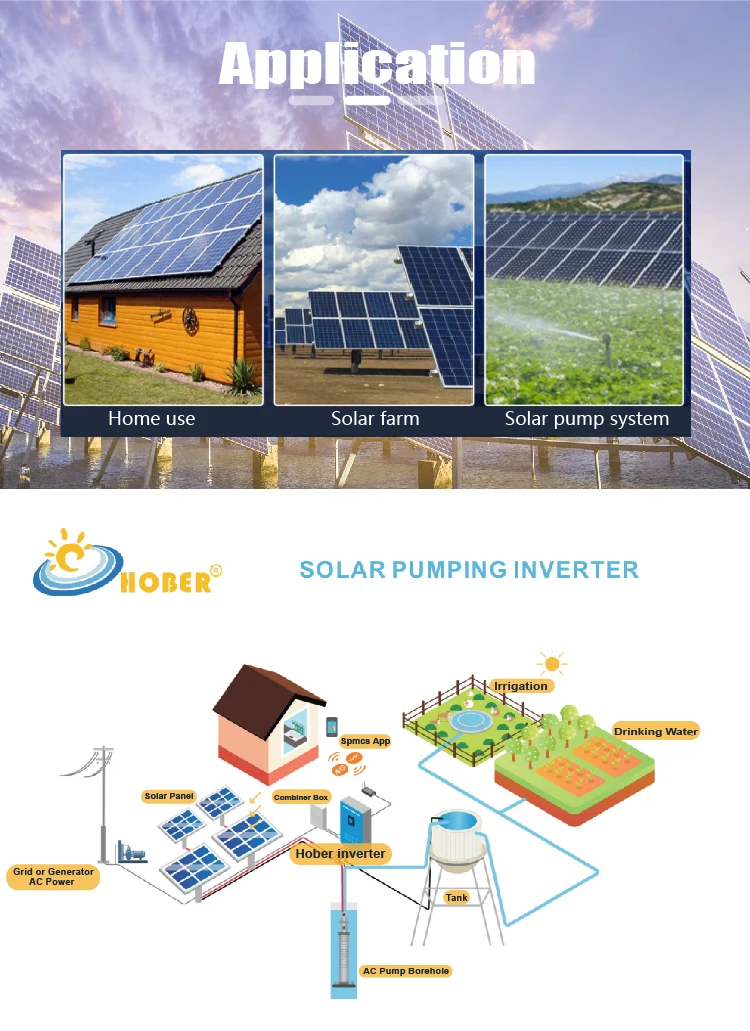

Solar water Pumping System
Solar water Pumping System is consist of PV panel,pumping inverter/controller,AC/DC pump .
Solar Pump Inverter are conver the DC power of the PV array to 3ph-AC power
and drives the pump,according to the power of PV array output,regulates output frequency and let PV output max power at all time.
Solar Pump Inverter are conver the DC power of the PV array to 3ph-AC power
and drives the pump,according to the power of PV array output,regulates output frequency and let PV output max power at all time.
Company Profile
Founded in 2009, Hober Techology Co.,Ltd (Abbr. Hober) is a professional manufacturer of solar pump inverter/controller in the IEC standards and certified to the ISO9001 quality management system.
As a leading supplier with outstanding products and services, Hober has a strong Research & Development and technical service team which focus on innovation and make us be the leader of latest technology. Well-trained engineers are ready to offer customers all-around back-ups including professional solutions, technical trainings and pre-sales & after-sales service support.
Hober has rich experience to offer high cost-effective products and integrated energy solutions. In the past 11 years, the solar products are used in over 60 countries and areas , the stable operation & excellent performance are universally recognized by users around the world.
In the next decade, Hober will continue to take " Innovation, Excellence, Quality, Service " as our business philosophy and strive to be a responsible and professional enterprise with superior competitiveness.
As a leading supplier with outstanding products and services, Hober has a strong Research & Development and technical service team which focus on innovation and make us be the leader of latest technology. Well-trained engineers are ready to offer customers all-around back-ups including professional solutions, technical trainings and pre-sales & after-sales service support.
Hober has rich experience to offer high cost-effective products and integrated energy solutions. In the past 11 years, the solar products are used in over 60 countries and areas , the stable operation & excellent performance are universally recognized by users around the world.
In the next decade, Hober will continue to take " Innovation, Excellence, Quality, Service " as our business philosophy and strive to be a responsible and professional enterprise with superior competitiveness.

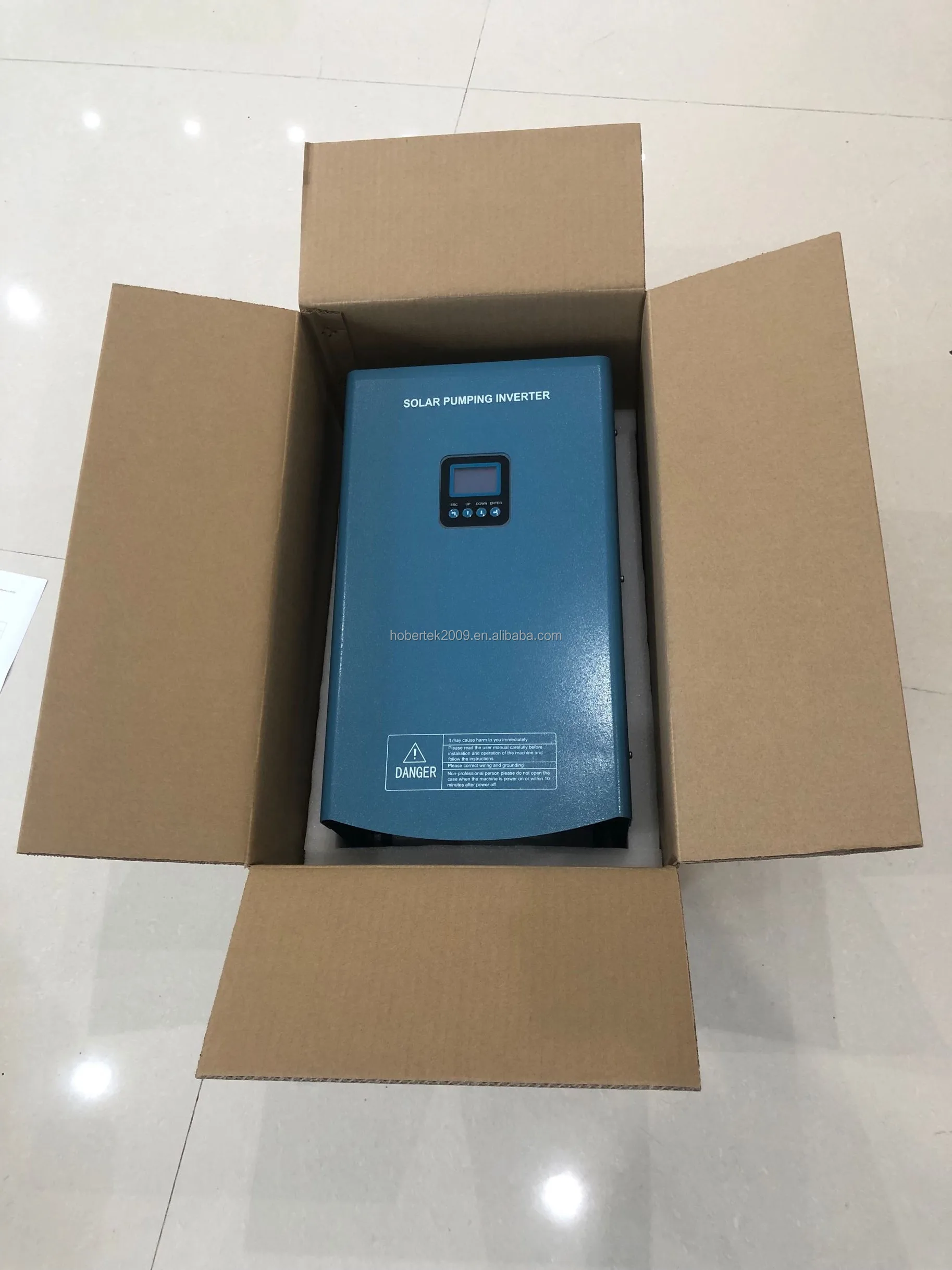

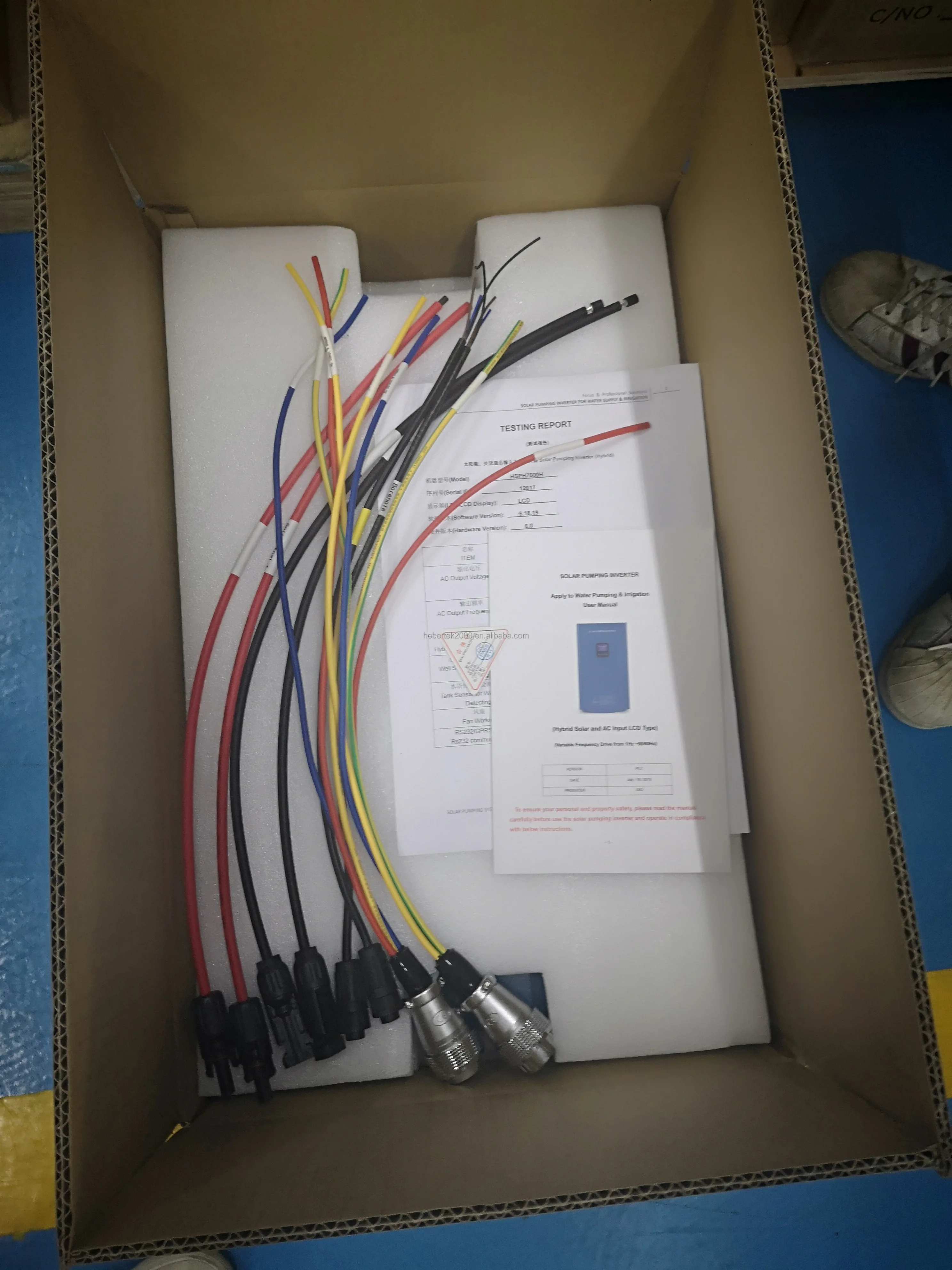

Packaging & Delivery
