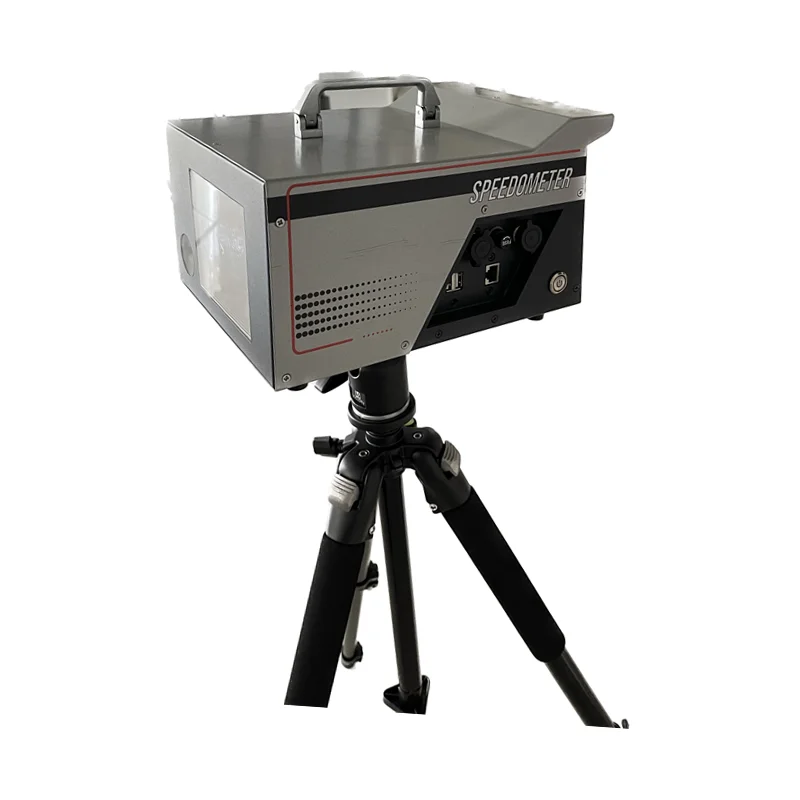

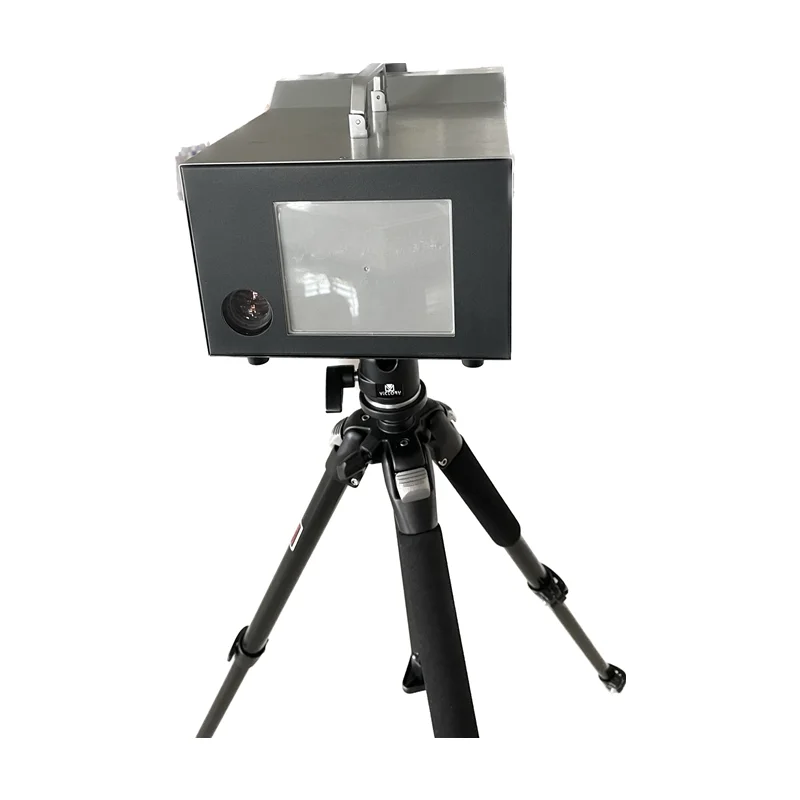

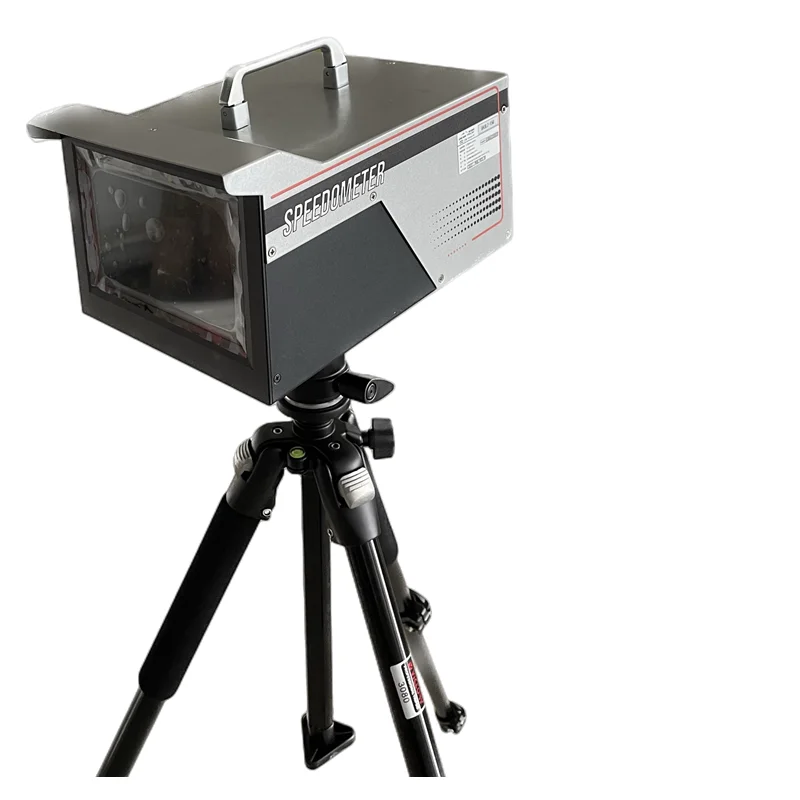

DASLZ 20A portable integrated 24.15GHz narrow beam high accuracy radar speed gun with speeding lpr capture system
- Category: >>>
- Supplier: Shenyang Dean Technology Co. Ltd.
Share on (1600310730904):
Product Overview
Description
Product Description
Specification
parameter name | Specific parameters | |
device host | size | 220*190*155mm |
shell material | Galvanized spray paint shell | |
Weight (KG) | 3.85KG | |
industrial computer | model | ECM-I715 |
size | 1(W*H): 146mm*108mm | |
processor | Intel® Celeron® Processor J1900 processor frequency 2.0~2.42GHz, quad-core four-thread, 2M cache, 22nm, TDP 10W | |
system memory | DDR3L 4G | |
hard disk | 128G solid state | |
power supply | DC IN 9~36V | |
Operating temperature | -20℃～60℃ | |
Storage temperature | -40℃～85℃ | |
operating system | Windows 7 | |
display screen | model | LCD screen EE070NA-01D |
size | 7 inches | |
resolution | 1024*600 | |
Display mode | Normally White, Transmissive | |
radar | speed error | When the speed value is between 0-100km/h, the error is less than -3km/h. When the speed value is greater than 100km/h, the error is less than -3%. |
Speed range | (10~300)km/h | |
working frequency | 24.14.GHz | |
capture rate | >99% | |
Capture distance | 0-300m | |
power supply | (9 ~ 16) VDC | |
trigger form | Support head, tail, double trigger | |
direction discrimination | Support, can distinguish coming and going | |
Working power consumption | <2W | |
Operating temperature | -40℃~ 85℃ | |
Working humidity | Relative humidity 5% ~ 95% | |
protection level | IP67 | |
weight | 0.5 kg | |
camera | model | MER-503-20GM/CP |
resolution | 2448(H)×2048(V) | |
frame rate | 20 fps | |
sensor | 2/3" ,Global Shutter Sony IMX264 CMOS | |
pixel size | 3.45 μm × 3.45 μm | |
spectrum | black and white / color | |
exposure time | 20μs~1s | |
power supply interface | 12 VDC (powered by 8-Pin interface) or PoE | |
power | <3W @12VDC, <3.75W@PoE | |
Operating temperature | 0°C ~ +45°C | |
storage temperature | -20°C ~ +70°C | |
Working humidity | 10% ~ 80% | |

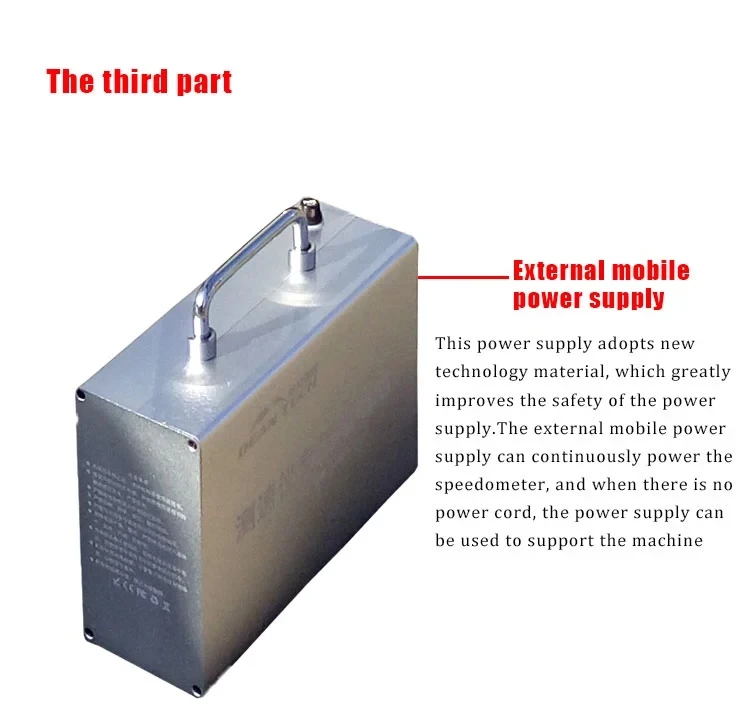

Battery | type | External 30AH lithium battery |
Specification | 223*81*171mm; 2.7KG | |
shell material | Anti-static aluminum-magnesium alloy oxidation paint shell | |
Endurance | About 10 hours; depending on the use environment | |
charging time | about 7 hours | |

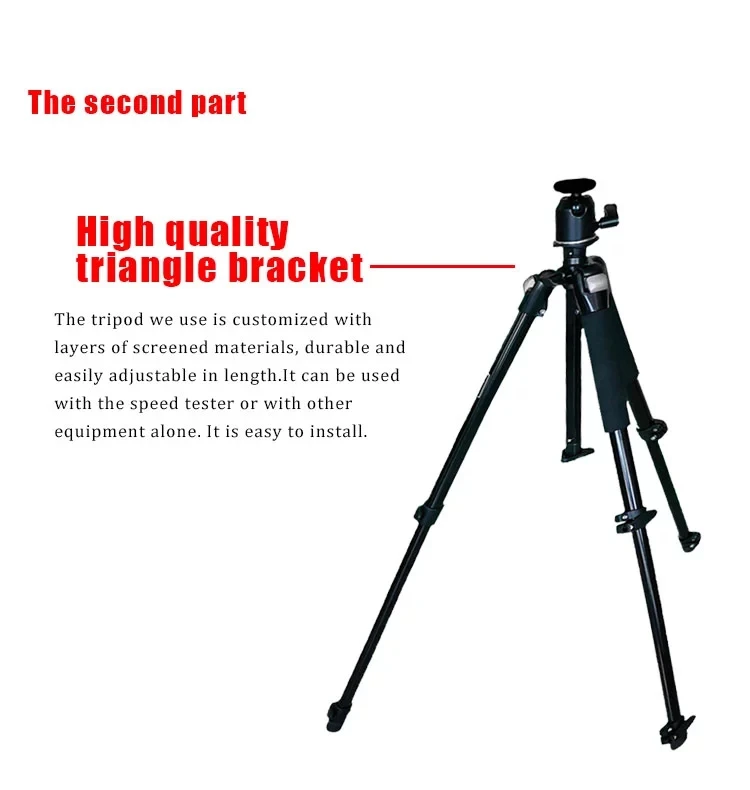

tripod | tripod | Victaulic professional grade tripod |
Tripod Specifications | 175MM-1530MM; 0.433KG; black | |
flash | Flash parameters (optional) | Flash power: 50WS |
Guide number (GN): 73 (ISO 100 1M) | ||
Flash color temperature: 5000-6000K | ||
Flash output power: 50WS | ||
Call back time: 1.2s | ||
Second flash interval: <50ms | ||
Flash delay: less than 100us (the delay from when the camera sends a trigger signal to when the flash reaches maximum brightness). | ||
Flashing life: no less than 1 million times (imported bayonet lights with special capacitors no less than 10 million times). | ||
Optimum illumination distance: The illuminance that can be provided at a distance of 15-22 meters from the front of the lamp is the best brightness. | ||
Control mode: digital input or TTL high level Working voltage: DC 12V (11V-14V) | ||
Ambient temperature: -30℃~70℃ | ||
Sealing grade: IP65 |
